Mean Well PLP-30-24 Single Output LED Driver 30W
Overview
PLP-30-24 is the 24V output model of this series: rated current 1.3A, rated power 31.2W, typical efficiency 85.5%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Over current / Over voltage
- Built-in active PFC function
- Cooling by free air convection
- Class 2 power unit
- Output current level adjustable
- 100% full load burn-in test
- High reliability
- Suitable for built-in applications of LED lighting
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.5
- 18 ~ 24V
- RATED CURRENT
- 1.3A
- CURRENT RANGE
- 0 ~ 1.3A
- RATED POWER
- 31.2W
- RIPPLE & NOISE (max.)Note.2
- 2.4Vp-p
- CURRENT ADJ. RANGE
- 0.975 ~ 1.3A
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±5.0%
- SETUP TIME
- 500ms / 230VAC 1200ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)

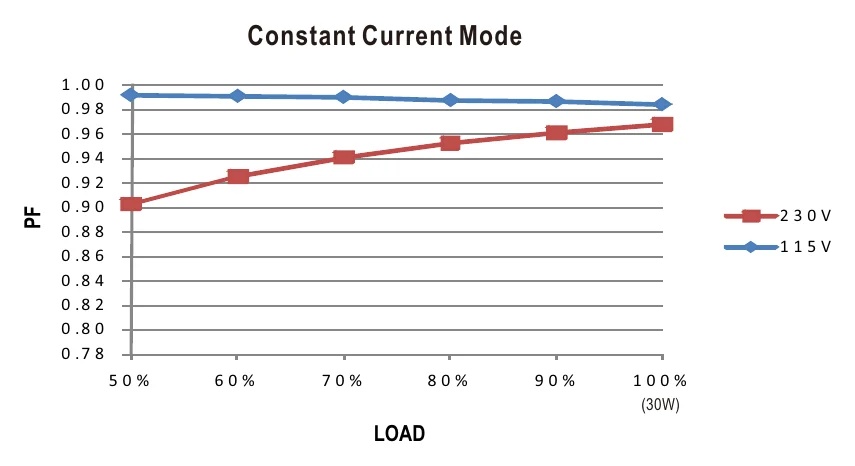

- PF>0.9 at 75 ~ 100% load , 115VAC / 230VAC
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≥75% at 115VAC/230VAC input
- EFFICIENCY (Typ.)

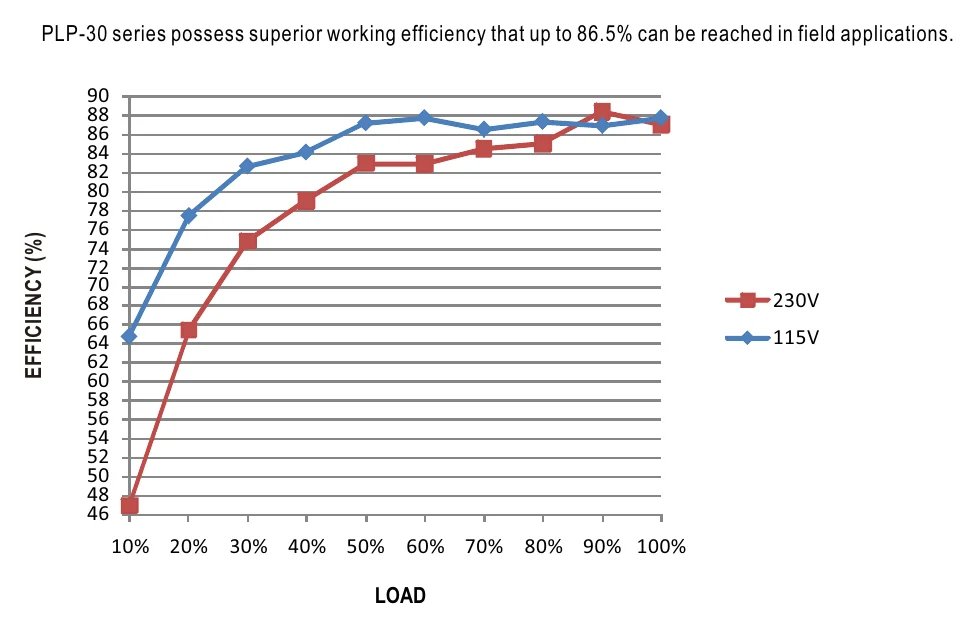

- 85.5%
- AC CURRENT (Typ.)
- 0.4A/115VAC 0.2A/230VAC
- INRUSH CURRENT (max.)
- COLD START 25A(twidth=45μs measured at 50% Ipeak) at 230VAC
- MAX.No. of PSUs on 16A CIRCUIT BREAKER
- 64units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER CURRENTNote.5
- 100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 28 ~ 33V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

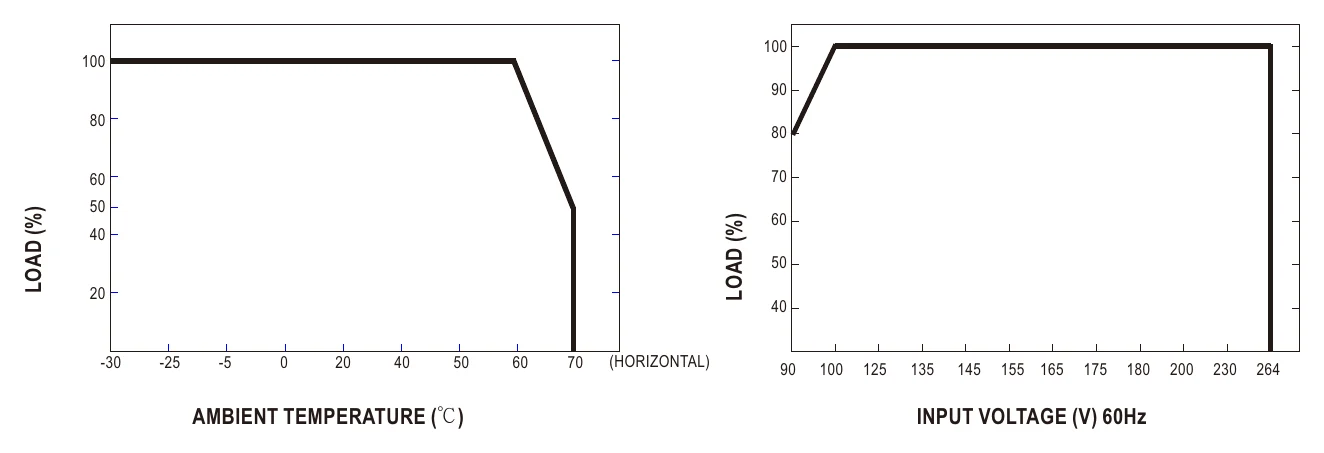

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- GB/T19510.1,GB/T19510.213,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V),EAC TP TC 004 approved ; design refer to UL60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to GB/T 17743, GB17625.1,BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load); BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 5126.3K hrs min. Telcordia SR-332 (Bellcore) ; 580.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

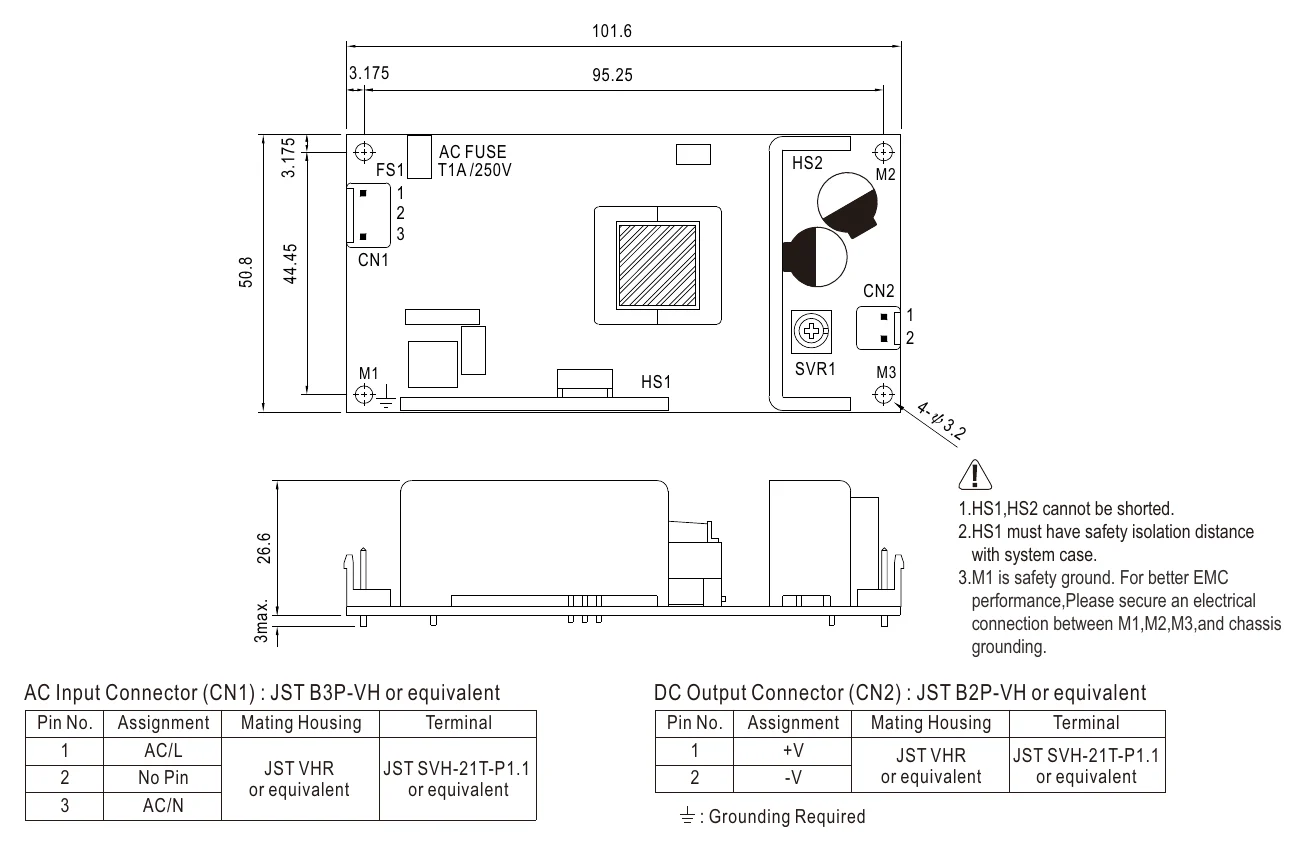

- 101.6*50.8*26.6mm (L*W*H)
- PACKING
- 0.12Kg; 108pcs/13Kg/0.89CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. Please refer to "DRIVING METHODS OF LED MODULE".
- 6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. Heat Sink HS1,HS2 can not be shorted.
- 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

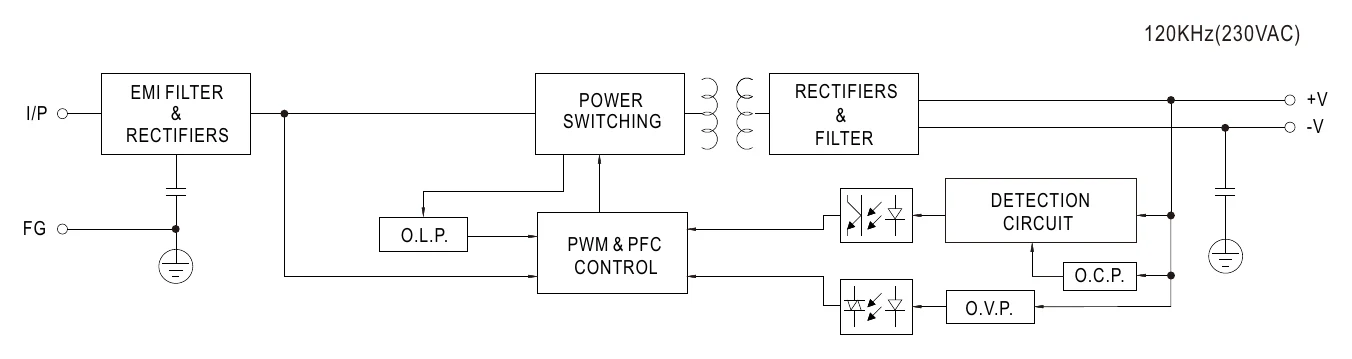

Technical drawings
Downloads
Datasheet1
FAQ
What is the output rating of the Mean Well PLP-30-24?
The Mean Well PLP-30-24 is rated for 31.2W output. This model provides a 24V output and a rated current of 1.3A. It is intended to drive LEDs in its constant current region of 18 to 24V, for LED lighting applications that match those output requirements.
Is the PLP-30-24 dimmable?
No dimming function is listed on the datasheet for the PLP-30-24. Its output current can only be set within the 0.975 to 1.3A adjustment range. Buyers needing dimming should compare it against models with a dedicated dimming function.
What kinds of applications is the PLP-30-24 suited for?
This model is an LED power supply designed as a component to be installed in final equipment such as LED lighting fixtures. It is suggested for connecting directly to LEDs in constant current mode and is not suitable for use with additional drivers. It is best matched to applications requiring a 24V, 1.3A LED driver from a recognized industrial brand.
What input range does the Mean Well PLP-30-24 support?
The PLP-30-24 has a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. That wide range makes it suitable for buyers sourcing for different mains environments. It also includes PFC, with a typical power factor above 0.9 at 75 to 100% load.
Can the output current be adjusted on this model?
Yes, the PLP-30-24 lists an adjustable output current level. The stated adjustment range is 0.975 to 1.3A, which is 75% to 100% of rated current. This gives some flexibility when selecting the driver for compatible LED loads within the model's rated range.
What operating temperature range is specified for the PLP-30-24?
This model is specified for operation from -30°C to 70°C, with load derating at higher ambient temperatures according to the derating curve. That range makes it suitable for a variety of commercial and industrial lighting environments, provided the overall application stays within the product's rated conditions. Buyers should still confirm the full application design stays within the published limits.
What protection and reliability features does the PLP-30-24 include?
The PLP-30-24 includes over current protection (constant current limiting), short circuit protection (hiccup mode) and over voltage protection at 28 to 33V. Over current and short circuit recover automatically, while over voltage shuts down the output until re-power. Mean Well lists an MTBF of 580.9K hours min. (MIL-HDBK-217F, 25°C).
