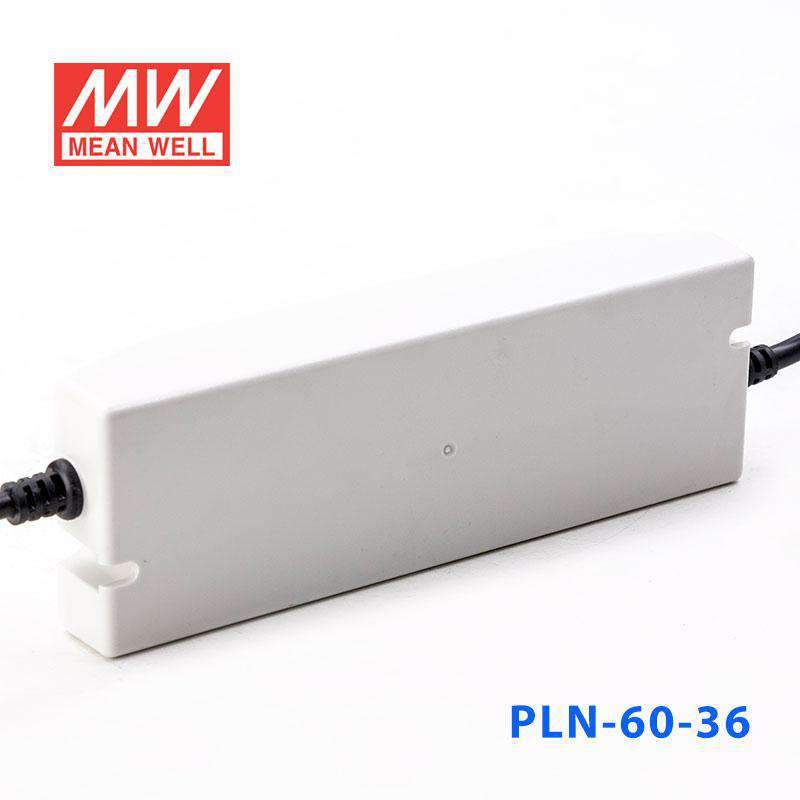

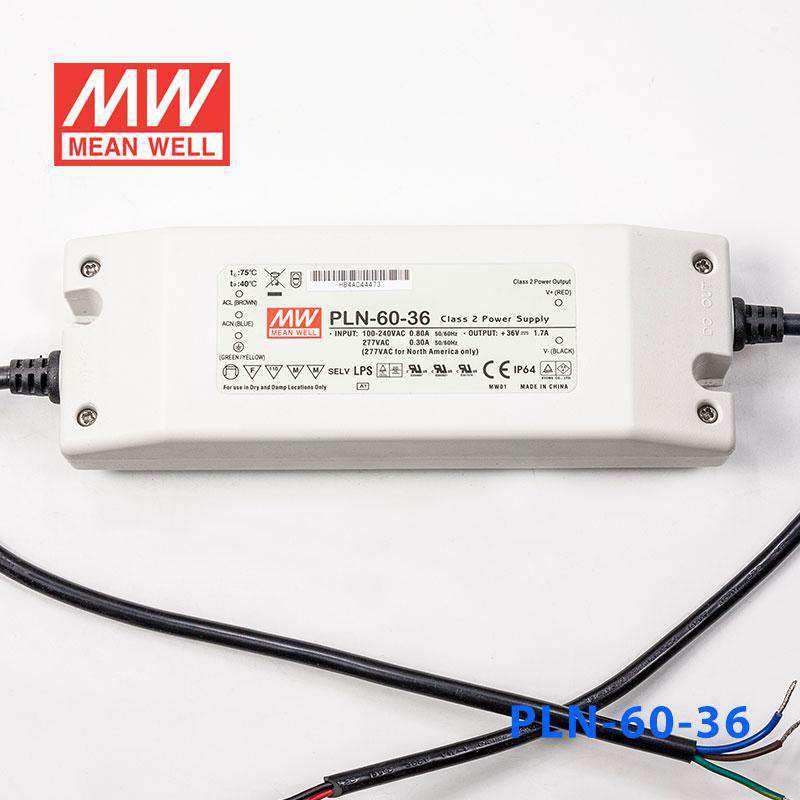

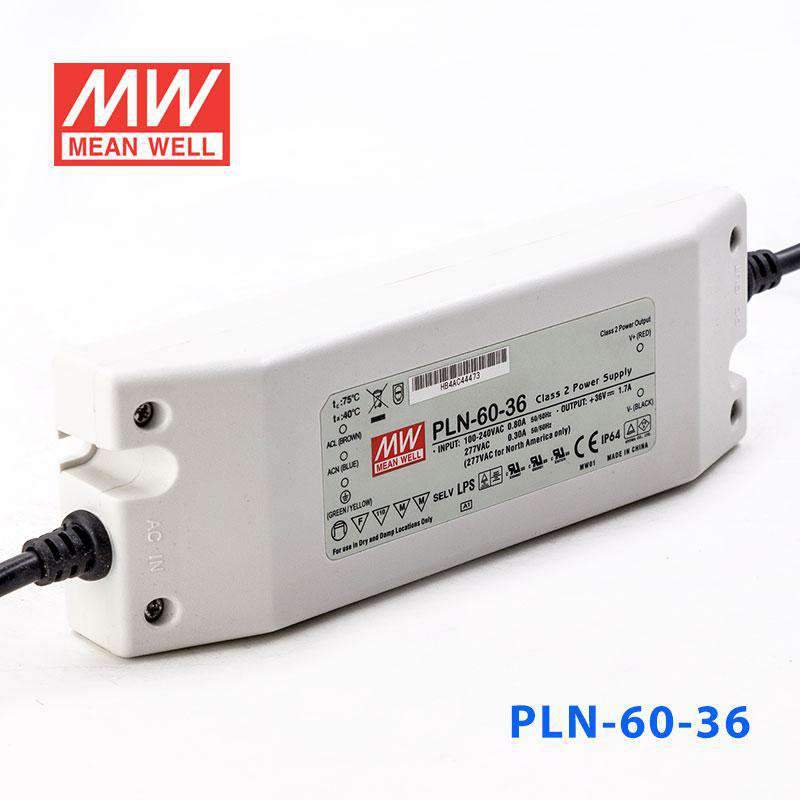

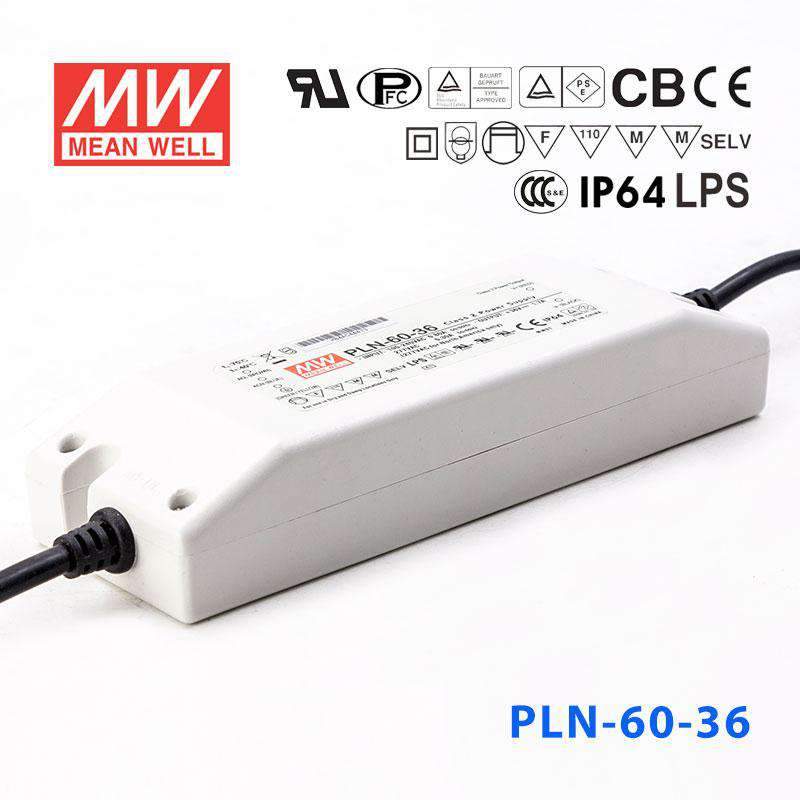

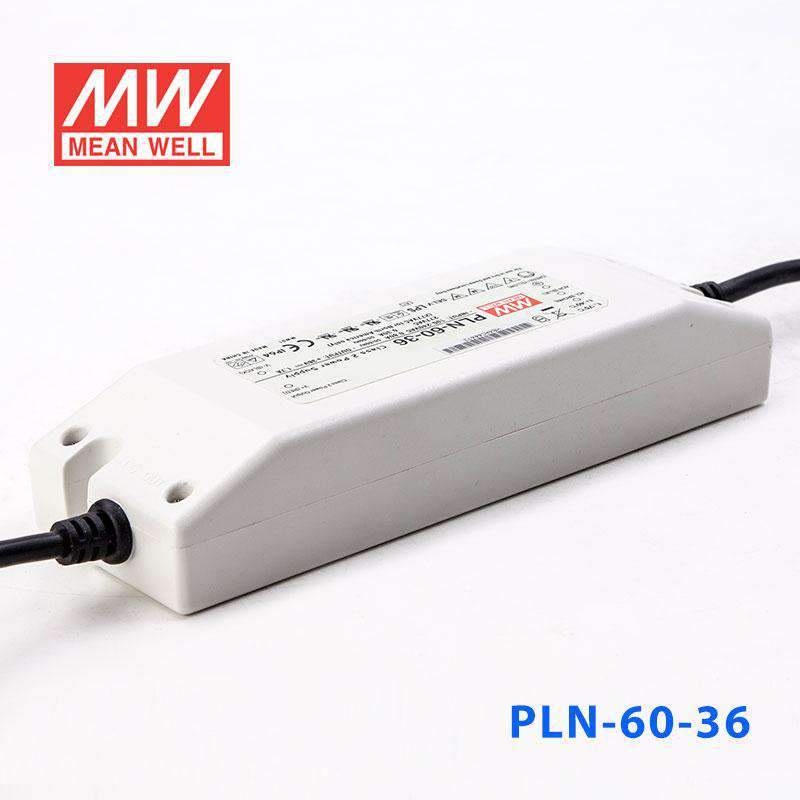

Mean Well PLN-60-36 Power Supply 60W 36V - IP64 1.7A
Overview
PLN-60-36 is the 36V output model of this series: rated current 1.7A, rated power 61.2W, typical efficiency 89%.
Features
- Universal AC input / Full range (up to 295VAC)
- High efficiency 89%
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case with IP64 level
- Built-in active PFC function
- Pass LPS
- Class 2 power unit
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications (Note.2)
- Suitable for dry / damp locations
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.6
- 25.2 ~ 36V
- RATED CURRENT
- 1.7A
- CURRENT RANGE
- 0 ~ 1.7A
- RATED POWER
- 61.2W
- RIPPLE & NOISE (max.)Note.2
- 3.6Vp-p
- VOLTAGE ADJ. RANGENote.5
- 32.5 ~ 39V
- VOLTAGE ADJ. RANGENote.5
- Can be adjusted by internal potentiometer SVR1
- CURRENT ADJ. RANGENote.5
- 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±5.0%
- SETUP TIME
- 500ms / 230VAC 3000ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 0.8A/115VAC 0.4A/230VAC 0.3A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A(twidth=45μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER CURRENT
- 95 ~ 110%
- OVER CURRENT
- Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 41 ~ 46V
- OVER VOLTAGE
- Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91 (except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, IP64 approved ; design refer to UL60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3; EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3445.2K hrs min. Telcordia SR-332 (Bellcore) ; 497.9Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 181*61.5*35mm (L*W*H)
- PACKING
- 0.5Kg; 24pcs/13Kg/0.87CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. PLN-60-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
- 13. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues1
FAQ
Can I use the PLN-60-36 for 36V LED signage lighting?
Yes, if the signage load is a constant-current LED system that operates within the 25.2-36V range. This driver supplies 36V nominal output, 1.7A, and up to 61.2W, so the sign modules need to stay within those limits.
Is the PLN-60-36 suitable for architectural linear lighting?
It is suitable for architectural or linear lighting fixtures built around constant-current LED engines in the 25.2-36V CC range. The output is rated at 1.7A, so the light engine has to be designed for that current level.
Can the PLN-60-36 be used for display lighting or illuminated light boxes?
It can be used for display lighting or light-box applications when the LED load is a constant-current design within 25.2-36V. The 90-295VAC input range also helps in installations where supply voltage may vary across regions or sites.
How much 36V LED strip can the PLN-60-36 support?
Only use it with strip lighting that is specifically designed for constant-current 36V operation and stays within the 25.2-36V range. The maximum load is 61.2W, so estimated strip length = 61.2W divided by your strip's rated power per meter; check your strip rated power per meter before sizing.
Is the PLN-60-36 suitable for wet or outdoor environments?
The IP64 housing is appropriate for environments with dust exposure and splashing water, including protected outdoor or damp lighting enclosures. Its operating temperature range of -30°C to +50°C also supports use in cold and warm conditions, provided the application does not need a higher IP rating than IP64.
