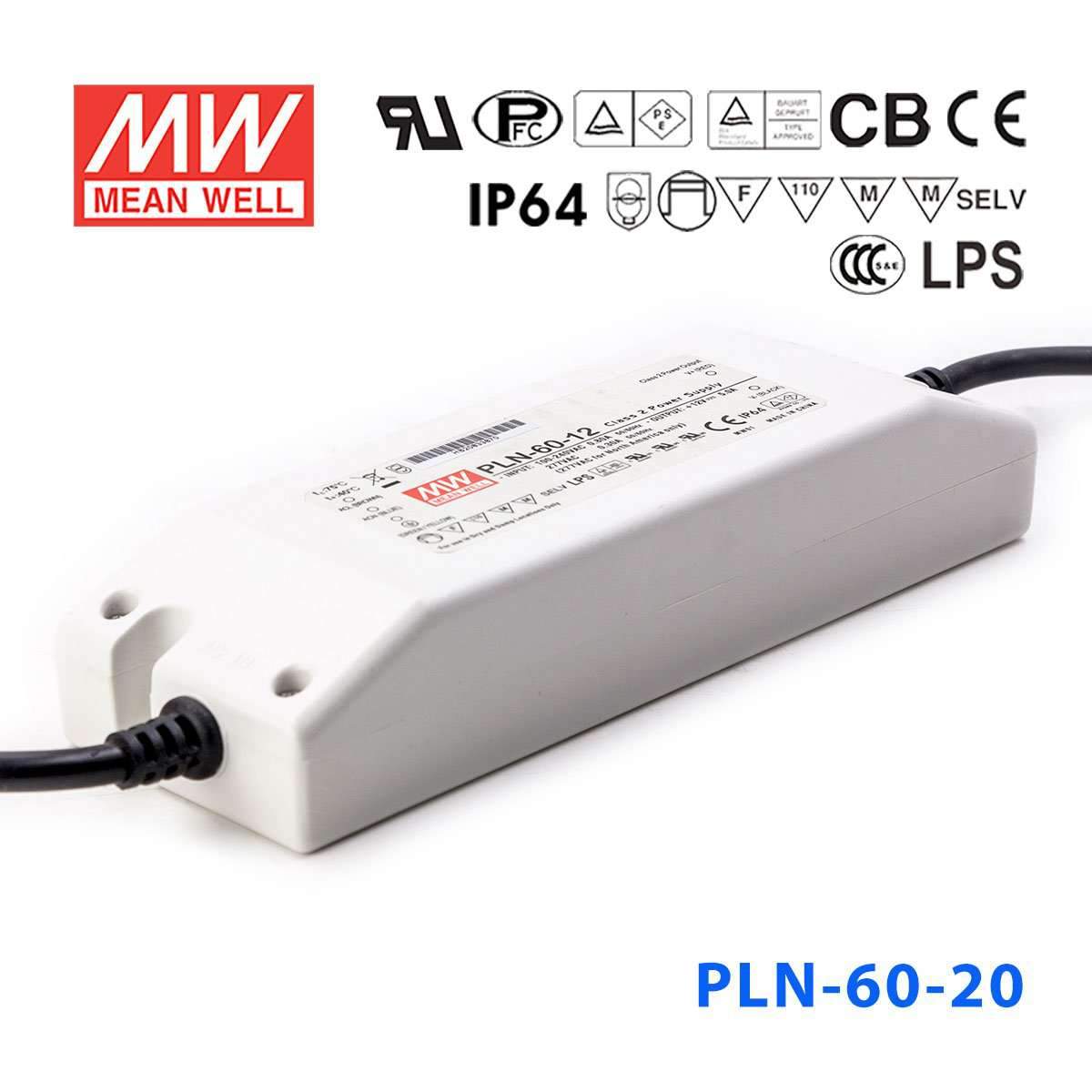

Mean Well PLN-60-20 Power Supply 60W 20V - IP64 3A
$39.98 USD
Unit price /
Unavailable
Overview
PLN-60-20 is the 20V output model of this series: rated current 3A, rated power 60W, typical efficiency 87.5%.
Features
- Universal AC input / Full range (up to 295VAC)
- High efficiency 89%
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case with IP64 level
- Built-in active PFC function
- Pass LPS
- Class 2 power unit
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications (Note.2)
- Suitable for dry / damp locations
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Specifications
PLN-60-20Specifications from the official datasheet (2026-02-09 edition)
OUTPUT
- DC VOLTAGE
- 20V
- CONSTANT CURRENT REGIONNote.6
- 14 ~ 20V
- RATED CURRENT
- 3A
- CURRENT RANGE
- 0 ~ 3A
- RATED POWER
- 60W
- RIPPLE & NOISE (max.)Note.2
- 1.8Vp-p
- VOLTAGE ADJ. RANGENote.5
- 19.5 ~ 22V
- VOLTAGE ADJ. RANGENote.5
- Can be adjusted by internal potentiometer SVR1
- CURRENT ADJ. RANGENote.5
- 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±5.0%
- SETUP TIME
- 500ms / 230VAC 3000ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input
- EFFICIENCY (Typ.)
- 87.5%
- AC CURRENT (Typ.)
- 0.8A/115VAC 0.4A/230VAC 0.3A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A(twidth=45μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER CURRENT
- 95 ~ 110%
- OVER CURRENT
- Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 23 ~ 28V
- OVER VOLTAGE
- Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91 (except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, IP64 approved ; design refer to UL60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3; EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3445.2K hrs min. Telcordia SR-332 (Bellcore) ; 497.9Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 181*61.5*35mm (L*W*H)
- PACKING
- 0.5Kg; 24pcs/13Kg/0.87CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. PLN-60-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
- 13. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues1
FAQ
Can I use the PLN-60-20 for 20V signage lighting?
Yes, for 20V lighting loads that do not exceed 60W and 3A. It uses an IP64-rated enclosure that protects against dust and splashing water.
Is the PLN-60-20 suitable for 20V LED strip or linear lighting in displays?
It can be used with 20V display lighting where the total connected load stays within 60W. The output current is 3A, so both voltage and total load need to match the lighting system.
Can this power 20V architectural accent lighting in enclosed areas?
It can support 20V accent lighting if the load fits within the unit's 60W output rating. The housing measures 181.0 × 61.5 × 35.0 mm, which can help where enclosure space is controlled.
How do I calculate the LED strip length this 20V driver can support?
Use the strip's power consumption per meter: 60W ÷ strip watts per meter = maximum meters. Check your strip rated power per meter and make sure the total load stays within 60W and 3A.
Is the PLN-60-20 appropriate for outdoor or splash-prone lighting areas?
The IP64 enclosure is designed for dust resistance and protection against splashing water. That makes it suitable for damp or sheltered locations when the ambient temperature remains between -30°C and +50°C.
