Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

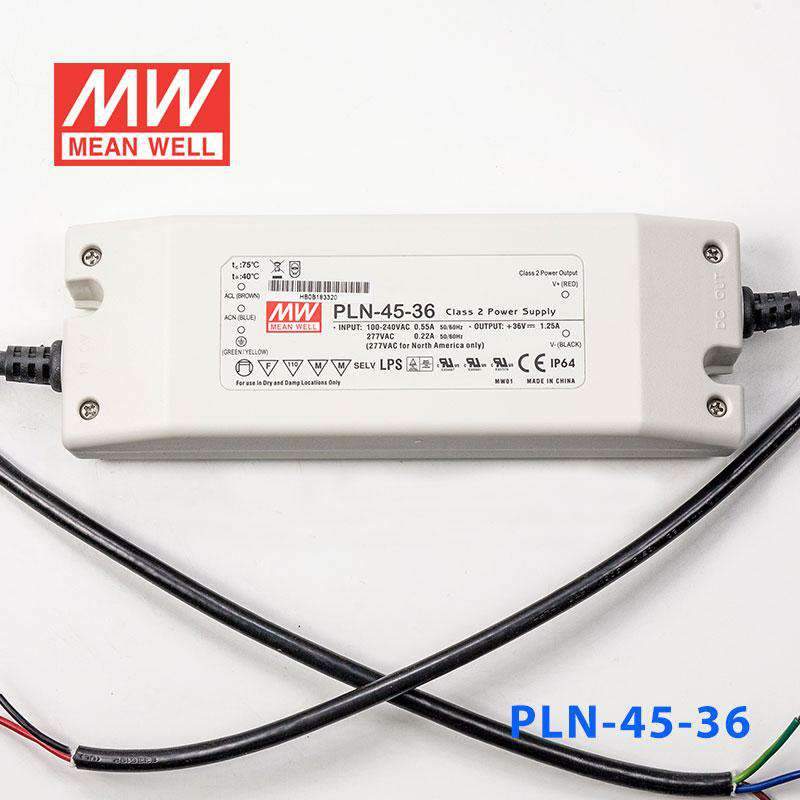

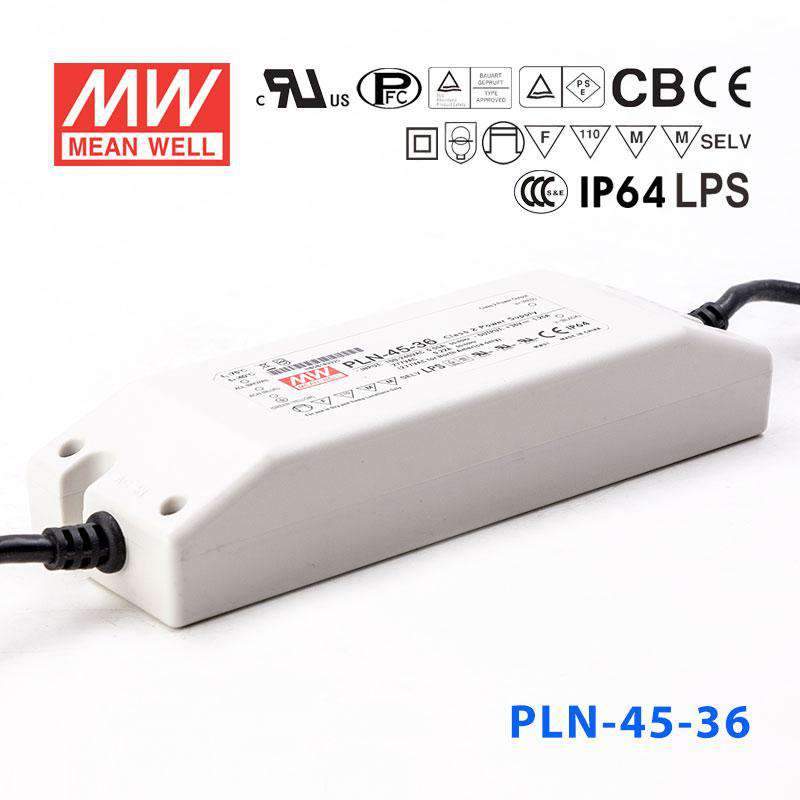

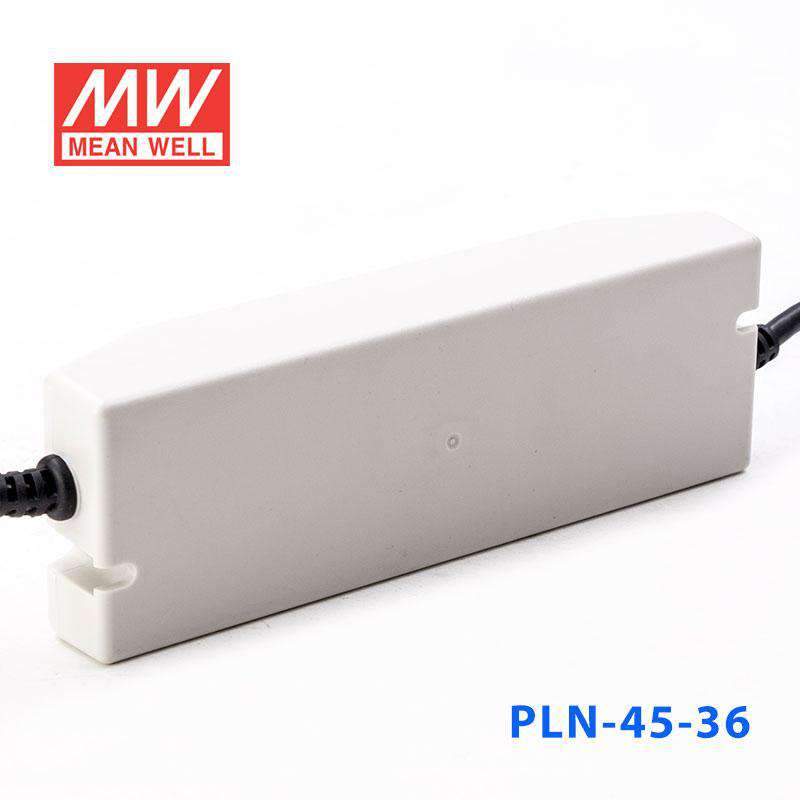

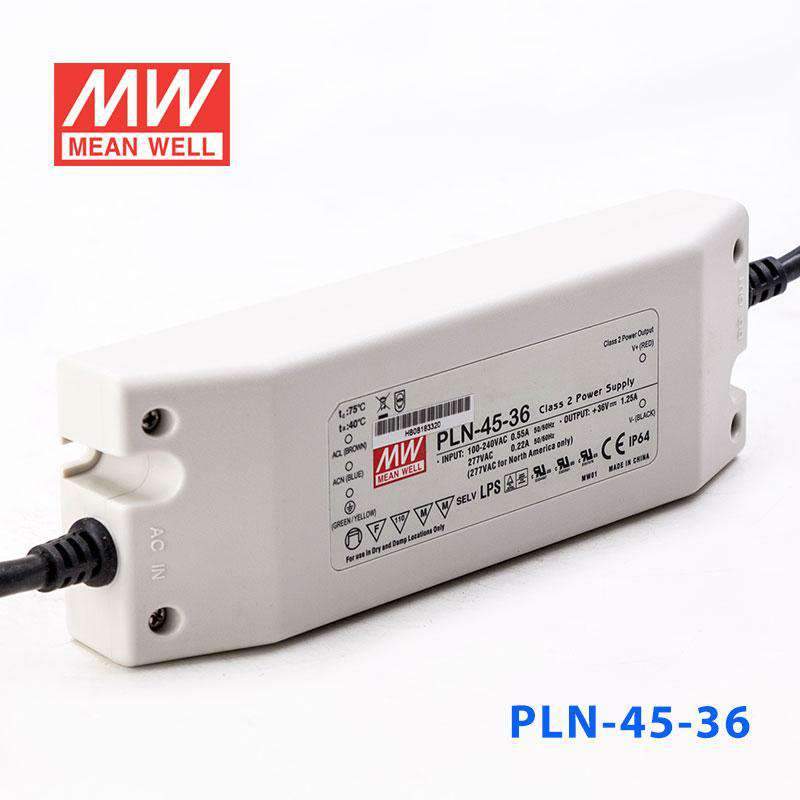

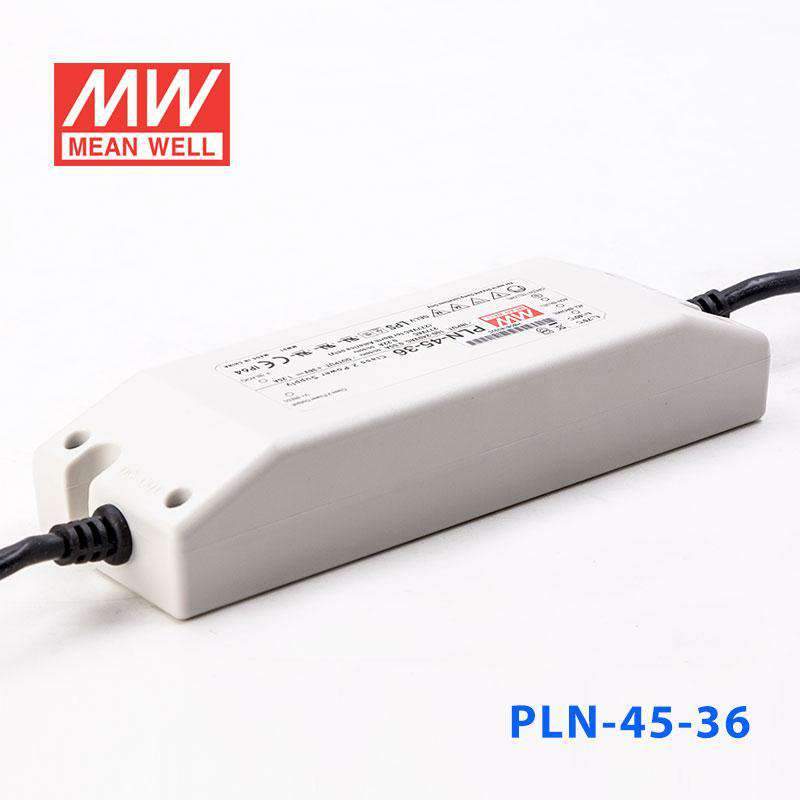

Mean Well PLN-45-36 Power Supply 45W 36V - IP64 1.25A
$38.21 USD
Unit price /
Unavailable
Overview
PLN-45-36 is the 36V output model of this series: rated current 1.25A, rated power 45W, typical efficiency 87.5%.
Features
- Universal AC input / Full range (up to 295VAC)
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case with IP64 level
- Built-in active PFC function
- Pass LPS
- Class 2 power unit
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications (Note.2)
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Specifications
PLN-45-36Specifications from the official datasheet (2026-02-09 edition)
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.6
- 27 ~ 36V
- RATED CURRENT
- 1.25A
- CURRENT RANGE
- 0 ~ 1.25A
- RATED POWER
- 45W
- RIPPLE & NOISE (max.)Note.2
- 3.6Vp-p
- VOLTAGE ADJ. RANGENote.5
- 32.5 ~ 39V
- CURRENT ADJ. RANGENote.5
- 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±5.0%
- SETUP TIME
- 500ms / 230VAC 1200ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input
- EFFICIENCY (Typ.)
- 87.5%
- AC CURRENT (Typ.)
- 0.55A/115VAC 0.275A/230VAC 0.22A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A(twidth=50μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER CURRENT
- 95 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 41 ~ 46V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, IP64 approved, design refer to UL60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3444.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 181*61.5*35mm (L*W*H)
- PACKING
- 0.5Kg; 24pcs/13Kg/0.87CUFT
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues1
FAQ
Can I use the PLN-45-36 for a 36V LED strip or lighting system?
Yes, if the 36V lighting load stays within 45W maximum power and 1.25A maximum output current. The unit operates in constant current mode with a 27-36V range, so the lighting product should be checked for electrical compatibility.
Is the PLN-45-36 suitable for 36V signage lighting?
It can be used for 36V signage applications that require no more than 45W total output. The IP64 enclosure helps in dusty or splash-prone locations.
Can this 36V driver be used for commercial or industrial lighting runs?
Yes, for 36V lighting loads within the 45W and 1.25A limits. The wide 90-295VAC input range and -30°C to +50°C operating temperature range are useful where site power and ambient conditions vary.
How much 36V LED strip can the PLN-45-36 run?
The maximum available output is 45W. To estimate maximum strip length, divide 45W by your strip's rated watts per meter, then confirm the strip is a 36V product and that total current stays at or below 1.25A; check your strip rated power per meter.
Is the PLN-45-36 appropriate for outdoor environments?
It is IP64 rated, so it is intended for dust exposure and splashing water rather than immersion. The specified operating temperature range is -30°C to +50°C, which supports use in cold and hot outdoor conditions within that range.
