Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

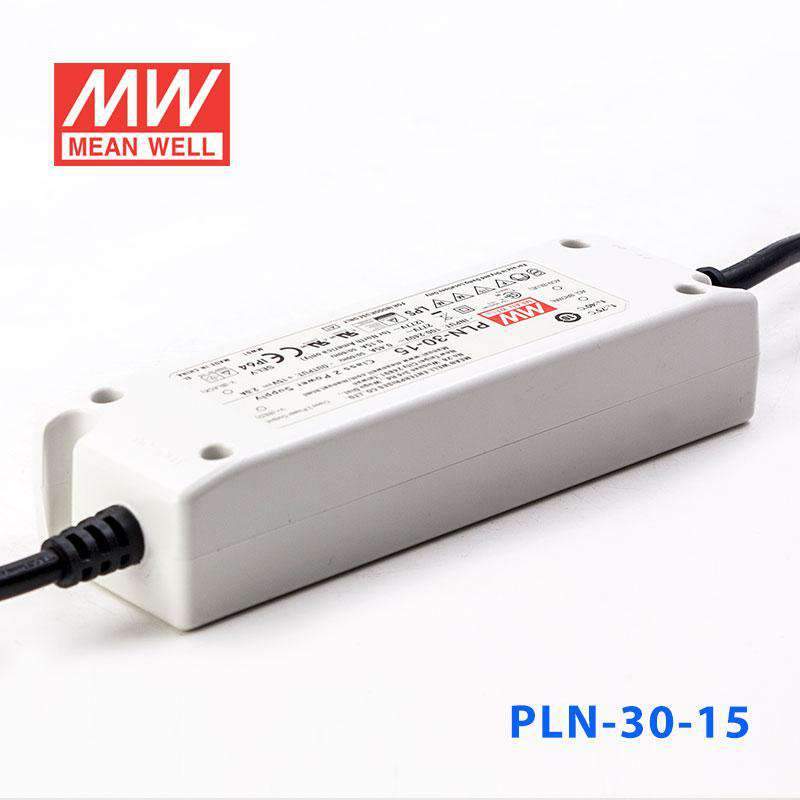

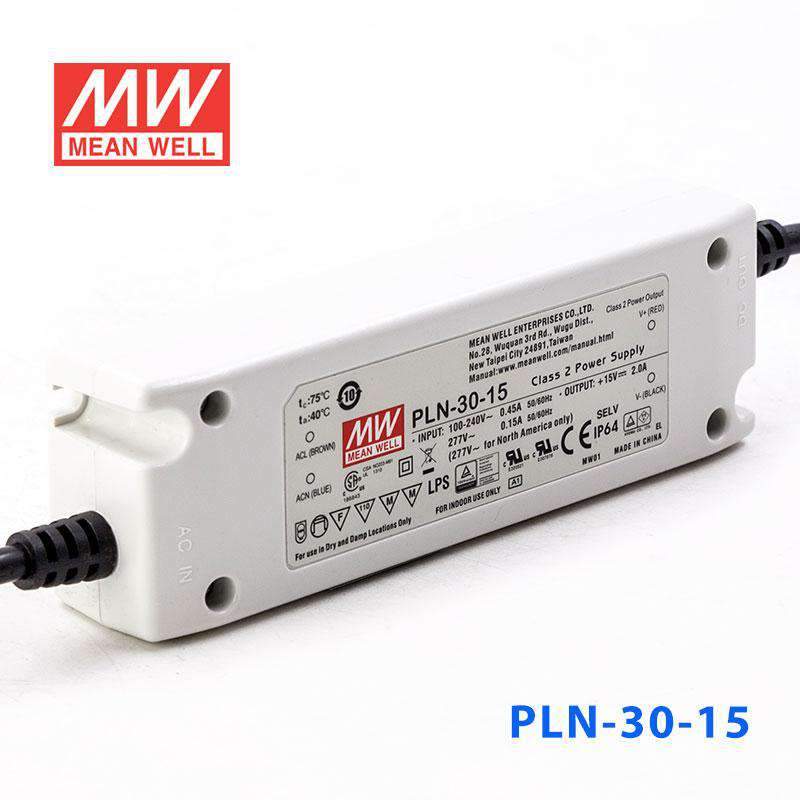

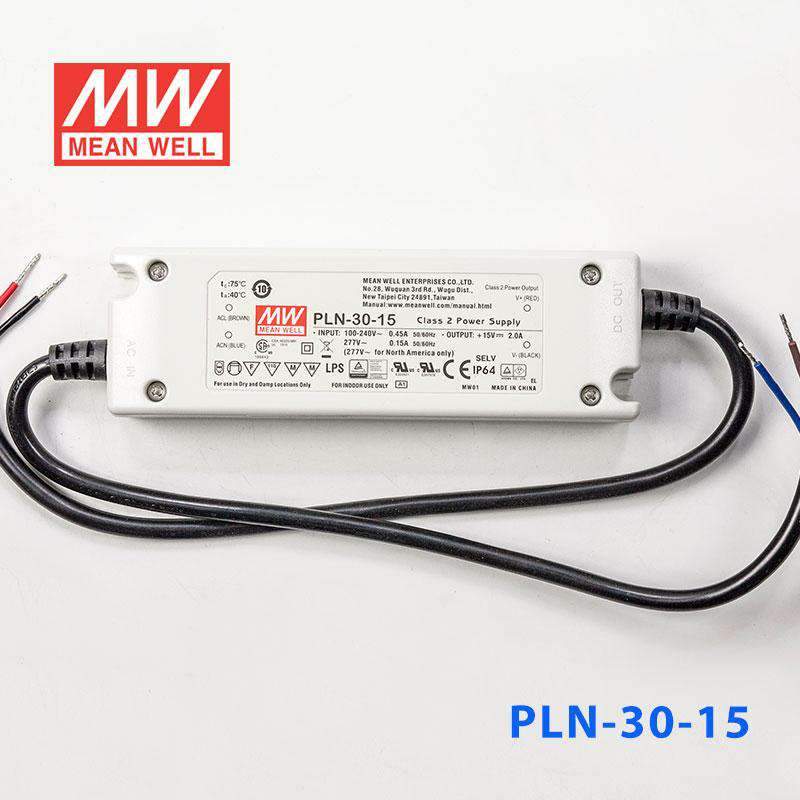

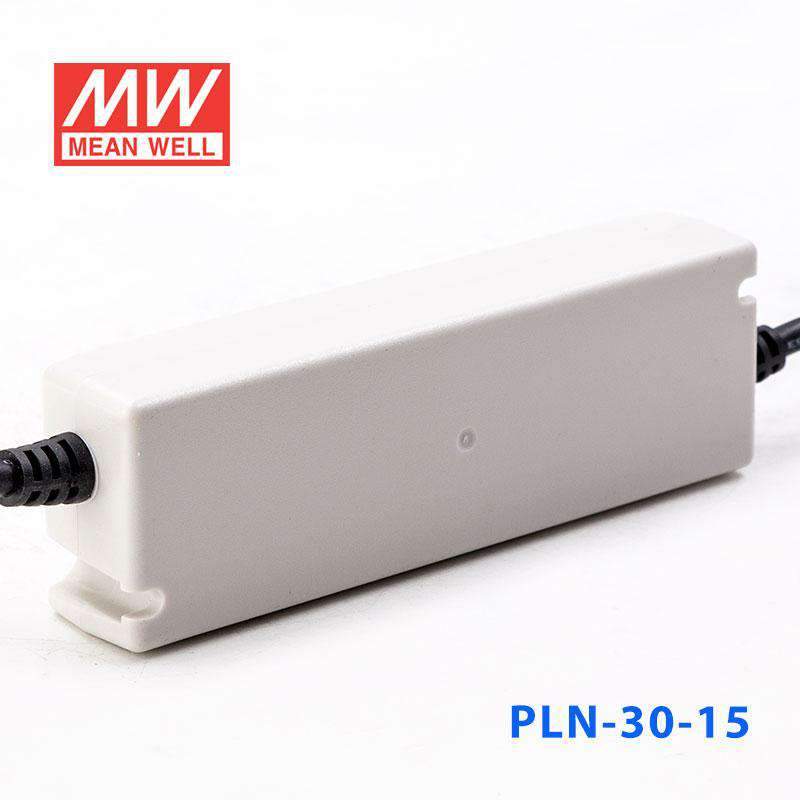

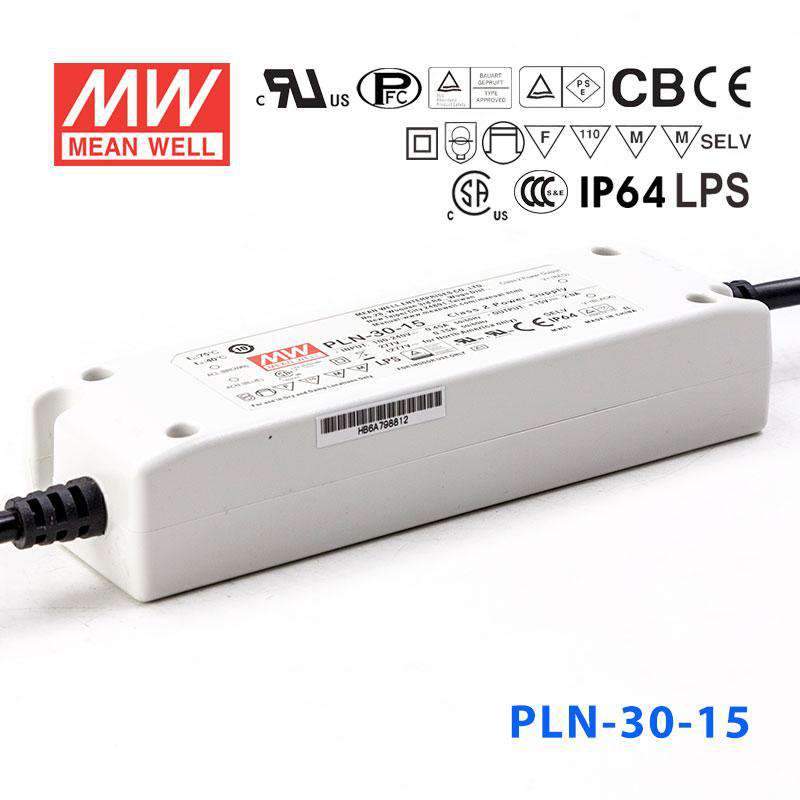

Mean Well PLN-30-15 Power Supply 30W 15V - IP64 2A
$27.91 USD
Unit price /
Unavailable
Overview
PLN-30-15 is the 15V output model of this series: rated current 2A, rated power 30W, typical efficiency 83.5%.
Features
- Universal AC input / Full range (up to 295VAC)
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case with IP64 level
- Built-in active PFC function
- Pass LPS
- Class Ⅱ power unit, no FG
- Class 2 power unit
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications (Note.2)
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Specifications
PLN-30-15Specifications from the official datasheet (2026-02-09 edition)
OUTPUT
- DC VOLTAGE
- 15V
- CONSTANT CURRENT REGIONNote.6
- 10.5 ~ 15V
- RATED CURRENT
- 2A
- CURRENT RANGE
- 0 ~ 2A
- RATED POWER
- 30W
- RIPPLE & NOISE (max.)Note.2
- 2.6Vp-p
- VOLTAGE ADJ. RANGENote.5
- -5% ~ 10%. Can be adjusted by internal potentiometer SVR1
- CURRENT ADJ. RANGENote.5
- 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±5.0%
- SETUP TIME
- 500ms / 230VAC 3000ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input
- EFFICIENCY (Typ.)
- 83.5%
- AC CURRENT (Typ.)
- 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- OVER CURRENT
- 100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 17 ~ 22V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004,IP64 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (pin≧25W), Class D (>70% load) ; BS EN/EN61000-3-3; EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, criteria B;EAC TP TC 020
OTHERS
- MTBF
- 4296.9K hrs min. Telcordia SR-332 (Bellcore) ; 621.4Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 145*47*30mm (L*W*H)
- PACKING
- 0.22Kg; 60pcs/14.2Kg/1.25CUFT
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. Output voltage can be adjusted through the SVR1 on the PCB; limit of output constant current level can be adjusted through the SVR2 on the PCB.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. PLN-30-9 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
- 13. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues1
FAQ
Can I use the PLN-30-15 for a 15V LED lighting load in signage?
Yes, if the lighting load is designed for 15V operation and stays within the driver's 30W output. The connected product also needs to operate within the 10.5-15V constant current range and not exceed 2A.
Is this driver suitable for a compact 15V illuminated display?
It is suitable for compact 15V display or sign lighting where total demand is up to 30W. This version provides up to 2A output, with a 10.5-15V constant current range.
Can the PLN-30-15 power short-run 15V strip or linear lighting?
It can power a short 15V lighting load up to 30W if the product matches the driver's electrical characteristics. Confirm the fixture or strip works within the 10.5-15V constant current range and does not require more than 2A.
How do I estimate LED strip length for the PLN-30-15?
Use the driver's 30W maximum output and divide it by the strip's rated watts per meter. The formula is 30W / strip W per meter = maximum meters, but check your strip rated power per meter and verify that it is compatible with 15V and the 2A constant current output.
Is the PLN-30-15 weather-resistant enough for outdoor signage?
Its IP64 rating means the housing is protected against dust and splashing water, which fits many sheltered outdoor sign and display locations. It is not a submersible unit, and the stated operating temperature range is -30°C to +50°C (see the derating curve) at 20-95% RH non-condensing.
