Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

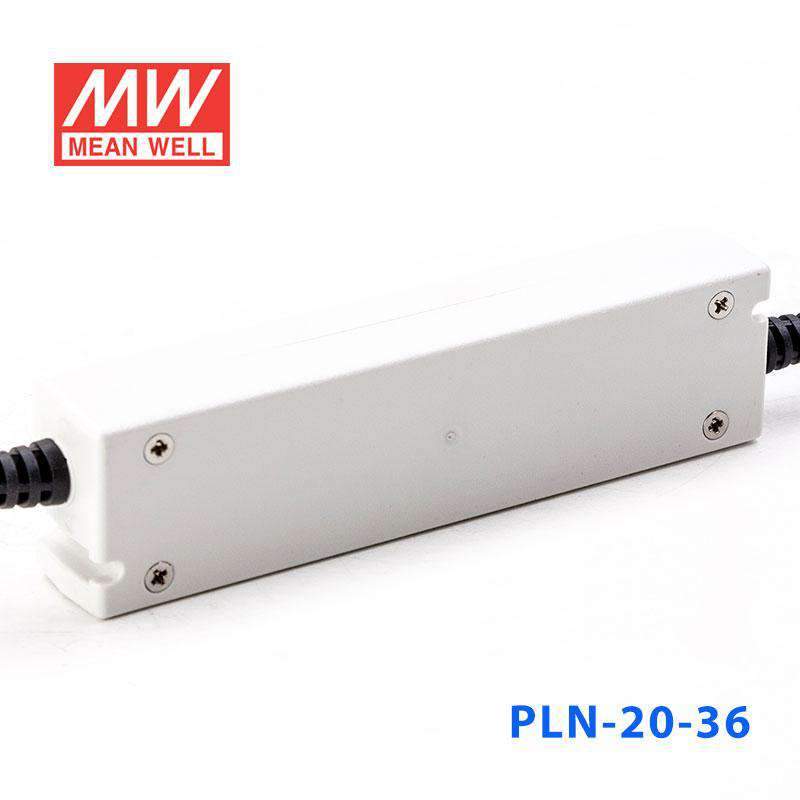

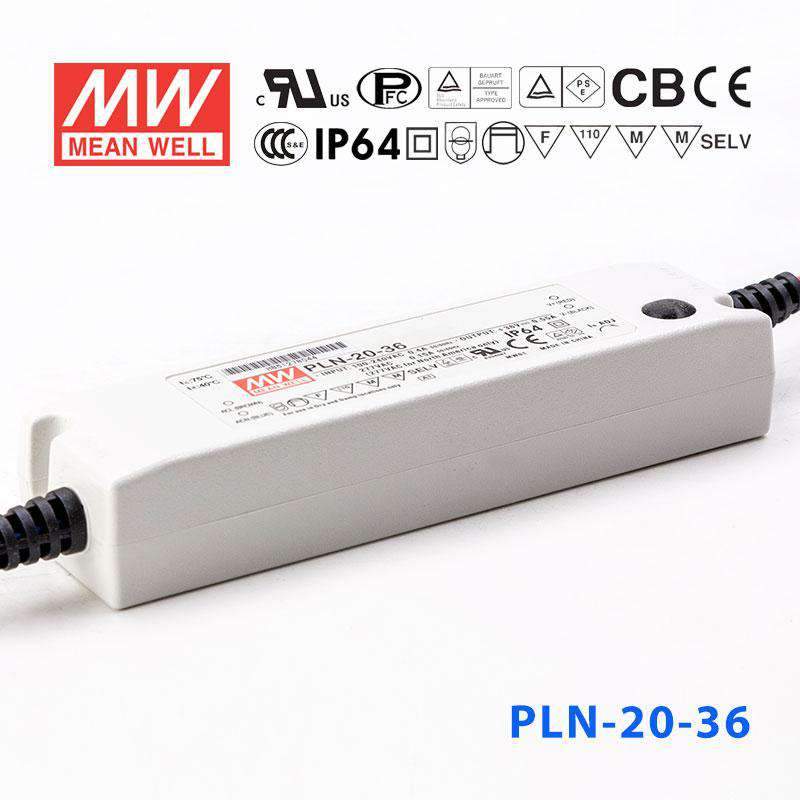

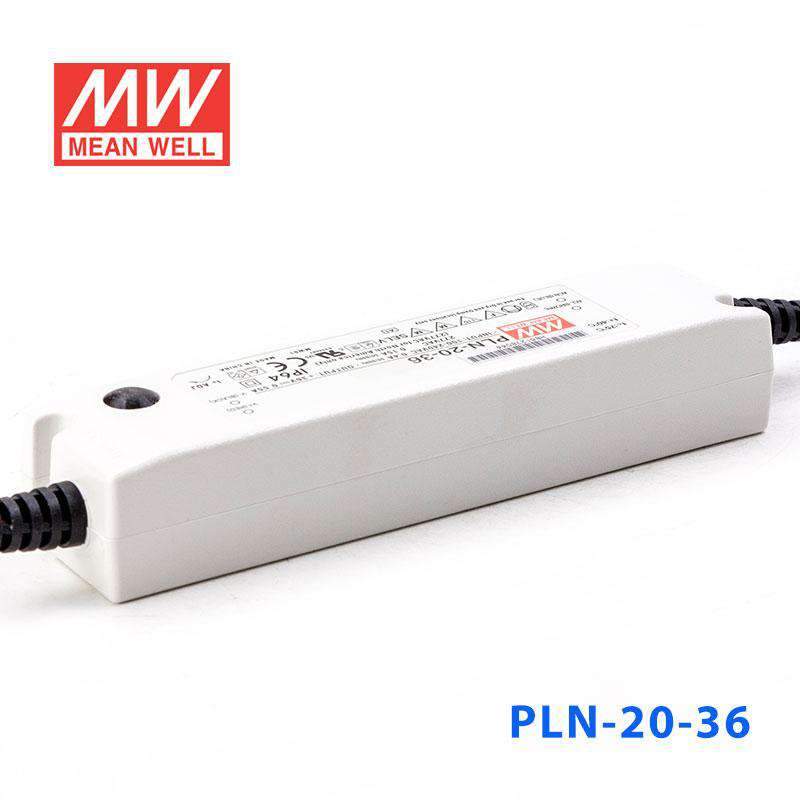

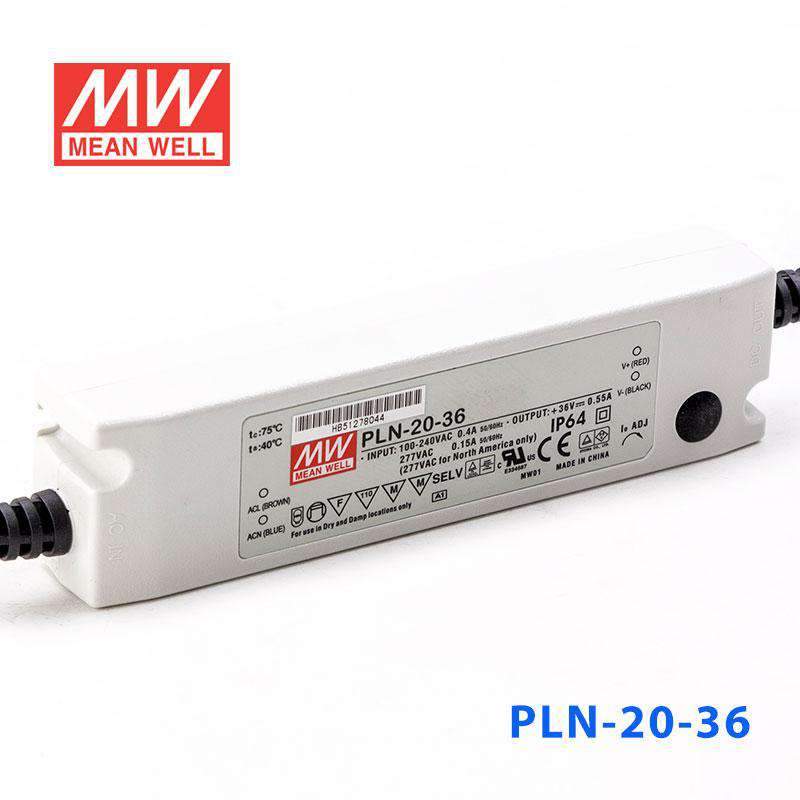

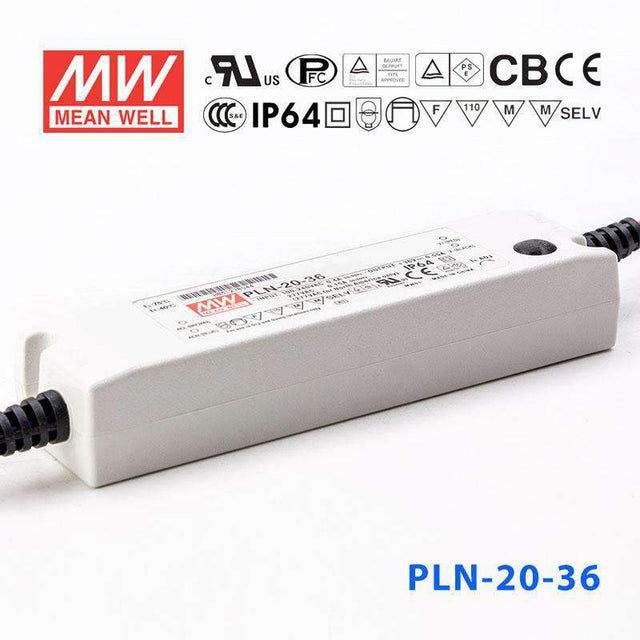

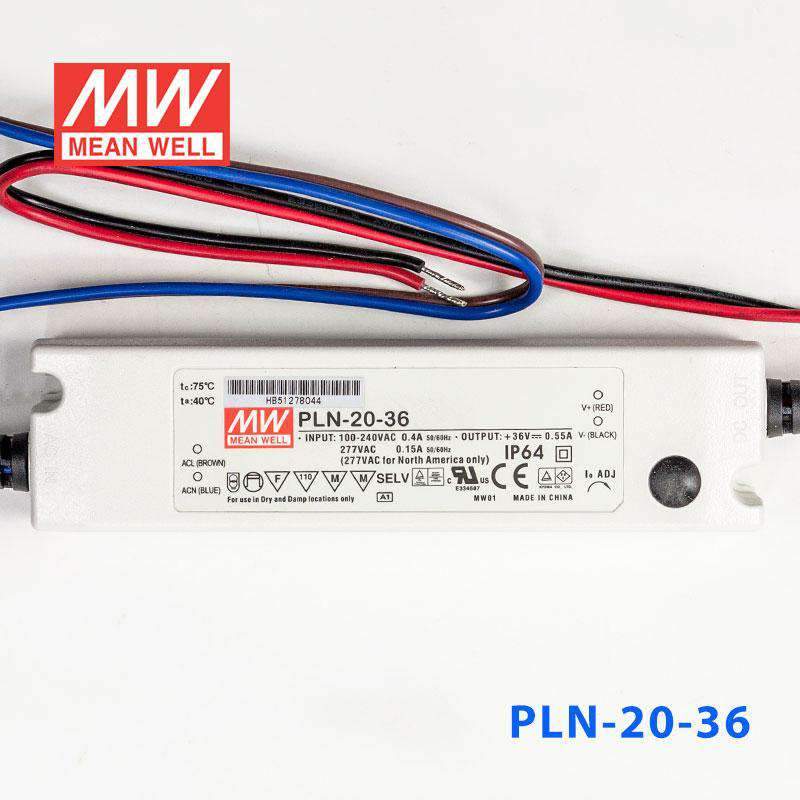

Mean Well PLN-20-36 Power Supply 20W 36V - IP64 550mA
$25.03 USD
Unit price /
Unavailable
Overview
PLN-20-36 is the 36V output model of this series: rated current 0.55A, rated power 19.8W, typical efficiency 83%.
Features
- Universal AC input / Full range(up to 277VAC)
- Protections:Short circuit/Over current/Over voltage /Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Fully isolated plastic case
- Built-in active PFC function
- IP64 design for indoor or outdoor installations
- Small and compact size
- Class Ⅱ power unit, no FG
- 100% full load burn-in test
- High reliability,low cost
- Suitable for Dry / Damp locations
- Suitable for LED lighting and moving sign applications
- 2 years warranty
Specifications
PLN-20-36Specifications from the official datasheet (2026-06-15 edition)
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.5
- 27 ~ 36V
- RATED CURRENT
- 0.55A
- CURRENT RANGE
- 0 ~ 0.55A
- CURRENT ADJ. RANGE
- 75% ~ 100%
- RATED POWER
- 19.8W
- RIPPLE & NOISE (max.)Note.2
- 3.0Vp-p
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±10%
- SETUP TIME
- 500ms / 230VAC 2000ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 277VAC 127~392VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≥0.95/115VAC,PF>0.9/230VAC,PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧75% at 277VAC input
- EFFICIENCY(Typ.)
- 83%
- AC CURRENT
- 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 35A(twidth=40μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 98 units (circuit breaker of type B) / 98 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.5mA / 240VAC
PROTECTION
- OVER CURRENTNote.5
- 95 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 41 ~ 46V Protection type : Shut off o/p voltage, clamping by zener diode
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC61347-1, IEC61347-2-13, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, UL8750,CSA C22.2 No. 250.0-08, EAC TP TC 004,GB/T19510.1,GB/T19510.213,IP64 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C(≥75% load);BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 5217.1K hrs min. Telcordia SR-332 (Bellcore) ; 621.4Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 148.5*38.5*28mm (L*W*H)
- PACKING
- 0.18Kg; 60pcs/12.8Kg/0.9CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage, please check the static characteristic for more details.
- 5. Please refer to "DRIVING METHODS OF LED MODULE".
- 6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the PLN-20-36 for 36V LED strip or linear lighting?
It can be used with 36V lighting loads up to 19.8W and 0.55A, provided the load fits the 27-36V constant-current range. For strip or linear lighting, verify the product is designed to work with constant-current output before choosing this driver.
Is the PLN-20-36 suitable for narrow signage or slim lightbox lighting?
Yes, it can suit this kind of signage. Its 36V output and 19.8W rating make it a fit for smaller compatible sign or lightbox lighting loads.
Can this driver be used for compact 36V architectural accent lighting?
It can support compact 36V lighting loads that stay within 19.8W and 0.55A. The IP64 enclosure also helps where dust and splashing water are part of the operating environment.
How do I calculate the maximum 36V LED strip length for the PLN-20-36?
Use the formula 19.8W divided by your strip's rated watts per meter. Check your strip rated power per meter, and confirm the strip is a 36V load compatible with this driver's constant-current operation.
Can the PLN-20-36 handle outdoor conditions?
Its IP64 rating indicates protection against dust and splashing water, so it is suited to tougher environments than a non-enclosed driver. The ambient temperature still needs to remain within the specified -30°C to +60°C range.
