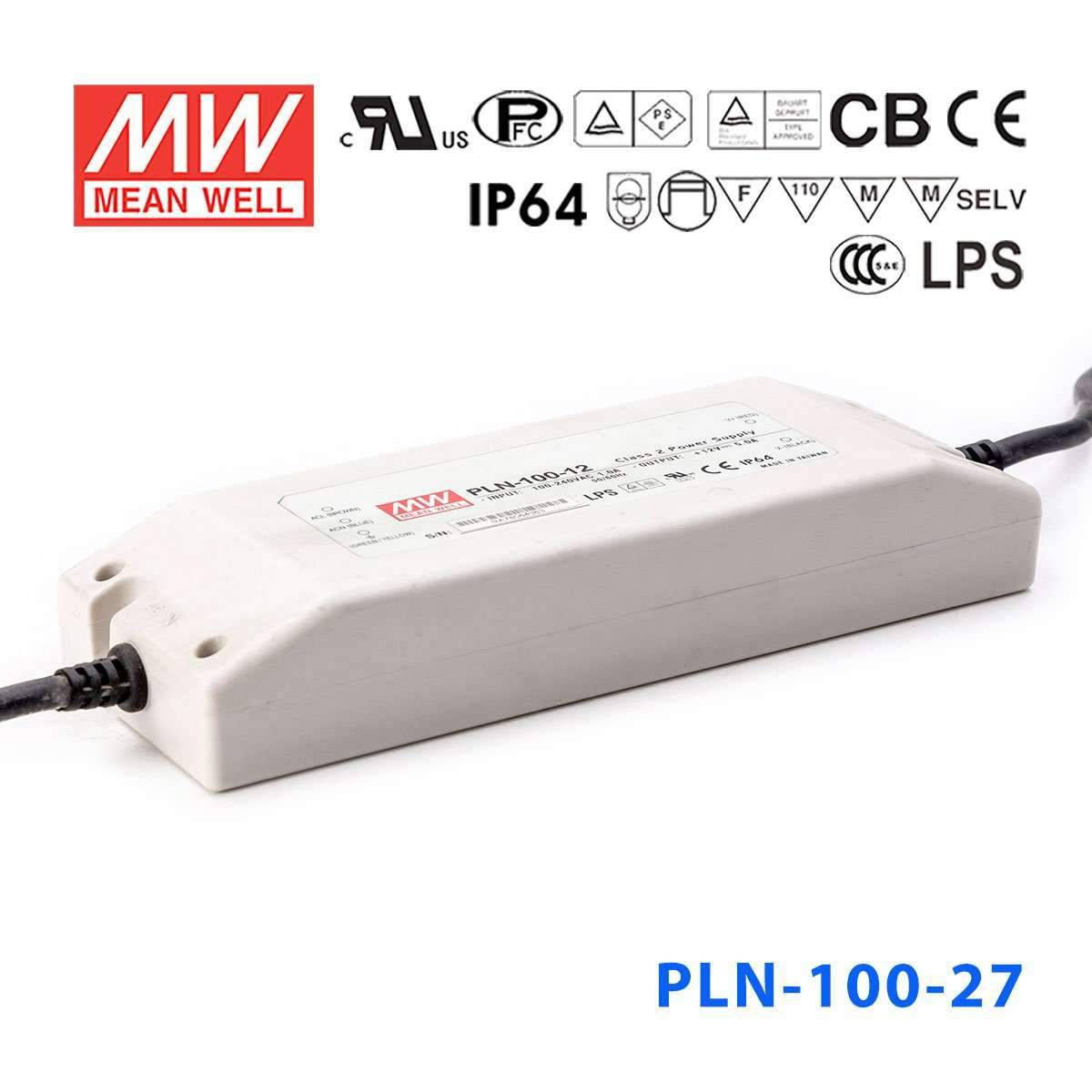

Mean Well PLN-100-27 Power Supply 100W 27V - IP64 3.55A
$55.13 USD
Unit price /
Unavailable
Overview
PLN-100-27 is the 27V output model of this series: rated current 3.55A, rated power 95.85W, typical efficiency 88%.
Features
- Universal AC input / Full range (up to 295VAC)
- High efficiency up to 88.5%
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in active PFC function
- Fully isolated plastic case with IP64 level
- Pass LPS
- Class 2 power unit
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications
- Suitable for dry / damp locations
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Specifications
PLN-100-27Specifications from the official datasheet (2026-06-15 edition)
OUTPUT
- DC VOLTAGE
- 27V
- CONSTANT CURRENT REGIONNote.6
- 20.25 ~ 27V
- RATED CURRENTNote.5
- 3.55A
- RATED POWERNote.5
- 95.85W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE (SVR1)
- 23 ~ 27V
- CURRENT ADJ. RANGE(SVR2)
- 2.6 ~ 3.55A
- VOLTAGE TOLERANCENote.3
- ±3.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIME
- 500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 60ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧75% at 277VAC input
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT (Typ.)
- 12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC 15V:0.9A/115VAC 0.45A/230VAC 0.35A/277VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC 0.45A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER CURRENT
- 95 ~ 102% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 30 ~ 36V Protection type : Shut down and latch off o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.7
- UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91(except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP64 approved ; design refer to UL60950
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (>75% load) ; BS EN/EN61000-3-3;GB/T 17743,GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level (surge 4KV), EAC TP TC 020
OTHERS
- MTBF
- 2689.6K hrs min. Telcordia SR-332 (Bellcore) ; 303.2Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 200*70.5*35mm (L*W*H)
- PACKING
- 0.52Kg; 20pcs/12.5Kg/0.9CUFT
Certifications & ratings
- IP64
- IP64
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. This is the maximum possible output current and power. Over load protection may be activated slightly below this level to comply with the requirement of UL1310 class 2.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
- 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. PLN-100-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
Technical drawings
Downloads
Certificates6
Catalogues1
FAQ
Can I use the PLN-100-27 for 27V LED signage or display lighting?
Yes, it suits 27V LED signage or display lighting, delivering a 27V output up to 95.85W and 3.55A. It should be matched only with 27V lighting loads within those limits.
Is the PLN-100-27 appropriate for 27V linear or accent LED lighting?
It is suitable for 27V low-voltage lighting loads that require up to 95.85W. The driver's CC voltage range is 20.25-27V, so the connected lighting needs to be compatible with that output range.
Can this driver be used for specialty 27V lighting in commercial signage cabinets?
It can be used where a 27V driver is needed for signage or similar lighting applications and the load stays under 95.85W and 3.55A. Its enclosure is also IP64 rated against dust and splashing water.
How do I size LED strip length for the PLN-100-27?
Use the driver's maximum output power of 95.85W and divide it by the strip's rated watts per meter. The math is length = 95.85W ÷ strip W/m; check your strip rated power per meter and keep total current within 3.55A.
Is the PLN-100-27 suitable for outdoor or wet environments?
The IP64 rating means the housing is protected against dust and splashing water, so it can suit outdoor or damp locations where immersion is not required. Its operating temperature range is -30°C to +50°C.
What are the sibling options if I am comparing the PLN-100-27 to the rest of the PLN line?
The other PLN-100 outputs are 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 36V 95.4W 2.65A, and 48V 96W 2A. All share the same 90-295VAC input, IP64 rating and 200 x 70.5 x 35mm case.
