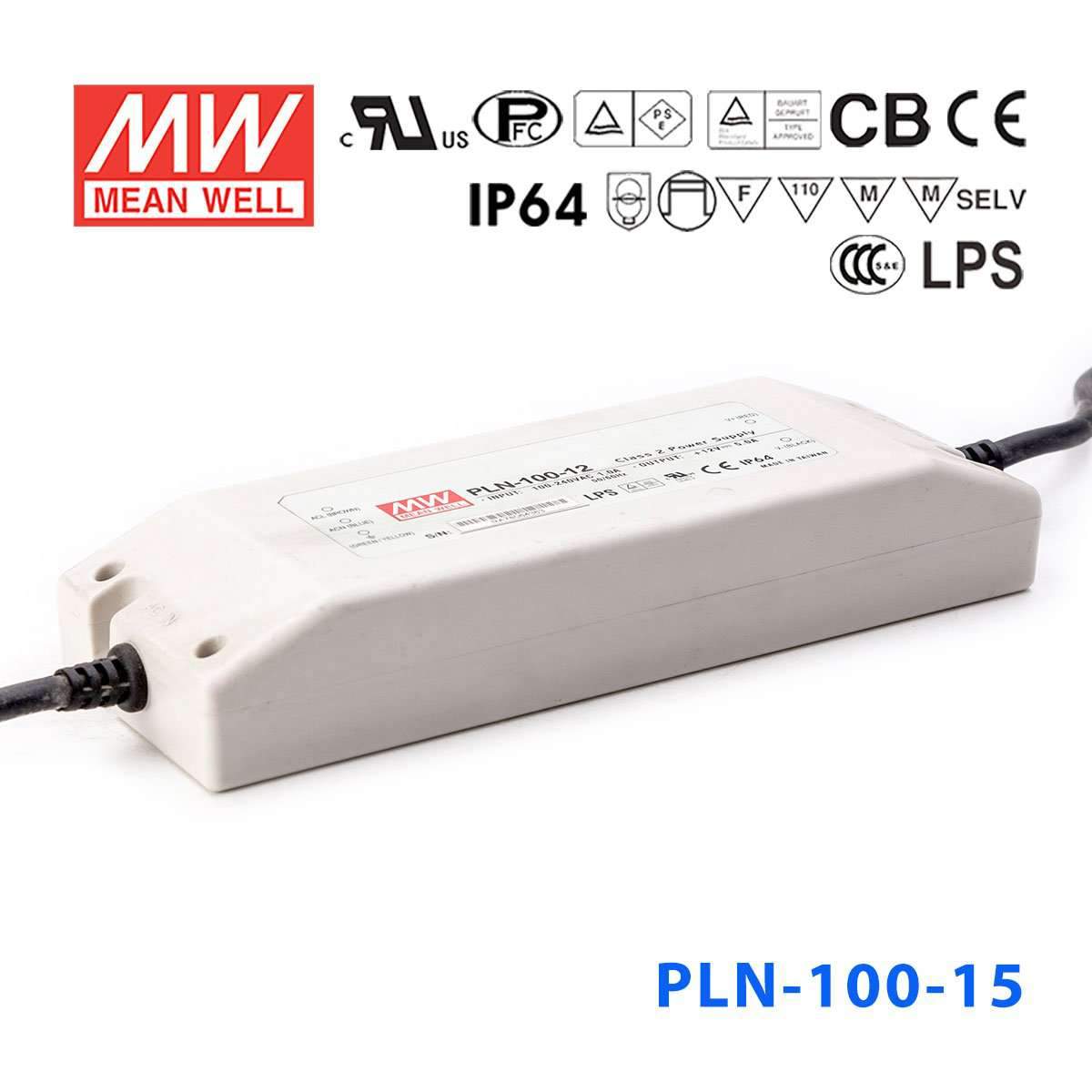

Mean Well PLN-100-15 Power Supply 75W 15V - IP64 5A

$53.49 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

PLN-100-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 87%.

Features

  • Universal AC input / Full range (up to 295VAC)
  • High efficiency up to 88.5%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in active PFC function
  • Fully isolated plastic case with IP64 level
  • Pass LPS
  • Class 2 power unit
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications
  • Suitable for dry / damp locations
  • Compliance to worldwide safety regulations for lighting
  • 2 years warranty

Specifications

PLN-100-15Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
15V
CONSTANT CURRENT REGIONNote.6
11.25 ~ 15V
RATED CURRENTNote.5
5A
RATED POWERNote.5
75W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE (SVR1)
12.8 ~ 15V
CURRENT ADJ. RANGE(SVR2)
3.75 ~ 5A
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC 15V:0.9A/115VAC 0.45A/230VAC 0.35A/277VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC 0.45A/277VAC
INRUSH CURRENT (Typ.)
COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 102% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
16.5 ~ 20V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.7
UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91(except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP64 approved ; design refer to UL60950
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (>75% load) ; BS EN/EN61000-3-3;GB/T 17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level (surge 4KV), EAC TP TC 020

OTHERS

MTBF
2689.6K hrs min. Telcordia SR-332 (Bellcore) ; 303.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
200*70.5*35mm (L*W*H)
PACKING
0.52Kg; 20pcs/12.5Kg/0.9CUFT

Certifications & ratings

IP64
IP64
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. This is the maximum possible output current and power. Over load protection may be activated slightly below this level to comply with the requirement of UL1310 class 2.
  6. 6. Please refer to "DRIVING METHODS OF LED MODULE".
  7. 7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
  8. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  10. 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. PLN-100-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).

Technical drawings

PLN-100-15 Mechanical Specification
Mechanical Specification
PLN-100-15 Block Diagram
Block Diagram
PLN-100-15 Derating Curve
Derating Curve
PLN-100-15 Power Factor Characteristic
Power Factor Characteristic
PLN-100-15 EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

Downloads

FAQ

Can I use the PLN-100-15 for 15V LED signage lighting?

Yes, this model is suitable for signage applications and provides a 15V output with up to 75W and 5A. It fits 15V lighting loads that stay within that output limit.

Is the PLN-100-15 a good fit for 15V LED strip lighting in a damp location?

It can be used for 15V LED strip lighting when the strip is rated for 15V and the total load does not exceed 75W or 5A. Its IP64 rating means the driver housing is intended for dust protection and splashing water conditions rather than full submersion.

Can this 15V driver power low-voltage architectural or accent lighting?

It is suitable for 15V low-voltage lighting applications that need up to 75W of output power. The operating range of -30°C to +50°C also makes it relevant for indoor or sheltered outdoor lighting environments within that temperature range.

How much 15V LED strip can the PLN-100-15 support?

The maximum available power is 75W, so the strip length estimate is 75W divided by your strip's rated power per meter. For example, the formula is length = 75W ÷ strip W/m; check your strip rated power per meter and make sure the total also stays within 5A.

Can the PLN-100-15 be used outdoors or in wet areas?

Its IP64 rating means the enclosure is protected against dust ingress and splashing water, so it is suited to outdoor or wet-area use where direct immersion is not expected. The specified operating temperature range is -30°C to +50°C.

How does the PLN-100-15 compare with other PLN series models?

Within the PLN-100 group, the sibling outputs are 12V 60W 5A, 20V 96W 4.8A, 24V 96W 4A, 27V 95.85W 3.55A, 36V 95.4W 2.65A, and 48V 96W 2A. All share the same 90-295VAC input, IP64 rating and 200 x 70.5 x 35mm case.
