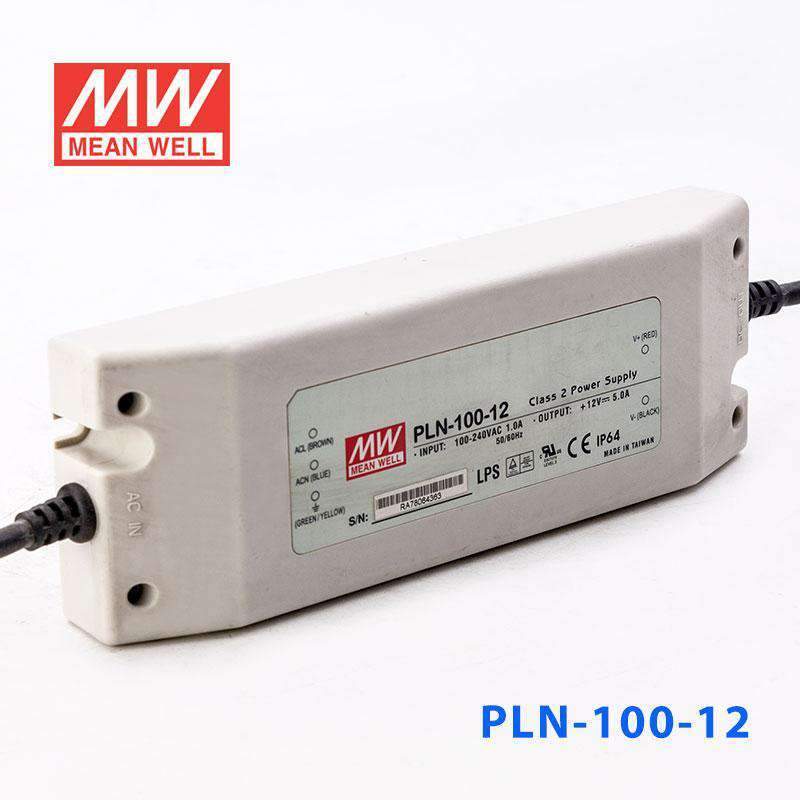

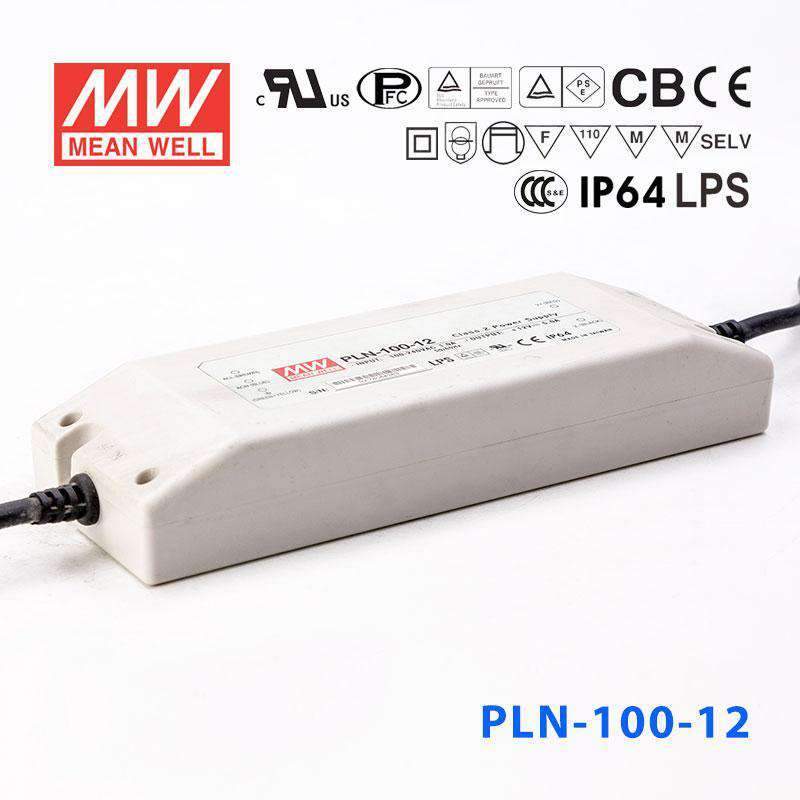

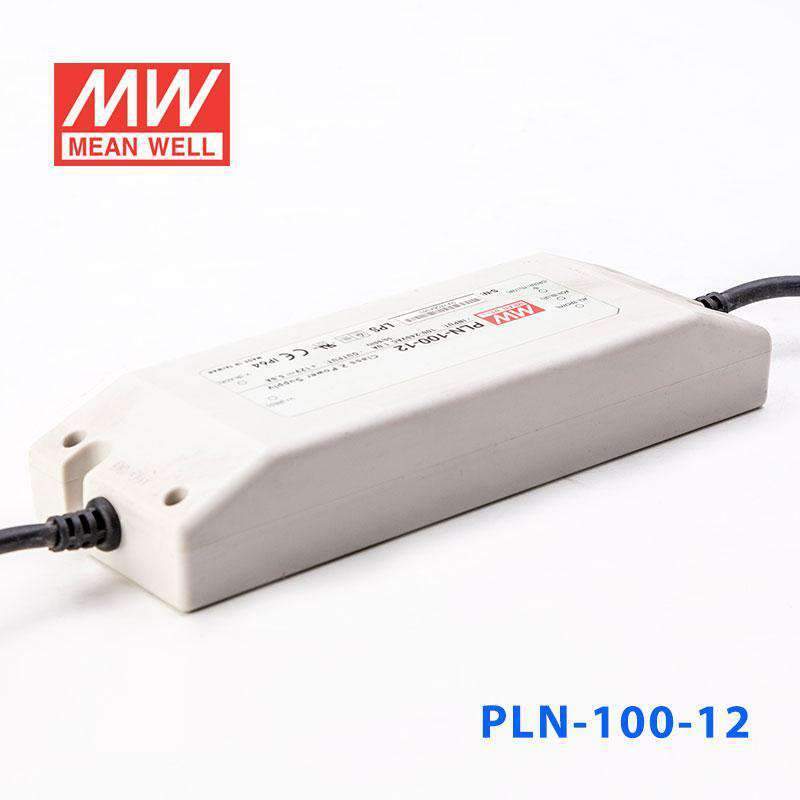

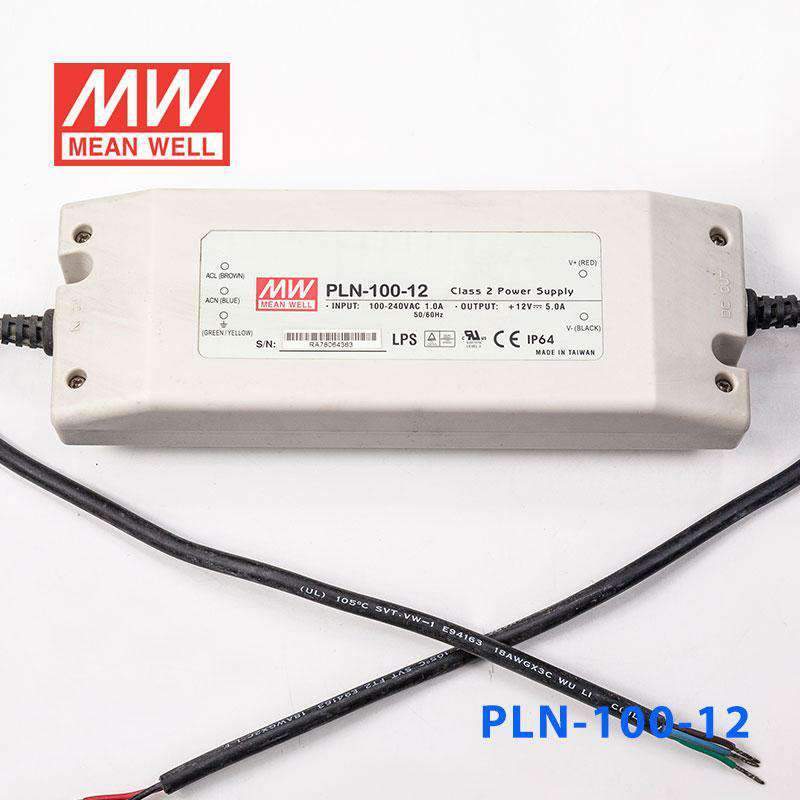

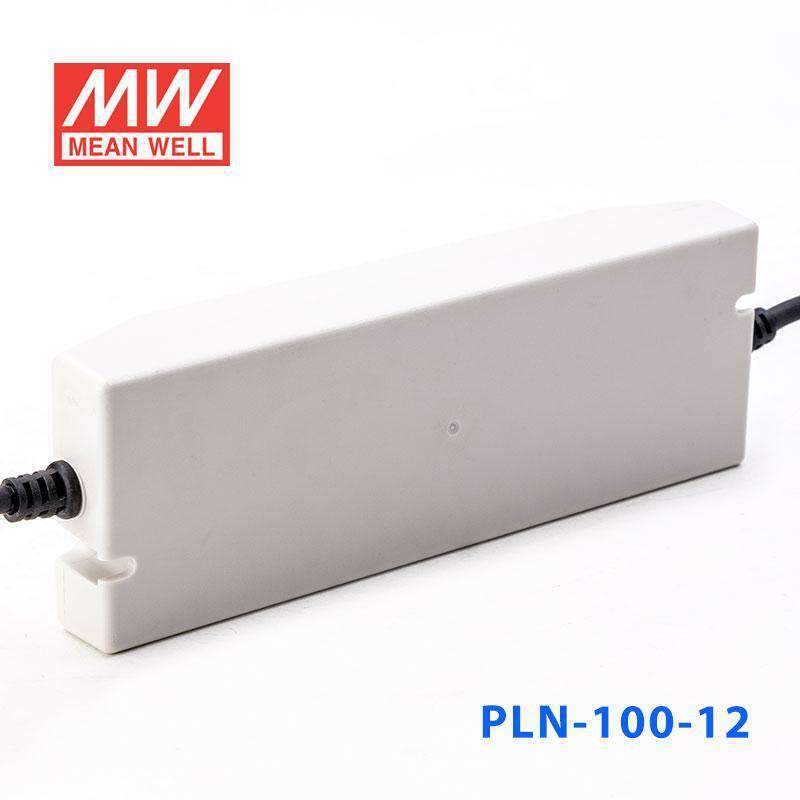

Mean Well PLN-100-12 Power Supply 60W 12V - IP64 5A
Overview
PLN-100-12 is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 83%.
Features
- Universal AC input / Full range (up to 295VAC)
- High efficiency up to 88.5%
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in active PFC function
- Fully isolated plastic case with IP64 level
- Pass LPS
- Class 2 power unit
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications
- Suitable for dry / damp locations
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- CONSTANT CURRENT REGIONNote.6
- 9 ~ 12V
- RATED CURRENTNote.5
- 5A
- RATED POWERNote.5
- 60W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE (SVR1)
- 10.2 ~ 12V
- CURRENT ADJ. RANGE(SVR2)
- 3.75 ~ 5A
- VOLTAGE TOLERANCENote.3
- ±3.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIME
- 500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 60ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧75% at 277VAC input
- EFFICIENCY (Typ.)
- 83%
- AC CURRENT (Typ.)
- 12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC 15V:0.9A/115VAC 0.45A/230VAC 0.35A/277VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC 0.45A/277VAC
- INRUSH CURRENT (Typ.)
- COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER CURRENT
- 95 ~ 102% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13 ~ 16V Protection type : Shut down and latch off o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.7
- UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91(except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP64 approved ; design refer to UL60950
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (>75% load) ; BS EN/EN61000-3-3;GB/T 17743,GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level (surge 4KV), EAC TP TC 020
OTHERS
- MTBF
- 2689.6K hrs min. Telcordia SR-332 (Bellcore) ; 303.2Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 200*70.5*35mm (L*W*H)
- PACKING
- 0.52Kg; 20pcs/12.5Kg/0.9CUFT
Certifications & ratings
- IP64
- IP64
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. This is the maximum possible output current and power. Over load protection may be activated slightly below this level to comply with the requirement of UL1310 class 2.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
- 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. PLN-100-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues1
FAQ
Can I use the Mean Well PLN-100-12 for 12V LED signage?
Yes, this model is suitable for 12V LED signage as long as the load matches its 12V output and stays within 60W and 5A. Its IP64 rating also makes it a practical option for signage applications where dust and splashing water are a concern.
Is the PLN-100-12 a good fit for 12V outdoor lighting?
It can be used for 12V lighting in environments where an IP64 power supply is appropriate. IP64 means protection against dust ingress and splashing water, so it is better suited to protected outdoor or damp locations than fully exposed wet conditions.
Can this power supply run 12V LED strip lighting?
It can power 12V LED strip lighting if the strip's total load does not exceed 60W or 5A and the strip's electrical requirements match this 12V output model. For sizing, maximum strip length = 60W divided by your strip's rated watts per meter, so check your strip rated power per meter before choosing the total length.
Is the PLN-100-12 suitable for signage or lighting in cold or hot environments?
This unit is rated for operation from -30°C to +50°C, so it can be used across a wide temperature range if the installation stays within those limits. That makes it more suitable for challenging indoor or sheltered outdoor conditions than products with narrower temperature ratings.
Can I use this for a 12V lighting load that needs up to 5A?
Yes, this model is rated for 12V output at up to 5A, with 60W total output power. That means it fits 12V lighting applications whose total demand is at or below 60W, and you should keep the connected load within that limit.
Is the IP64 rating enough for wet or exposed outdoor locations?
IP64 means the unit is protected against dust and splashing water, but it is not the same as a higher waterproof rating. It is better suited to protected outdoor use, signage, or damp environments where direct water exposure is limited.
