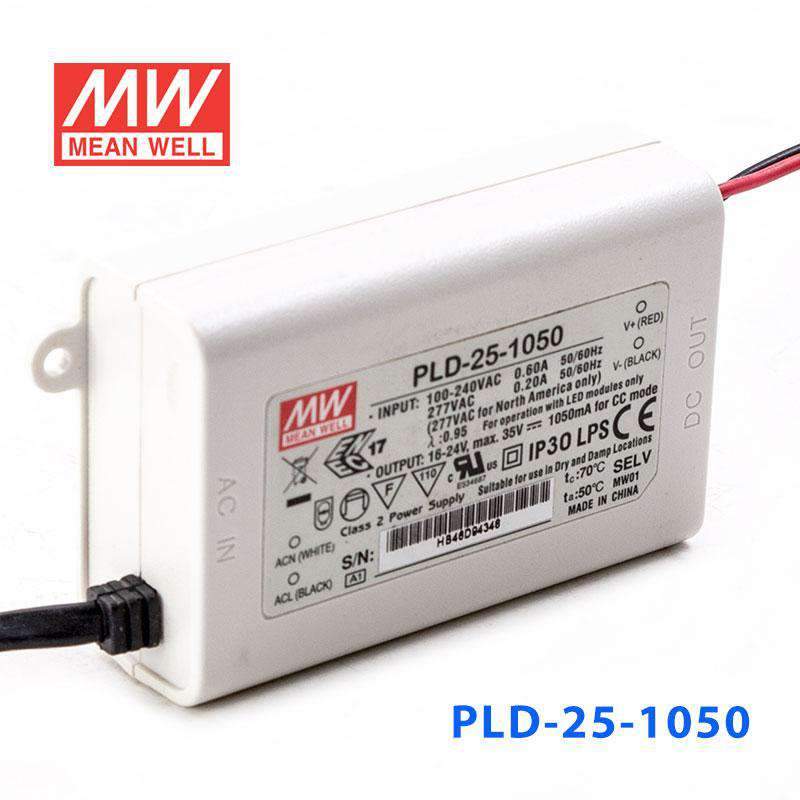

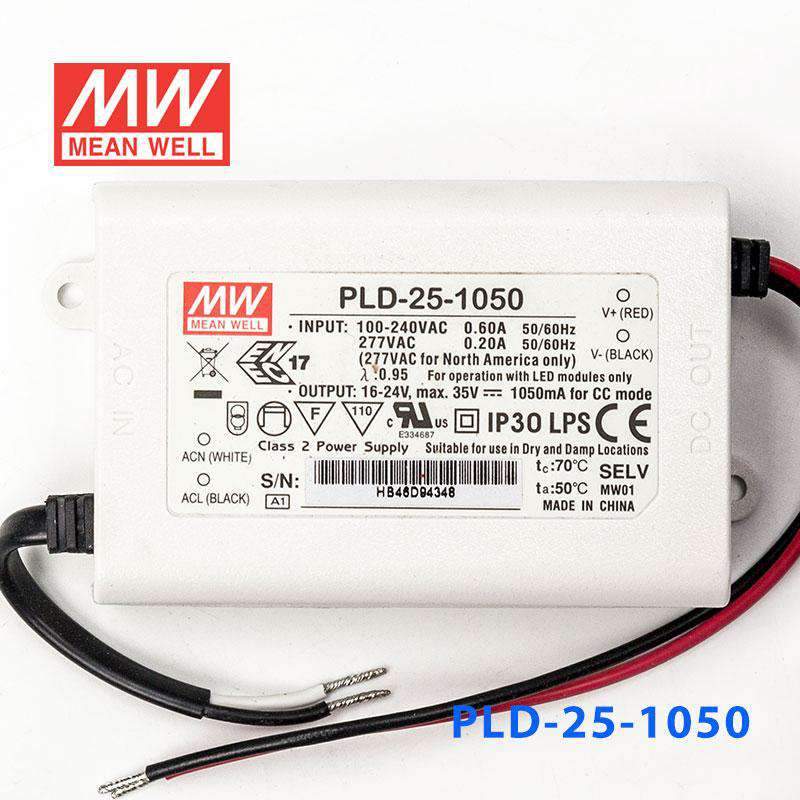

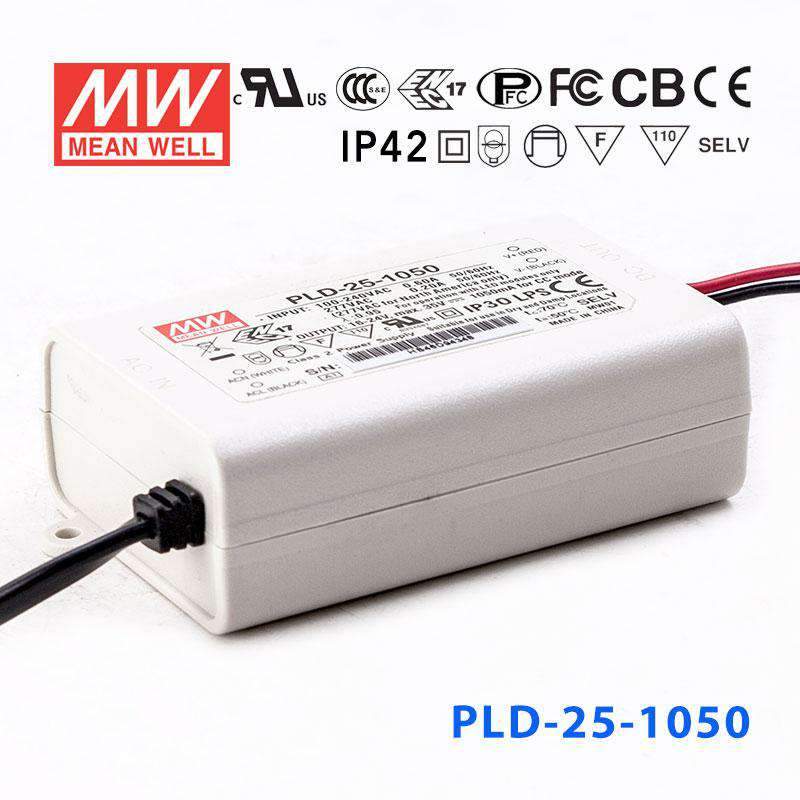

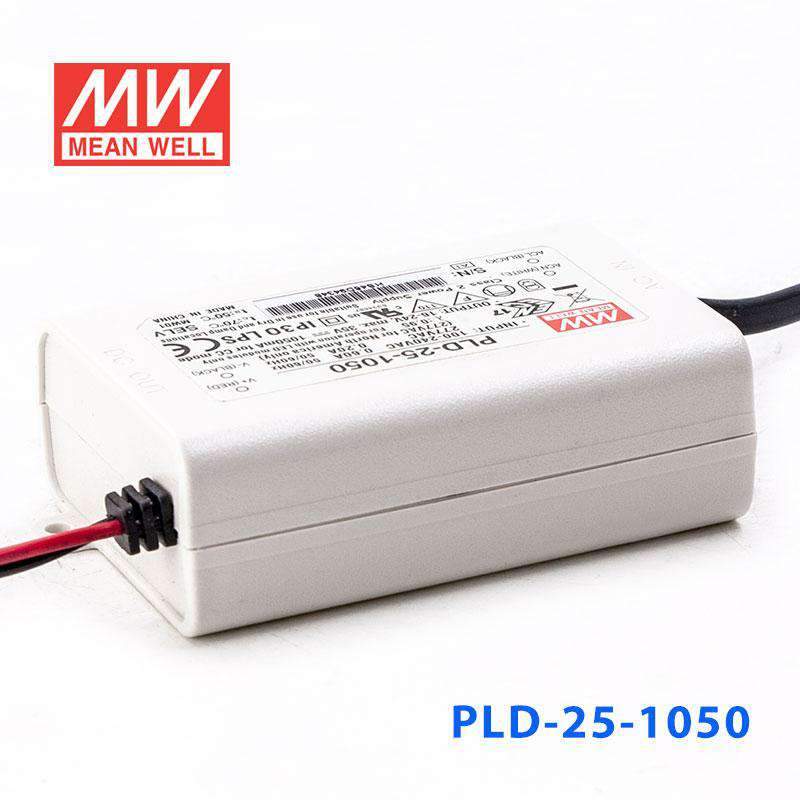

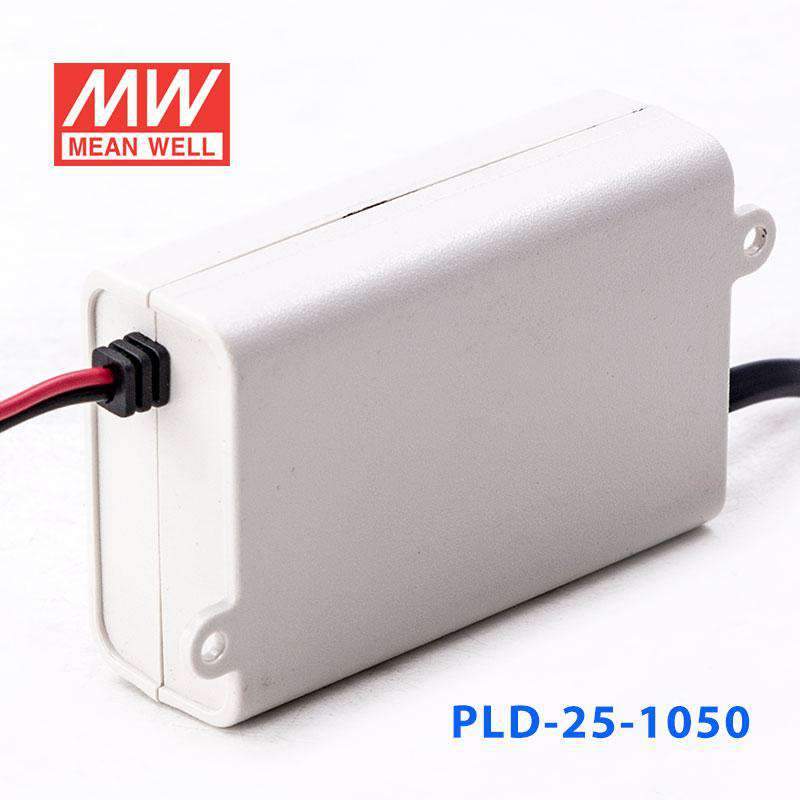

Mean Well PLD-25-1050 Power Supply 25W 1050mA

$20.53 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

PLD-25-1050 is the model of this series: rated current 1050mA, rated power 25.2W, typical efficiency 85%.

Features

  • Universal AC input / Full range (up to 295VAC)
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class 2 Power Unit
  • Class Ⅱ power unit, no FG
  • IP42 design
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • Suitable for dry / damp locations
  • 3 years warranty

Specifications

PLD-25-1050Specifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
16 ~ 24V
CURRENT ACCURACY
±5.0%
RATED POWER
25.2W
RIPPLE & NOISE (max.)Note.1
2.2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.92/230VAC, PF>0.91/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧70% at 115VAC/230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A(twidth=75μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
72 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, BS EN/EN 62384, EAC TP TC 004, IP42 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≦75% load) ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
5524.2K hrs min. Telcordia SR-332 (Bellcore) ; 968.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.75CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

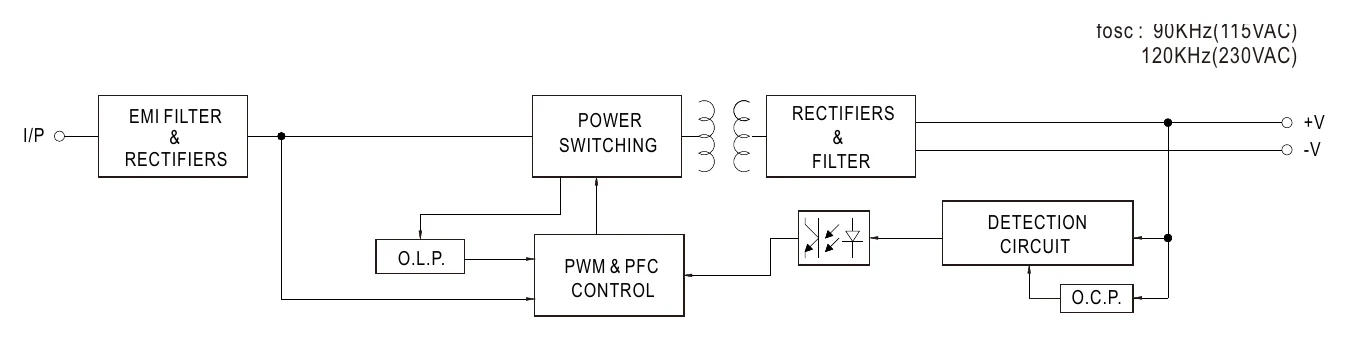

PLD-25-1050 Block Diagram
Block Diagram

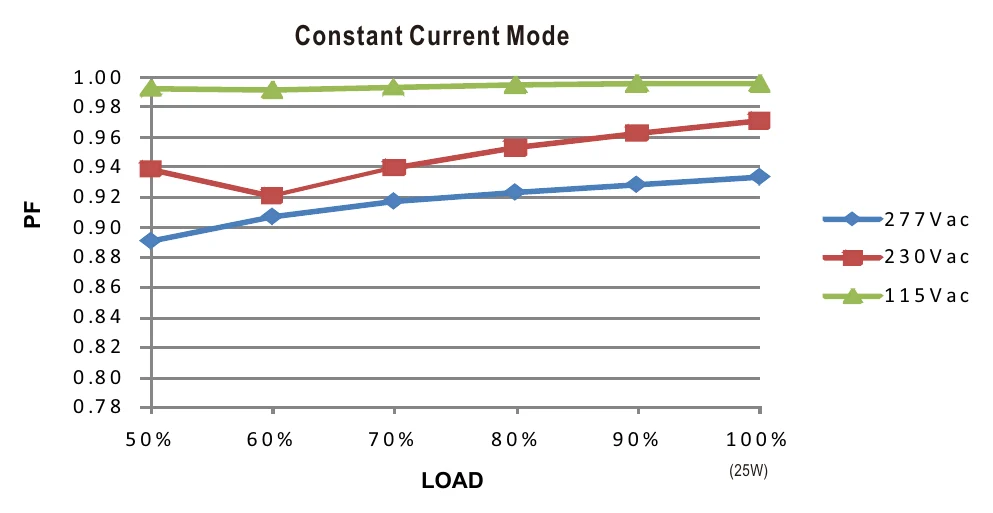

PLD-25-1050 Power Factor Characteristic
Power Factor Characteristic

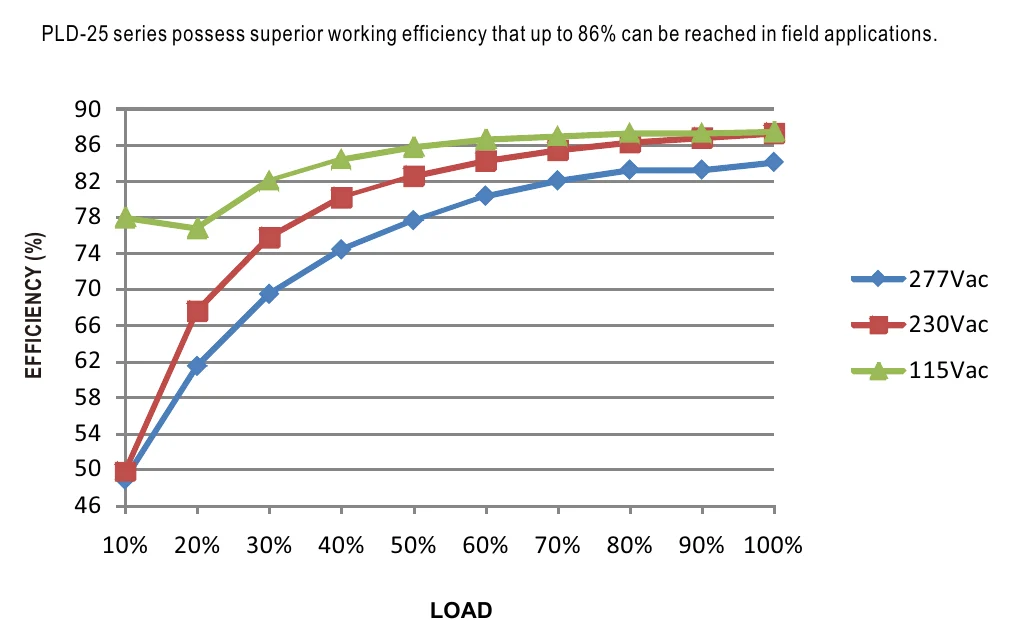

PLD-25-1050 EFFICIENCY vs LOAD (PLD-25-700)
EFFICIENCY vs LOAD (PLD-25-700)

Downloads

FAQ

Can I use the PLD-25-1050 for a 1050mA LED downlight?

Yes, if the downlight is built for 1050mA constant current and the LED load operates within the 16-24V constant current range. This model provides up to 25.2W of output power. It is meant for constant current LED loads, not constant voltage fixtures.

Is the PLD-25-1050 suitable for brighter small LED arrays?

Yes, it can support small LED arrays that require 1050mA constant current and have a total forward voltage between 16V and 24V. The exact LED count depends on the forward voltage of each LED. Its 25.2W rating sets the maximum load for the array.

Can this model be used for compact signage modules that need constant current?

It can be used for signage modules only if they are designed for 1050mA constant current operation and fall within the 16-24V CC range. If the signage system expects constant voltage, this driver is not appropriate. The output mode here is constant current only.

How do I check LED compatibility with the PLD-25-1050?

Look for an LED load that requires 1050mA constant current and whose operating range fits inside 16-24V on the output. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED quantity. The load should also stay within the 25.2W power rating.

What conditions is the PLD-25-1050 designed to handle?

This driver is rated IP42, so it is intended for protected environments rather than direct exposure to rain or washdown. Its operating temperature range is -30°C to +60°C. Output must be derated at the higher end of that range according to the sheet's derating curve.
