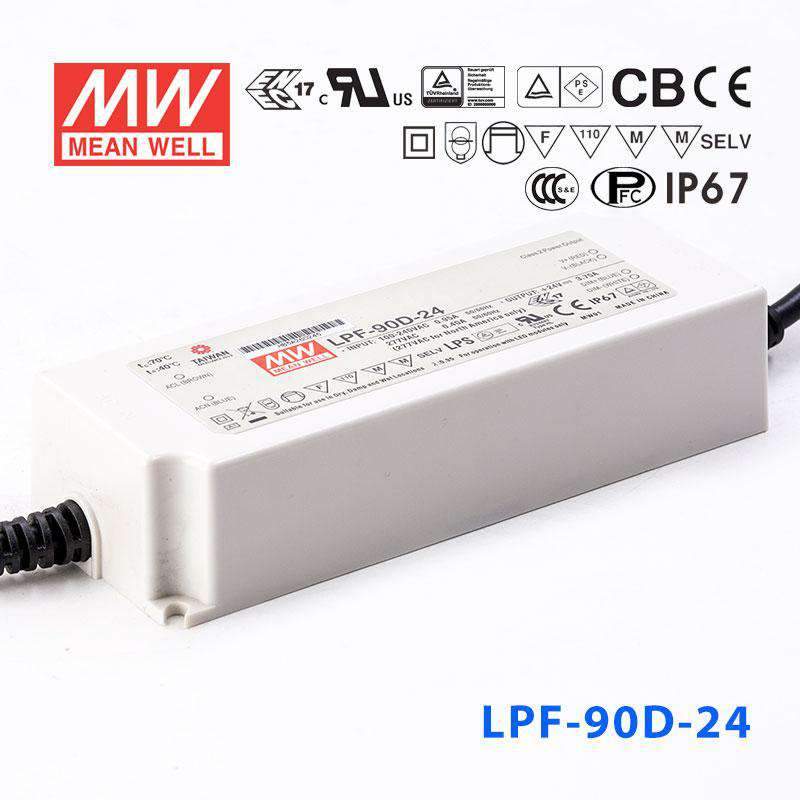

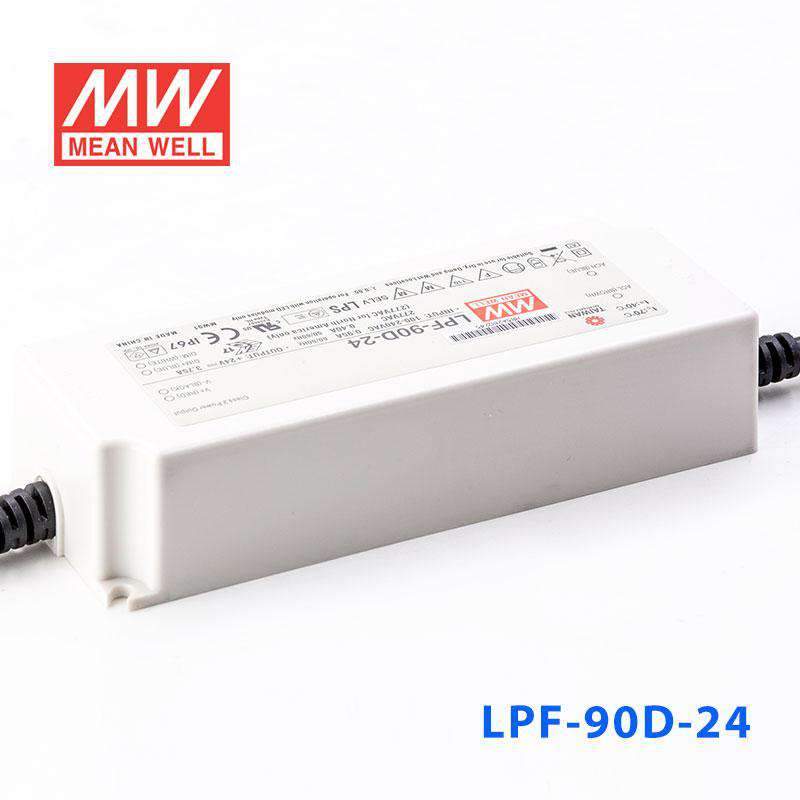

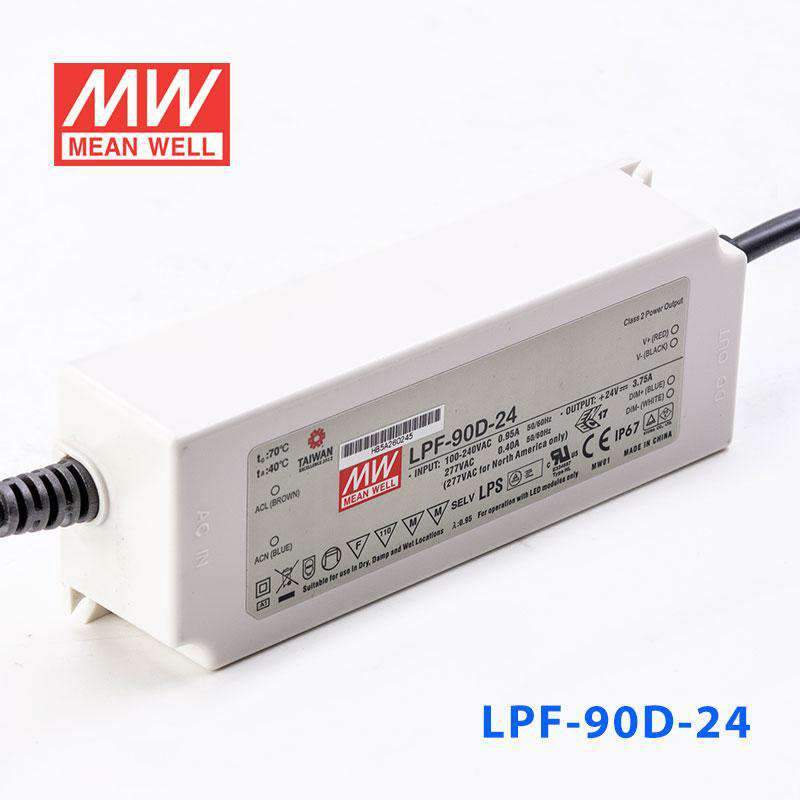

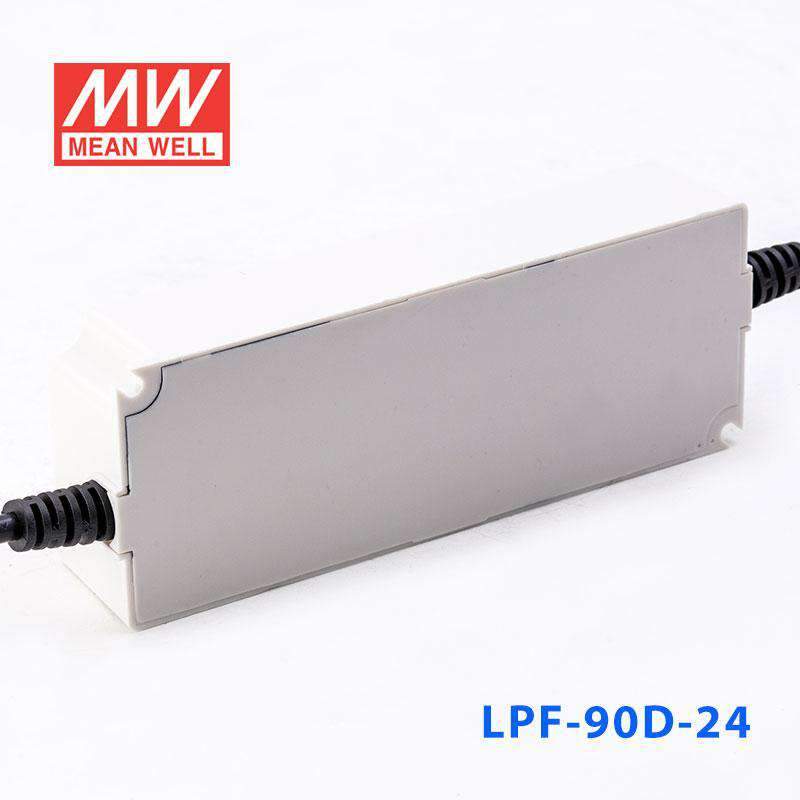

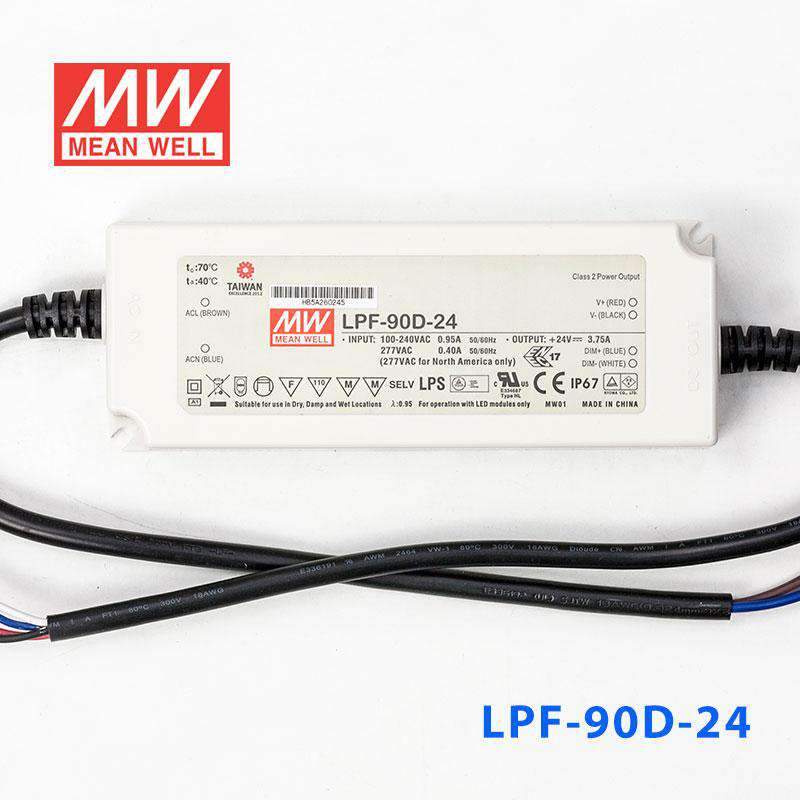

Mean Well LPF-90D-24 Power Supply 90W 24V - Dimmable 3.75A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-90D-24
$45.98 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-90D-24
Available to order
|

Overview

LPF-90D-24 is the 24V output model of this series: rated current 3.75A, rated power 90W, typical efficiency 90%.

LPF-90D series is a 90W AC/DC LED driver featuring the constant current output. LPF-90D operates from 90~305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-90D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 rating for indoor or outdoor installations
  • Function: 3 in 1 dimming
  • Typical lifetiem>50000 hours
  • 5 years warranty

Specifications

LPF-90D-24Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
3.75A
RATED POWERNote.5
90W
CONSTANT CURRENT REGIONNote.2
14.4 ~ 24V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.96/230VAC, PF≧0.95/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
90%
AC CURRENT
0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 34V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750(type”HL”), CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP67 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3110.7K hrs min. Telcordia SR-332 (Bellcore) ; 267.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
161*61*36mm (L*W*H)
PACKING
0.7Kg;20pcs/15Kg/0.73CUFT

Certifications & ratings

Type
HL
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

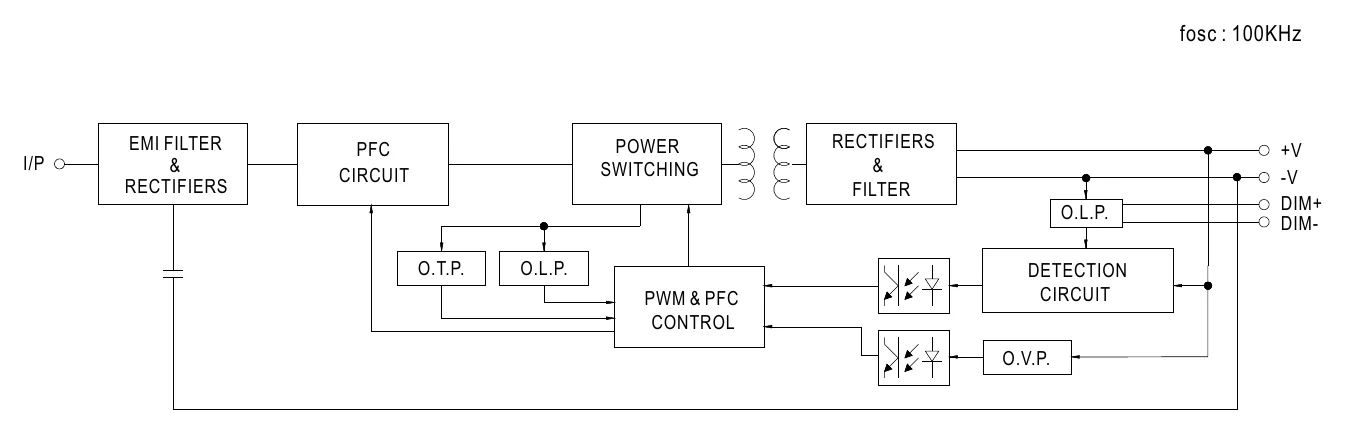

LPF-90D-24 BLOCK DIAGRAM
BLOCK DIAGRAM

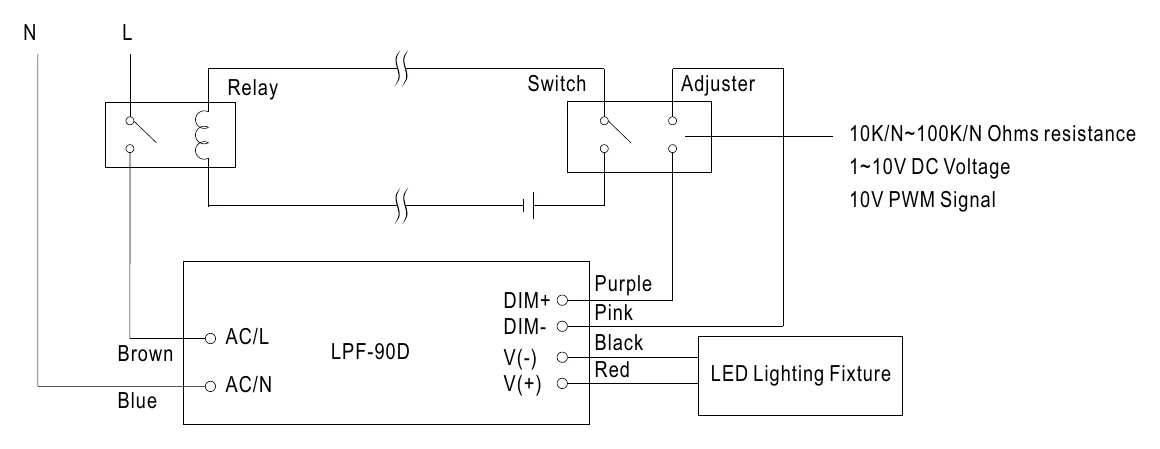

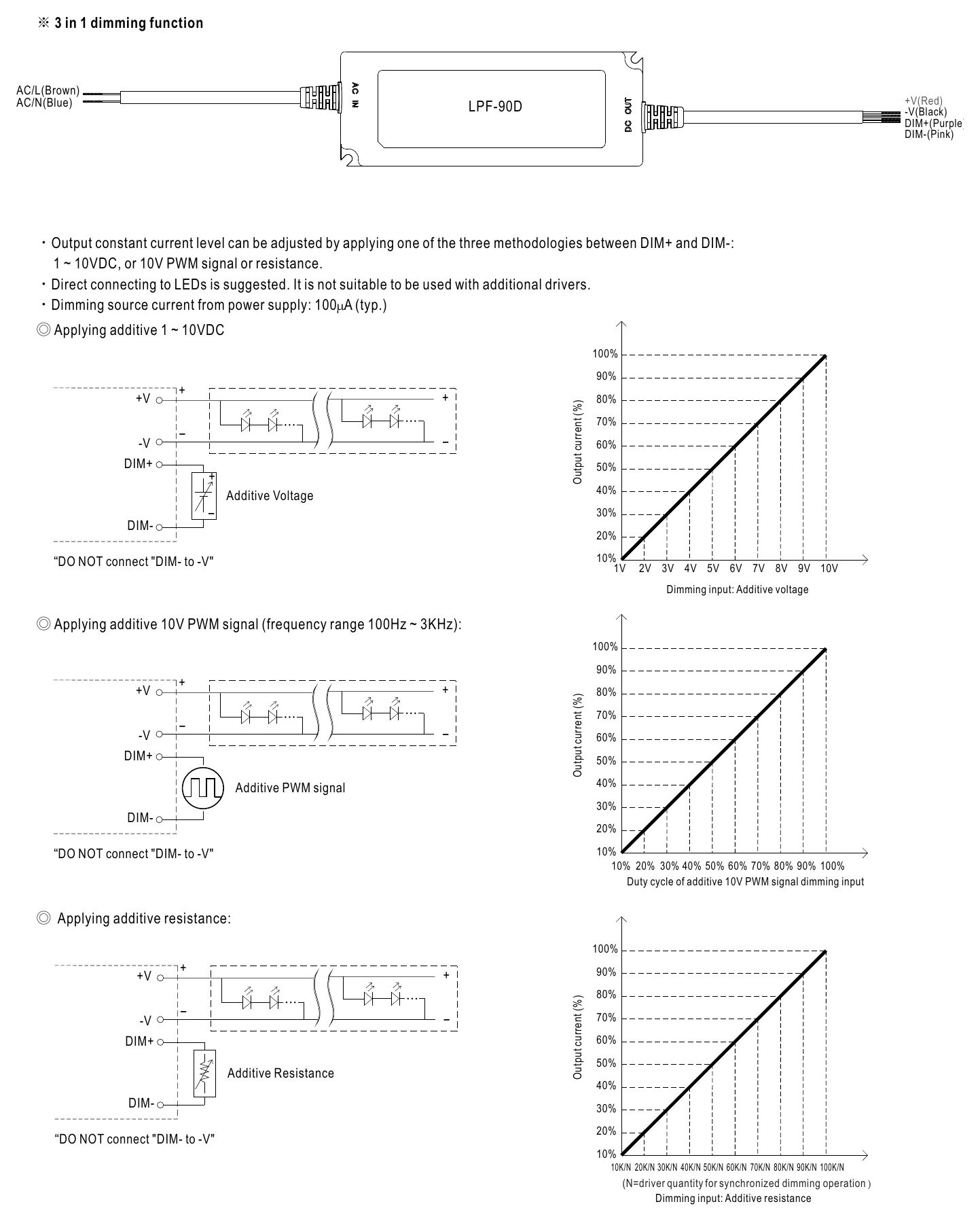

LPF-90D-24 DIMMING OPERATION
DIMMING OPERATION
LPF-90D-24 Illustration (page 5)
Illustration (page 5)

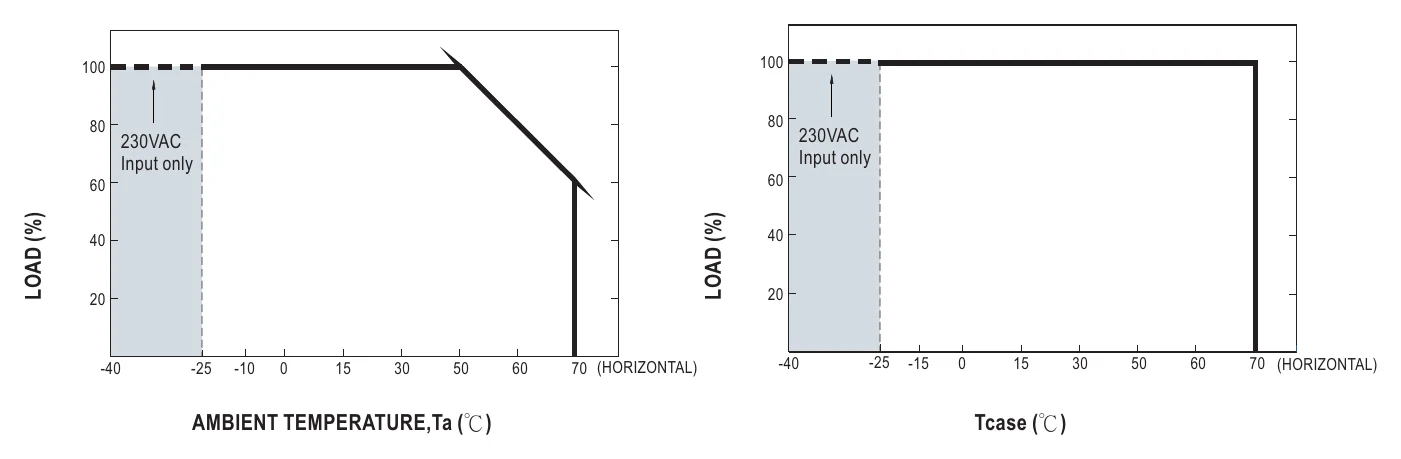

LPF-90D-24 OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE

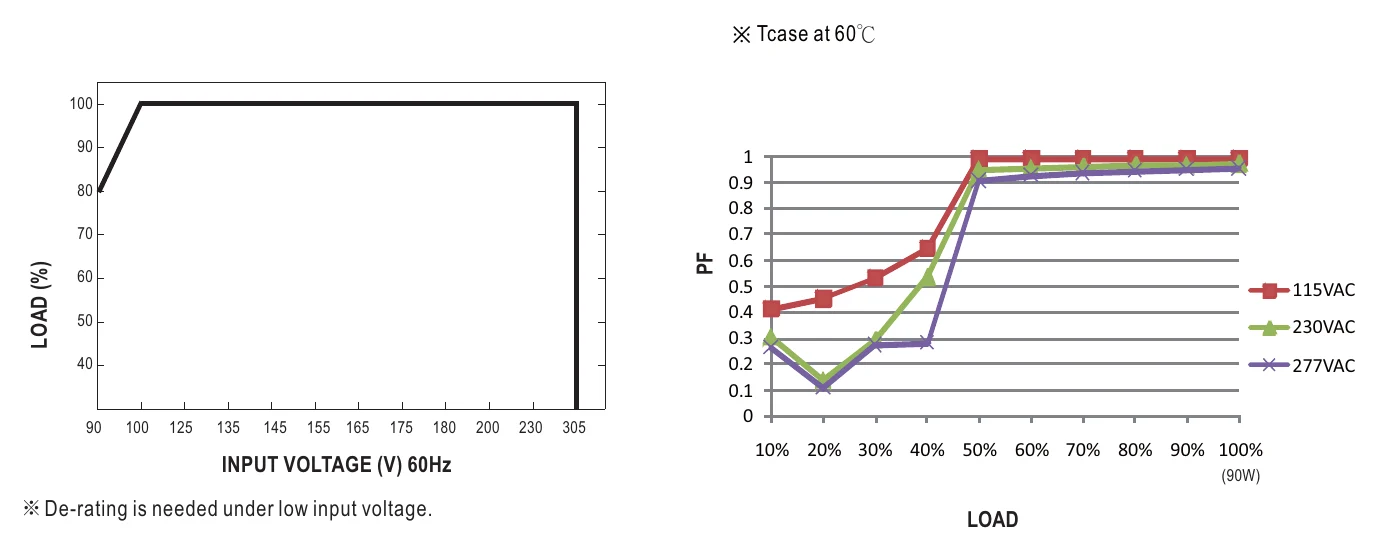

LPF-90D-24 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC

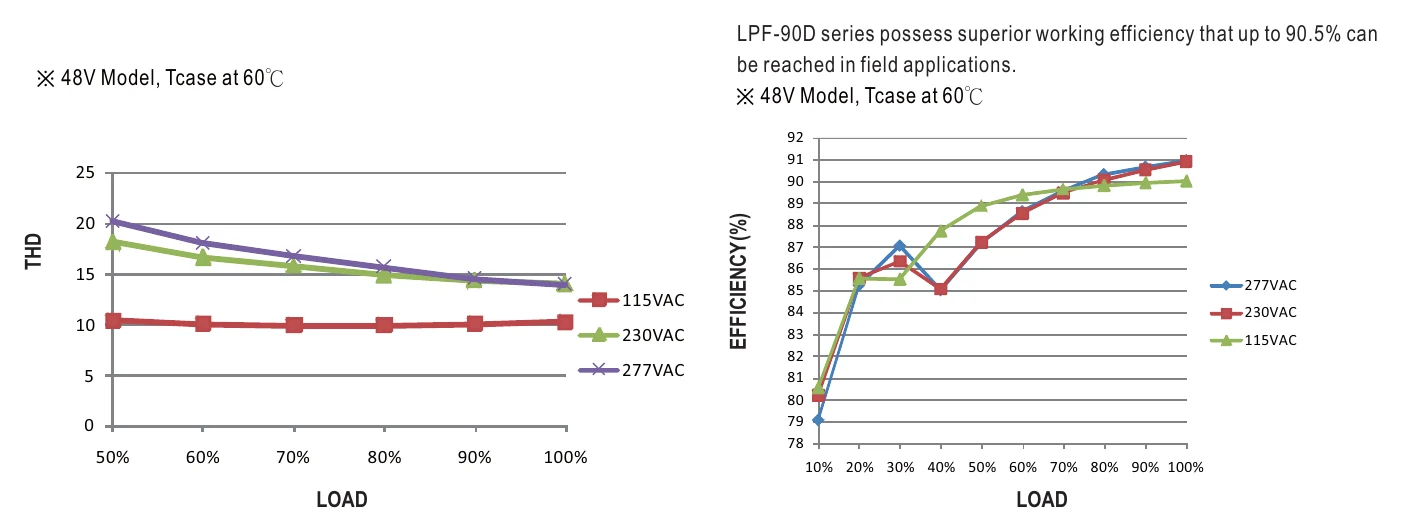

LPF-90D-24 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

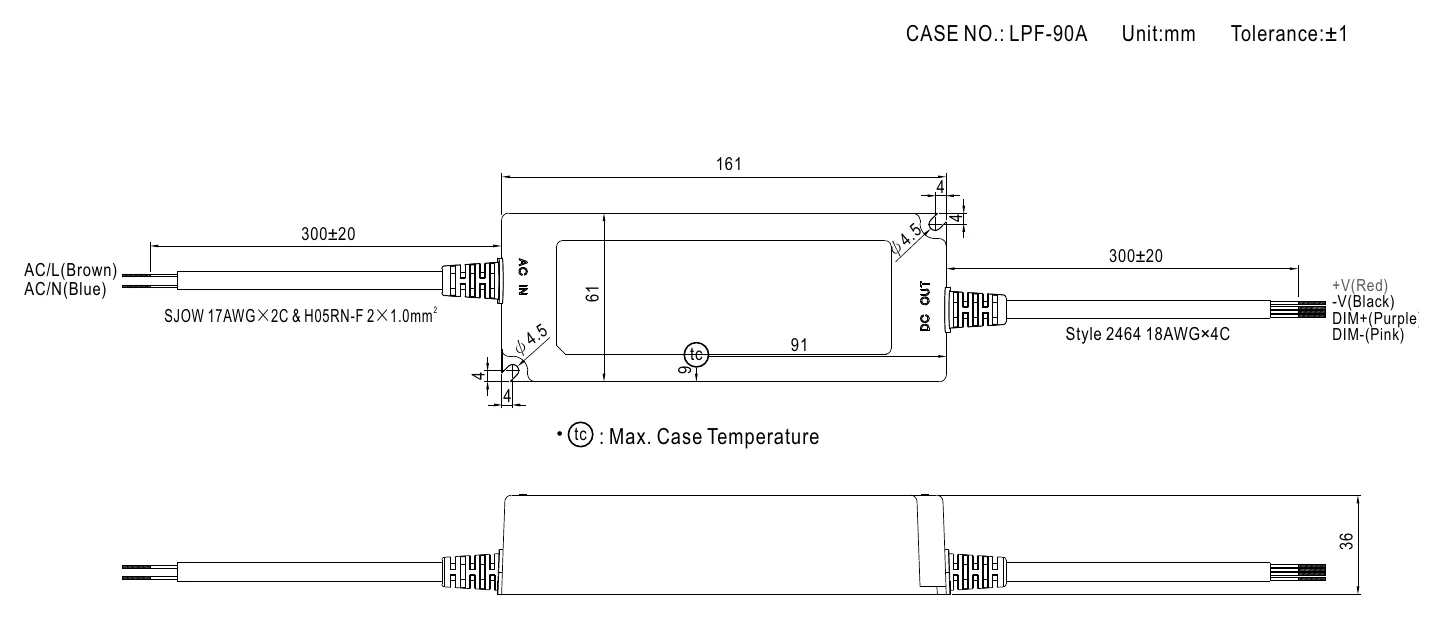

LPF-90D-24 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

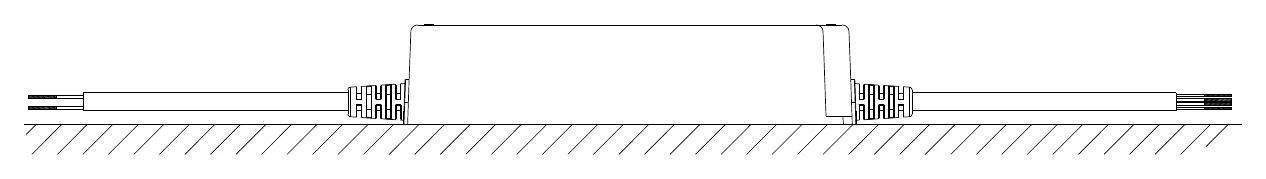

LPF-90D-24 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the LPF-90D-24 for a 24V LED strip installation?

Yes, if the strip is designed to be driven by a constant current source and the full run stays within 90W. This constant current driver delivers 3.75A across a 14.4-24V constant current region, so it is suitable for larger 24V strip lighting loads, but check your strip rated power per meter before sizing.

Is the LPF-90D-24 a good fit for 24V sign lighting?

It can be used for 24V LED signage and illuminated display projects where the load does not exceed 90W. The IP67 waterproof rating is useful when the sign or enclosure is exposed to weather or wet conditions.

Can this model run 24V linear or accent lighting in indoor and outdoor spaces?

Yes, for 24V lighting products designed for constant current operation within the 14.4-24V region at 3.75A. Its IP67 housing and Tcase -40°C to +70°C working range (derating per the load vs temperature curve) make it suitable for both sheltered indoor use and harsher outdoor conditions.

How do I estimate the maximum 24V LED strip length for the LPF-90D-24?

Use the formula: maximum strip length = 90W divided by the strip wattage per meter. This driver is limited to 90W total output at 24V and 3.75A, so check your strip rated power per meter before deciding the run length.

Can the LPF-90D-24 be used outdoors or in wet areas?

Yes. It is rated IP67 waterproof with a working case temperature (Tcase) of -40°C to +70°C, so it is built for wet, dusty, and outdoor environments as well as indoor applications.

What are the differences between the LPF-90D-24 and the other LPF-90D versions?

The LPF-90D dimmable siblings are LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-30 at 90W, 30V, 3A; LPF-90D-36 at 90W, 36V, 2.5A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A. The LPF-90D-24 itself is the 24V, 3.75A, 90W member of that series.
