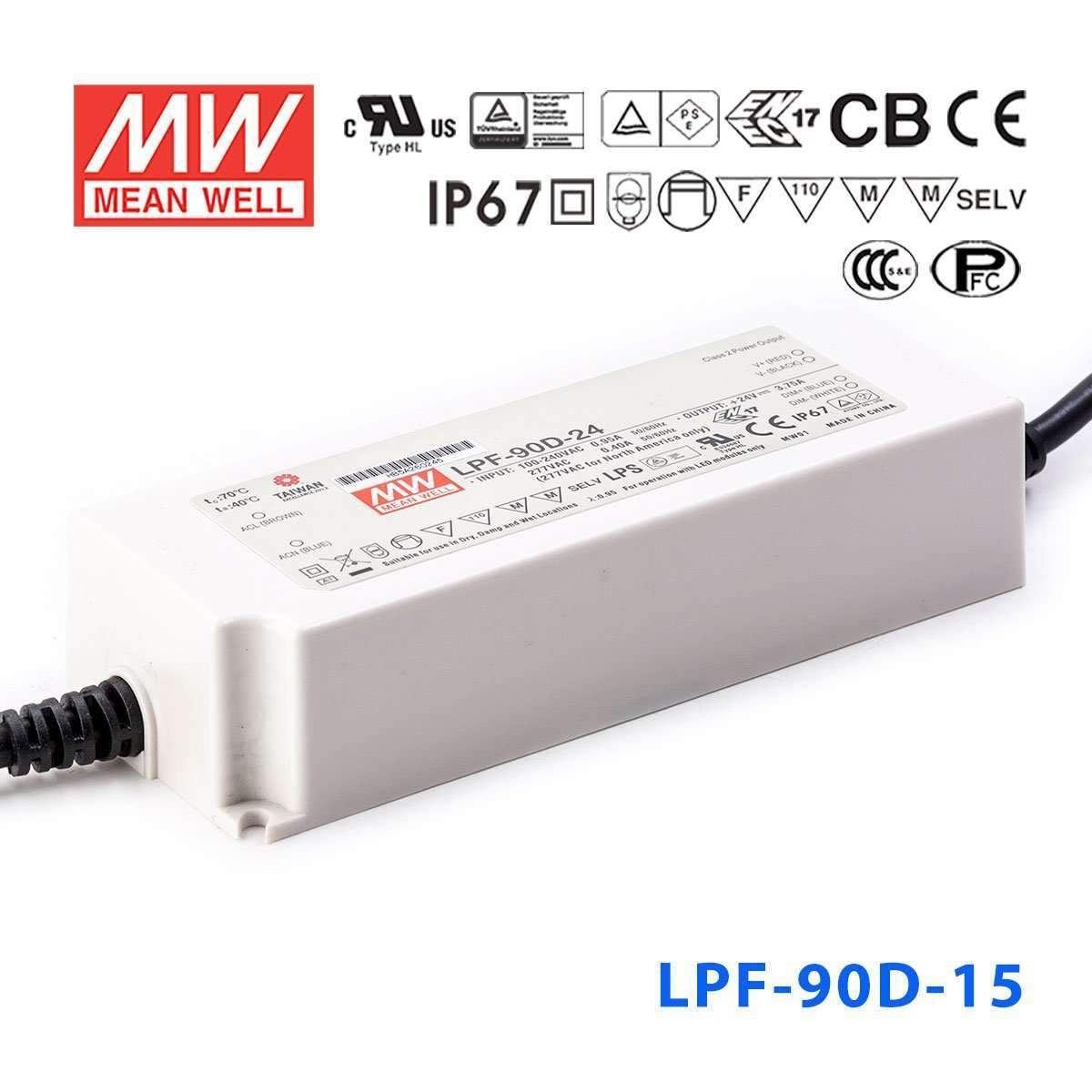

Mean Well LPF-90D-15 Power Supply 75W 15V - Dimmable 5A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-90D-15
$50.70 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-90D-15
In stock
|

Overview

LPF-90D-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 89%.

LPF-90D series is a 90W AC/DC LED driver featuring the constant current output. LPF-90D operates from 90~305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-90D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 rating for indoor or outdoor installations
  • Function: 3 in 1 dimming
  • Typical lifetiem>50000 hours
  • 5 years warranty

Specifications

LPF-90D-15Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
5A
RATED POWERNote.5
75W
CONSTANT CURRENT REGIONNote.2
9 ~ 15V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.96/230VAC, PF≧0.95/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
89%
AC CURRENT
0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
18 ~ 21V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750(type”HL”), CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, GB/T19510.1,GB/T19510.213,IP67 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3110.7K hrs min. Telcordia SR-332 (Bellcore) ; 267.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
161*61*36mm (L*W*H)
PACKING
0.7Kg;20pcs/15Kg/0.73CUFT

Certifications & ratings

Type
HL
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-90D-15 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-90D-15 DIMMING OPERATION
DIMMING OPERATION
LPF-90D-15 Illustration (page 5)
Illustration (page 5)
LPF-90D-15 OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
LPF-90D-15 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-90D-15 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-90D-15 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
LPF-90D-15 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the LPF-90D-15 for 15V LED strip or sign lighting that needs dimming?

Yes, it can be used for 15V LED strip or sign lighting when the load matches the 15V output and stays within 75W. This driver is constant current with a 9-15V range and includes built-in 3 in 1 dimming, so the lighting load needs to fit that electrical range.

Is the LPF-90D-15 a good fit for low-voltage architectural or accent lighting?

It fits 15V architectural or accent lighting loads designed for 5A constant current and up to 75W total. The constant current range is 9-15V, so the fixture should be designed to operate within that range.

Can the LPF-90D-15 be used for outdoor 15V decorative lighting?

Yes, this model is rated IP67 waterproof and has a working case temperature (Tcase) of -40°C to +70°C, so it is suitable for outdoor decorative lighting projects where those limits apply. It also includes built-in 3 in 1 dimming for applications that need light level control.

How much 15V LED strip can the LPF-90D-15 power?

The driver's maximum power is 75W, so maximum strip length is calculated as 75W divided by the strip's watts per meter. For example, length = 75W / rated W per meter. Check your strip rated power per meter and keep the total load within 75W.

Is the LPF-90D-15 suitable for wet locations?

Yes, it has an IP67 waterproof rating and a working case temperature (Tcase) range of -40°C to +70°C. That makes it suitable for wet or exposed locations when the environment stays within those limits.

How does the LPF-90D-15 compare with the other LPF-90D models?

The LPF-90D dimming family includes LPF-90D-15 at 75W, 15V, 5A; LPF-90D-20 at 90W, 20V, 4.5A; LPF-90D-24 at 90W, 24V, 3.75A; LPF-90D-30 at 90W, 30V, 3A; LPF-90D-36 at 90W, 36V, 2.5A; LPF-90D-42 at 90.3W, 42V, 2.15A; LPF-90D-48 at 90.24W, 48V, 1.88A; and LPF-90D-54 at 90.18W, 54V, 1.67A. The LPF-90D-15 is the lowest-voltage, highest-current model and the only 75W version in the series.
