Mean Well LPF-90-48 Power Supply 90W 48V | LPF Series - Constant Voltage + Constant Current LED Driver

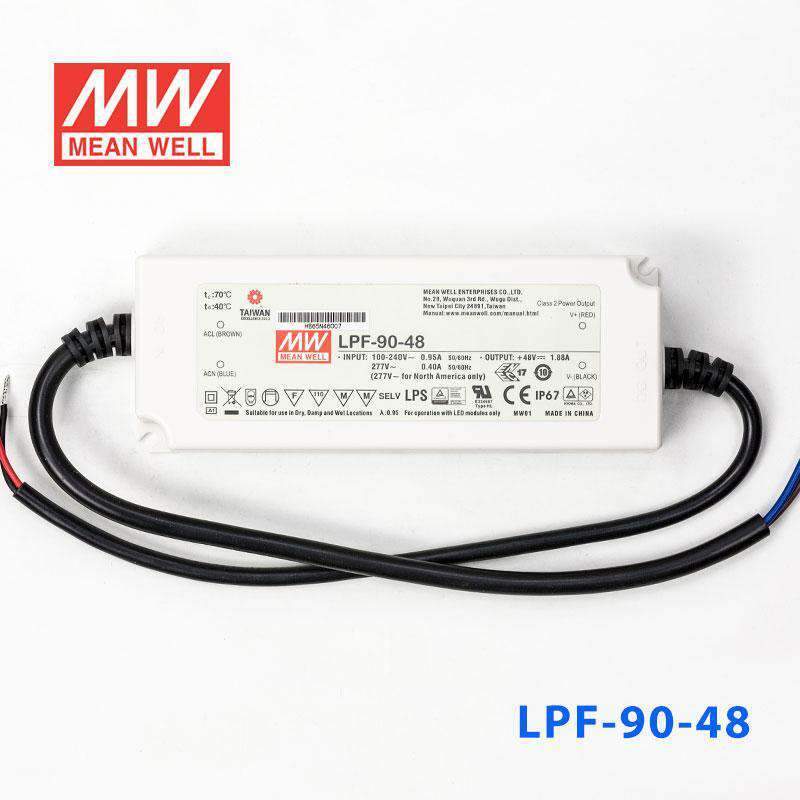

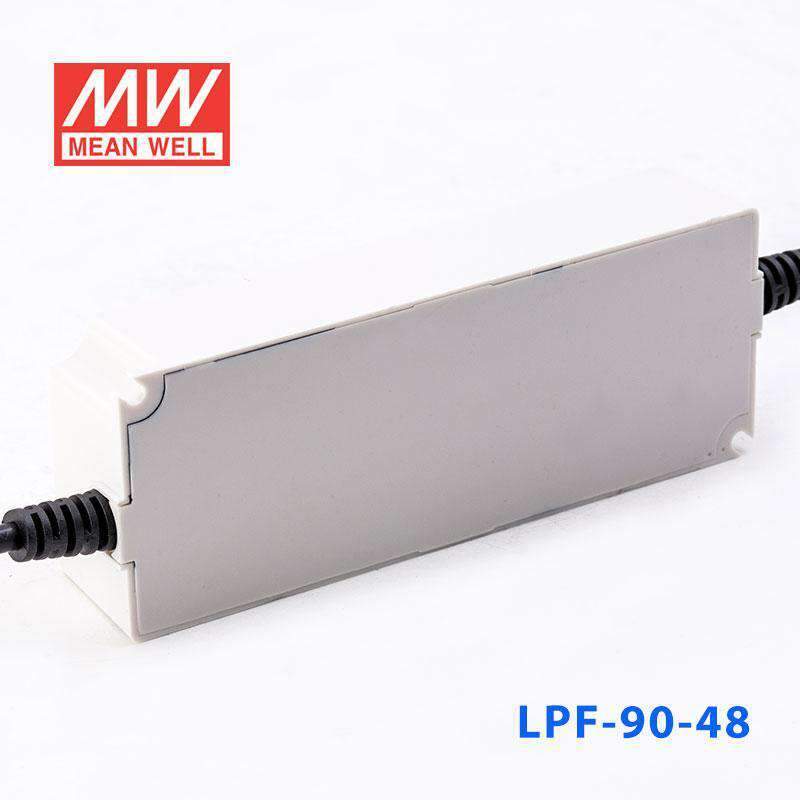

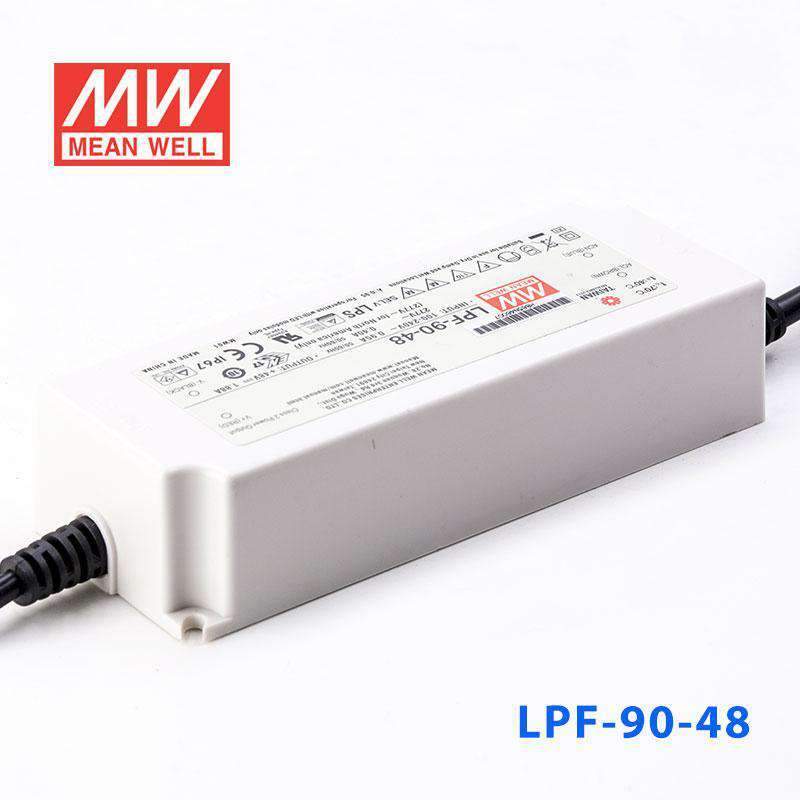

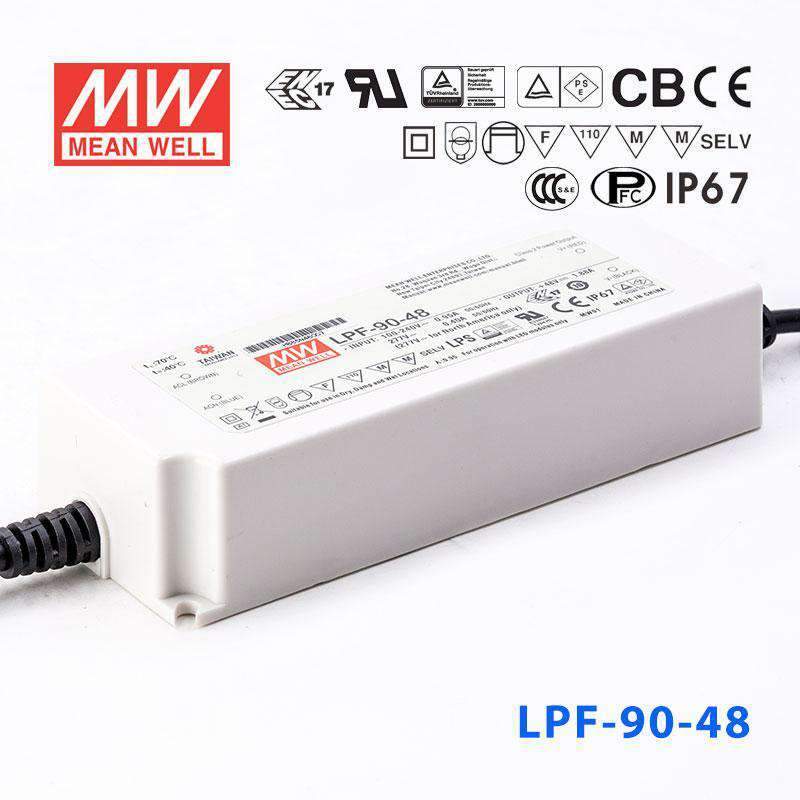

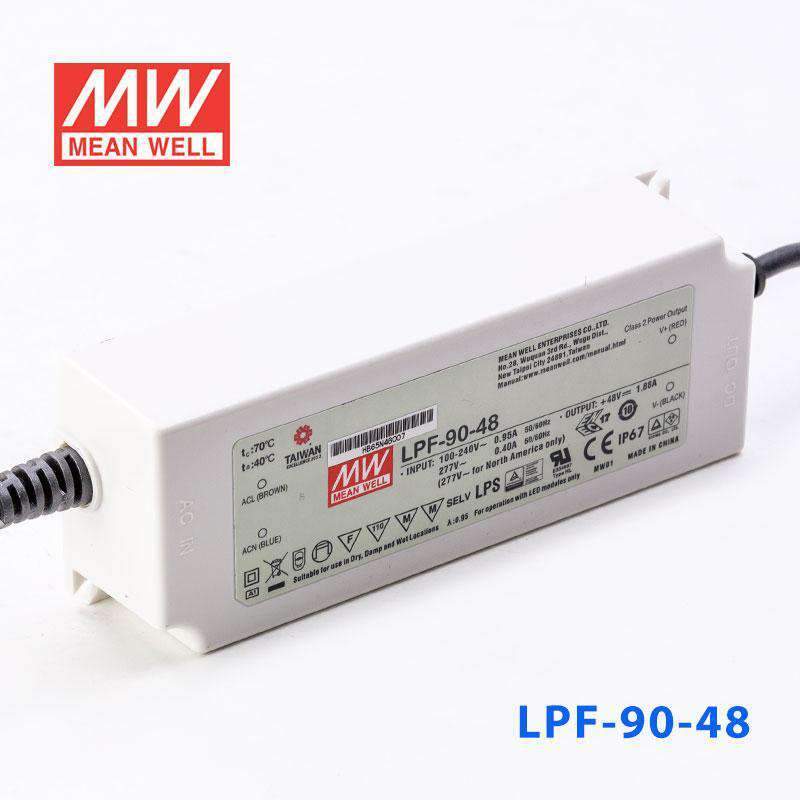

Name: Mean Well LPF-90-48 Power Supply 90W 48V 1.88A
Brand: Mean Well
SKU: LPF-90-48
Price: 49.91 USD
Availability: InStock

Overview

LPF-90-48 is the 48V output model of this series: rated current 1.88A, rated power 90.24W, typical efficiency 91%.

LPF-90 series is a 90W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-90 operates from 90~305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Fully encapsulated with IP67 level
Typical lifetime>50000 hours
5 years warranty

Specifications

LPF-90-48Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.2: 28.8 ~ 48V
RATED CURRENT: 1.88A
RATED POWER^Note.5: 90.24W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.96/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.): 91%
AC CURRENT: 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 60V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +70℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750 (type"HL") , CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, J61347-1, J61347-2-13, EAC TP TC 004 , GB/T19510.1,GB/T19510.213, IP67 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3292.9K hrs min. Telcordia SR-332 (Bellcore) ; 301.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 161*61*36mm (L*W*H)
PACKING: 0.7Kg;20pcs/15Kg/0.73CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8.To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-90-48 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

LPF-90-48 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-90-48 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-90-48 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

LPF-90-48 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates5

UL Certificate (LPF-90)(EN) PDF Download

CB Certificate (LPF-90)(EN) PDF Download

EMC Certificate (LPF-90)(EN) PDF Download

TUV Certificate (LPF-90)(EN) PDF Download

PSE Certificate (LPF-90)(EN) PDF Download

Test reports1

Test Report(LPF-90-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-90-48 for 48V LED signage or lightbox lighting?

It can be used for 48V LED signage or lightbox lighting if the load matches the 48V output and stays within 90.24W. This is a constant voltage + constant current driver with a 28.8-48V constant current region, so the lighting load should be specified inside that range.

Is the LPF-90-48 suitable for 48V linear or cove lighting fixtures?

Yes, it suits 48V linear or cove lighting fixtures that require up to 1.88A and no more than 90.24W. The connected fixture should be designed for the driver's 28.8-48V constant current region.

Can this driver be used for outdoor 48V architectural lighting?

Yes, the LPF-90-48 has an IP67 rating and operates at a case temperature (Tcase) of -40°C to +70°C, with load derating at higher temperatures, which supports outdoor architectural lighting use. The load still needs to match the 48V class and stay within 90.24W.

How much 48V LED strip can the LPF-90-48 support?

The available power is 90.24W, so the maximum strip length is 90.24W divided by the strip's watts per meter. In other words, length = 90.24W / rated W per meter. Check your strip rated power per meter so the total load does not exceed 90.24W.

Is the LPF-90-48 rated for wet locations?

Yes, it is rated IP67 and operates at a case temperature (Tcase) of -40°C to +70°C, with load derating at higher temperatures. That makes it suitable for wet lighting projects where those limits match the site conditions.

How does LPF-90-48 differ from the other LPF-90 output options?

In the LPF-90 group, the available outputs are 15V 75W 5A, 20V 90W 4.5A, 24V 90W 3.75A, 30V 90W 3A, 36V 90W 2.5A, 42V 90.3W 2.15A, 48V 90.24W 1.88A, and 54V 90.18W 1.67A. All models share the 90-305VAC input range and the same 161*61*36mm case.
