Mean Well

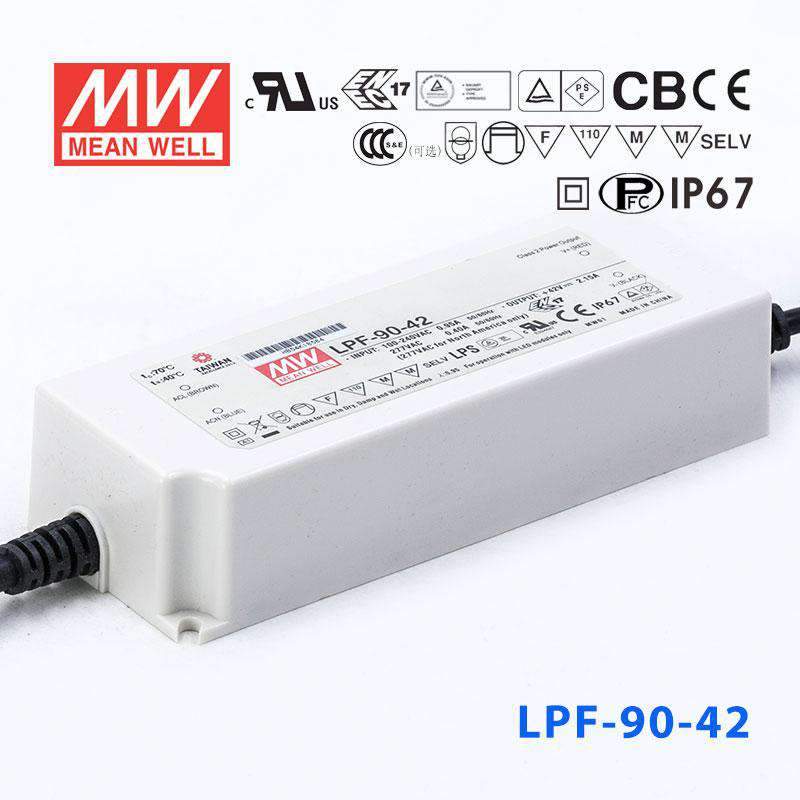

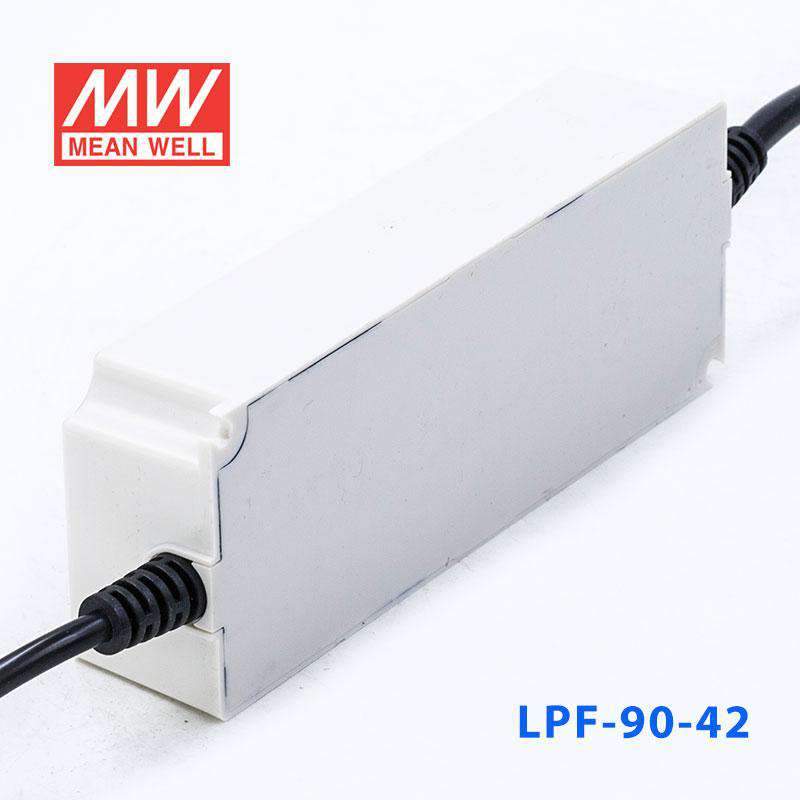

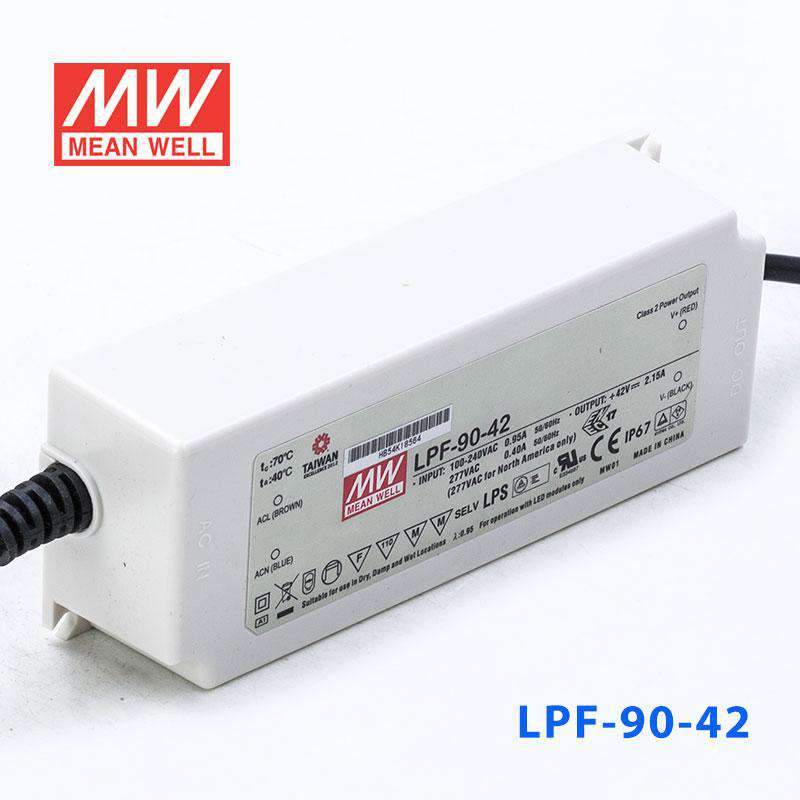

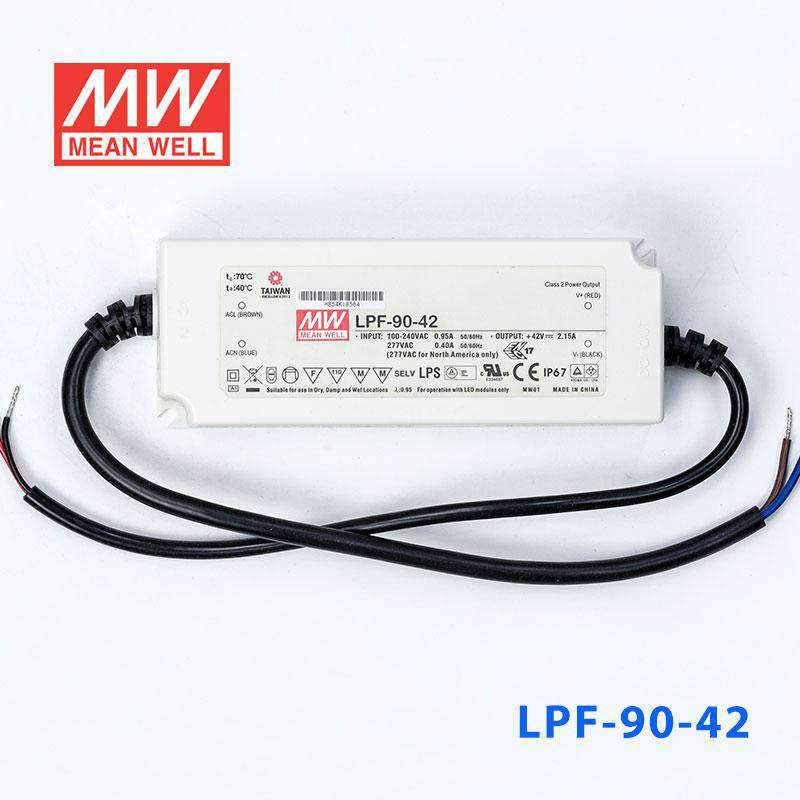

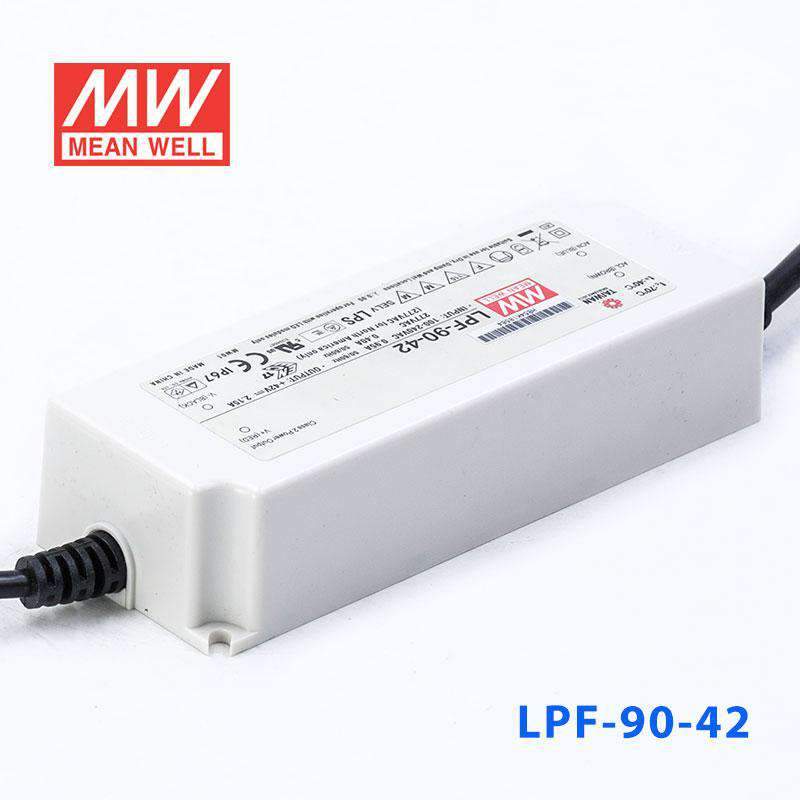

Mean Well LPF-90-42 Power Supply 90W 42V 2.15A

fully isolated plastic caseIP67Class II design without FG
SKU LPF-90-42
$48.42 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-90-42
Available to order
|

Overview

LPF-90-42 is the 42V output model of this series: rated current 2.15A, rated power 90.3W, typical efficiency 91%.

LPF-90 series is a 90W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-90 operates from 90~305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

  • Constant Voltage + Constant Current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • Fully encapsulated with IP67 level
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

LPF-90-42Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
42V
CONSTANT CURRENT REGIONNote.2
25.2 ~ 42V
RATED CURRENT
2.15A
RATED POWERNote.5
90.3W
RIPPLE & NOISE (max.)Note.3
200mVp-p
VOLTAGE TOLERANCENote.4
±4.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.96/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)
91%
AC CURRENT
0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
47 ~ 53V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +70℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750 (type"HL") , CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, J61347-1, J61347-2-13, EAC TP TC 004 , GB/T19510.1,GB/T19510.213, IP67 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3292.9K hrs min. Telcordia SR-332 (Bellcore) ; 301.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
161*61*36mm (L*W*H)
PACKING
0.7Kg;20pcs/15Kg/0.73CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8.To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-90-42 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-90-42 OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
LPF-90-42 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-90-42 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-90-42 LIFETIME(Kh)
LIFETIME(Kh)
LPF-90-42 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
LPF-90-42 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the LPF-90-42 for 42V LED signage or display lighting?

It can be used for 42V LED signage or display lighting when the load matches the 42V output and stays within 90.3W total. This is a constant voltage + constant current driver with a 25.2-42V constant current region, so the connected lighting load needs to fall inside that range.

Is the LPF-90-42 a fit for 42V linear lighting fixtures?

Yes, it is suited to 42V linear lighting fixtures that need up to 2.15A and no more than 90.3W. The fixture should be designed to operate within the driver's 25.2-42V constant current region.

Can the LPF-90-42 be used for outdoor decorative or facade lighting?

Yes, this model is often considered for outdoor decorative or facade lighting because it is IP67 rated and operates at a case temperature (Tcase) of -40°C to +70°C, with load derating at higher temperatures. The lighting load still needs to match the 42V output class and remain within 90.3W.

How do I estimate LED strip length for the LPF-90-42?

Use the driver's maximum power: 90.3W. The length calculation is 90.3W divided by your strip's watts per meter, so maximum length = 90.3W / rated W per meter. Check your strip rated power per meter before sizing the run.

Is the LPF-90-42 suitable for wet or exposed environments?

The LPF-90-42 carries an IP67 rating and operates at a case temperature (Tcase) of -40°C to +70°C, with load derating at higher temperatures. That makes it appropriate for wet or exposed locations when those environmental limits fit the project.

What are the main output differences between LPF-90-42 and the other LPF-90 models?

The LPF-90 family includes 15V at 75W and 5A, 20V at 90W and 4.5A, 24V at 90W and 3.75A, 30V at 90W and 3A, 36V at 90W and 2.5A, 42V at 90.3W and 2.15A, 48V at 90.24W and 1.88A, and 54V at 90.18W and 1.67A. All models share the 90-305VAC input range and the same 161*61*36mm case.
