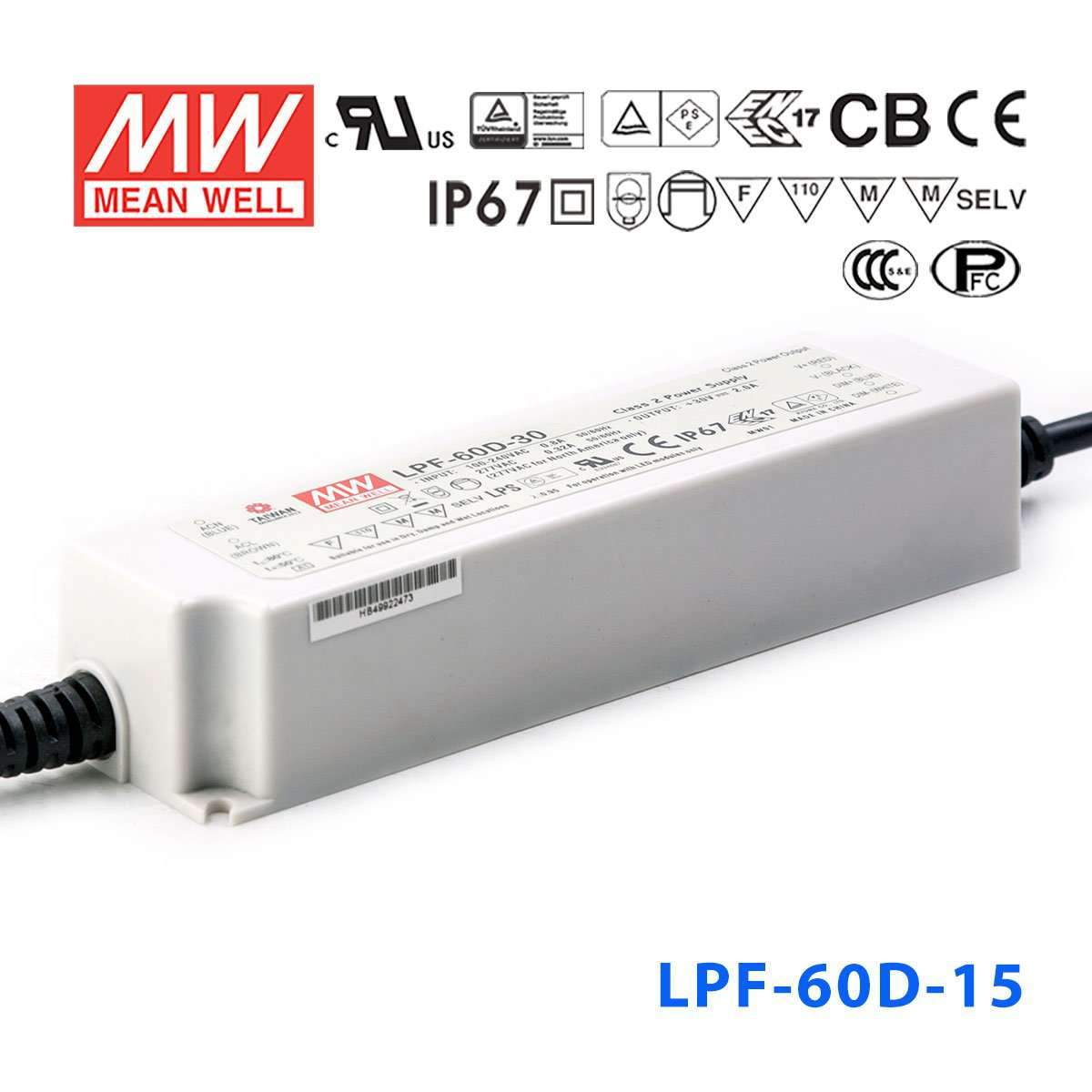

Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable

Name: Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable 4A
Brand: Mean Well
SKU: LPF-60D-15
Price: 37.46 USD
Availability: InStock

Overview

LPF-60D-15 is the 15V output model of this series: rated current 4A, rated power 60W, typical efficiency 87%.

LPF-60D series is a 60W AC/DC LED driver featuring the constant current output. LPF-60D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-60D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

Constant current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Function: 3 in 1 dimming
Typical lifetiem>50000 hours
5 years warranty

Specifications

LPF-60D-15Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 4A
RATED POWER^Note.5: 60W
CONSTANT CURRENT REGION^Note.2: 9 ~ 15V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP, RISE TIME^Note.6: 1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 87%
AC CURRENT: 0.8A / 115VAC 0.4A / 230VAC 0.32A/277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 17.5 ~ 21V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004 , IP67, GB/T19510.1,GB/T19510. 213 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3614.1K hrs min. Telcordia SR-332 (Bellcore) ; 396.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 162.5*43*32mm (L*W*H)
PACKING: 0.45Kg; 32pcs/15.4Kg/0.93CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-60D-15 BLOCK DIAGRAM — BLOCK DIAGRAM

LPF-60D-15 DIMMING OPERATION — DIMMING OPERATION

LPF-60D-15 Illustration (page 5) — Illustration (page 5)

LPF-60D-15 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

LPF-60D-15 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-60D-15 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-60D-15 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

LPF-60D-15 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Certificates6

UL Certificate (LPF-60D)(EN) PDF Download

CB Certificate (LPF-60D)(EN) PDF Download

EMC Certificate (LPF-60D)(EN) PDF Download

ENEC Certificate (LPF-60D)(EN) PDF Download

PSE Certificate (LPF-60D)(EN) PDF Download

TUV Certificate(LPF-60D)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-60D-15 with 15V LED strip lighting?

Only if the strip is a constant current load operating within 9-15V at 4A; this is a constant current driver, so it is not a match for constant voltage strip. For estimating strip length, divide 60W by the strip's rated watts per meter, and check your strip rated power per meter before final sizing.

Is this 15V dimmable driver suitable for illuminated signs?

It can be used for constant current sign lighting loads within 9-15V that remain within the 60W maximum and 4A output. The built-in 3 in 1 dimming also suits sign applications where brightness needs to be adjusted.

Can the LPF-60D-15 power 15V decorative or accent lighting in outdoor locations?

Yes, for constant current LED lighting products within 9-15V and the rated 60W output. The IP67 waterproof construction supports outdoor use, and the driver has a working case temperature (Tcase) range of -40°C to +80°C, with load derating at higher temperatures.

Is this a good option for 15V display lighting that needs dimming control?

This model is appropriate for constant current display lighting loads within 9-15V, up to 4A and 60W. Its built-in 3 in 1 dimming makes it suitable where adjustable light output is required from the driver.

How well does the LPF-60D-15 handle wet or harsh environments?

The driver is rated IP67, so it is intended for wet and outdoor environments. It also has a working case temperature (Tcase) range of -40°C to +80°C, with load derating at higher temperatures, which supports use in cold and hot conditions.
