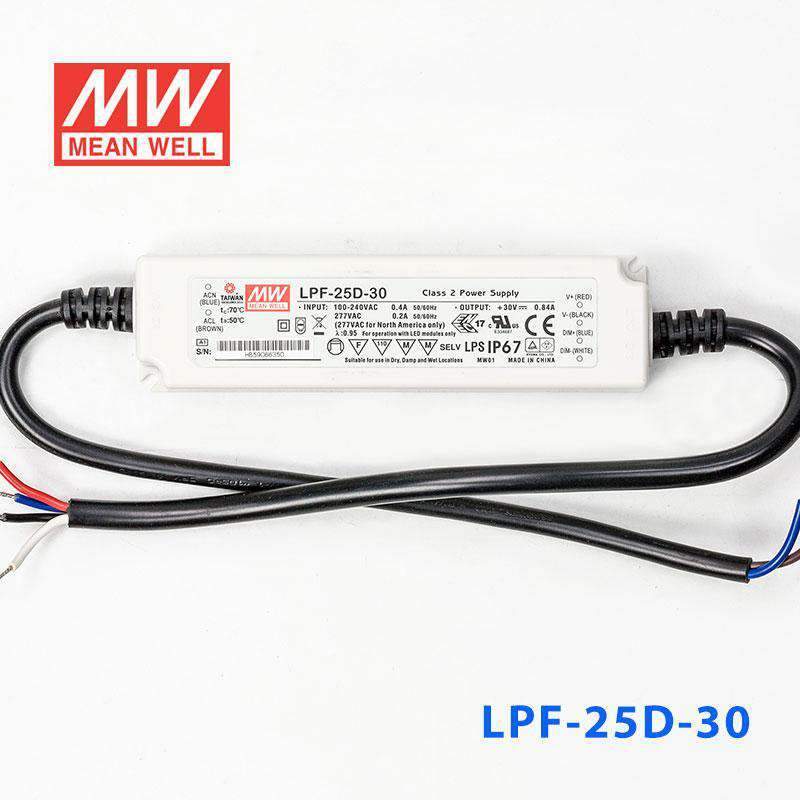

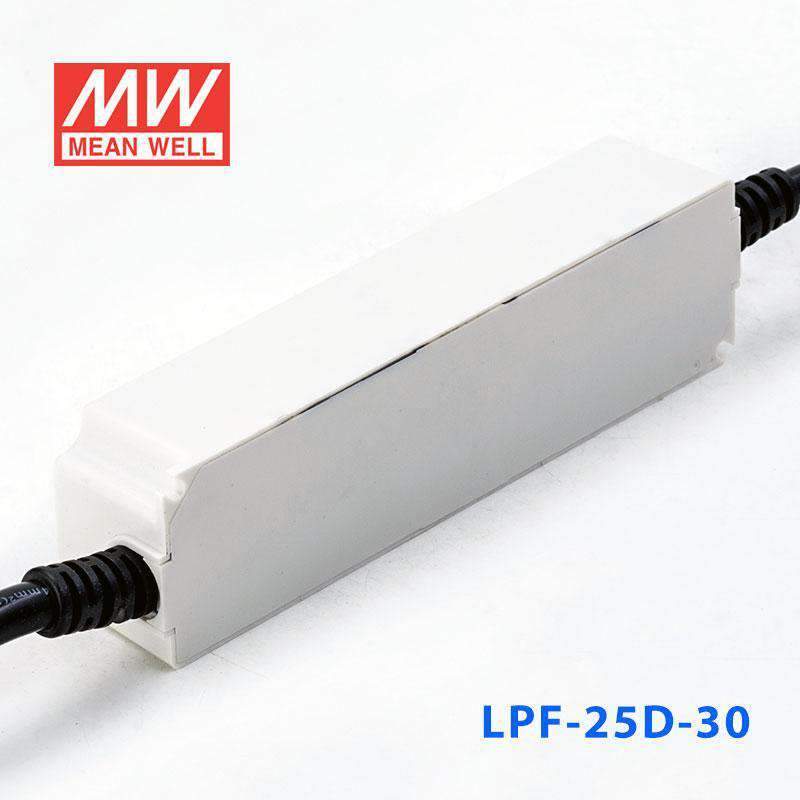

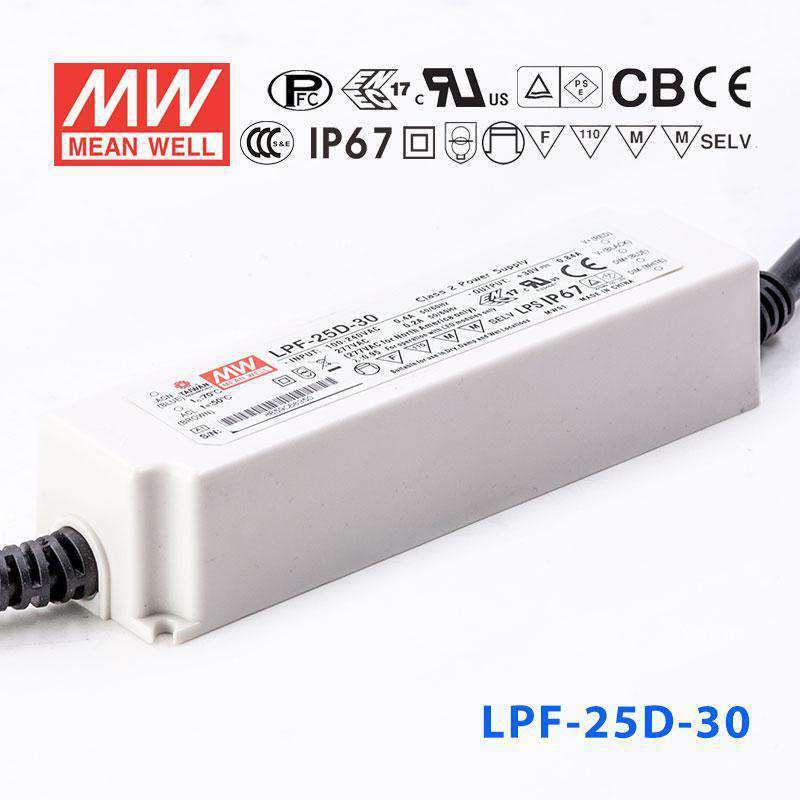

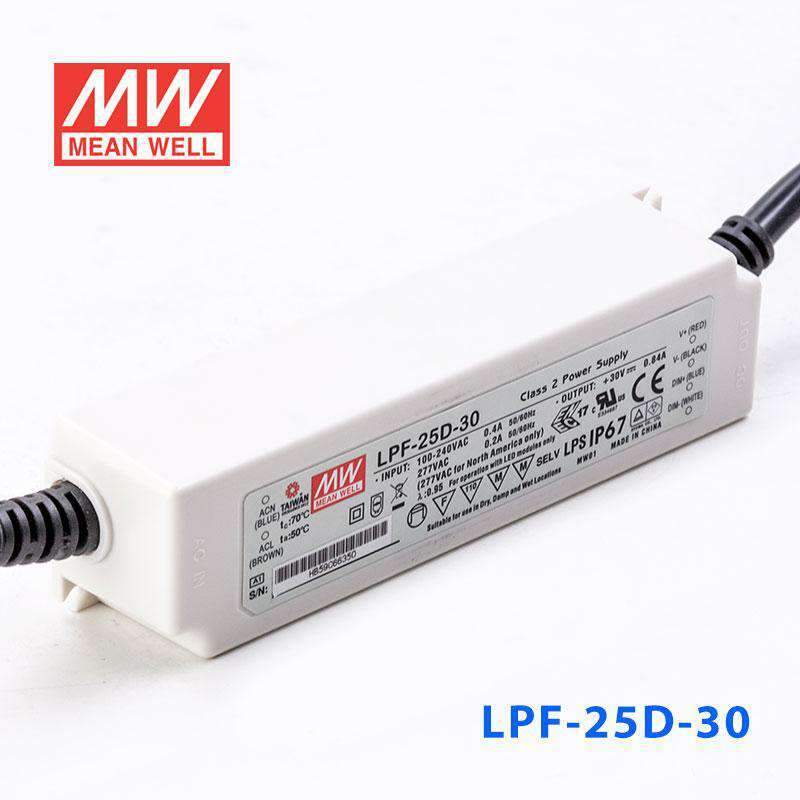

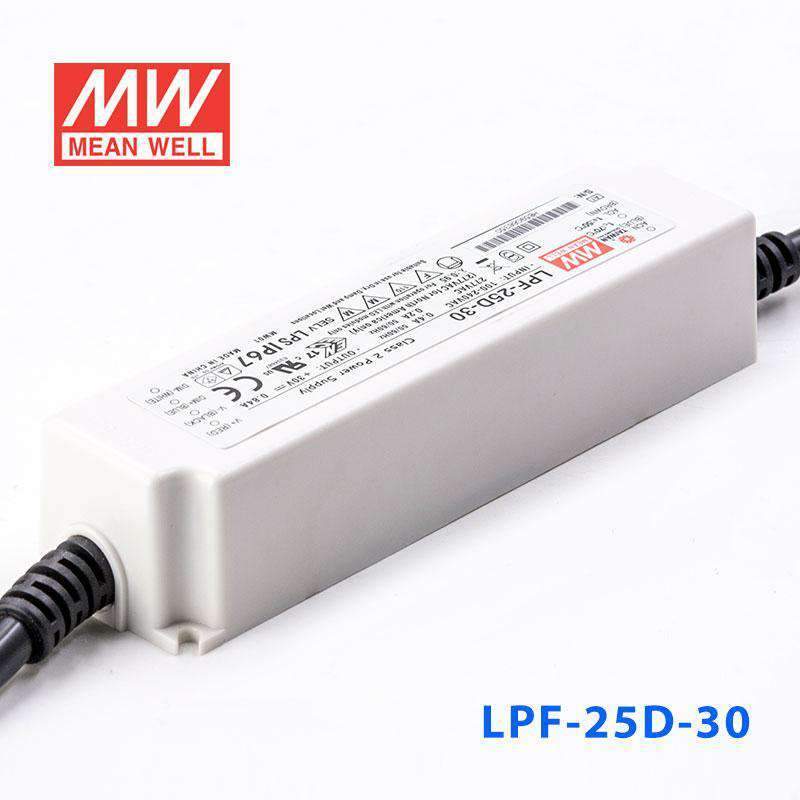

Mean Well LPF-25D-30 Power Supply 25W 30V - Dimmable

Name: Mean Well LPF-25D-30 Power Supply 25W 30V - Dimmable 840mA
Brand: Mean Well
SKU: LPF-25D-30
Price: 30.25 USD
Availability: InStock

Overview

LPF-25D-30 is the 30V output model of this series: rated current 0.84A, rated power 25.2W, typical efficiency 85.5%.

LPF-25D series is a 25W AC/DC LED driver featuring the constant current output. LPF-25D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-25D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

Constant current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Function: 3 in 1 dimming
Typical lifettime>50000 hours
5 years warranty

Specifications

LPF-25D-30Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 30V
RATED CURRENT: 0.84A
RATED POWER^Note.5: 25.2W
CONSTANT CURRENT REGION^Note.2: 16.5 ~ 30V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP, RISE TIME^Note.6: 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 85.5%
AC CURRENT: 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 21 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 34 ~ 40V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08,ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213,IP67 approved ;Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3574.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*32mm (L*W*H)
PACKING: 0.36Kg; 40pcs/ 15.4Kg/1.02CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-25D-30 BLOCK DIAGRAM — BLOCK DIAGRAM

LPF-25D-30 DIMMING OPERATION — DIMMING OPERATION

LPF-25D-30 Illustration (page 5) — Illustration (page 5)

LPF-25D-30 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-25D-30 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-25D-30 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Certificates5

UL Certificate(LPF-25D)(EN) PDF Download

CB Certificate(LPF-25D)(EN) PDF Download

EMC Certificate(LPF-25D)(EN) PDF Download

ENEC Certificate(LPF-25D)(EN) PDF Download

PSE Certificate(LPF-25D)(EN) PDF Download

Test reports1

Test Report(LPF-25D-30)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-25D-30 for a 30V constant-current LED light fixture?

Yes, if the fixture is designed for constant-current operation at 0.84A and falls within the 16.5–30V constant-current range. This driver provides up to 25.2W at 30V, so the fixture load needs to stay within that output range.

Is this driver suitable for small outdoor signage lighting?

It can be suitable for outdoor signage lighting when the LED load requires constant current at 0.84A and operates within 16.5–30V. The IP67 rating supports wet and outdoor use, and the 25.2W maximum output sets the load limit.

Can I use this power supply for a dimmable architectural lighting application?

Yes, for dimmable constant-current architectural lighting that matches 0.84A output and a 16.5–30V load range. This model includes built-in 3 in 1 dimming and delivers up to 25.2W.

How much 30V LED strip can this driver run?

Size it by current and voltage rather than watts per meter: the driver supplies a constant 0.84A within a 16.5–30V constant current region, up to 25.2W total. The strip must be a constant-current load rated for 0.84A with an operating voltage within 16.5–30V; a constant-voltage 30V strip is not a match.

Can the LPF-25D-30 be used in wet or outdoor locations?

Yes, its IP67 rating suits wet and outdoor environments. It is specified for a case temperature (Tcase) of -35°C to +70°C with load derating at higher temperatures, so the installation conditions need to keep the case inside that range.
