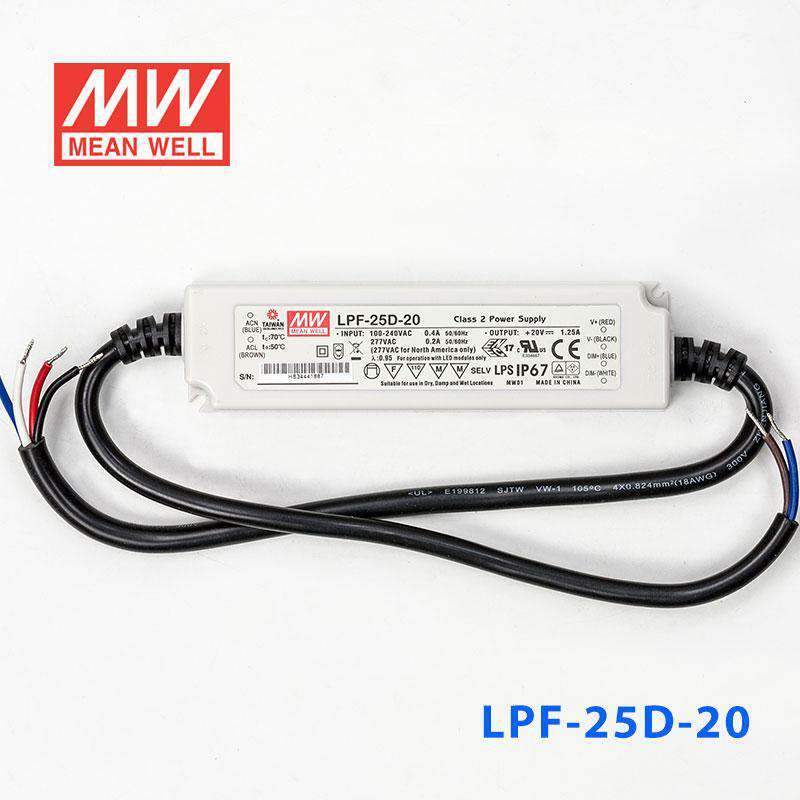

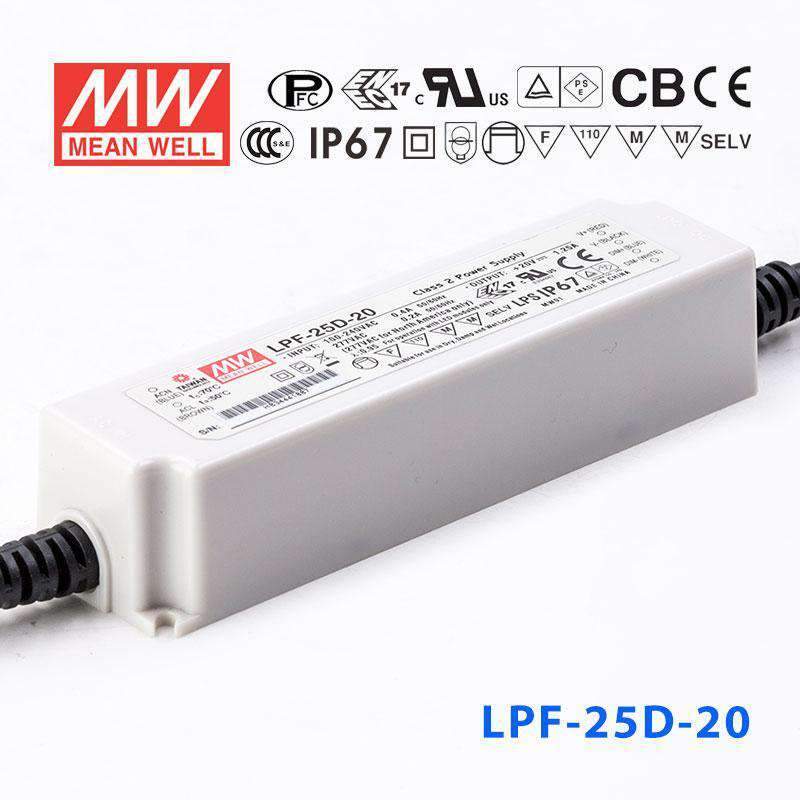

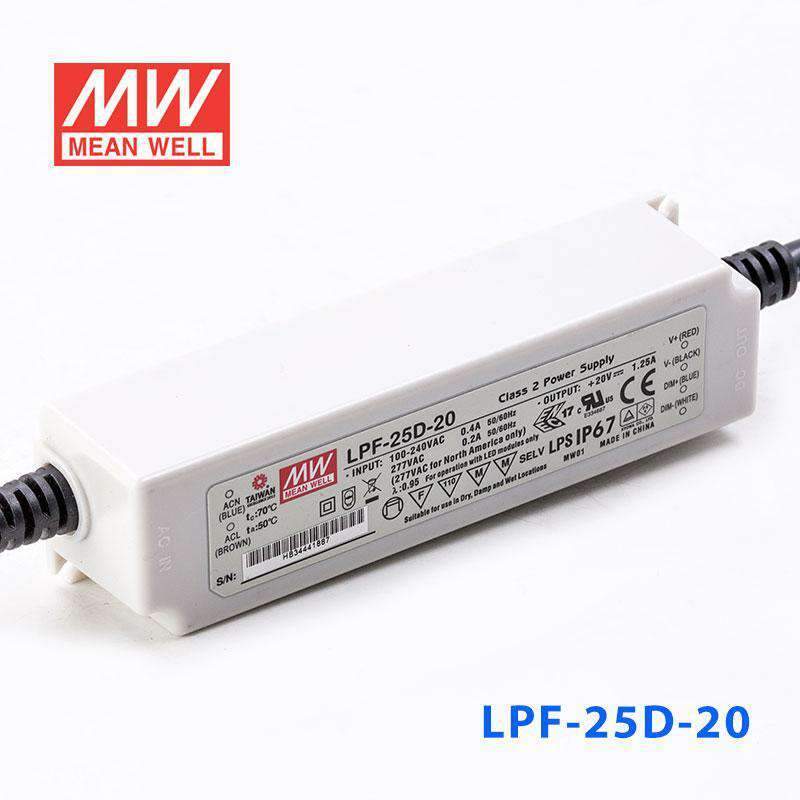

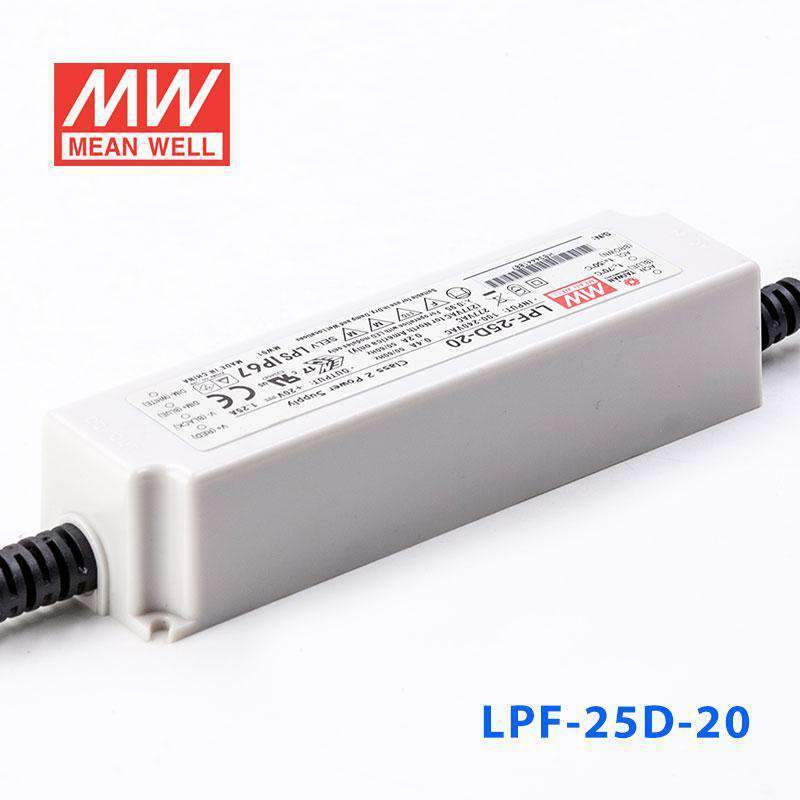

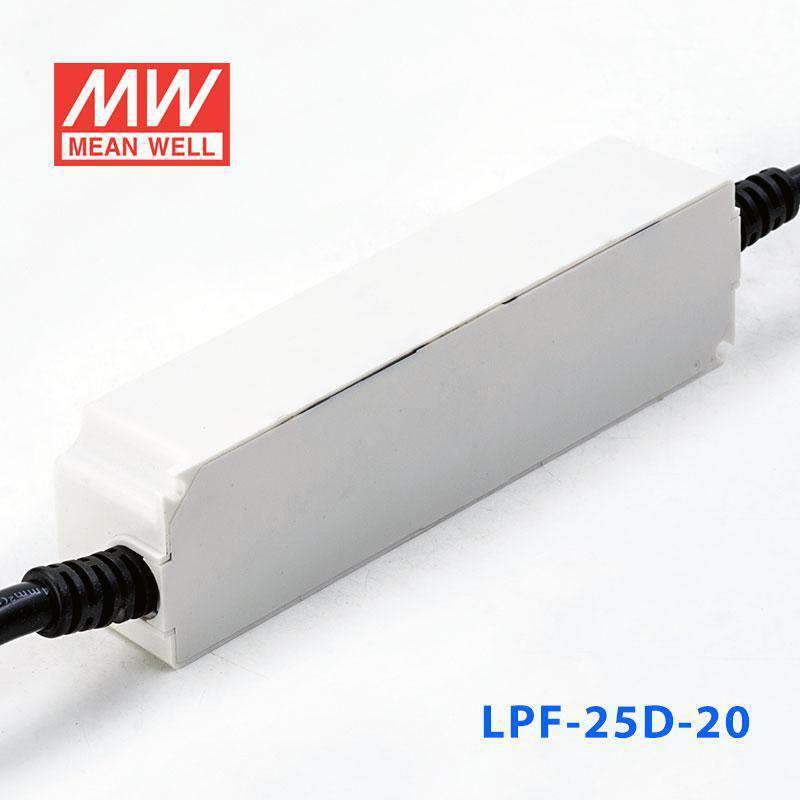

Mean Well LPF-25D-20 Power Supply 25W 20V - Dimmable 1.25A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-25D-20
$26.59 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-25D-20
In stock
|

Overview

LPF-25D-20 is the 20V output model of this series: rated current 1.25A, rated power 25W, typical efficiency 85%.

LPF-25D series is a 25W AC/DC LED driver featuring the constant current output. LPF-25D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-25D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 rating for indoor or outdoor installations
  • Function: 3 in 1 dimming
  • Typical lifettime>50000 hours
  • 5 years warranty

Specifications

LPF-25D-20Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
20V
RATED CURRENT
1.25A
RATED POWERNote.5
25W
CONSTANT CURRENT REGIONNote.2
11 ~ 20V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
85%
AC CURRENT
0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
12 units (circuit breaker of type B) / 21 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
23 ~ 27V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08,ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213,IP67 approved ;Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3574.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
148*40*32mm (L*W*H)
PACKING
0.36Kg; 40pcs/ 15.4Kg/1.02CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-25D-20 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-25D-20 DIMMING OPERATION
DIMMING OPERATION
LPF-25D-20 Illustration (page 5)
Illustration (page 5)
LPF-25D-20 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-25D-20 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-25D-20 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign

Downloads

FAQ

Can I use the LPF-25D-20 for 20V LED strip lighting?

Only if the strip or lighting product is a constant-current load. The LPF-25D-20 works in constant current mode, delivering 1.25A within an 11–20V constant current region (25W max), so it is not a constant-voltage 20V strip supply. Check that your LED load is rated for 1.25A before final selection.

Is the LPF-25D-20 suitable for 20V sign lighting?

It can be, as long as the sign LEDs are a constant-current load rated for 1.25A and operating within 11–20V, up to 25W. Its IP67 rating makes it appropriate where the driver may be exposed to rain or dust. Confirm the lighting load is designed for constant-current drive.

Can this model power dimmable 20V decorative or display lighting?

Yes, for constant-current decorative, display, or accent lighting rated for 1.25A within the 11–20V range and 25W. The built-in 3 in 1 dimming feature (1–10VDC, 10V PWM or resistance) makes it appropriate where adjustable brightness is needed. Constant-voltage 20V products are not a match.

How much 20V LED strip can the LPF-25D-20 support?

The output is 25W at a constant 1.25A within an 11–20V constant current region. As a constant-current driver it is not sized with the W/m formula used for constant-voltage strips; the load must be rated for 1.25A with an operating voltage within 11–20V.

Can the LPF-25D-20 be used in outdoor or wet locations?

Yes. It is IP67 rated and specified for a case temperature (Tcase) of -35°C to +70°C, with load derating at higher temperatures per the output load vs temperature curve. That makes it suitable for outdoor and wet environments when paired with a properly rated lighting load.
