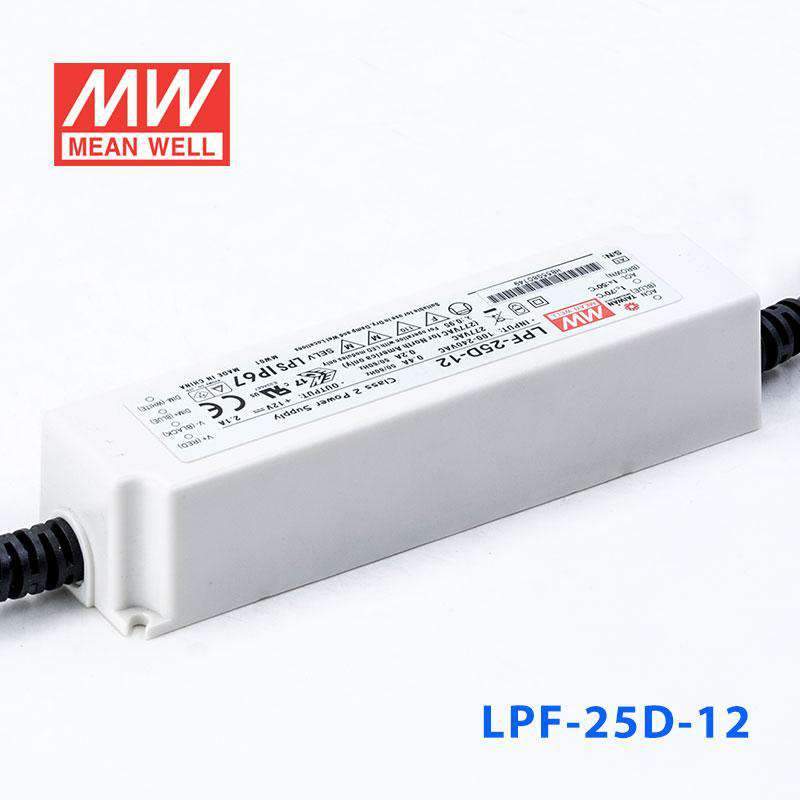

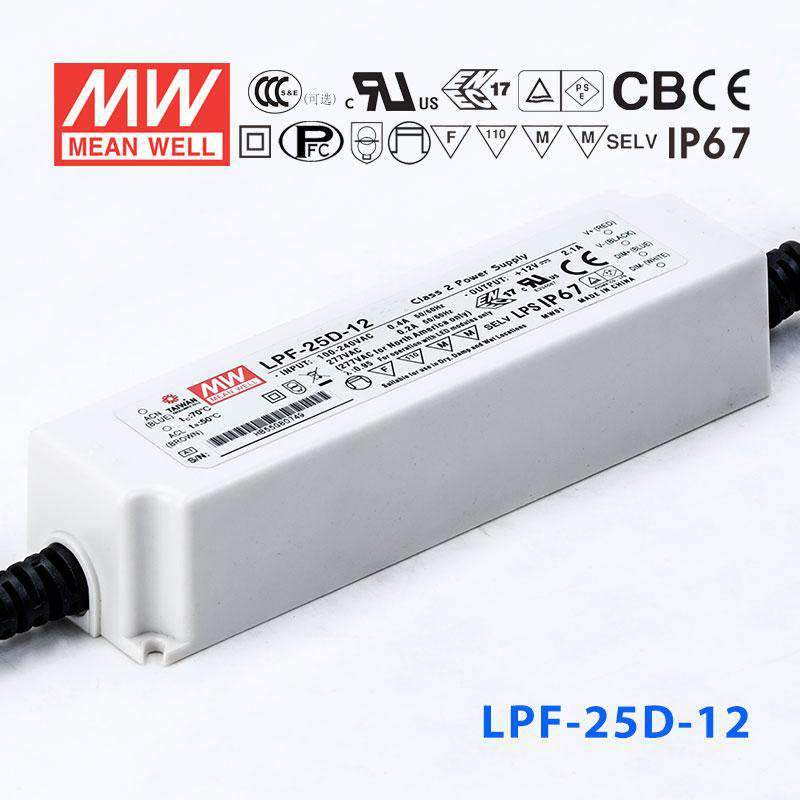

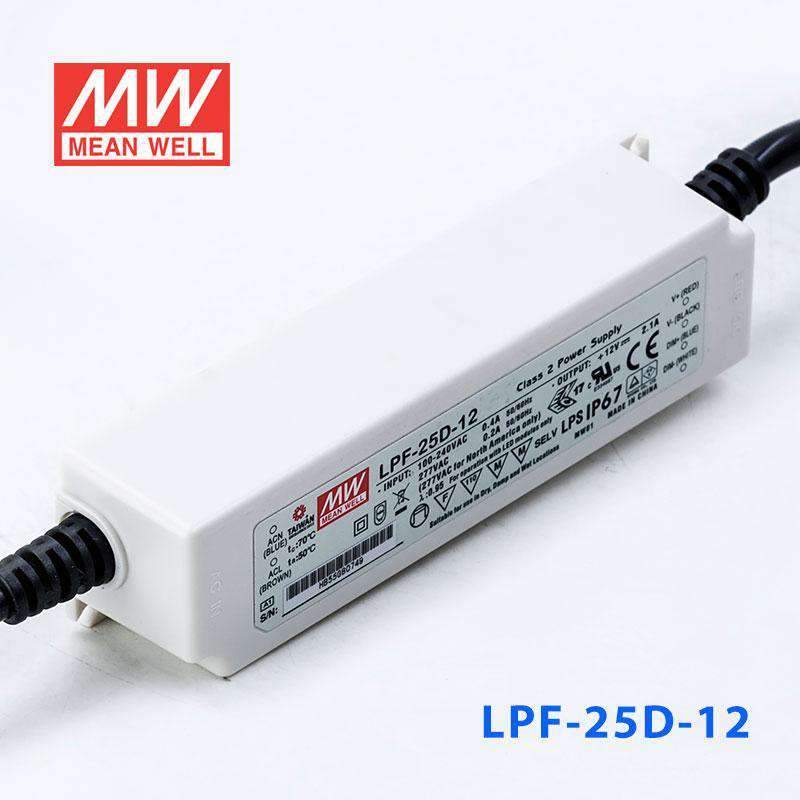

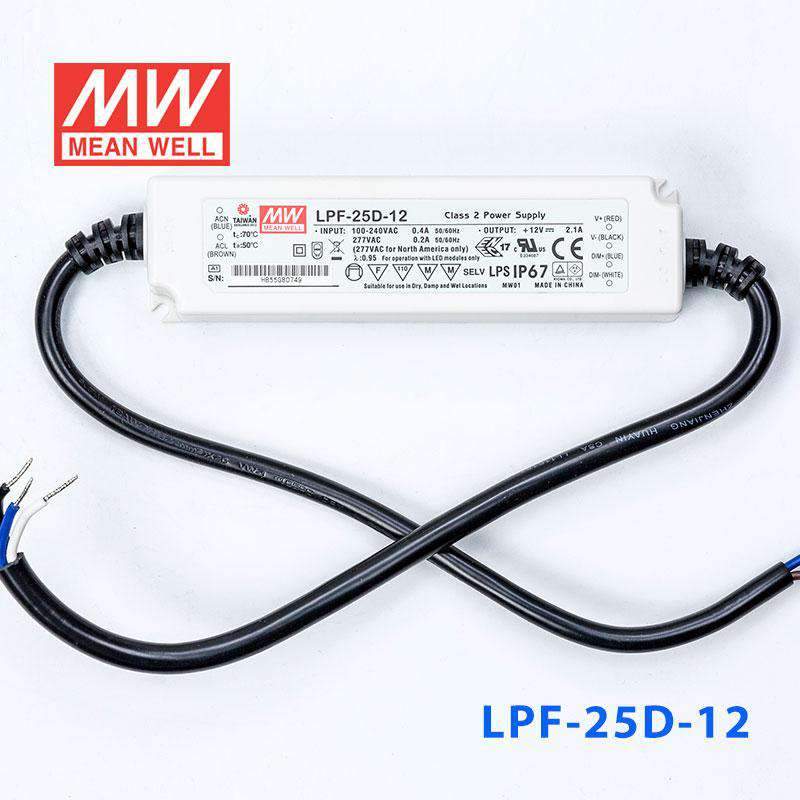

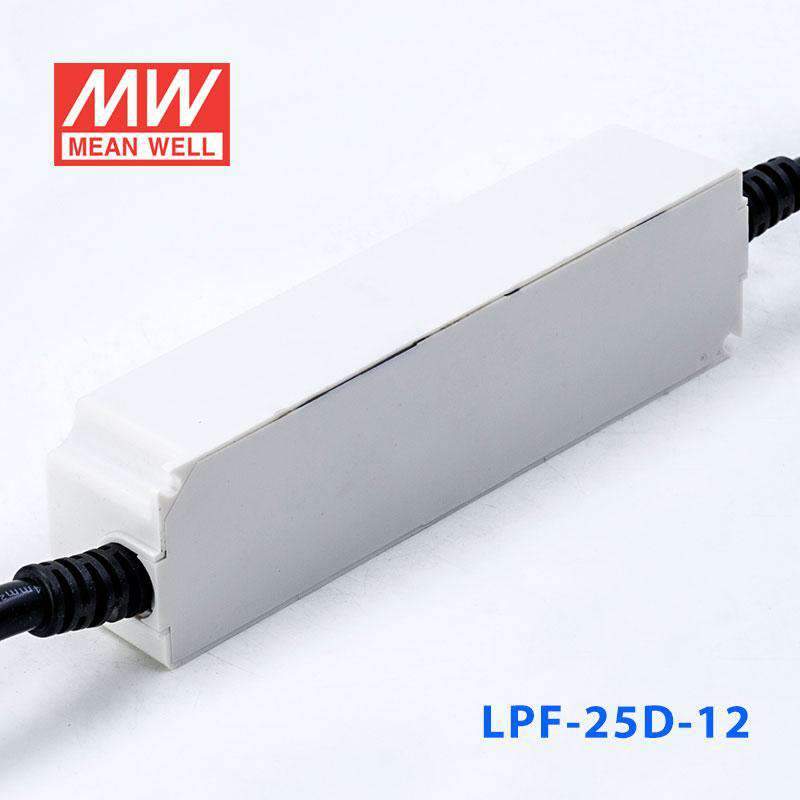

Mean Well LPF-25D-12 Power Supply 25W 12V - Dimmable 2.1A

Name: Mean Well LPF-25D-12 Power Supply 25W 12V - Dimmable 2.1A
Brand: Mean Well
SKU: LPF-25D-12
Price: 32.86 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU LPF-25D-12

$32.86 USD

Shipping calculated at checkout.

Select model — 8 in this family

LPF-25D-12

LPF-16-12 Fixed output Low stock$27.20 USD

LPF-16D-12 Dimmable Backorder$25.93 USD

LPF-25-12 Fixed output In stock$30.32 USD

LPF-25D-12 Dimmable Low stock$32.86 USD

LPF-40-12 Fixed output In stock$30.91 USD

LPF-40D-12 Dimmable Low stock$37.55 USD

LPF-60-12 Fixed output Low stock$37.96 USD

LPF-60D-12 Dimmable Backorder$34.86 USD

Product variants

In stock

Overview

LPF-25D-12 is the 12V output model of this series: rated current 2.1A, rated power 25.2W, typical efficiency 84%.

LPF-25D series is a 25W AC/DC LED driver featuring the constant current output. LPF-25D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-25D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

Constant current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Function: 3 in 1 dimming
Typical lifettime>50000 hours
5 years warranty

Specifications

LPF-25D-12Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 2.1A
RATED POWER^Note.5: 25.2W
CONSTANT CURRENT REGION^Note.2: 6.6 ~12V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP, RISE TIME^Note.6: 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 84%
AC CURRENT: 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 21 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 15 ~ 18V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08,ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213,IP67 approved ;Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3574.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*32mm (L*W*H)
PACKING: 0.36Kg; 40pcs/ 15.4Kg/1.02CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-25D-12 BLOCK DIAGRAM — BLOCK DIAGRAM

LPF-25D-12 DIMMING OPERATION — DIMMING OPERATION

LPF-25D-12 Illustration (page 5) — Illustration (page 5)

LPF-25D-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-25D-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-25D-12 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Certificates5

UL Certificate(LPF-25D)(EN) PDF Download

CB Certificate(LPF-25D)(EN) PDF Download

EMC Certificate(LPF-25D)(EN) PDF Download

ENEC Certificate(LPF-25D)(EN) PDF Download

PSE Certificate(LPF-25D)(EN) PDF Download

Test reports1

Test Report(LPF-25D-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-25D-12 for 12V LED strip lighting?

Only if the LED load is a constant-current type. The LPF-25D-12 works in constant current mode, delivering 2.1A within a 6.6–12V constant current region (25.2W max), so it is not a constant-voltage 12V strip supply. Check that your LED module or string is rated for 2.1A before choosing it.

Is the LPF-25D-12 a good fit for small 12V illuminated signs?

Yes, it can fit small sign lighting if the LEDs are a constant-current load rated for 2.1A and operating within the 6.6–12V constant current region, up to 25.2W. Its IP67 rating makes it appropriate where the driver may be exposed to weather. Confirm the sign LEDs are designed for constant-current drive.

Can this model run 12V cabinet, display, or accent lighting?

Yes, as long as the lighting is a constant-current LED load rated for 2.1A within the 6.6–12V range and 25.2W. The built-in 3 in 1 dimming feature (1–10VDC, 10V PWM or resistance) also makes it suitable for applications where light level control is needed. Constant-voltage 12V fixtures or strips are not a match.

How much 12V LED strip can the LPF-25D-12 support?

The output is 25.2W at a constant 2.1A within a 6.6–12V constant current region. Because it is a constant-current driver, the W/m length formula used for constant-voltage strips does not apply; the load must be an LED module or string rated for 2.1A whose operating voltage falls within 6.6–12V.

Can the LPF-25D-12 be used outdoors or in wet areas?

Yes. It is IP67 rated and specified for a case temperature (Tcase) of -35°C to +70°C, with load derating at higher temperatures per the output load vs temperature curve, so it suits outdoor and wet environments. The connected lighting load still needs to be suitable for that environment as well.
