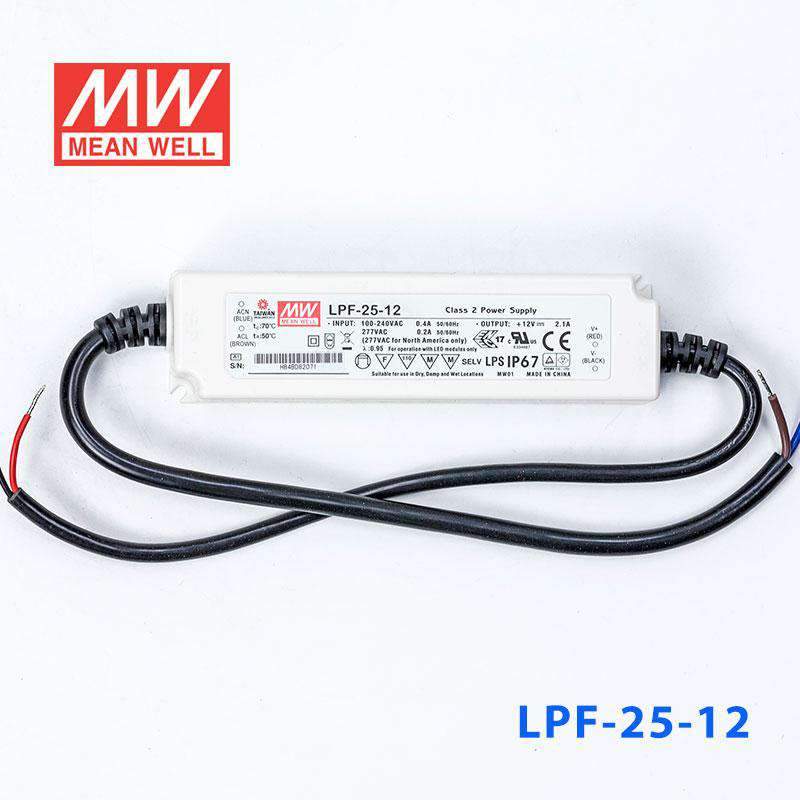

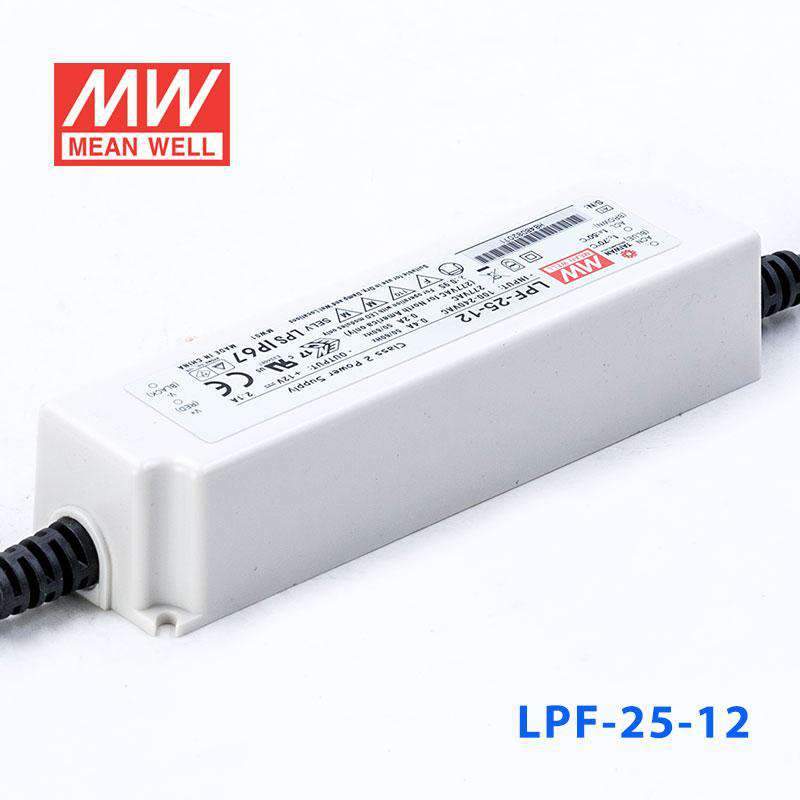

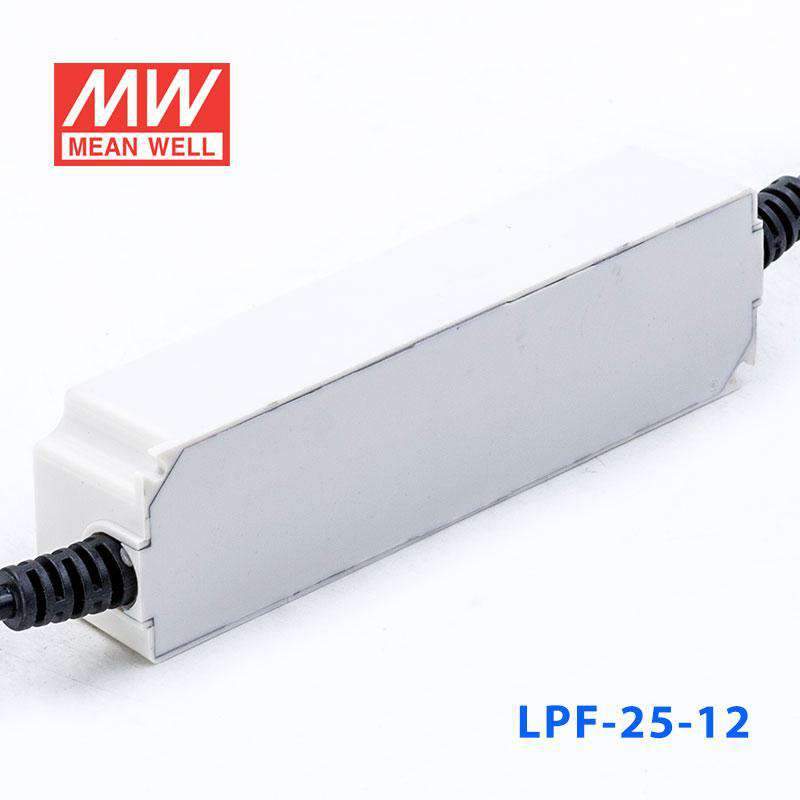

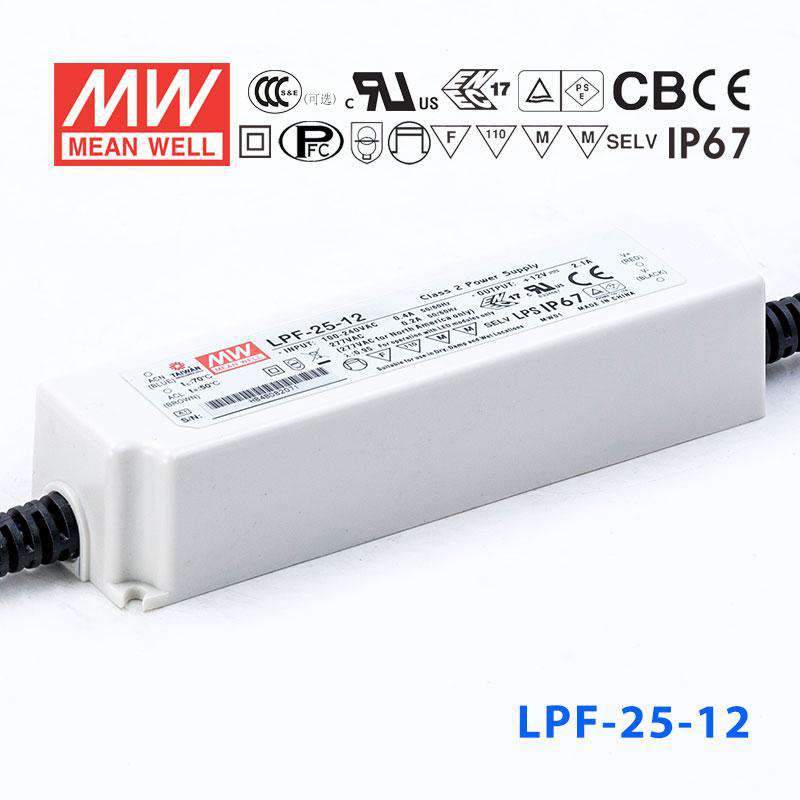

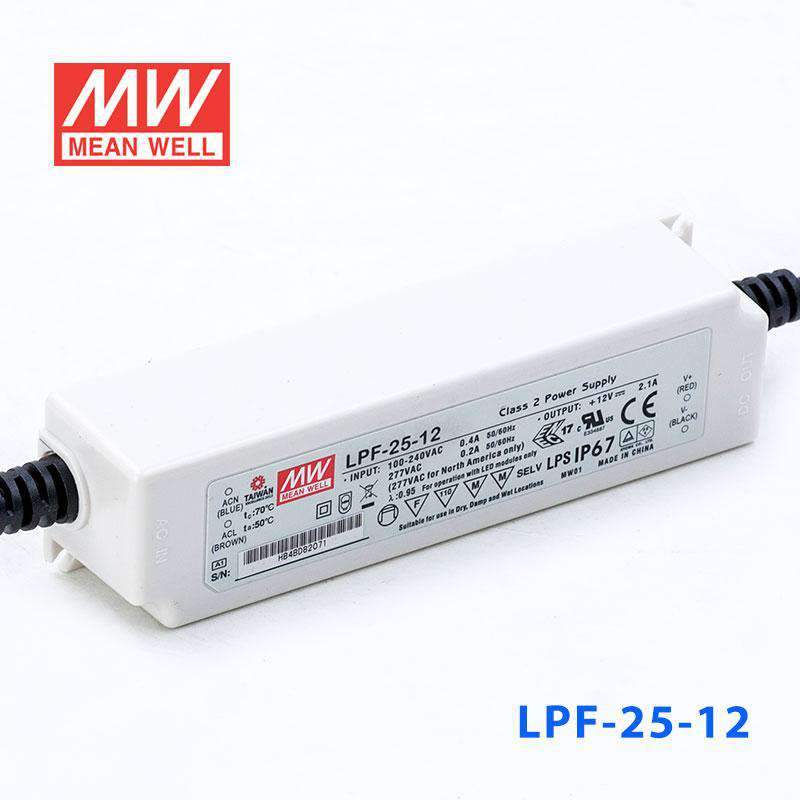

Mean Well LPF-25-12 Power Supply 25W 12V 2.1A

Name: Mean Well LPF-25-12 Power Supply 25W 12V 2.1A
Brand: Mean Well
SKU: LPF-25-12
Price: 30.32 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU LPF-25-12

$30.32 USD

Shipping calculated at checkout.

Select model — 8 in this family

LPF-25-12

LPF-16-12 Fixed output Low stock$27.20 USD

LPF-16D-12 Dimmable Backorder$25.93 USD

LPF-25-12 Fixed output In stock$30.32 USD

LPF-25D-12 Dimmable Low stock$32.86 USD

LPF-40-12 Fixed output In stock$30.91 USD

LPF-40D-12 Dimmable Low stock$37.55 USD

LPF-60-12 Fixed output Low stock$37.96 USD

LPF-60D-12 Dimmable Backorder$34.86 USD

Product variants

In stock

Overview

LPF-25-12 is the 12V output model of this series: rated current 2.1A, rated power 25.2W, typical efficiency 84%.

LPF-25 series is a 25W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-25 operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 87%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Fully encapsulated with IP67 level
Typical lifetime>50000 hours
5 years warranty

Specifications

LPF-25-12Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.2: 6.6 ~12V
RATED CURRENT: 2.1A
RATED POWER^Note.5: 25.2W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/115VAC 16ms/230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 84%
AC CURRENT: 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 12 units (circuit breaker of type B) / 21 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 15 ~ 18V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent , BS EN/ EN62384, J61347-1,J61347-2-13,EAC TP TC 004,GB/T19510.1,GB/T19510.213,IP67 approved ;Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3574.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*32mm (L*W*H)
PACKING: 0.36Kg; 40pcs/ 15.4Kg/1.02CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

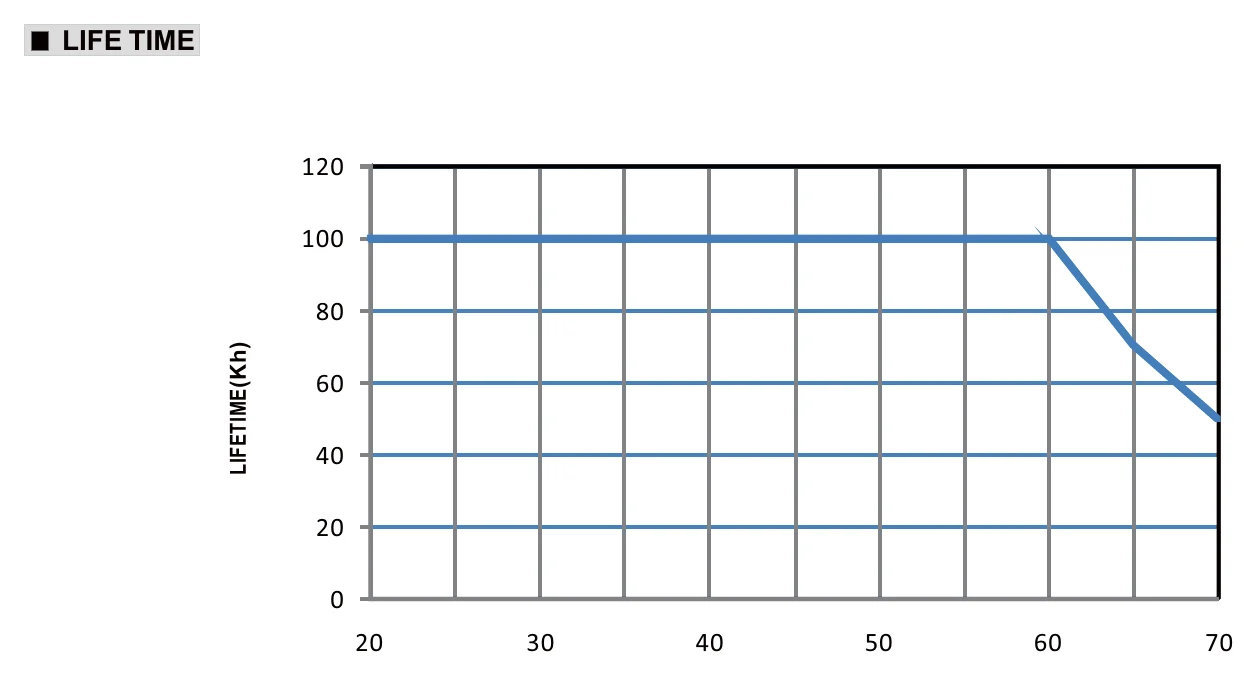

9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-25-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

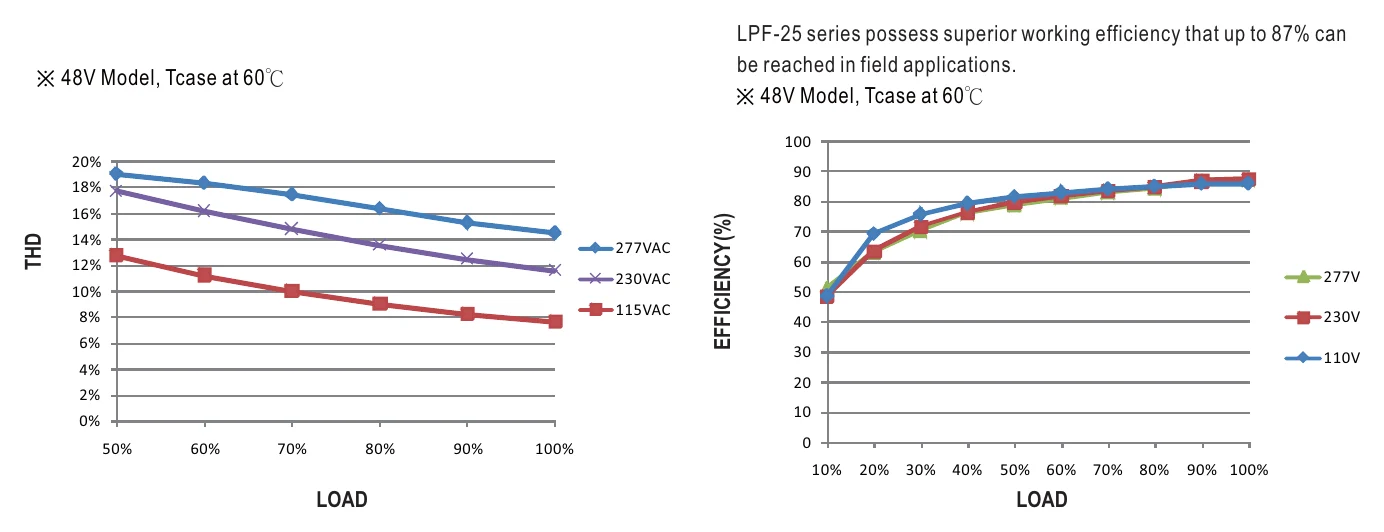

LPF-25-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

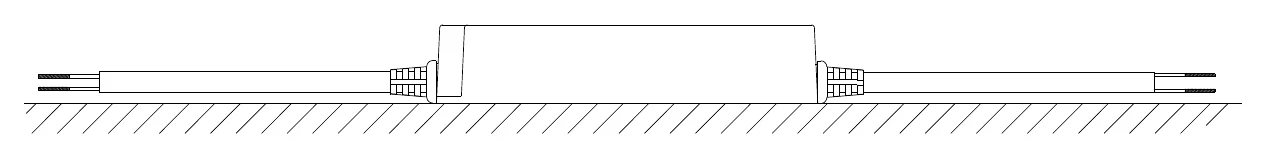

LPF-25-12 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED panel lighting
LED downlight
LED decorative lighting
LED tunnel lighting
Moving sign

Downloads

Certificates5

UL Certificate(LPF-25)(EN) PDF Download

CB Certificate(LPF-25)(EN) PDF Download

EMC Certificate(LPF-25)(EN) PDF Download

ENEC Certificate(LPF-25)(EN) PDF Download

PSE Certificate(LPF-25)(EN) PDF Download

Test reports1

Test Report(LPF-25-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-25-12 for 12V LED strip lighting in a display or cabinet?

Yes, this model suits 12V lighting products that stay within its 25.2W maximum output. It provides 12V at 2.1A, which fits short 12V LED strip sections used in display, cabinet, or accent lighting. Check that the strip’s total load does not exceed 25.2W.

Is the LPF-25-12 suitable for 12V sign lighting?

It can be used for 12V sign lighting when the total demand is within 25.2W. The IP67 waterproof rating makes it suitable for signs in wet or dusty environments. Confirm the sign modules are rated for 12V and that the full load stays under 2.1A and 25.2W.

Can this driver power a short 12V under-shelf or accent lighting run?

Yes, for a short 12V lighting run that does not draw more than 25.2W. With 12V output and 2.1A current, it is intended for lower-power applications rather than long, high-load strip runs. Check the lighting product’s rated load before selecting it.

Is the LPF-25-12 okay for outdoor or damp locations?

Yes, it has an IP67 waterproof rating, so it is designed for wet and dusty conditions. Its working case temperature (Tcase) range is -35°C to +70°C, with load derating per the output load vs temperature curve, which supports use in a wide range of indoor and outdoor environments. The rest of the lighting system should also be rated for those conditions.

How many meters of 12V LED strip can the LPF-25-12 support?

Base the estimate on the 25.2W maximum output. Length = 25.2W divided by your strip’s rated watts per meter, so a 4.8W/m strip would be about 5.25 meters. Check your strip rated power per meter before sizing the run.

How does the LPF-25-12 compare with the other 25W LPF voltage options?

In the 25W LPF range, the standard versions are 12V 25.2W 2.1A, 15V 25.05W 1.67A, 20V 25W 1.25A, 24V 25.2W 1.05A, 30V 25.2W 0.84A, 36V 25.2W 0.7A, 42V 25.2W 0.6A, 48V 25.44W 0.53A, and 54V 25.38W 0.47A.
