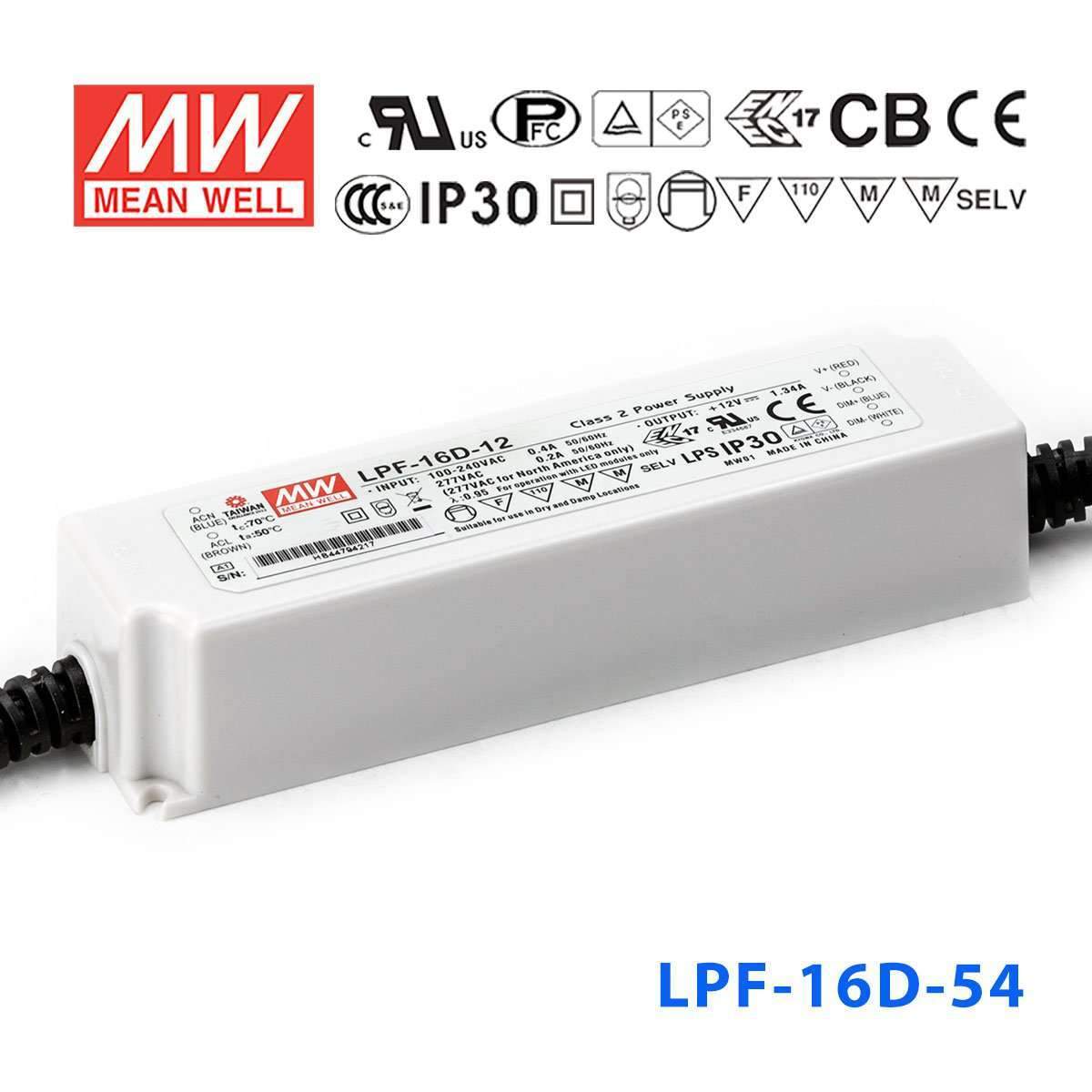

Mean Well LPF-16D-54 Power Supply 16W 54V - Dimmable 300mA

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-16D-54
$25.93 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-16D-54
In stock
|

Overview

LPF-16D-54 is the 54V output model of this series: rated current 0.3A, rated power 16.2W, typical efficiency 84.5%.

LPF-16D series is a 16W AC/DC LED driver featuring the constant current output. LPF-16D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 85%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is suitable to work for a variety of applications at dry or damp and the optional models with IP67 rating is able to further work at wet locations. LPF-16D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • Standard type with IP30 level,optional IP67 with fully encapsulate
  • Function: 3 in 1 dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

LPF-16D-54Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
54V
RATED CURRENT
0.3A
RATED POWERNote.5
16.2W
CONSTANT CURRENT REGIONNote.2
29.7 ~ 54V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
84.5%
AC CURRENT
0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
59 ~ 66V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213 approved, IP67(optional); Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
148*40*32mm (L*W*H)
PACKING
0.21Kg;40pcs/9.4Kg/ 1.02CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-16D-54 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-16D-54 DIMMING OPERATION
DIMMING OPERATION
LPF-16D-54 Illustration (page 5)
Illustration (page 5)
LPF-16D-54 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-16D-54 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-16D-54 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED downlight
  • LED spotlight
  • LED decorative lighting
  • LED tunnel lighting

Downloads

FAQ

Can I use the LPF-16D-54 for a compact 54V LED lighting run?

Yes, if the fixture or strip is a constant-current load rated for 0.3A and stays within 16.2W total. This driver outputs 54V at 0.3A and works within a 29.7-54V constant current range. Check that the lighting product is specifically compatible before using it.

Is the LPF-16D-54 a fit for small 54V illuminated signage?

It can be used for low-power illuminated signage where the total load does not exceed 16.2W. The standard unit is rated IP30 (IP67 listed as an option), so it should not be exposed to water or dust. Confirm the sign lighting modules are rated for 0.3A constant current within 29.7-54V.

Can the LPF-16D-54 be used with a short 54V linear fixture?

Yes, for a short linear fixture that falls within the driver’s 16.2W output limit. With 54V output and 0.3A current, it is sized for lighter loads rather than extended runs. Verify the fixture’s voltage and current requirements before selection.

Will this driver work in outdoor or wet lighting conditions?

Not as standard: the LPF-16D-54 is rated IP30, so it is not intended for wet, dusty or outdoor exposure; the datasheet lists IP67 only as an optional version. Its working case temperature (Tcase) range is -35°C to +70°C. The connected lighting components should be rated for the same environment.

How much 54V LED strip can the LPF-16D-54 run?

Use the driver’s 16.2W maximum to estimate strip length. Length = 16.2W divided by the strip’s rated watts per meter, so a 5.4W/m strip would be about 3 meters. Check your strip rated power per meter and make sure the strip is a constant-current type for 0.3A within 29.7-54V.

What is the difference between the LPF-16D-54 and the other 16W dimmable LPF versions?

The LPF-16D lineup includes 12V 16.08W 1.34A, 15V 16.05W 1.07A, 20V 16W 0.8A, 24V 16.08W 0.67A, 30V 16.2W 0.54A, 36V 16.2W 0.45A, 42V 16.38W 0.39A, 48V 16.32W 0.34A, and 54V 16.2W 0.3A. The LPF-16D-54 is the highest-voltage option in that dimmable 16W group and therefore also has the lowest output current at 0.3A.
