Mean Well

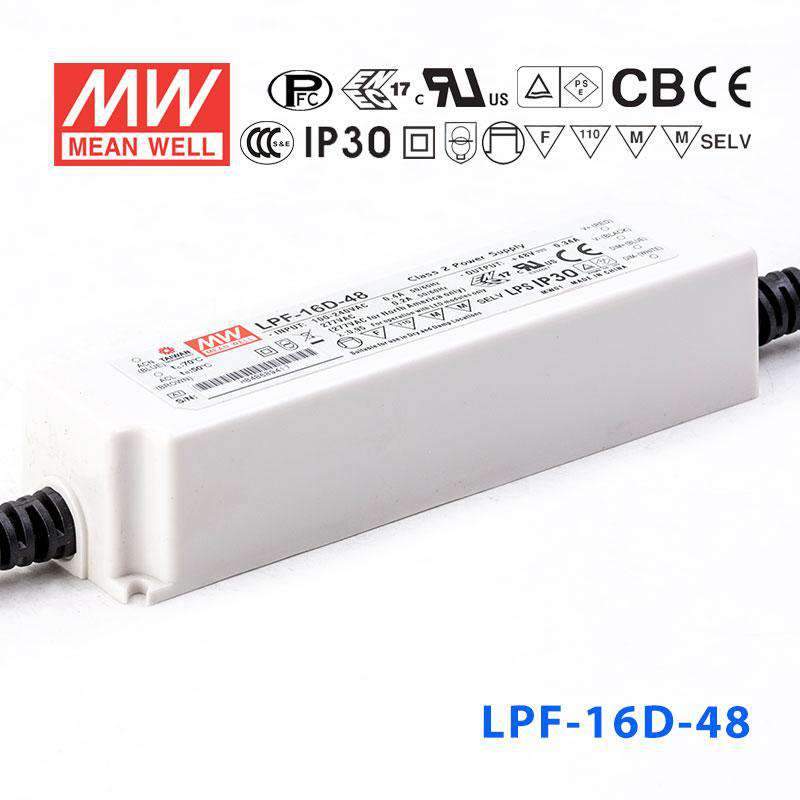

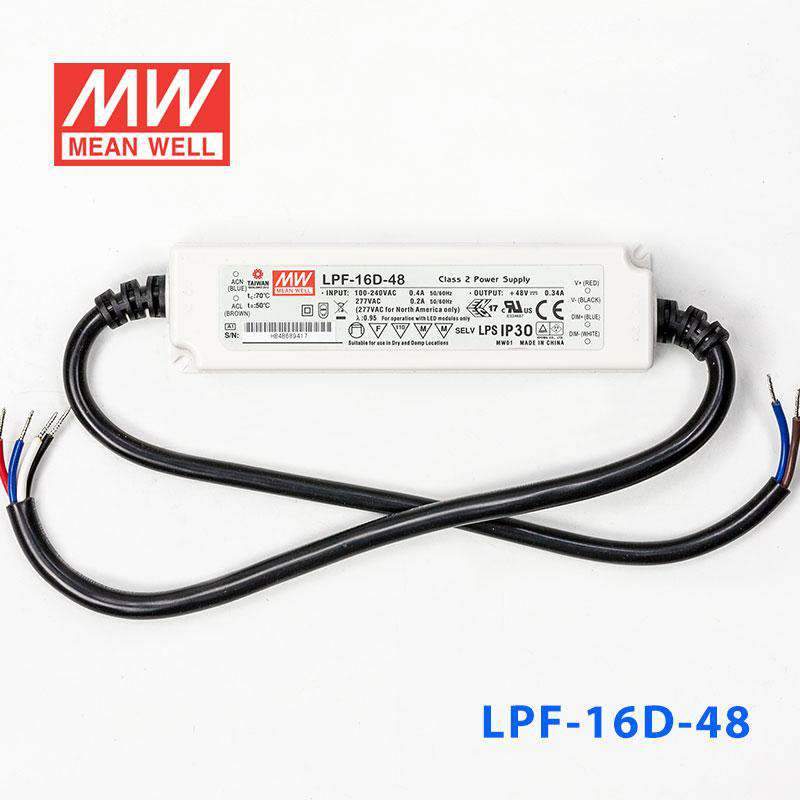

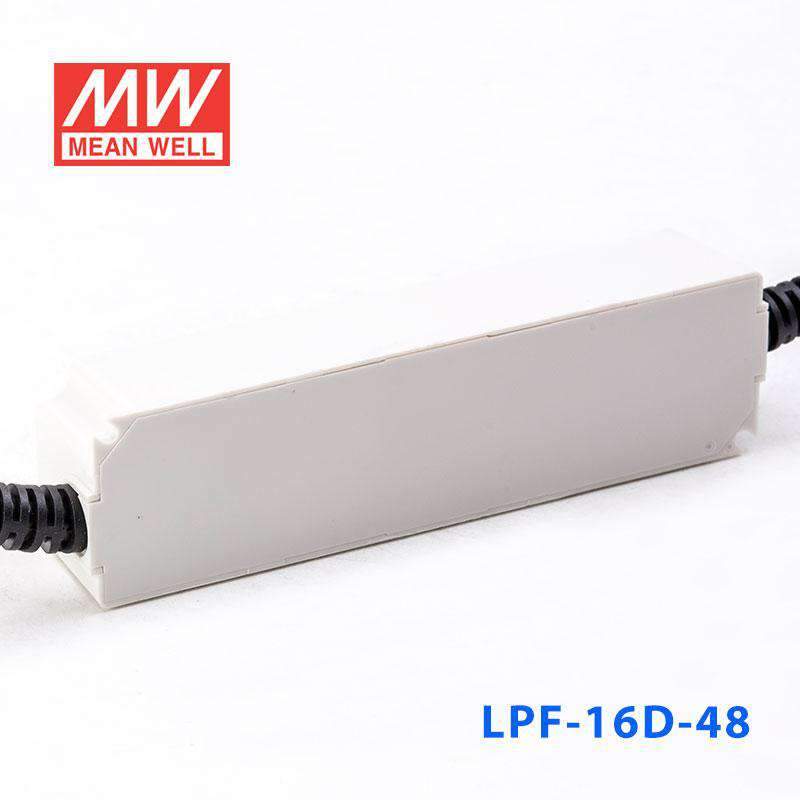

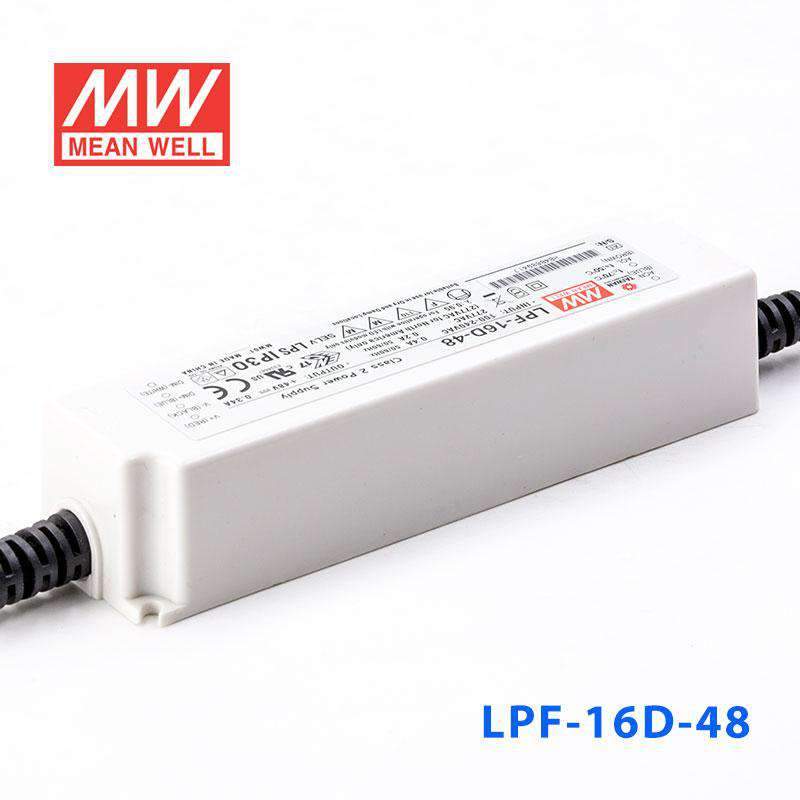

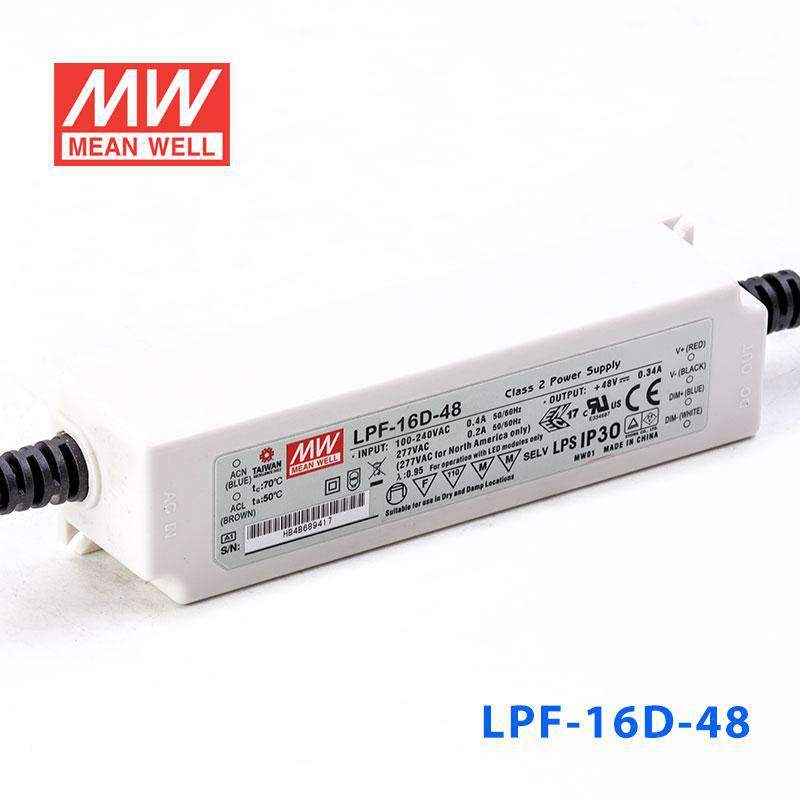

Mean Well LPF-16D-48 Power Supply 16W 48V - Dimmable 340mA

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-16D-48
$28.57 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-16D-48
Available to order
|

Overview

LPF-16D-48 is the 48V output model of this series: rated current 0.34A, rated power 16.32W, typical efficiency 85%.

LPF-16D series is a 16W AC/DC LED driver featuring the constant current output. LPF-16D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 85%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is suitable to work for a variety of applications at dry or damp and the optional models with IP67 rating is able to further work at wet locations. LPF-16D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • Standard type with IP30 level,optional IP67 with fully encapsulate
  • Function: 3 in 1 dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

LPF-16D-48Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
0.34A
RATED POWERNote.5
16.32W
CONSTANT CURRENT REGIONNote.2
26.4 ~ 48V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
85%
AC CURRENT
0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
54 ~ 63V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213 approved, IP67(optional); Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
148*40*32mm (L*W*H)
PACKING
0.21Kg;40pcs/9.4Kg/ 1.02CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

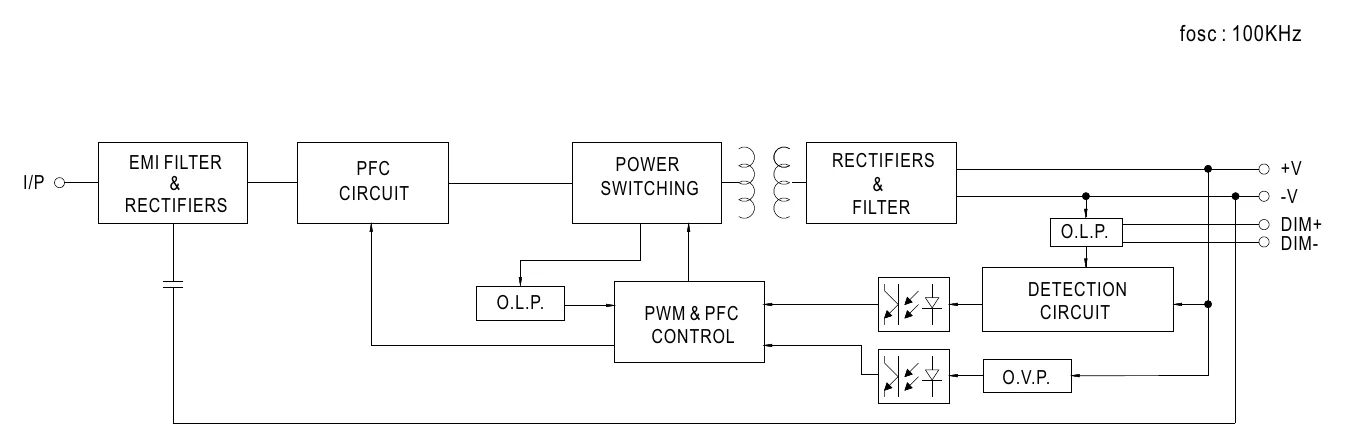

LPF-16D-48 BLOCK DIAGRAM
BLOCK DIAGRAM

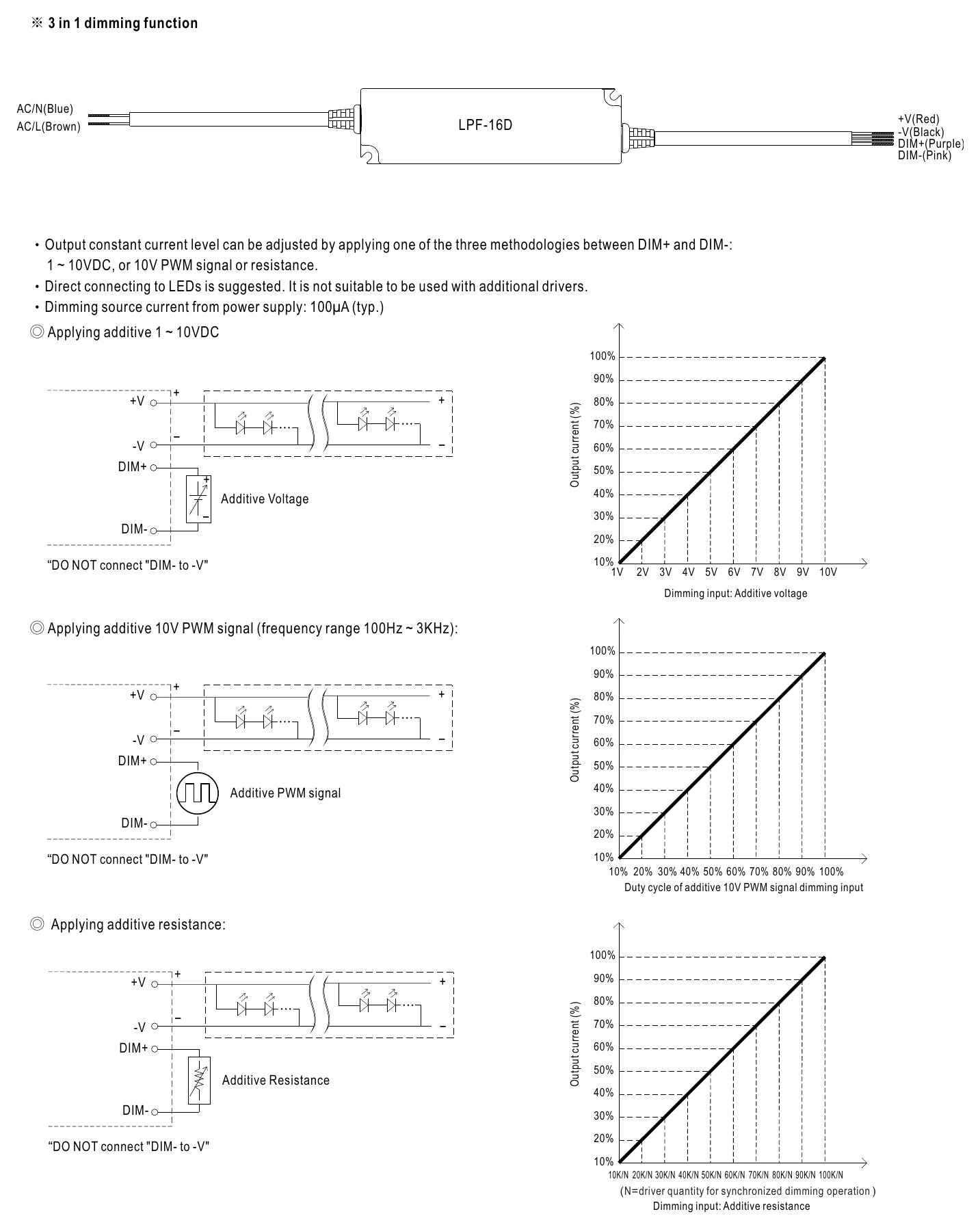

LPF-16D-48 DIMMING OPERATION
DIMMING OPERATION

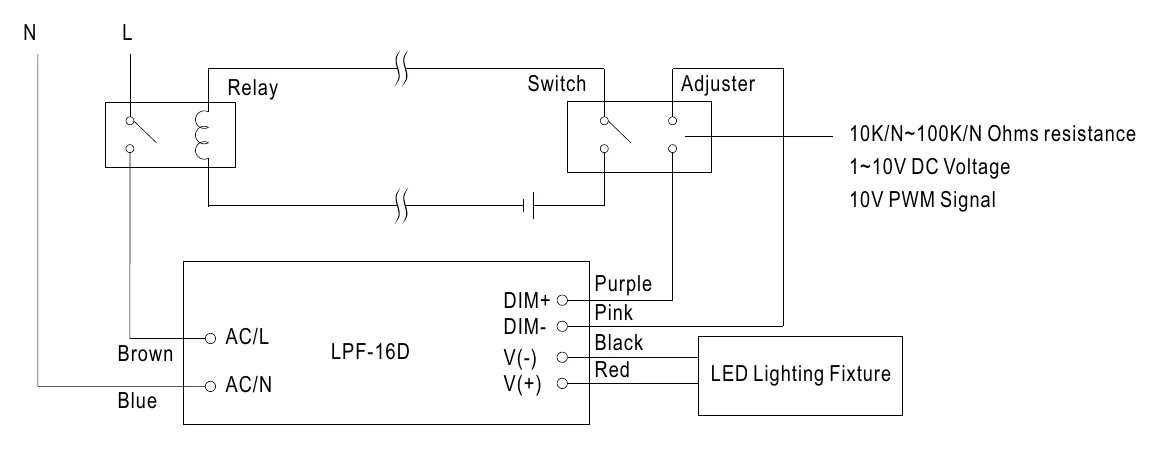

LPF-16D-48 Illustration (page 5)
Illustration (page 5)

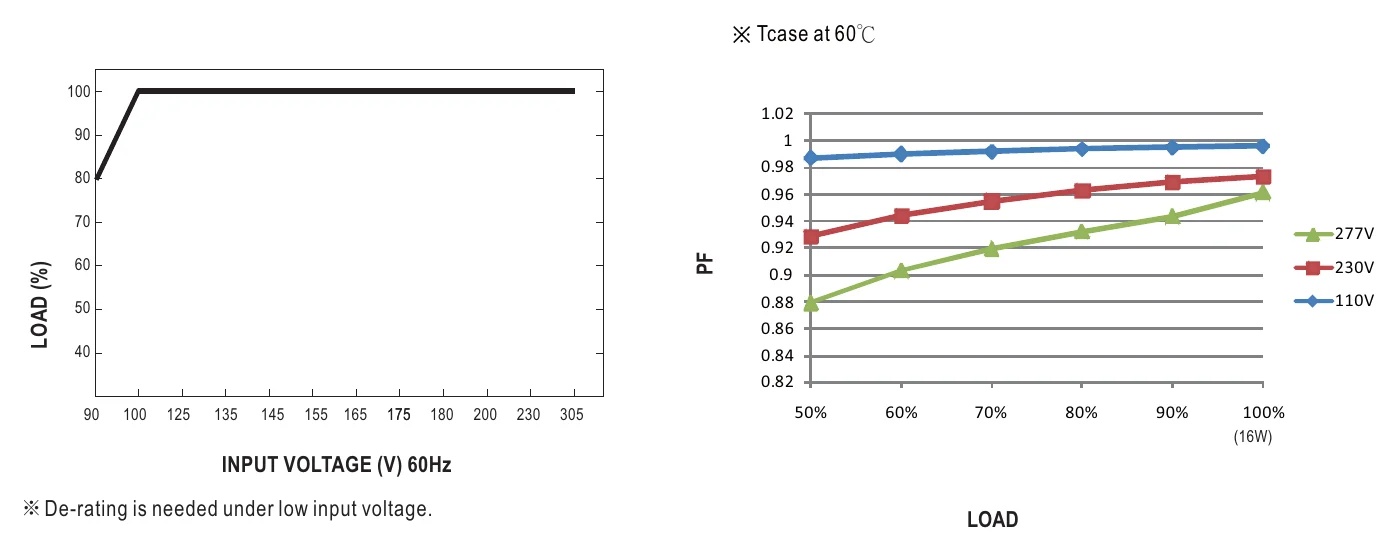

LPF-16D-48 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC

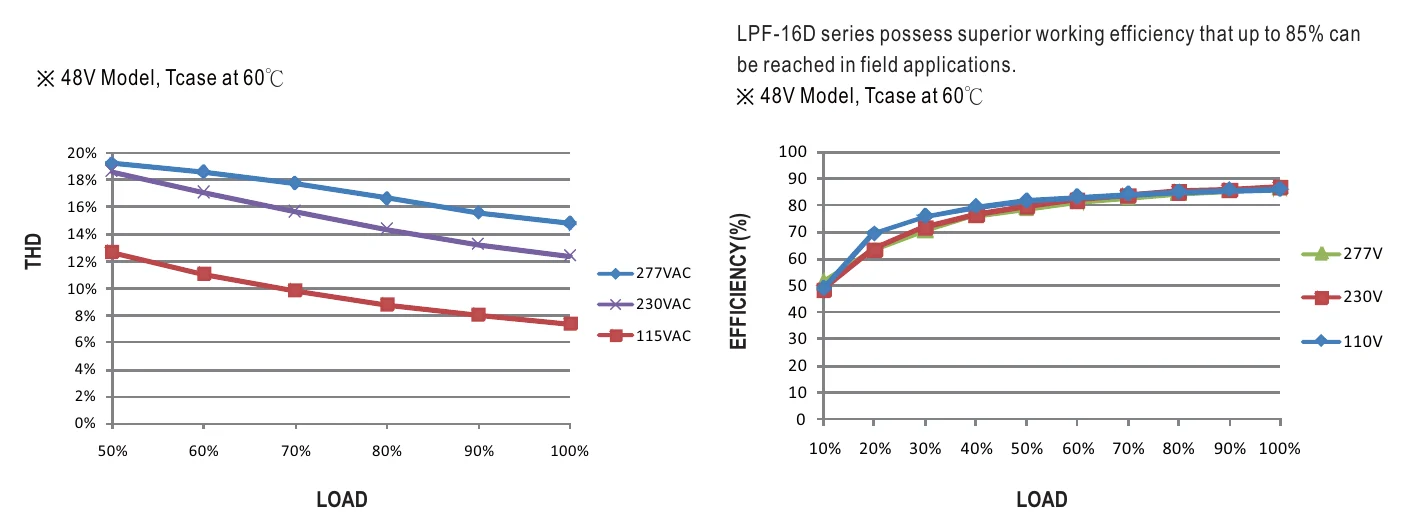

LPF-16D-48 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

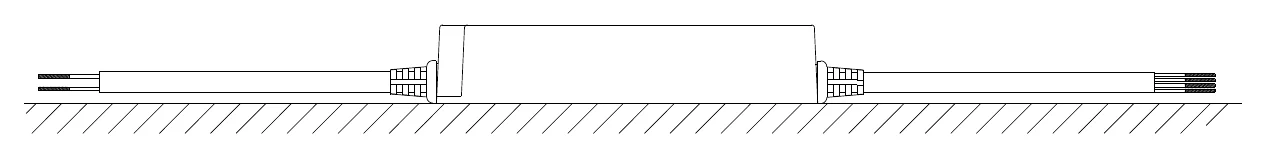

LPF-16D-48 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED downlight
  • LED spotlight
  • LED decorative lighting
  • LED tunnel lighting

Downloads

FAQ

Can I use the LPF-16D-48 for a short 48V LED strip run in a sign or display?

Yes, if the lighting product is a constant-current load rated for 0.34A that operates within the 26.4-48V constant-current range and stays within the driver’s 16.32W maximum. This model provides 48V output at 0.34A and is suited to small signage or display lighting loads. Because it is a constant current driver, check that the strip or fixture is specifically compatible before choosing it.

Is the LPF-16D-48 suitable for 48V architectural accent lighting?

It can be a fit for compact accent lighting where the fixture falls inside the 26.4-48V constant current range and does not exceed 16.32W. The standard unit is rated IP30 (IP67 is listed as an option), so it should not be exposed to dust or water. Confirm the fixture’s electrical requirements match 0.34A constant current.

Can this driver power a small 48V linear lighting section?

Yes, for a short linear lighting section that needs no more than 16.32W total and runs at 0.34A within 26.4-48V. The driver outputs 48V at 0.34A, so it is intended for lower-power runs rather than longer or higher-load sections. Check the light’s rated voltage and current requirements before using it.

Can I use the LPF-16D-48 in a damp or outdoor lighting location?

Not as standard: this model is rated IP30, so it is not built for wet, dusty or outdoor exposure; the datasheet lists IP67 only as an optional version. Its working case temperature (Tcase) range is -35°C to +70°C, with humidity of 20-95% RH non-condensing. Final suitability still depends on the rest of the lighting system being rated for the same environment.

How much 48V LED strip can the LPF-16D-48 support?

Use the power limit for the estimate: 16.32W maximum total load. Strip length estimate = 16.32W divided by your strip’s rated watts per meter, so a 4.08W/m strip would be about 4 meters. Check your strip rated power per meter and confirm it is a constant-current product for 0.34A within 26.4-48V before sizing.

How does the LPF-16D-48 compare with the other 16W dimmable LPF models?

In the LPF-16D group, the options are 12V 16.08W 1.34A, 15V 16.05W 1.07A, 20V 16W 0.8A, 24V 16.08W 0.67A, 30V 16.2W 0.54A, 36V 16.2W 0.45A, 42V 16.38W 0.39A, 48V 16.32W 0.34A, and 54V 16.2W 0.3A. The LPF-16D-48 sits near the high-voltage end of that range and keeps the same built-in 3 in 1 dimming format as the other D versions.
