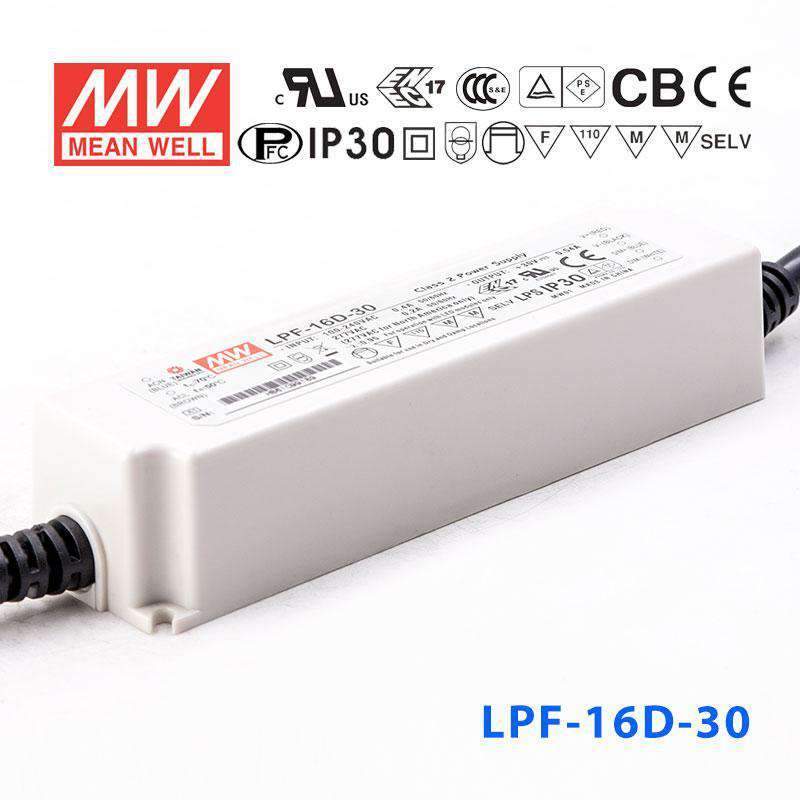

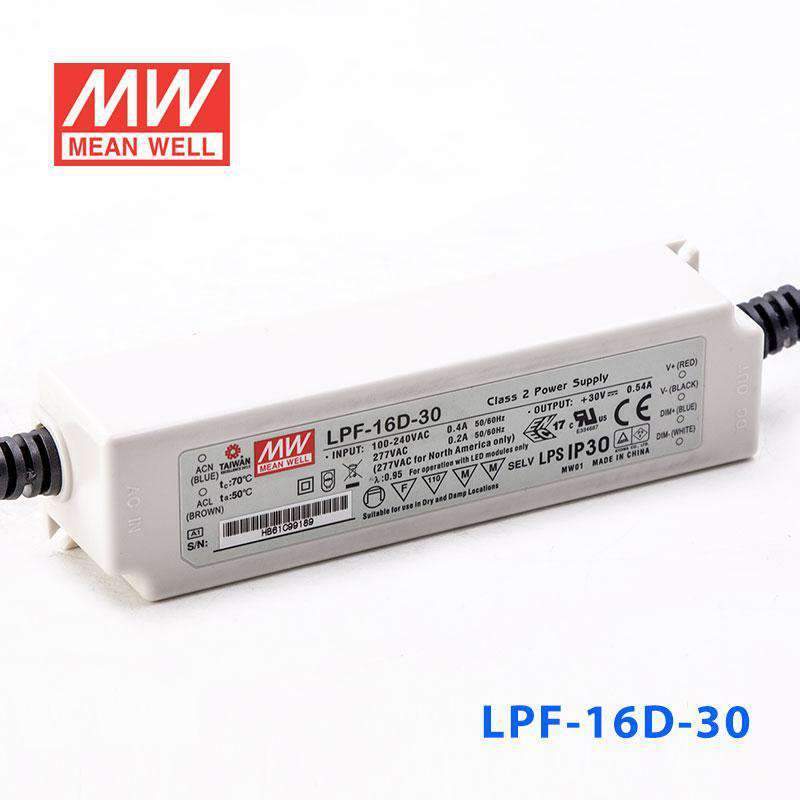

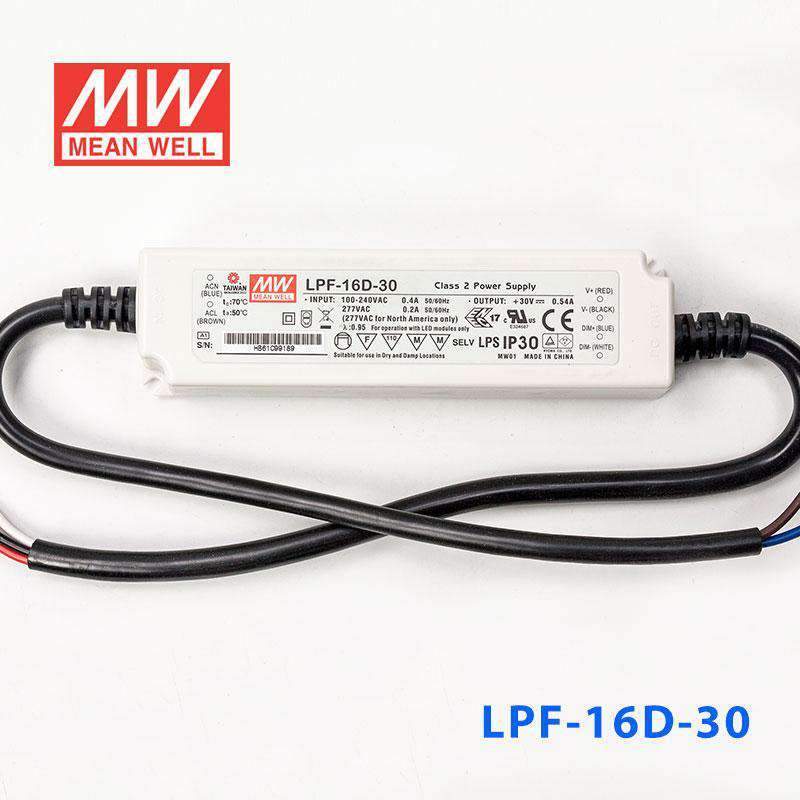

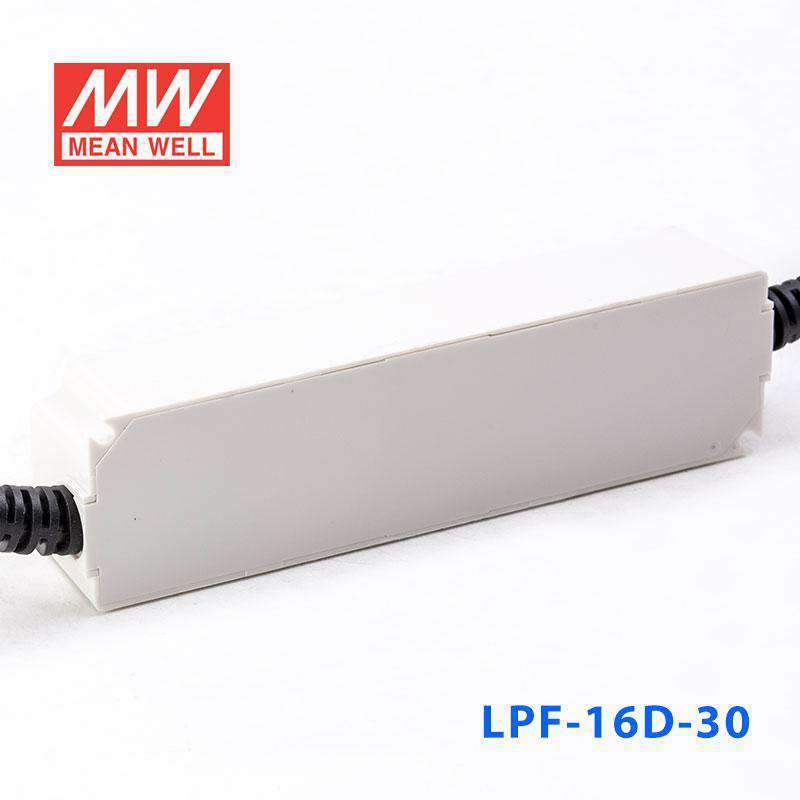

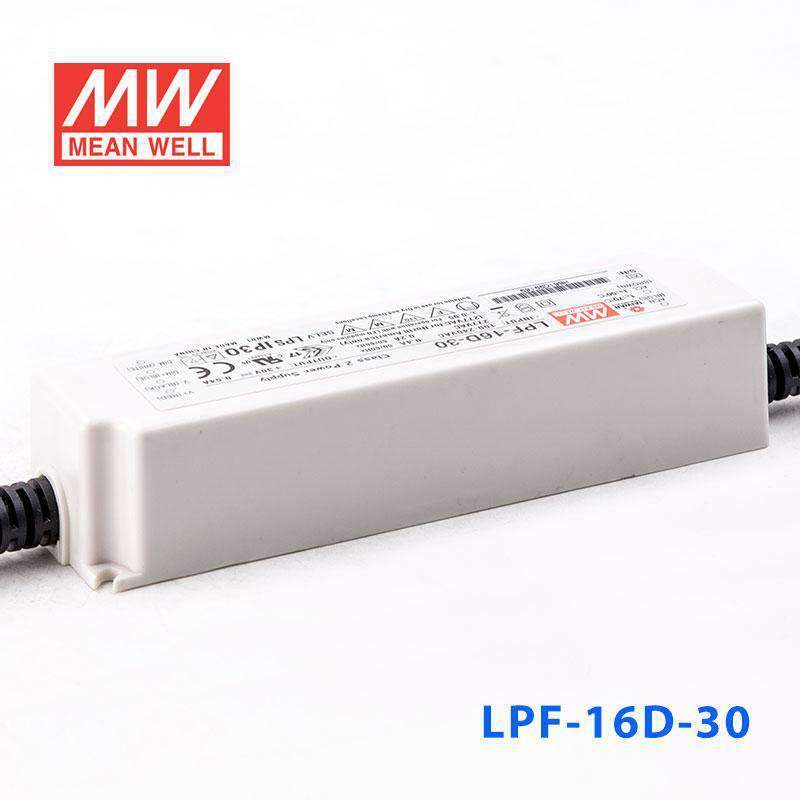

Mean Well LPF-16D-30 Power Supply 16W 30V - Dimmable 540mA

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-16D-30
$27.37 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-16D-30
In stock
|

Overview

LPF-16D-30 is the 30V output model of this series: rated current 0.54A, rated power 16.2W, typical efficiency 84.5%.

LPF-16D series is a 16W AC/DC LED driver featuring the constant current output. LPF-16D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 85%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is suitable to work for a variety of applications at dry or damp and the optional models with IP67 rating is able to further work at wet locations. LPF-16D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • Standard type with IP30 level,optional IP67 with fully encapsulate
  • Function: 3 in 1 dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

LPF-16D-30Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
30V
RATED CURRENT
0.54A
RATED POWERNote.5
16.2W
CONSTANT CURRENT REGIONNote.2
16.5 ~ 30V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
84.5%
AC CURRENT
0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
34 ~ 40V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213 approved, IP67(optional); Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
148*40*32mm (L*W*H)
PACKING
0.21Kg;40pcs/9.4Kg/ 1.02CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-16D-30 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-16D-30 DIMMING OPERATION
DIMMING OPERATION
LPF-16D-30 Illustration (page 5)
Illustration (page 5)
LPF-16D-30 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-16D-30 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-16D-30 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED downlight
  • LED spotlight
  • LED decorative lighting
  • LED tunnel lighting

Downloads

FAQ

Can I use the LPF-16D-30 for a 30V LED module chain in signage?

Yes, if the LED module chain is a constant-current load that requires 0.54A and operates within the 16.5-30V constant-current range. The total connected load needs to stay within 16.2W.

Is this suitable for a dimmable 30V cove or display light?

It is suitable for low-power cove or display lighting when the LED engine is designed for 0.54A constant current and runs in the 16.5-30V range. The built-in 3 in 1 dimming supports dimmable applications up to 16.2W.

Can the LPF-16D-30 be used in outdoor decorative lighting?

Not as standard: the unit is rated IP30, so it is not intended for wet or exposed locations; the datasheet lists IP67 only as an option. The load must be a 0.54A constant-current load within 16.5-30V, at a case temperature (Tcase) of -35°C to +70°C.

How do I estimate compatible 30V LED strip length for this driver?

Use this only with a constant-current strip or module that matches 0.54A and falls within 16.5-30V. The maximum length is 16.2W divided by your strip's watts per meter, and you should check your strip rated power per meter before sizing.

Is this driver waterproof enough for exterior installations?

The standard driver is rated IP30, so it is not waterproof and is not intended for outdoor or wet locations; the datasheet lists IP67 as an optional version. It also needs a matching constant-current LED load and a case temperature (Tcase) within -35°C to +70°C.
