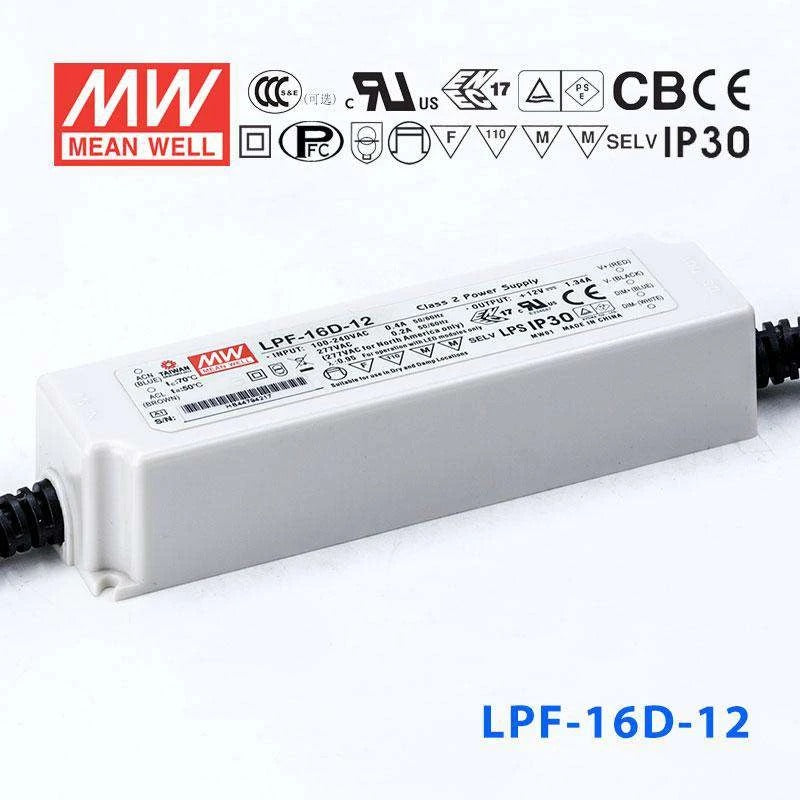

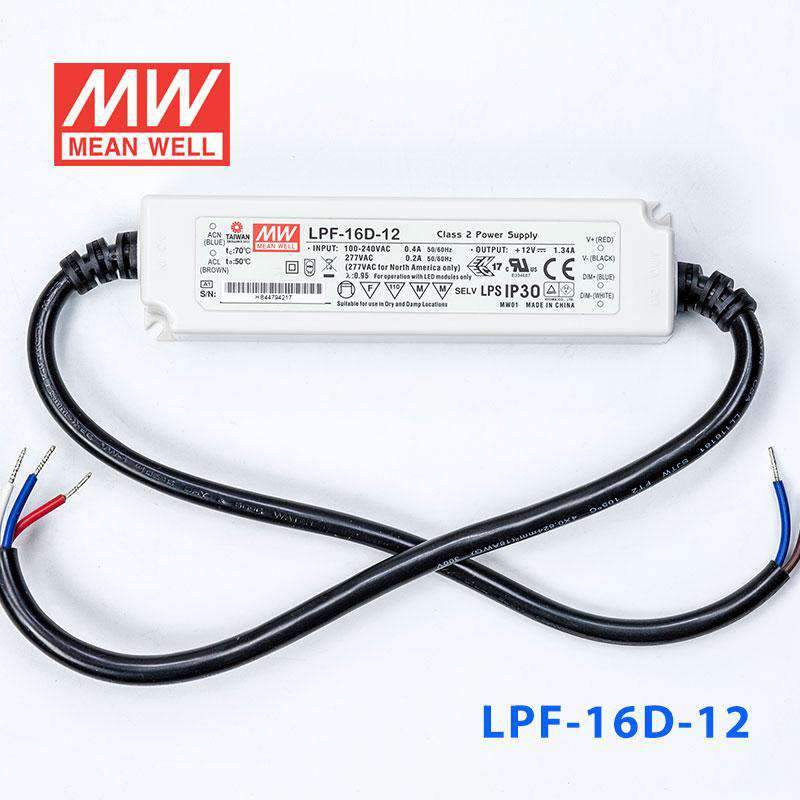

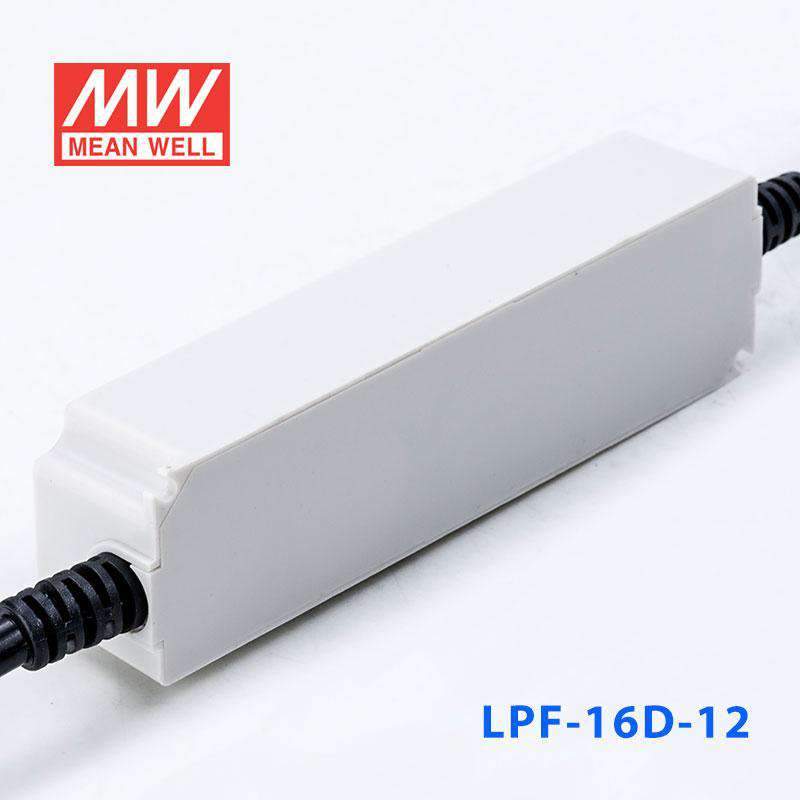

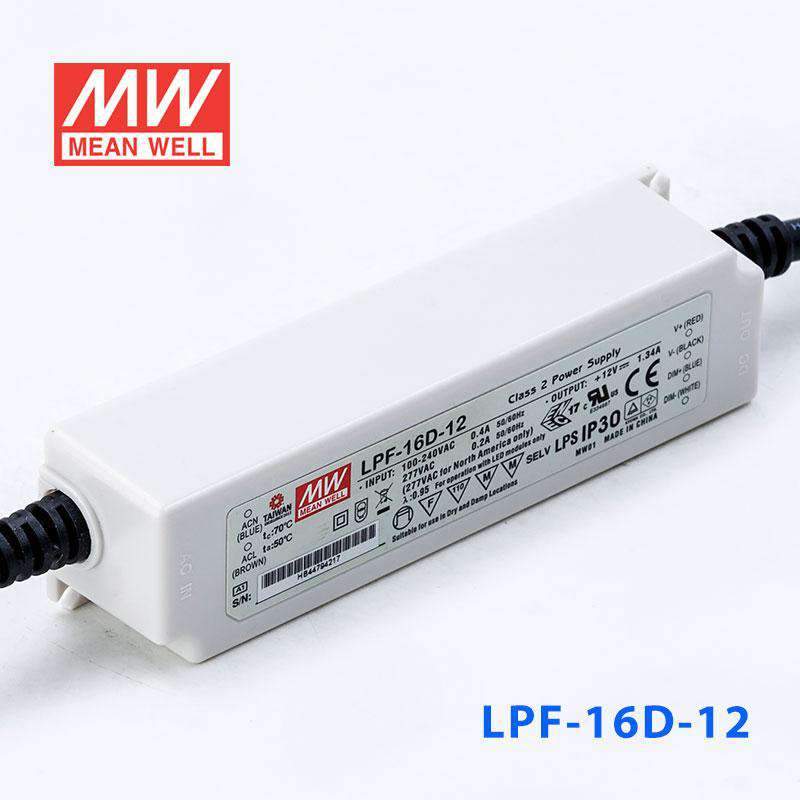

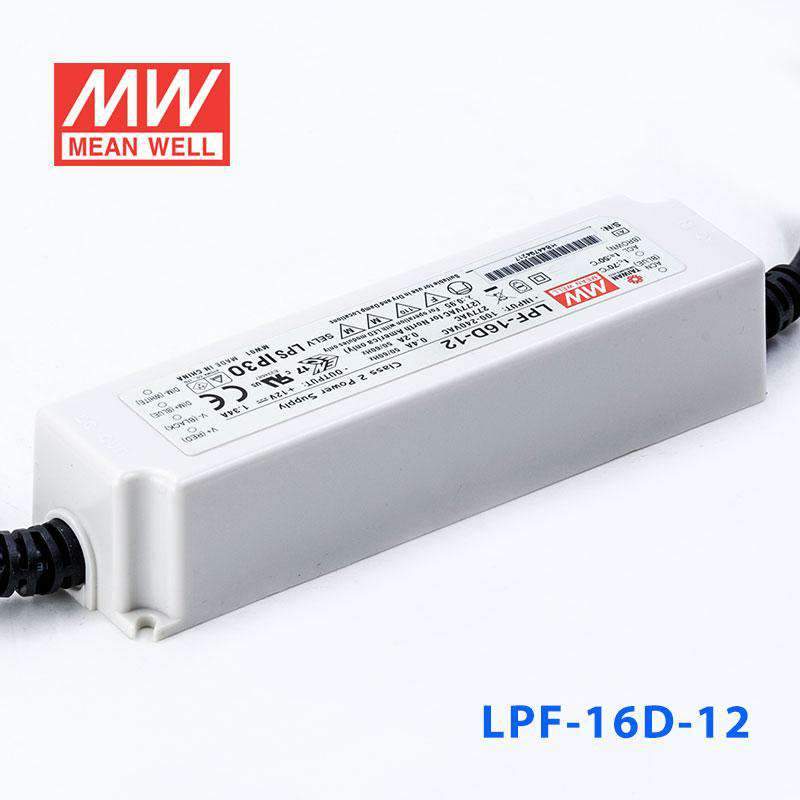

Mean Well LPF-16D-12 Power Supply 16W 12V - Dimmable 1.34A

Name: Mean Well LPF-16D-12 Power Supply 16W 12V - Dimmable 1.34A
Brand: Mean Well
SKU: LPF-16D-12
Price: 25.93 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU LPF-16D-12

$25.93 USD

Shipping calculated at checkout.

Select model — 8 in this family

LPF-16D-12

LPF-16-12 Fixed output Low stock$27.20 USD

LPF-16D-12 Dimmable Backorder$25.93 USD

LPF-25-12 Fixed output In stock$30.32 USD

LPF-25D-12 Dimmable Low stock$32.86 USD

LPF-40-12 Fixed output In stock$30.91 USD

LPF-40D-12 Dimmable Low stock$37.55 USD

LPF-60-12 Fixed output Low stock$37.96 USD

LPF-60D-12 Dimmable Backorder$34.86 USD

Product variants

Available to order

Overview

LPF-16D-12 is the 12V output model of this series: rated current 1.34A, rated power 16.08W, typical efficiency 83%.

LPF-16D series is a 16W AC/DC LED driver featuring the constant current output. LPF-16D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 85%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is suitable to work for a variety of applications at dry or damp and the optional models with IP67 rating is able to further work at wet locations. LPF-16D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

Constant current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Standard type with IP30 level,optional IP67 with fully encapsulate
Function: 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

LPF-16D-12Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 1.34A
RATED POWER^Note.5: 16.08W
CONSTANT CURRENT REGION^Note.2: 6.6 ~12V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP, RISE TIME^Note.6: 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 83%
AC CURRENT: 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 15 ~ 18V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213 approved, IP67(optional); Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*32mm (L*W*H)
PACKING: 0.21Kg;40pcs/9.4Kg/ 1.02CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-16D-12 BLOCK DIAGRAM — BLOCK DIAGRAM

LPF-16D-12 DIMMING OPERATION — DIMMING OPERATION

LPF-16D-12 Illustration (page 5) — Illustration (page 5)

LPF-16D-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-16D-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-16D-12 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED downlight
LED spotlight
LED decorative lighting
LED tunnel lighting

Downloads

Certificates5

UL Certificate(LPF-16D)(EN) PDF Download

CB Certificate(LPF-16D)(EN) PDF Download

EMC Certificate(LPF-16D)(EN) PDF Download

ENEC Certificate(LPF-16D)(EN) PDF Download

PSE Certificate(LPF-16D)(EN) PDF Download

Test reports1

Test Report(LPF-16D-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-16D-12 for 12V LED strip lighting with dimming?

Yes, if the LED strip or load is designed for constant-current operation at 1.34A within the 6.6-12V range. This model provides up to 16.08W and includes built-in 3 in 1 dimming for small dimmable lighting loads.

Is the LPF-16D-12 suitable for dimmable under-cabinet or display lighting?

It can be suitable for small under-cabinet or display lighting systems when the LED load requires 1.34A constant current and falls between 6.6V and 12V. The 16.08W output and built-in 3 in 1 dimming make it appropriate for low-power dimmable fixtures.

Can this driver be used for dimmable 12V LED signage modules?

Yes, for signage modules that are specified for constant-current operation at 1.34A. The total load must stay within 16.08W and within the 6.6-12V constant-current range.

Would the LPF-16D-12 work for damp or outdoor dimmable lighting?

Not as standard: the unit is rated IP30, so it is not intended for wet or outdoor locations; IP67 is listed only as an option. It works at a case temperature (Tcase) of -35°C to +70°C, and the LED load must match the 1.34A constant-current output and 6.6-12V range.

How do I estimate LED strip length with the LPF-16D-12?

Use the formula: maximum strip length = 16.08W divided by your strip's rated watts per meter. Because this is a constant-current 1.34A driver with a 6.6-12V range, check your strip rated power per meter and confirm the strip is designed for this constant-current output.
