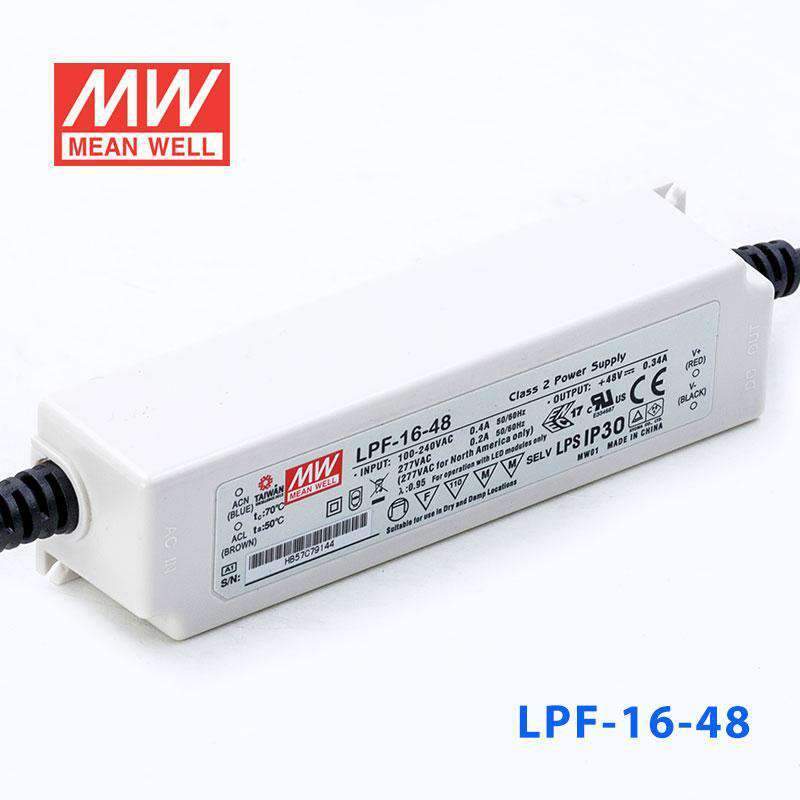

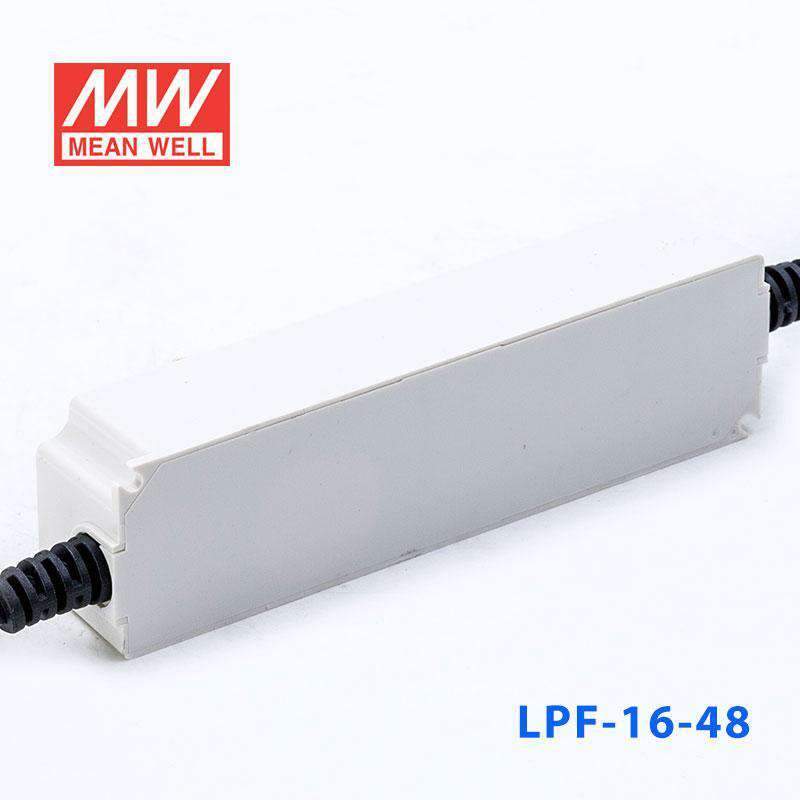

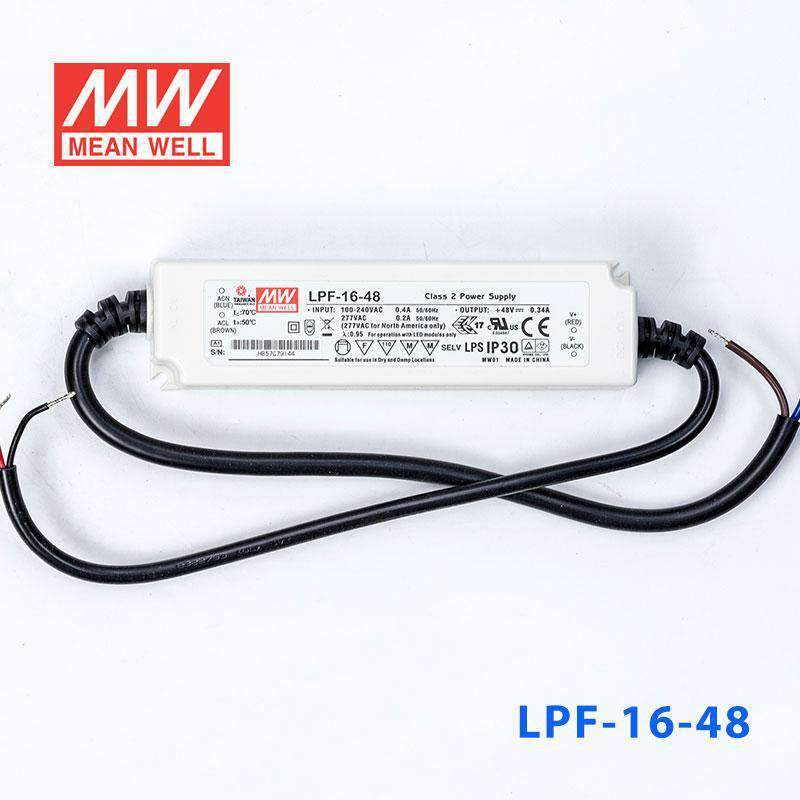

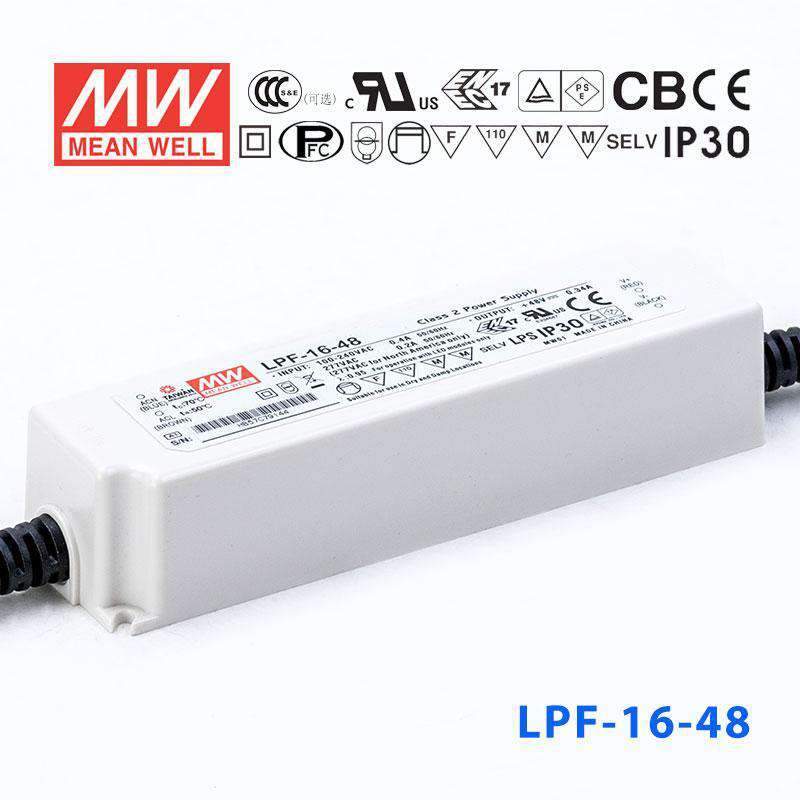

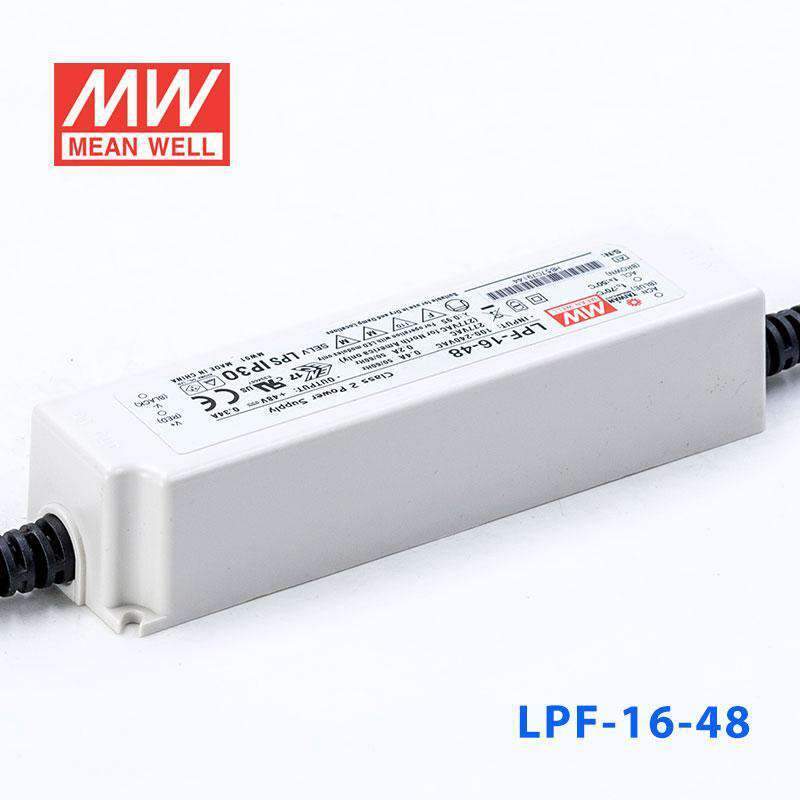

Mean Well LPF-16-48 Power Supply | Constant Voltage + Current LED Driver

Name: Mean Well LPF-16-48 Power Supply 16W 48V 340mA
Brand: Mean Well
SKU: LPF-16-48
Price: 25.03 USD
Availability: InStock

Overview

LPF-16-48 is the 48V output model of this series: rated current 0.34A, rated power 16.32W, typical efficiency 86%.

LPF-16 series is a 16W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-16 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is suitable to work for a variety of applications at dry or damp locations and the optional models with IP67 rating is able to further work at wet locations.

Features

Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Standard type with IP30 level, optional IP67 with fully encapsulated
Typical lifetime>50000 hours
5 years warranty

Specifications

LPF-16-48Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.2: 26.4 ~ 48V
RATED CURRENT: 0.34A
RATED POWER^Note.5: 16.32W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 63V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent , BS EN/EN62384,J61347-1, J61347-2-13,EAC TP TC 004,GB/T19510.1,GB/T19510. 213 approved,IP67 (optional) ; Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 427.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*32mm (L*W*H)
PACKING: 0.21Kg; 40pcs/9.4Kg/1.02CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-16-48 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

LPF-16-48 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-16-48 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-16-48 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED downlight
LED spotlight
LED decorative lighting
LED tunnel lighting

Downloads

Certificates5

UL Certificate(LPF-16)(EN) PDF Download

CB Certificate(LPF-16)(EN) PDF Download

EMC Certificate(LPF-16)(EN) PDF Download

ENEC Certificate(LPF-16)(EN) PDF Download

PSE Certificate(LPF-16)(EN) PDF Download

Test reports1

Test Report(LPF-16-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPF-16-48 for a 48V constant-current LED sign?

Yes, if the sign uses a constant-current LED load at 0.34A and its forward voltage falls within the 26.4-48V constant-current region. The driver provides up to 16.32W, so it is suited to smaller 48V sign sections rather than larger illuminated displays.

Is this a good choice for slim 48V linear LED lighting modules?

It can be used with slim linear modules that are specified for 0.34A constant current and stay within 26.4V to 48V. Its 16.32W output makes it appropriate for compact or low-power linear lighting sections.

Can the LPF-16-48 be used for outdoor accent lighting?

Not as standard: the sheet lists the standard unit as IP30, with IP67 only as an option, so this version is not rated for outdoor or wet-location use. Its working case temperature is Tcase -35°C to +70°C, and the fixture needs to be a 0.34A constant-current load within 26.4-48V.

Would this driver work for a small 48V LED display fixture?

Yes, if the display fixture is designed for constant-current operation at 0.34A. The driver's 16.32W capacity fits smaller 48V display fixtures and compact illuminated elements.

How do I estimate the maximum 48V LED strip length for the LPF-16-48?

Use this formula: maximum strip length = 16.32W divided by the strip's rated watts per meter. The driver gives 48V in constant-voltage mode or 0.34A in constant-current mode within 26.4-48V, so check your strip rated power per meter and make sure the strip matches this output.

What is the difference between the LPF-16-48 and other nearby LPF constant-current models?

Within the LPF-16 series, the nearby models are LPF-16-42 at 16.38W, 42V, 0.39A; LPF-16-48 at 16.32W, 48V, 0.34A; and LPF-16-54 at 16.2W, 54V, 0.3A. They share the same 90-305VAC input and 148*40*32mm case; the difference is the output voltage, current and constant-current region.
