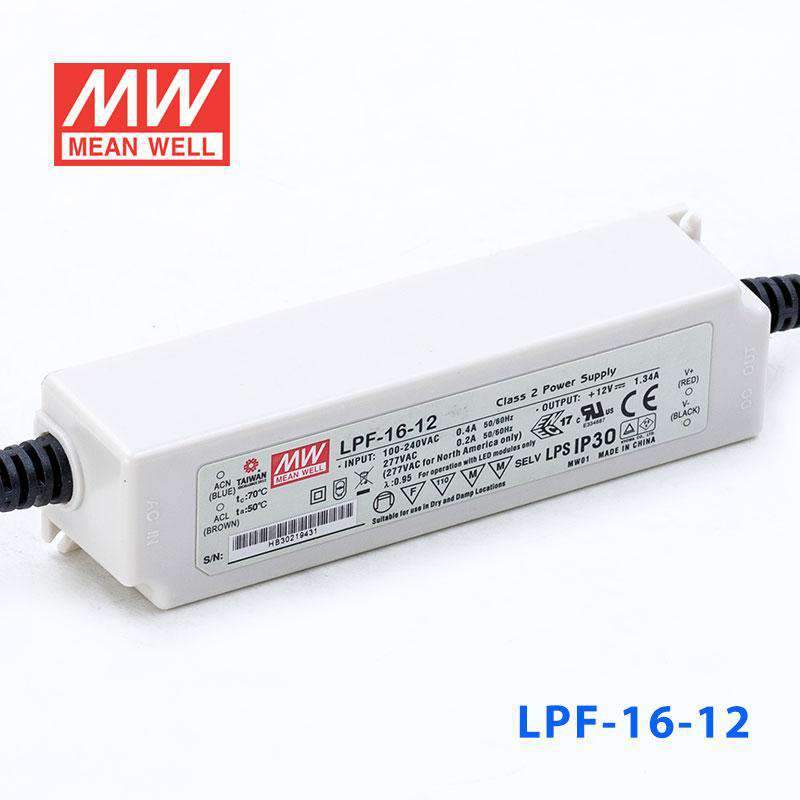

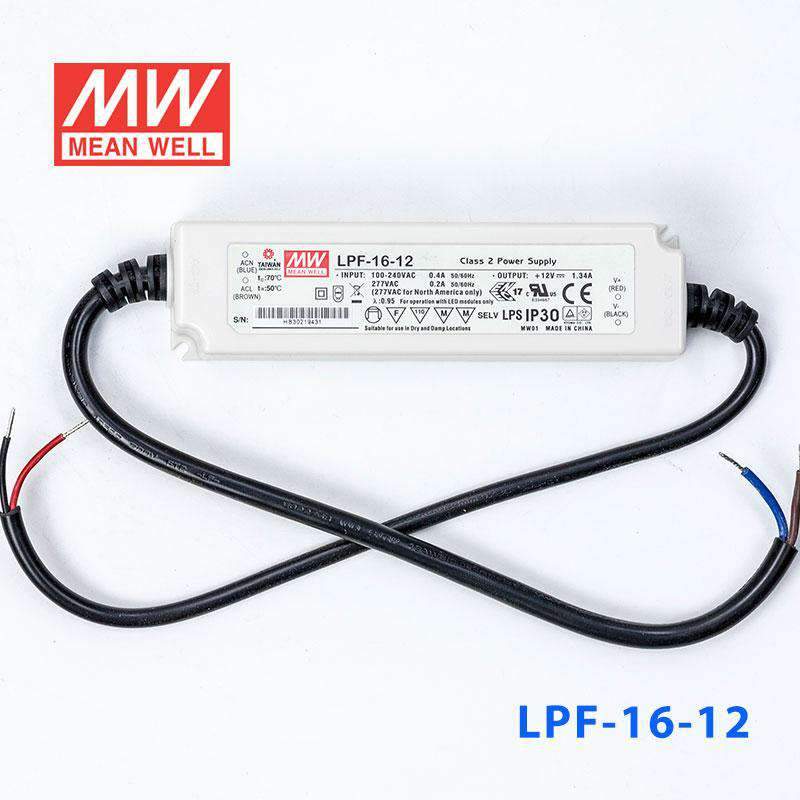

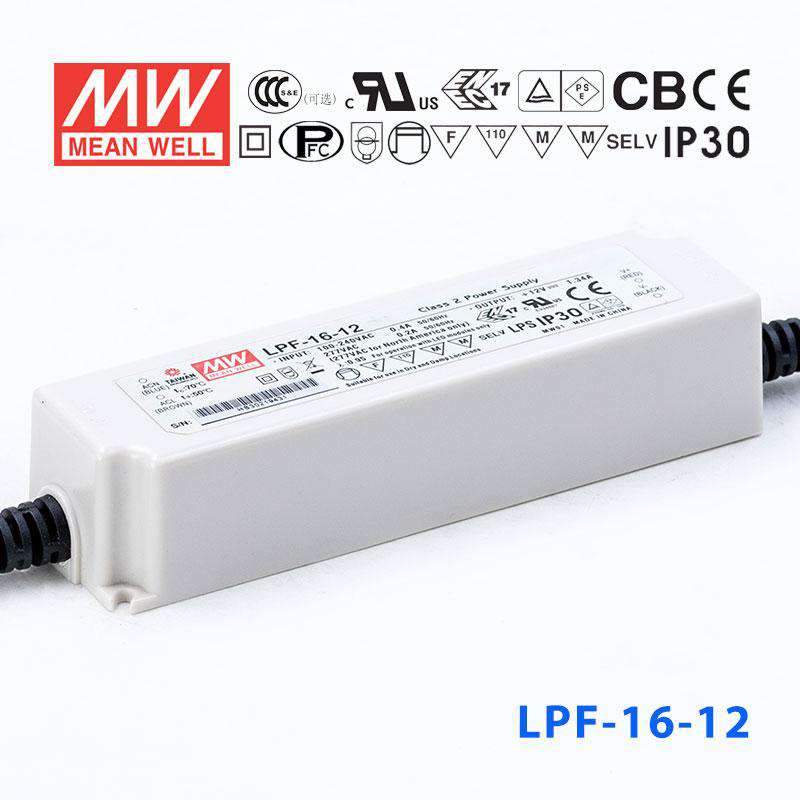

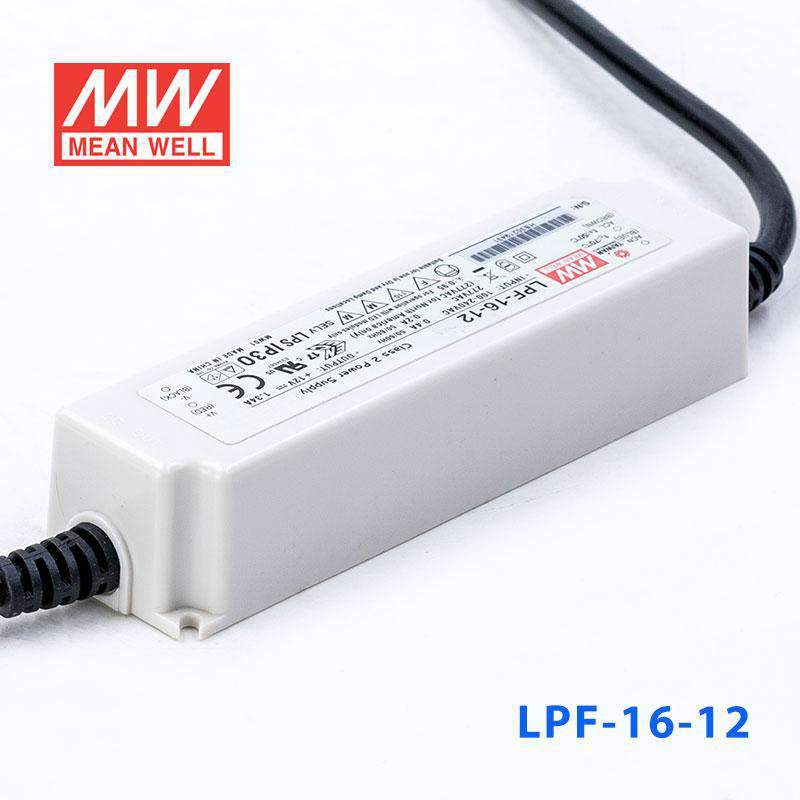

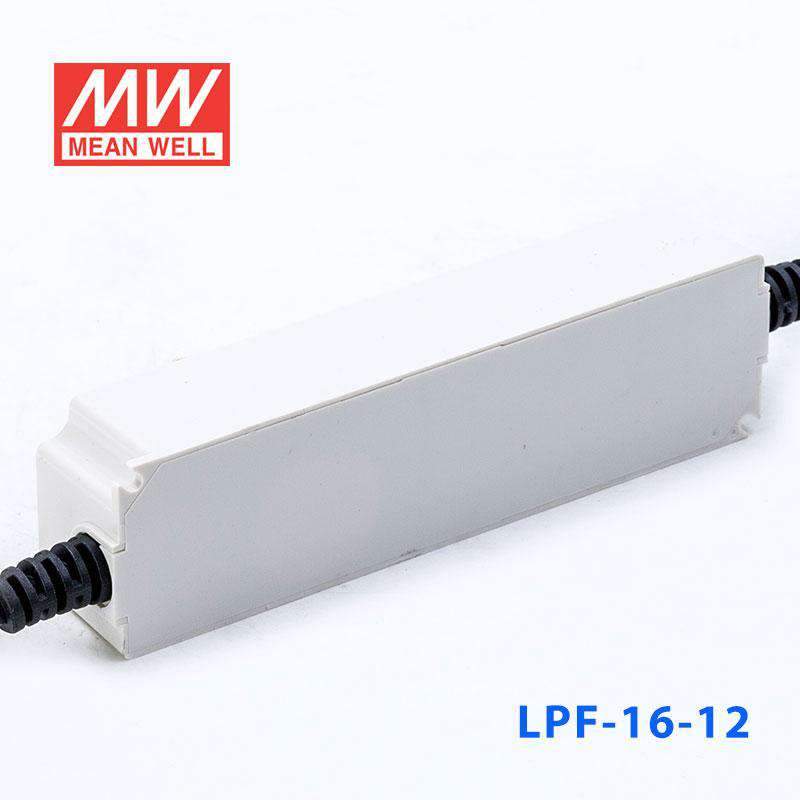

Mean Well LPF-16-12 Power Supply 16W 12V 1.34A

Name: Mean Well LPF-16-12 Power Supply 16W 12V 1.34A
Brand: Mean Well
SKU: LPF-16-12
Price: 27.2 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU LPF-16-12

$27.20 USD

Shipping calculated at checkout.

Select model — 8 in this family

LPF-16-12

LPF-16-12 Fixed output Low stock$27.20 USD

LPF-16D-12 Dimmable Backorder$25.93 USD

LPF-25-12 Fixed output In stock$30.32 USD

LPF-25D-12 Dimmable Low stock$32.86 USD

LPF-40-12 Fixed output In stock$30.91 USD

LPF-40D-12 Dimmable Low stock$37.55 USD

LPF-60-12 Fixed output Low stock$37.96 USD

LPF-60D-12 Dimmable Backorder$34.86 USD

Product variants

In stock

Overview

LPF-16-12 is the 12V output model of this series: rated current 1.34A, rated power 16.08W, typical efficiency 84%.

LPF-16 series is a 16W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-16 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is suitable to work for a variety of applications at dry or damp locations and the optional models with IP67 rating is able to further work at wet locations.

Features

Constant Voltage + Constant Current mode output
Plastic housing with Class II design
Built-in active PFC function
Class 2 power unit
Standard type with IP30 level, optional IP67 with fully encapsulated
Typical lifetime>50000 hours
5 years warranty

Specifications

LPF-16-12Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.2: 6.6 ~12V
RATED CURRENT: 1.34A
RATED POWER^Note.5: 16.08W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.): 16ms/230VAC 16ms /115VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 84%
AC CURRENT: 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 15 ~ 18V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+70℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750, CSA C22.2 No. 250.0-08; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent , BS EN/EN62384,J61347-1, J61347-2-13,EAC TP TC 004,GB/T19510.1,GB/T19510. 213 approved,IP67 (optional) ; Design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 427.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*32mm (L*W*H)
PACKING: 0.21Kg; 40pcs/9.4Kg/1.02CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-16-12 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

LPF-16-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LPF-16-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LPF-16-12 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED downlight
LED spotlight
LED decorative lighting
LED tunnel lighting

Downloads

Certificates5

UL Certificate(LPF-16)(EN) PDF Download

CB Certificate(LPF-16)(EN) PDF Download

EMC Certificate(LPF-16)(EN) PDF Download

ENEC Certificate(LPF-16)(EN) PDF Download

PSE Certificate(LPF-16)(EN) PDF Download

Test reports1

Test Report(LPF-16-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the Mean Well LPF-16-12 for 12V LED strip lights outdoors?

Electrically yes: this model has a 12V output with up to 1.34A and 16.08W, so it suits 12V LED strips whose total load stays within 16.08W. However, the sheet lists the standard unit as IP30, with IP67 only as an option, so it is not rated for outdoor or wet-location use as standard.

Is the LPF-16-12 a good fit for a small 12V LED sign or channel letter project?

It can be a fit for small 12V LED signage where the total power draw does not exceed 16.08W. The unit works in constant voltage mode at 12V or constant current mode within 6.6-12V, and is listed as IP30 as standard (IP67 optional), so the driver should be kept protected from moisture.

Can this power supply be used for 12V architectural or accent lighting in damp areas?

It can power 12V LED lighting loads up to 16.08W for low-power accent or architectural lighting, but not in damp areas as standard: the sheet lists the standard unit as IP30, with IP67 only as an option. The working case temperature range is -35°C to +70°C.

How much 12V LED strip can the LPF-16-12 run?

The maximum output power is 16.08W, so the strip length depends on your strip's rated power per meter. Use this formula: 16.08W ÷ your strip watts per meter = maximum estimated length, and check your strip rated power per meter before sizing.

Is the Mean Well LPF-16-12 waterproof and suitable for outdoor conditions?

No, not as standard. The sheet lists the standard unit as IP30, with IP67 only as an option, so it is not waterproof or rated for outdoor use. It is rated for a working case temperature (Tcase) of -35°C to +70°C.

What is the difference between the LPF-16-12 and the other LPF-16 series models?

The LPF-16-12 is the 12V version rated at 1.34A and 16.08W. Other LPF-16 models are LPF-16-15 at 15V 1.07A 16.05W, LPF-16-20 at 20V 0.8A 16W, LPF-16-24 at 24V 0.67A 16.08W, LPF-16-30 at 30V 0.54A 16.2W, LPF-16-36 at 36V 0.45A 16.2W, LPF-16-42 at 42V 0.39A 16.38W, LPF-16-48 at 48V 0.34A 16.32W, and LPF-16-54 at 54V 0.3A 16.2W. All share the same 90-305VAC input and 148*40*32mm case.
