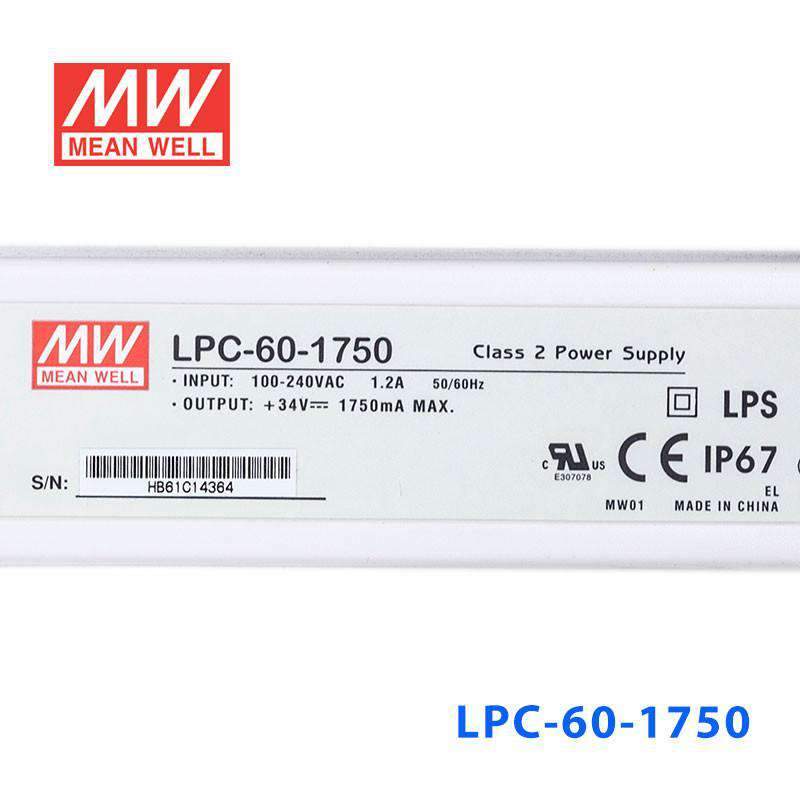

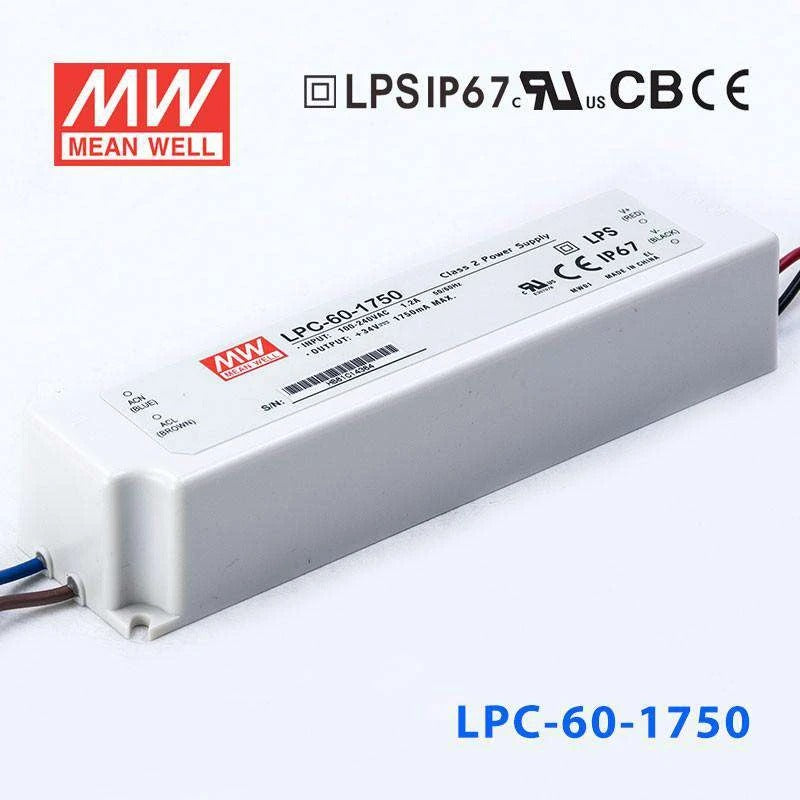

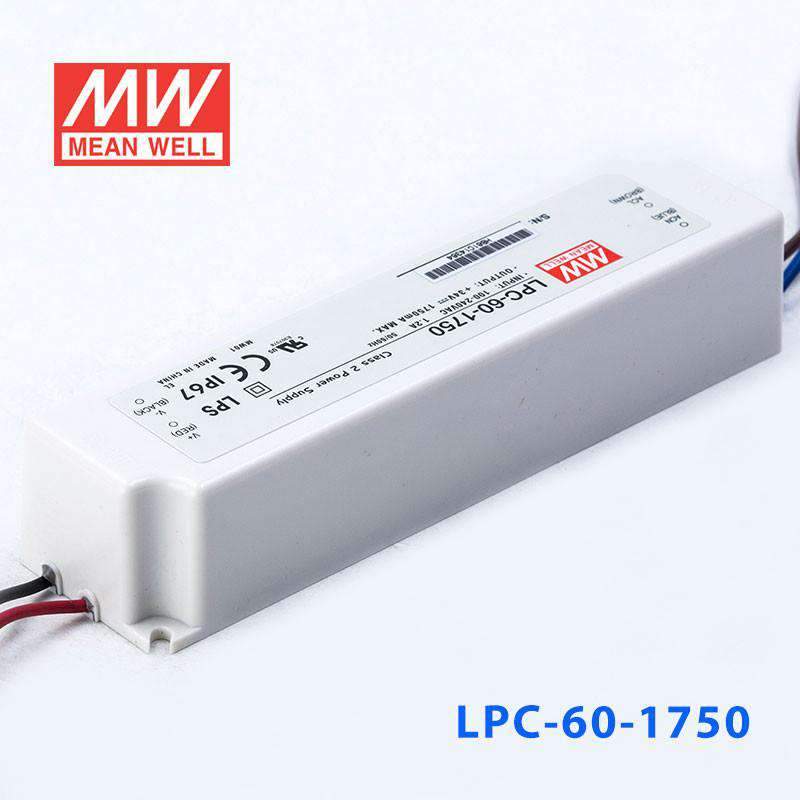

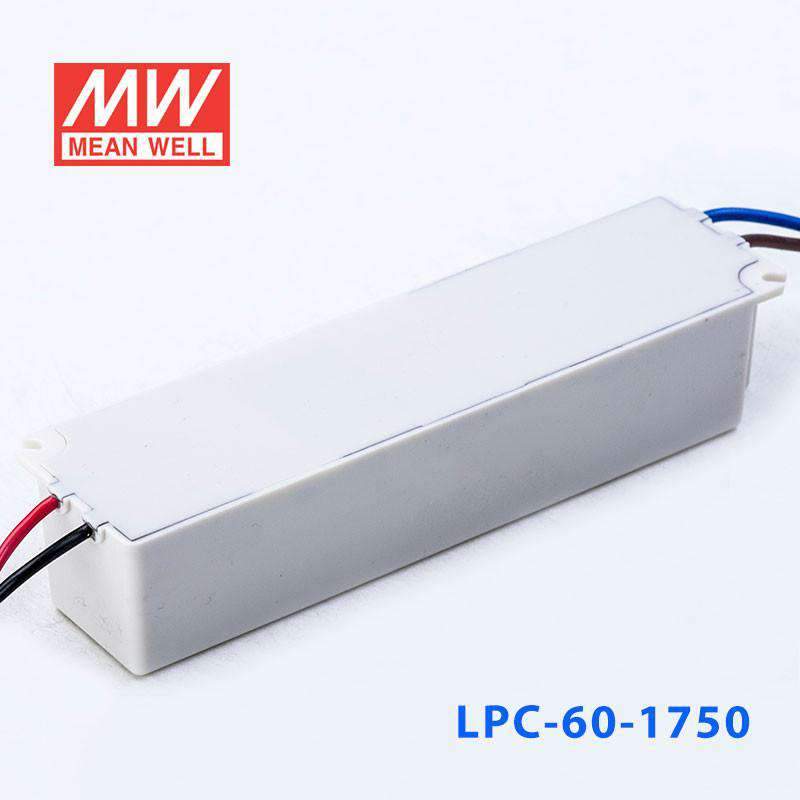

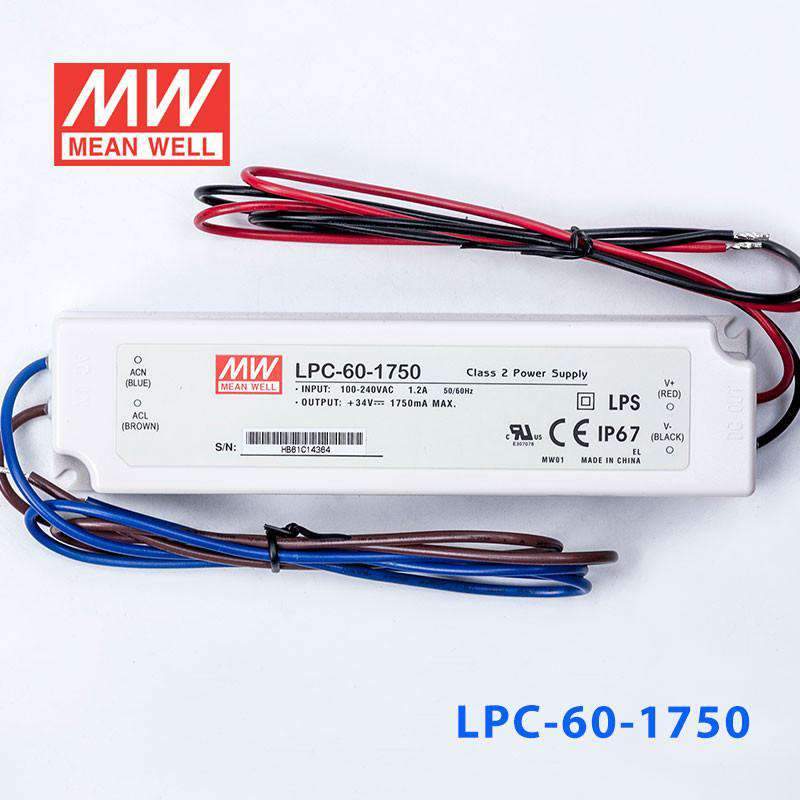

Mean Well LPC-60-1750 Power Supply 60W 1750mA
Overview
LPC-60-1750 is the model of this series: rated current 1750mA, rated power 59.5W, typical efficiency 87%.
Features
- Constant current design
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Over voltage
- Cooling by free air convection
- Fully encapsulated with IP67 level (Note.6)
- Fully isolated plastic case
- Class Ⅱ power unit, no FG
- Class 2 power unit
- Pass LPS
- Display devices for decorative & advertising accessories (Note.9)
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1750mA
- CONSTANT CURRENT REGION
- 9 ~ 34V
- RATED POWER
- 59.5W
- CURRENT RIPPLENote.2
- ±5%
- VOLTAGE TOLERANCE
- ±5.0%
- CURRENT ACCURACY
- ±5.0%
- SETUP, RISE TIMENote.5
- 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 87%
- AC CURRENT (Typ.)
- 1.2A/115VAC 0.7A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 39.1 ~ 45.9V Protection type : Shut off o/p voltage, clamping by TVS diode
ENVIRONMENT
- WORKING TEMP.

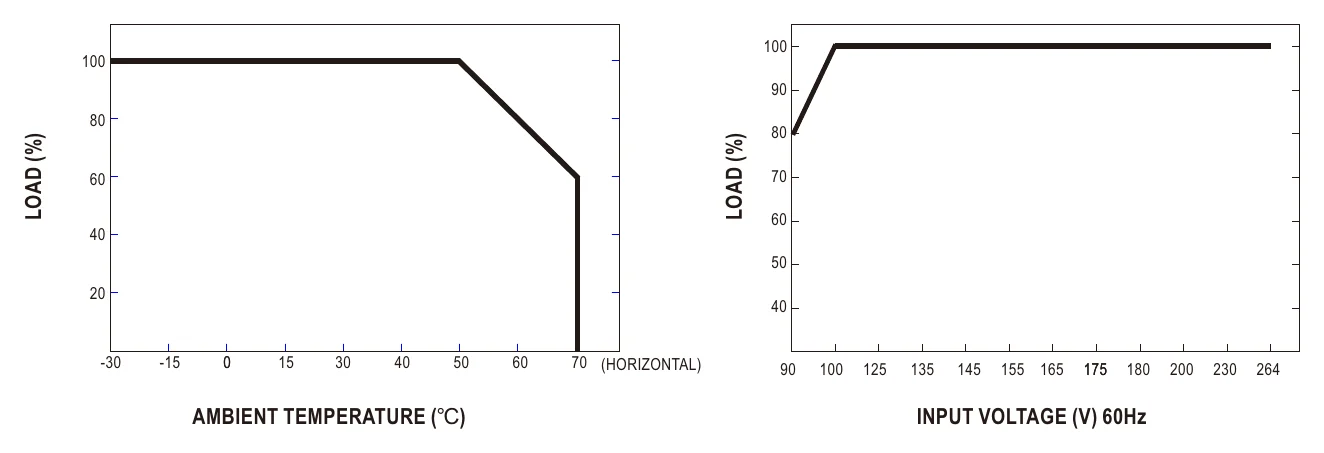

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 5269.3K hrs min. Telcordia SR-332 (Bellcore) ; 567.2K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 162.5*42.5*32mm (L*W*H)
- PACKING
- 0.4Kg; 32pcs/13.8Kg/0.63CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
- 3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

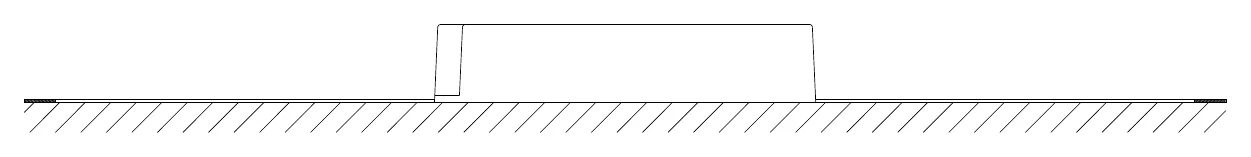

Technical drawings
Downloads
FAQ
Can I use the LPC-60-1750 for a high-current LED downlight?
Yes, if the downlight requires 1750mA constant current. This driver operates across 9-34V and provides up to 59.5W, so it is meant for lower-voltage, higher-current LED loads within that range. It is not intended for LED luminaire applications in the EU and China.
Is the LPC-60-1750 suitable for dense LED signage modules?
It can be, as long as the signage module string is designed for constant current at 1750mA. The load must fit inside the 9-34V CC range and 59.5W maximum, and the IP67 rating supports indoor or outdoor signs not exposed to direct sunlight.
Can the LPC-60-1750 power a small LED array with a lower voltage requirement?
Yes, this model is better suited to constant current LED arrays that need 1750mA and stay within 9-34V. Compared with higher-voltage variants, its range is narrower on voltage but higher on current.
How do I tell if my LED load is compatible with the LPC-60-1750?
Your LED load needs to be a constant current 1750mA load with total forward voltage in the 9-34V range. The exact number of LEDs depends on each LED's forward voltage, so compatibility should be checked by total forward voltage rather than a fixed LED count; it is not for constant voltage LED products.
Can the LPC-60-1750 handle outdoor or wide-temperature conditions?
Yes, it is rated IP67 and specified for operation from -30°C to +70°C, with derating per the derating curve. It suits outdoor use without direct sunlight exposure; avoid immersion in water for over 30 minutes.
