Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

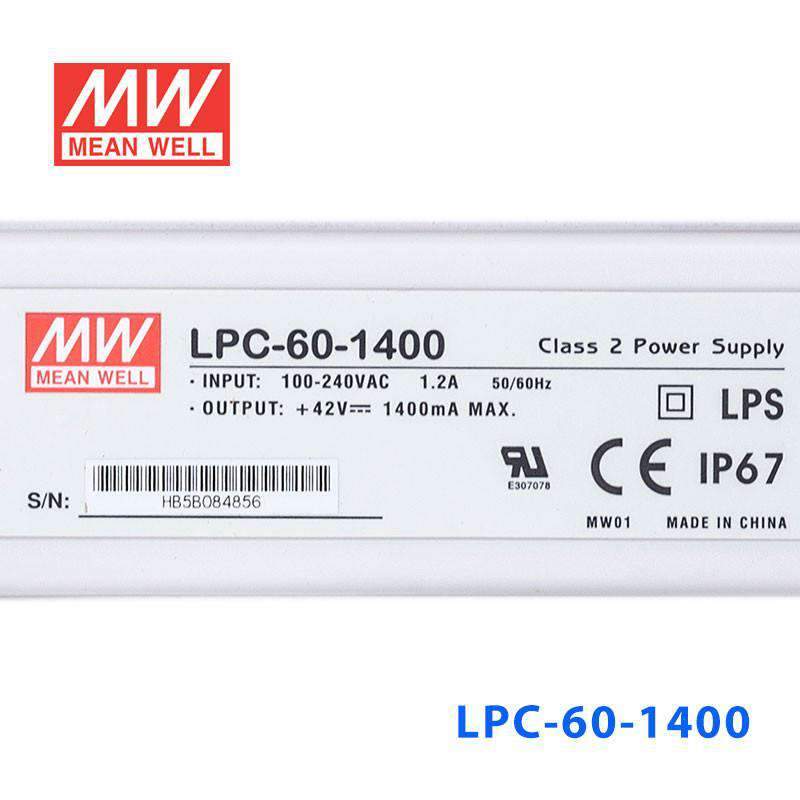

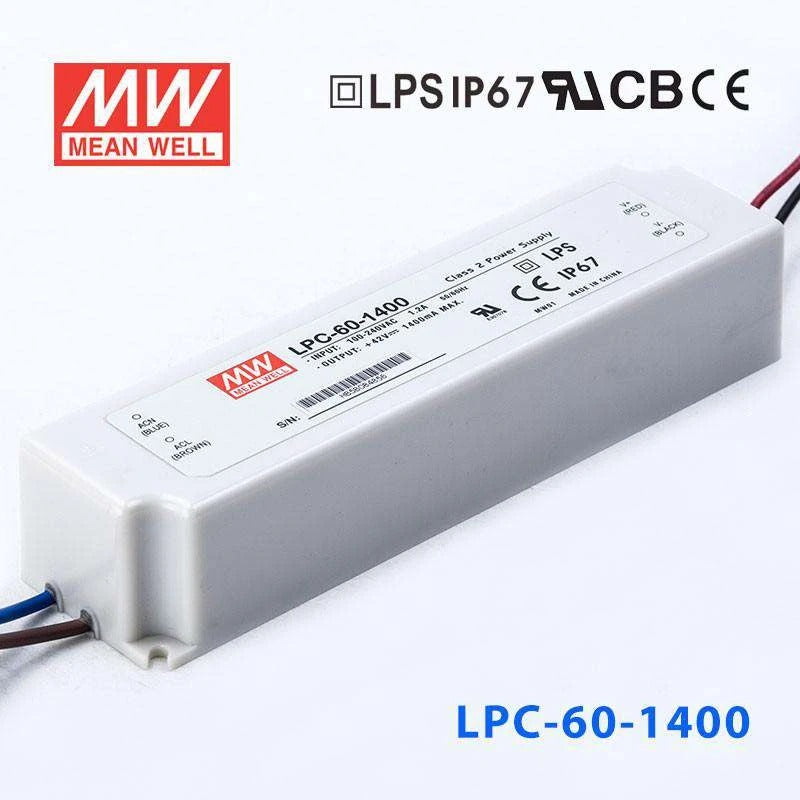

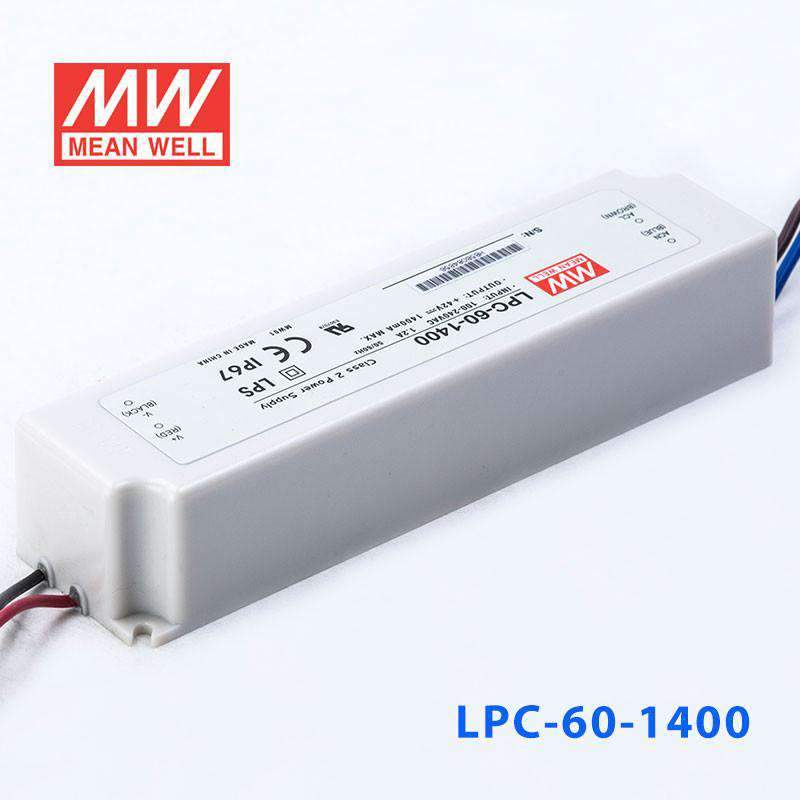

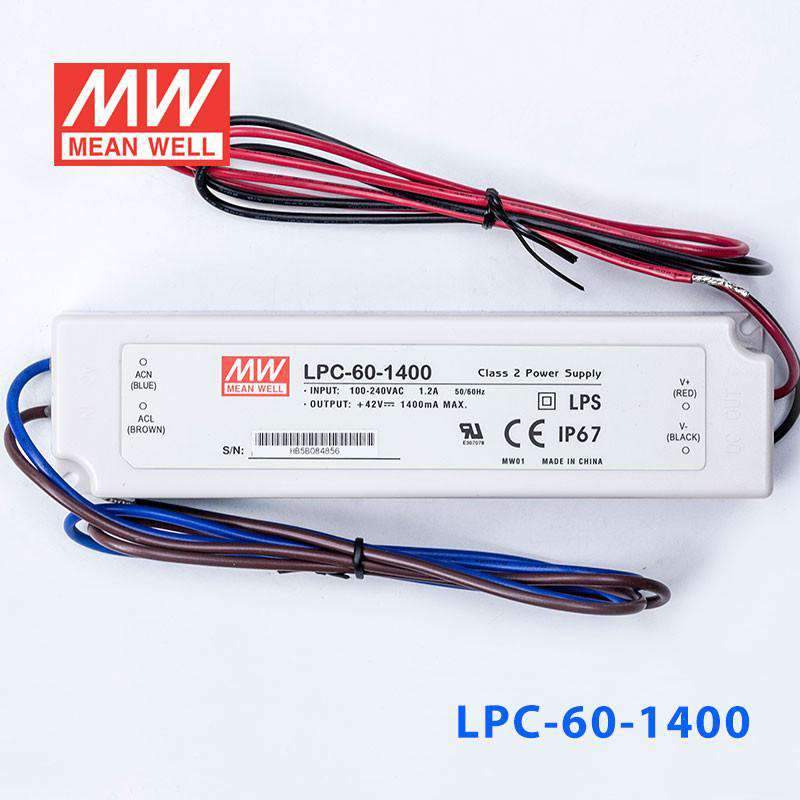

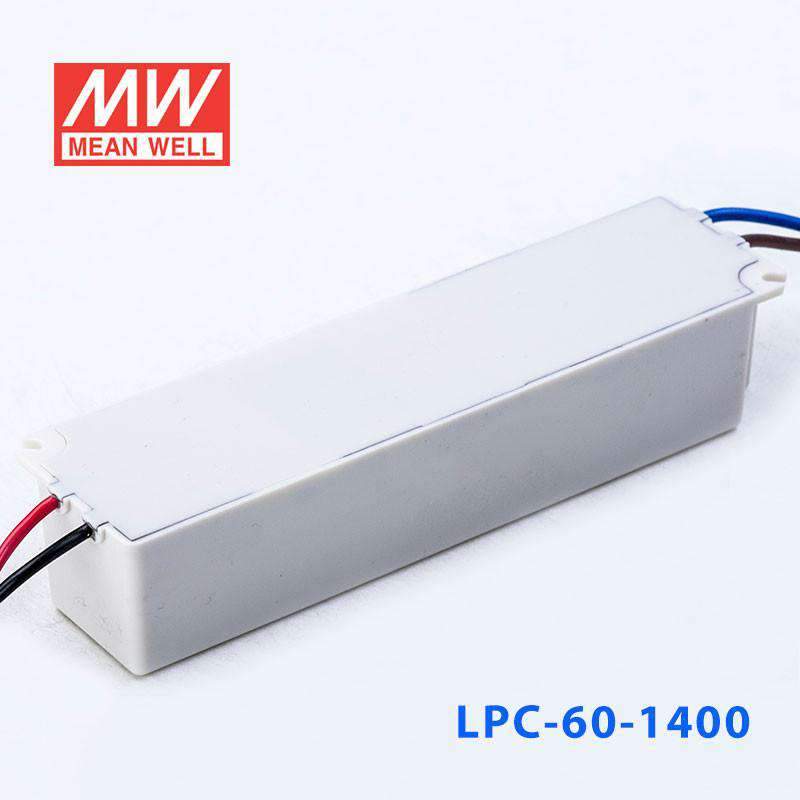

Mean Well LPC-60-1400 Power Supply 60W 1400mA

Name: Mean Well LPC-60-1400 Power Supply 60W 1400mA
Brand: Mean Well
SKU: LPC-60-1400
Price: 18.02 USD
Availability: InStock

slim plastic caseeconomicalIP67

SKU LPC-60-1400

$18.02 USD

Shipping calculated at checkout.

Select model — 2 in this family

LPC-60-1400

LPC-35-1400 35W 1400MA Backorder$17.84 USD

LPC-60-1400 60W 1400MA In stock$18.02 USD

Product variants

In stock

Overview

LPC-60-1400 is the model of this series: rated current 1400mA, rated power 58.8W, typical efficiency 85%.

Features

Constant current design
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

LPC-60-1400Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 1400mA
CONSTANT CURRENT REGION: 9 ~ 42V
RATED POWER: 58.8W
CURRENT RIPPLE^Note.2: ±5%
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±5.0%
SETUP, RISE TIME^Note.5: 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER VOLTAGE: 44.1 ~ 56.7V Protection type : Shut off o/p voltage, clamping by TVS diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 5269.3K hrs min. Telcordia SR-332 (Bellcore) ; 567.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 162.5*42.5*32mm (L*W*H)
PACKING: 0.4Kg; 32pcs/13.8Kg/0.63CUFT

Certifications & ratings

Marked features: LPS

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-60-1400 Recommend Mounting Direction — Recommend Mounting Direction

LPC-60-1400 Block Diagram — Block Diagram

LPC-60-1400 Derating Curve — Derating Curve

Downloads

Certificates3

EMC Certificate (LPC-60)(EN) PDF Download

UL Certificate(LPC-60)(EN) PDF Download

CSA Certificate(LPC-60)(EN) PDF Download

Test reports1

Test Report(LPC-60-1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-60-1400 for a 1400mA LED downlight?

Yes, if the downlight is designed for constant current operation at 1400mA. This driver supports a 9-42V CC output range and up to 58.8W, so both the current and voltage window need to match the fixture. The sheet states it is not intended for LED luminaire applications in the EU and China.

Is the LPC-60-1400 suitable for LED signage modules that need more current?

It can be suitable for signage modules built around a 1400mA constant current load. The total forward voltage has to stay within 9-42V, and the total load must remain within the 58.8W rating.

Can this driver run a compact LED array where a 1050mA model is not enough?

Yes, the LPC-60-1400 provides 1400mA constant current, which is higher than a 1050mA model. It is appropriate for small LED arrays specified for 1400mA and operating within the 9-42V constant current range.

What should I check before pairing the LPC-60-1400 with my LEDs?

Check that your LEDs are meant for constant current operation at 1400mA and that the total forward voltage falls within 9-42V. The number of LEDs cannot be set as a fixed count because it depends on each LED's forward voltage, and this is not a constant voltage driver.

Is the LPC-60-1400 appropriate for outdoor or enclosed fixture use?

Its IP67 rating supports indoor or outdoor use without direct sunlight exposure, and the operating range is -30°C to +70°C with derating per the derating curve. The fully isolated plastic case measures 162.5×42.5×32mm, but overall suitability still depends on the complete fixture design.
