Mean Well

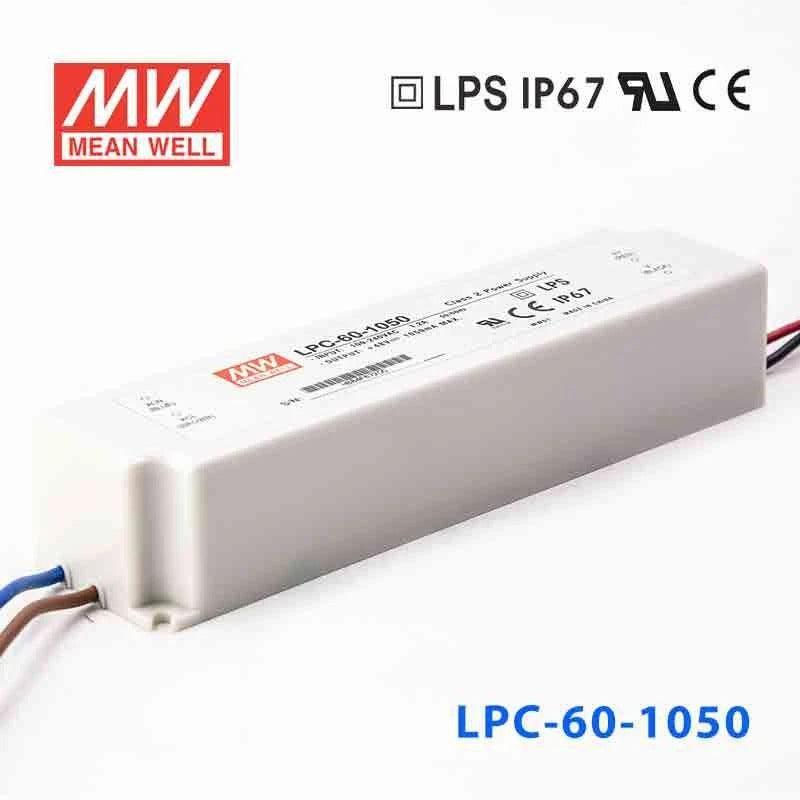

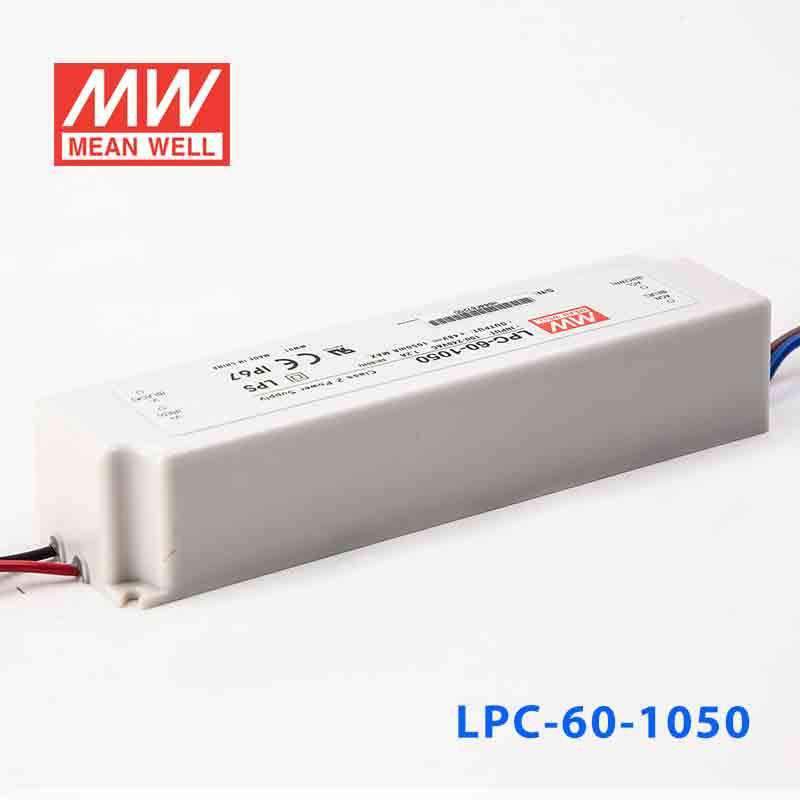

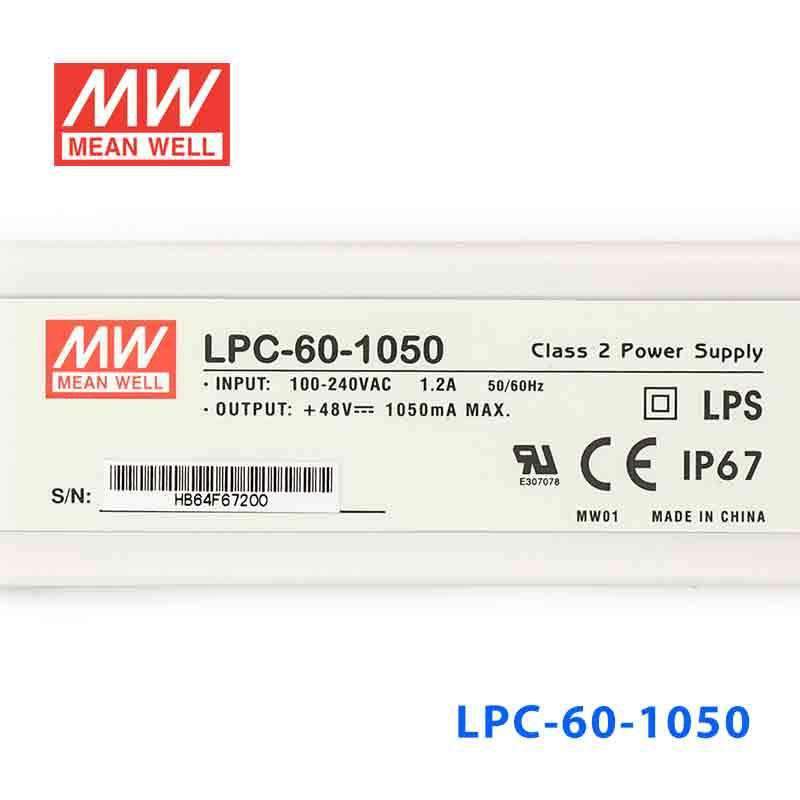

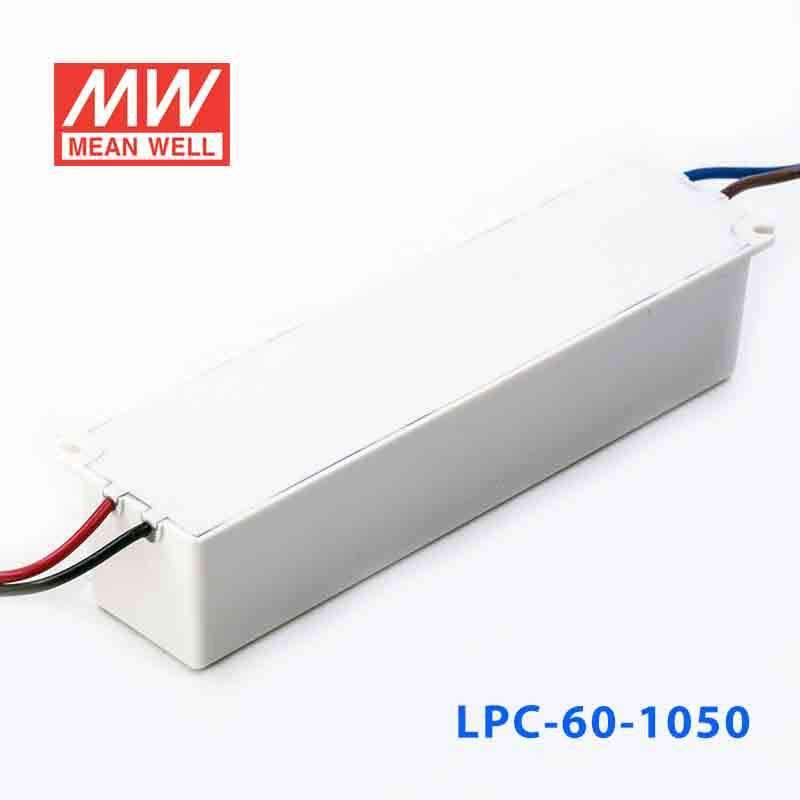

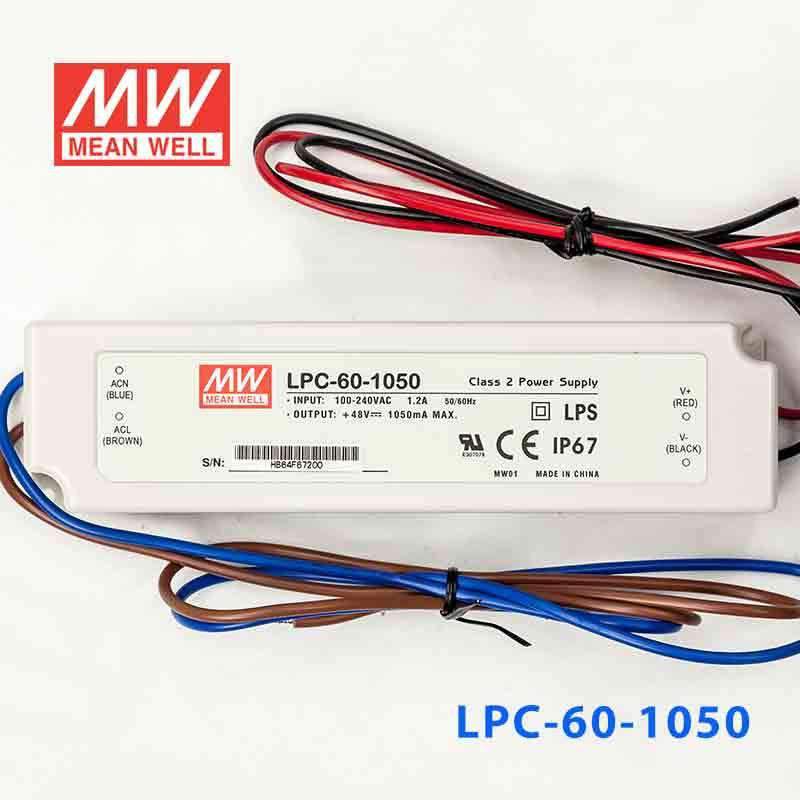

Mean Well LPC-60-1050 Power Supply 60W 1050mA

slim plastic caseeconomicalIP67
SKU LPC-60-1050
$18.02 USD
Shipping calculated at checkout.

Select model — 3 in this family

LPC-60-1050
In stock
|

Overview

LPC-60-1050 is the model of this series: rated current 1050mA, rated power 50.4W, typical efficiency 87%.

Features

  • Constant current design
  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Over voltage
  • Cooling by free air convection
  • Fully encapsulated with IP67 level (Note.6)
  • Fully isolated plastic case
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Pass LPS
  • Display devices for decorative & advertising accessories (Note.9)
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty

Specifications

LPC-60-1050Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT
1050mA
CONSTANT CURRENT REGION
9 ~ 48V
RATED POWER
50.4W
CURRENT RIPPLENote.2
±5%
VOLTAGE TOLERANCE
±5.0%
CURRENT ACCURACY
±5.0%
SETUP, RISE TIMENote.5
500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.3
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.)
COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER VOLTAGE
50.4 ~ 60V Protection type : Shut off o/p voltage, clamping by TVS diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
5269.3K hrs min. Telcordia SR-332 (Bellcore) ; 567.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
162.5*42.5*32mm (L*W*H)
PACKING
0.4Kg; 32pcs/13.8Kg/0.63CUFT

Certifications & ratings

Marked features
LPS
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
  3. 3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  4. 4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  8. 8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  9. 9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-60-1050 Recommend Mounting Direction
Recommend Mounting Direction
LPC-60-1050 Block Diagram
Block Diagram
LPC-60-1050 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPC-60-1050 for a higher-output LED downlight?

Yes, if the downlight is a constant current design that requires 1050mA. This model covers a 9-48V CC range and up to 50.4W. Note that the sheet states it is not intended for LED lighting luminaire applications in the EU and China.

Is the LPC-60-1050 a good match for compact LED signage assemblies?

It can be, provided the signage assembly is built for constant current operation at 1050mA. The load must stay within the 9-48V output range and 50.4W maximum, and the IP67 encapsulation supports indoor or outdoor signage that is not exposed to direct sunlight.

Can the LPC-60-1050 power a small LED array with more output than a 700mA driver?

Yes, this model delivers 1050mA constant current, which is higher than a 700mA driver. It is suitable for small LED arrays that are specified for 1050mA and stay within 9-48V and 50.4W.

How do I know if the LPC-60-1050 is compatible with my LED string?

Compatibility depends on the LED string being a constant current 1050mA load with a total forward voltage inside the 9-48V CC range. The actual number of LEDs depends on each LED's forward voltage, so this should not be matched by LED count alone, and it is not a constant voltage driver.

Can the LPC-60-1050 be used in wet or cold locations?

The driver is IP67 rated and specified for -30°C to +70°C operation, with load derating at higher ambient temperatures per the derating curve. It suits indoor or outdoor use without direct sunlight exposure; avoid immersion in water for over 30 minutes.
