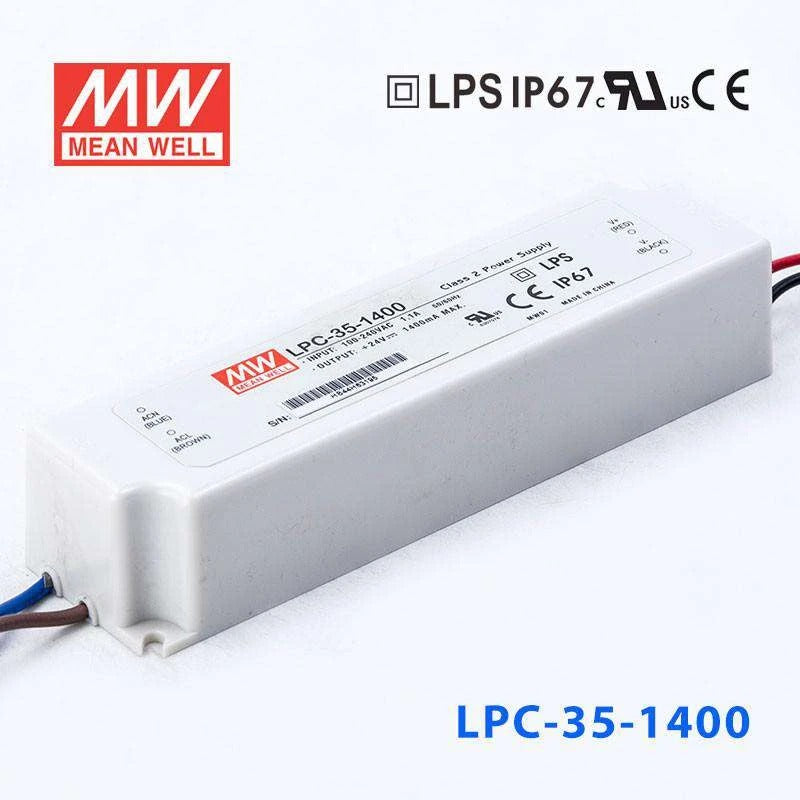

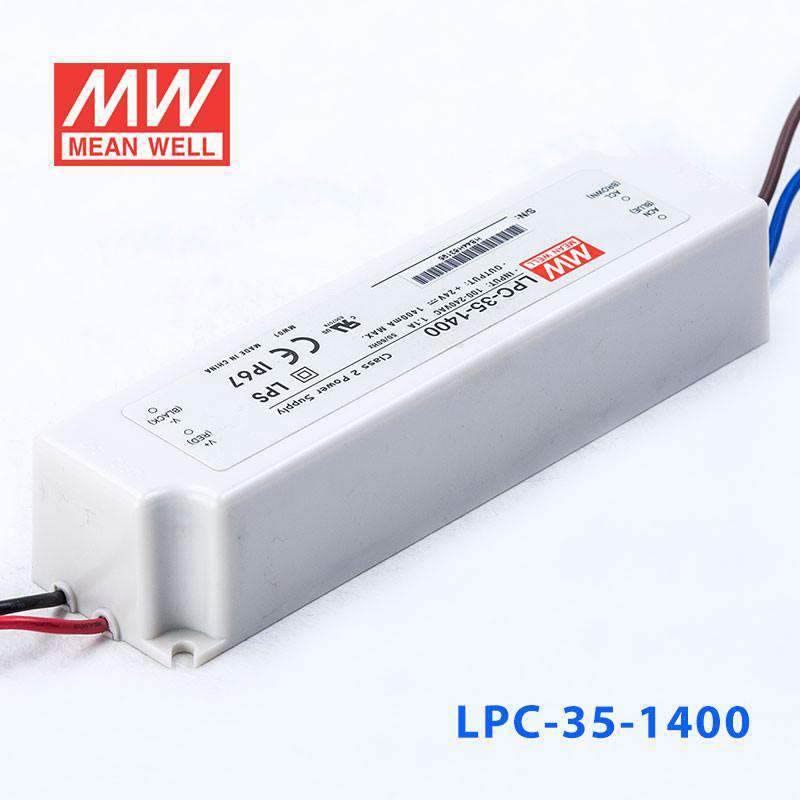

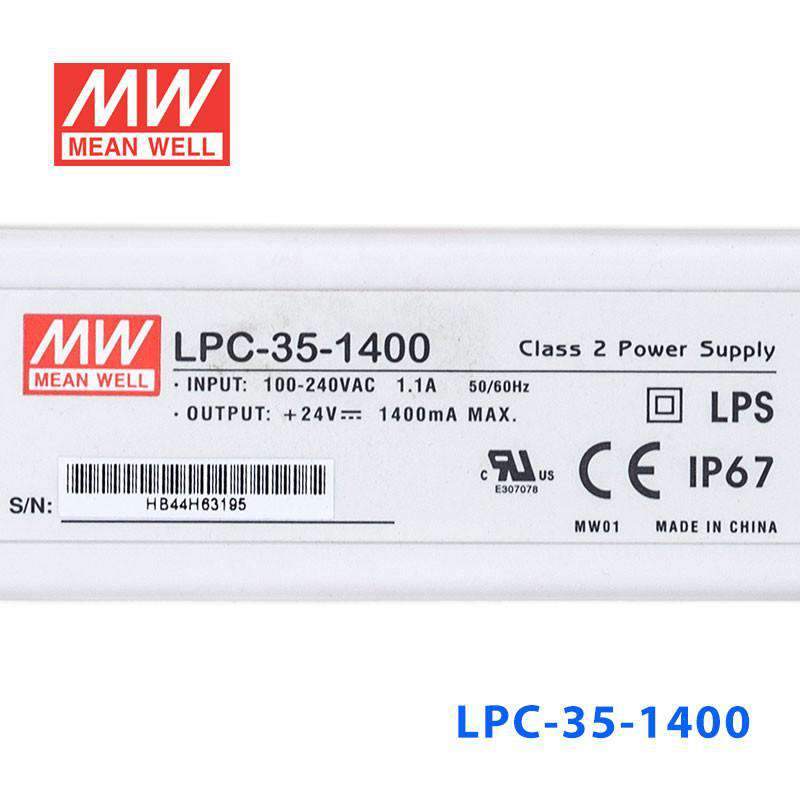

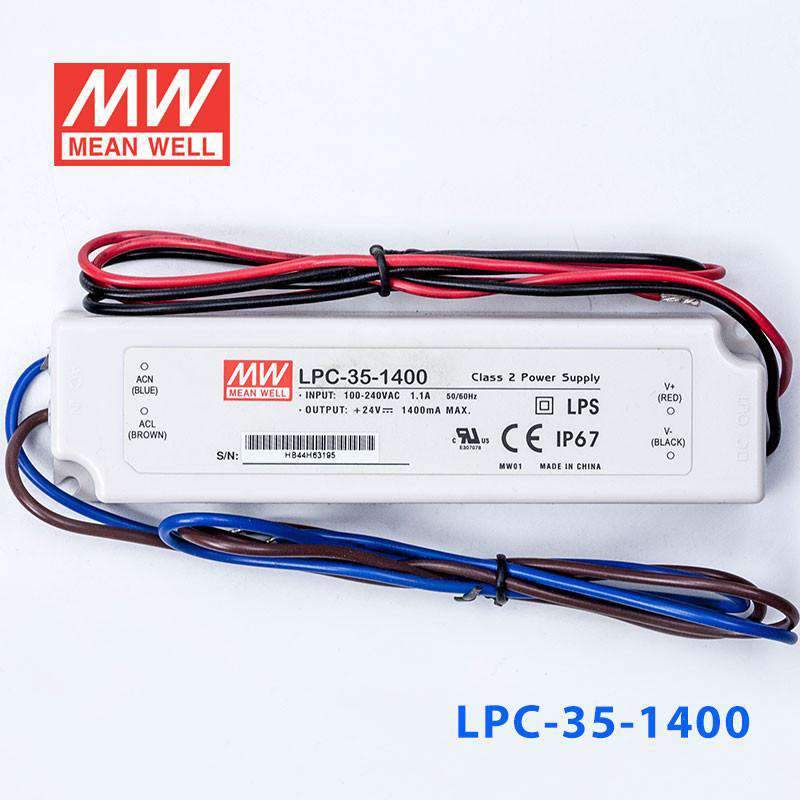

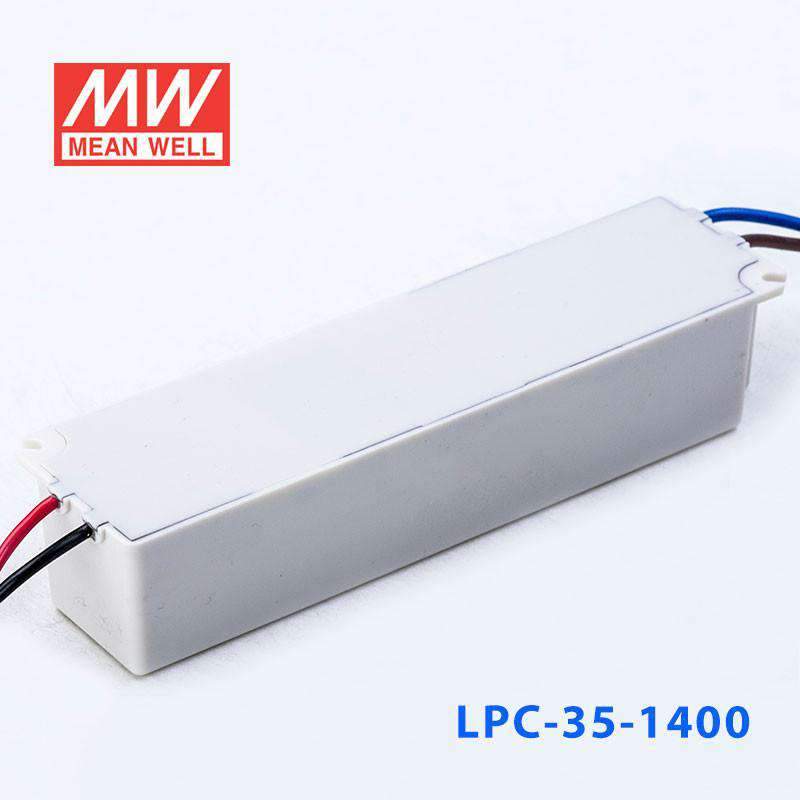

Mean Well LPC-35-1400 Power Supply 35W 1400mA

Name: Mean Well LPC-35-1400 Power Supply 35W 1400mA
Brand: Mean Well
SKU: LPC-35-1400
Price: 17.84 USD
Availability: InStock

slim plastic caseeconomicalIP67

SKU LPC-35-1400

$17.84 USD

Shipping calculated at checkout.

Select model — 2 in this family

LPC-35-1400

LPC-35-1400 35W 1400MA Backorder$17.84 USD

LPC-60-1400 60W 1400MA In stock$18.02 USD

Product variants

Available to order

Overview

LPC-35-1400 is the model of this series: rated current 1400mA, rated power 33.6W, typical efficiency 85%.

Features

Constant current design
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

LPC-35-1400Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 1400mA
CONSTANT CURRENT REGION: 9 ~ 24V
RATED POWER: 33.6W
CURRENT RIPPLE^Note.2: ±5%
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±5.0%
SETUP, RISE TIME^Note.5: 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 1.1A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=500μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL1310, CAN/CSA C22.2 No. 223-M91(except for LPC-35-700), BIS IS15885, IEC62368-1,EAC TP TC 004, BS EN/EN62368-1, IP67 approved;
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 6050.2K hrs min. Telcordia SR-332 (Bellcore) ; 574.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 148*40*30mm (L*W*H)
PACKING: 0.34Kg; 40pcs/14.6Kg/0.70CUFT

Certifications & ratings

IP level: IP67
Marked features: Class II

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-35-1400 Recommend Mounting Direction — Recommend Mounting Direction

LPC-35-1400 Block Diagram — Block Diagram

LPC-35-1400 Derating Curve — Derating Curve

Downloads

Certificates2

EMC Certificate (LPC-35)(EN) PDF Download

UL Certificate(LPC-35)(EN) PDF Download

Test reports1

Test Report(LPC-35-1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-35-1400 for a high-current LED downlight?

This driver can fit a LED downlight when the LED engine is specified for 1400mA constant current and the total forward voltage remains within 9-24V. Its 33.6W output suits compact but higher-current downlight assemblies. Because it is a constant current model, it should not be substituted for a constant voltage supply.

Is the LPC-35-1400 suitable for small high-output signage modules?

It can be suitable for small high-output signage modules if the LED load requires 1400mA constant current and falls in the 9-24V CC range. The lower maximum voltage means it is intended for lower-voltage assemblies than some other siblings. It should only be used with constant current LED modules.

Can this driver power a compact LED array that needs more drive current?

Yes, if the compact LED array is designed for 1400mA constant current and its total forward voltage is between 9V and 24V. The 33.6W rating makes it appropriate for higher-current small arrays that stay within that narrower voltage window. Loads designed for constant voltage input are not a match.

How do I know whether my LEDs will work with the LPC-35-1400?

The LED load must require 1400mA constant current, and its combined forward voltage must fit inside the 9-24V constant current range. The number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count that applies to every build. Selection should be based on the total load voltage and current requirement together.

How does the LPC-35-1400 compare with the other LPC-35 current options?

The LPC-35-700 is 700mA with a 9-48V CC range and 33.6W, the LPC-35-1050 is 1050mA with a 9-30V range and 31.5W, and the LPC-35-1400 is 1400mA with a 9-24V range and 33.6W. The family differences are mainly output current and how much constant current voltage range is available. Higher current versions in this group operate over lower voltage ranges.

Is the LPC-35-1400 appropriate for outdoor or damp conditions?

It is fully encapsulated to IP67, which supports use where water and dust resistance are required. The datasheet rates it for indoor use or outdoor use without direct sunlight exposure, and immersion in water for more than 30 minutes should be avoided. The working temperature range is -30°C to +70°C, with load derating at higher ambient temperatures per the derating curve.
