Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

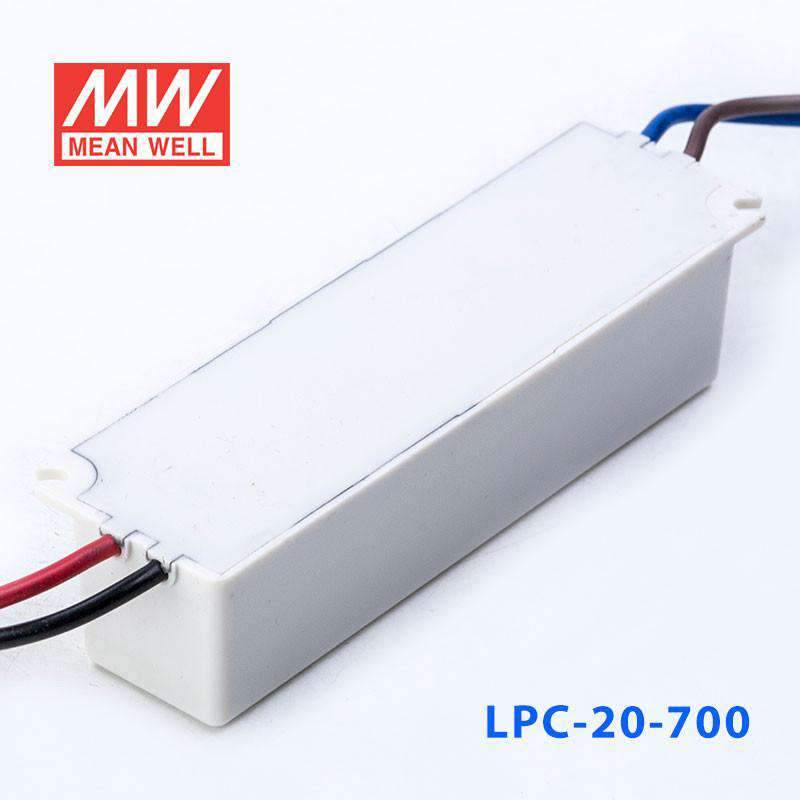

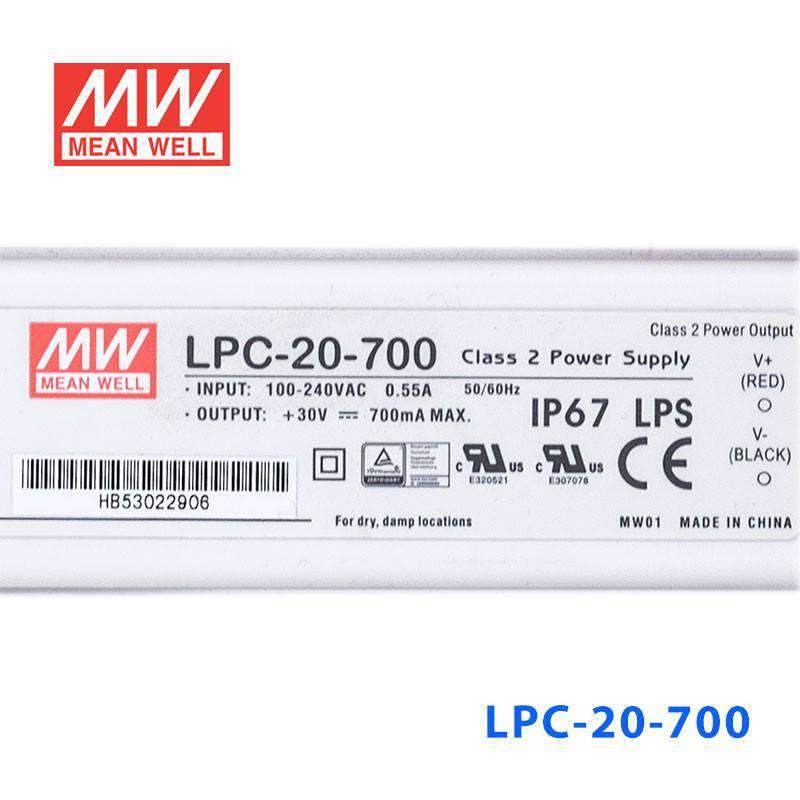

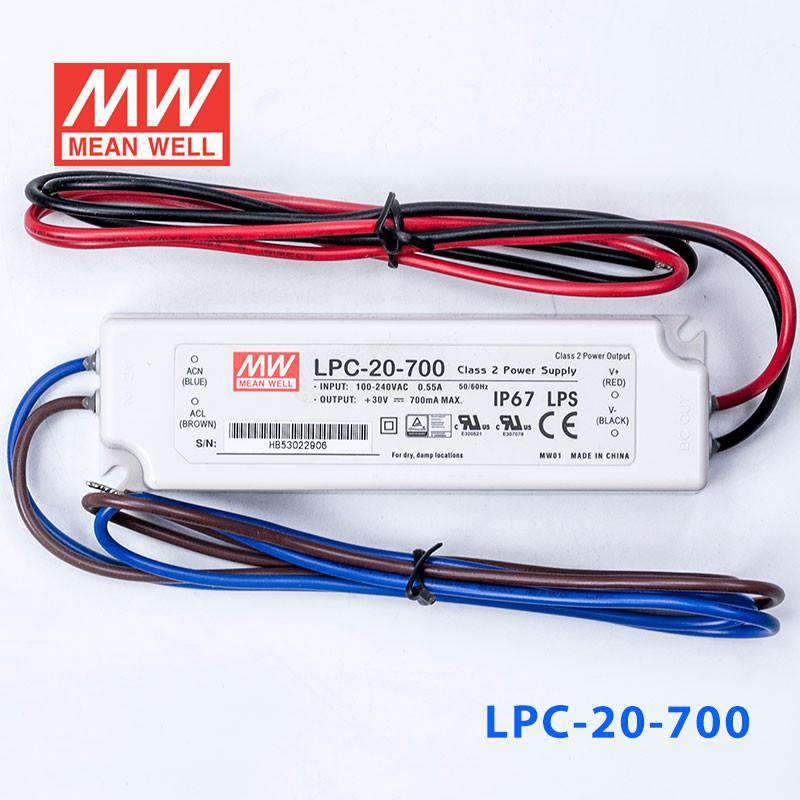

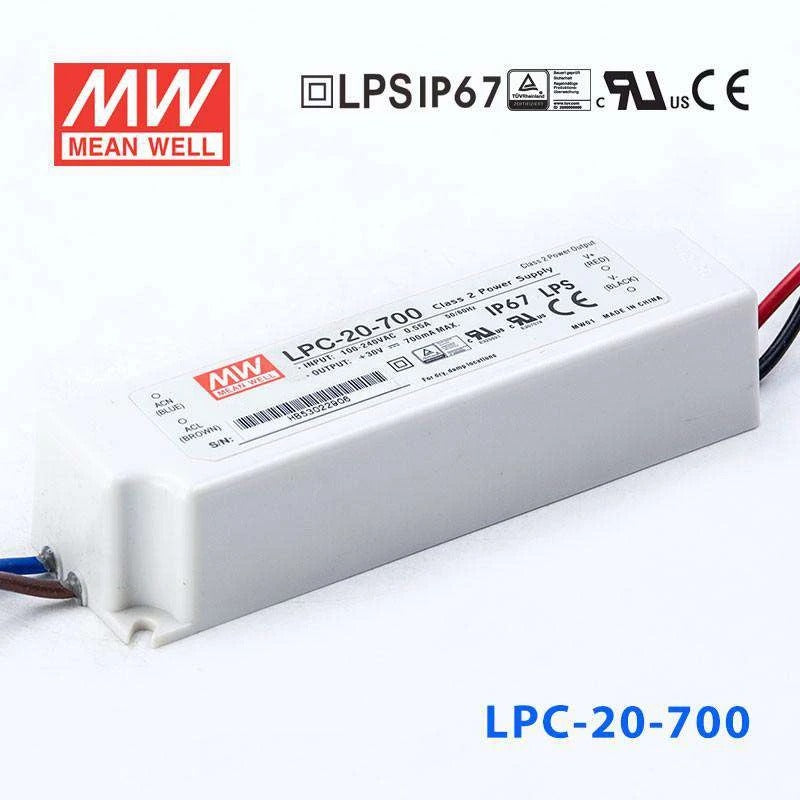

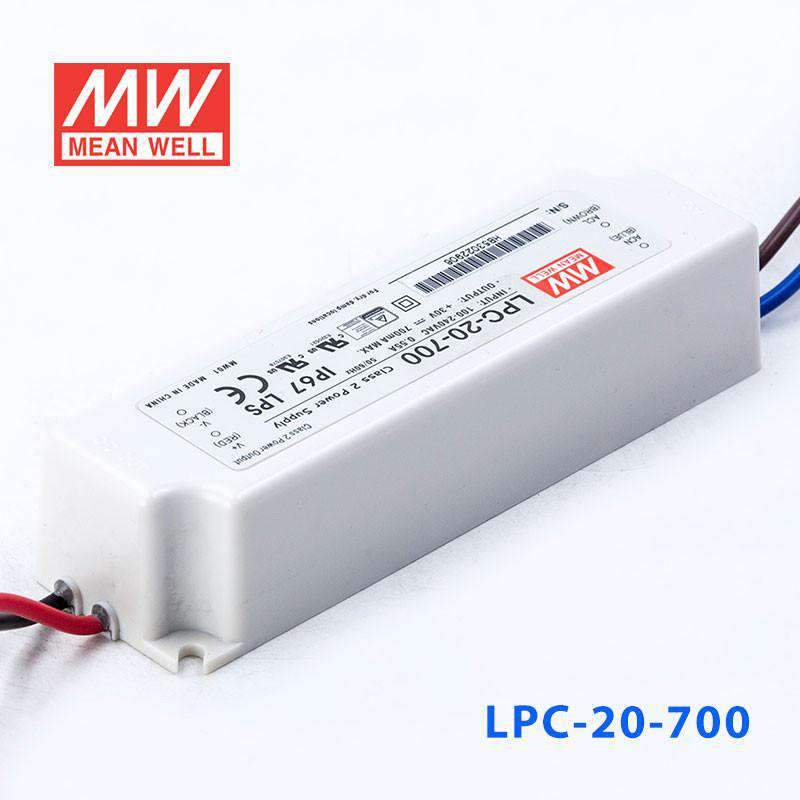

Mean Well LPC-20-700 Power Supply 20W 700mA

Name: Mean Well LPC-20-700 Power Supply 20W 700mA
Brand: Mean Well
SKU: LPC-20-700
Price: 12.47 USD
Availability: InStock

slim plastic caseeconomicalIP67

SKU LPC-20-700

$12.47 USD

Shipping calculated at checkout.

Select model — 3 in this family

LPC-20-700

LPC-20-700 20W 700mA In stock$12.47 USD

LPC-35-700 35W 700mA In stock$16.08 USD

LPC-100-700 100W 700mA Backorder$28.50 USD

Product variants

In stock

Overview

LPC-20-700 is the model of this series: rated current 700mA, rated power 21W, typical efficiency 83%.

Features

Constant current design
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

LPC-20-700Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 700mA
CONSTANT CURRENT REGION: 9 ~ 30V
RATED POWER: 21W
CURRENT RIPPLE^Note.2: ±5%
VOLTAGE TOLERANCE: ±5.0%
CURRENT ACCURACY: ±5.0%
SETUP, RISE TIME^Note.5: 500ms, 250ms / 230VAC 500ms, 250ms / 115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 83%
AC CURRENT (Typ.): 0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=220μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER VOLTAGE: 31.5 ~ 40.5V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL879, UL1310 , CSA C22.2 No. 207-M89(except for LPC-20-350), CAN/CSA C22.2 No. 223-M91(except for LPC-20-350), IEC/BS EN/EN 62368-1, EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 5708.9K hrs min. Telcordia SR-332 (Bellcore) ; 700.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 118*35*26mm (L*W*H)
PACKING: 0.22Kg; 60pcs/14.2Kg/0.72CUFT

Certifications & ratings

Marked features: Class II, LPS

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
3. Derating may be needed under low input voltage. Please check the static characteristics for more details.
4. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-20-700 Recommend Mounting Direction — Recommend Mounting Direction

LPC-20-700 Block Diagram — Block Diagram

LPC-20-700 Derating Curve — Derating Curve

Downloads

Certificates4

EMC Certificate (LPC-20)(EN) PDF Download

UL Certificate(LPC-20)(EN) PDF Download

UL(e320521)Certificate(LPC-20)(EN) PDF Download

TUV Certificate(LPC-20)(EN) PDF Download

Test reports1

Test Report(LPC-20-700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-20-700 for a 700mA LED downlight?

This model is suitable for a LED downlight when the LED module requires 700mA constant current and its total forward voltage is within 9-30V. With 21W output power, it is aimed at smaller downlight loads rather than larger multi-module fixtures. It should be matched to constant current LEDs, not constant voltage fixtures.

Is the LPC-20-700 suitable for compact signage lighting?

It can work for compact signage lighting if the LED assembly is designed for 700mA constant current and the full load falls inside the 9-30V CC range. Because this is a constant current driver, it is meant for current-regulated LED boards rather than constant voltage signage systems. Its 21W rating keeps it in the small-load category.

Can this driver power a small LED array with higher current demand?

Yes, provided the small LED array is built for 700mA constant current operation and needs between 9V and 30V across the full load. Compared with a lower-current driver, this model is better suited to arrays that need more drive current but still stay in a lower voltage range. It is not intended for constant voltage LED products.

How do I check whether my LEDs are compatible with the LPC-20-700?

Your LED load needs to require 700mA constant current, and the total forward voltage of the connected LEDs must fall within the 9-30V CC output range. The number of LEDs depends on the forward voltage of each LED, so compatibility cannot be reduced to one fixed LED count. This driver should not be used where the load expects constant voltage output.

How does the LPC-20-700 differ from the LPC-20-350 and LPC-35-700?

The LPC-20-700 delivers 700mA with a 9-30V CC range and 21W, while the LPC-20-350 delivers 350mA with a 9-48V range and 16.8W. Their over voltage protection points also differ (31.5-40.5V vs 50.4-60V). The LPC-35-700 belongs to a different series and is not covered by this datasheet, so please check its own spec sheet.

Is the LPC-20-700 appropriate for outdoor or washdown-prone locations?

It is fully encapsulated to IP67 level and is suitable for indoor use or outdoor use without direct sunlight exposure; immersion in water for over 30 minutes should be avoided. The working temperature is -30°C to +70°C, with load derating at higher ambient temperatures per the derating curve. Refer to the user manual for waterproof installation cautions.
