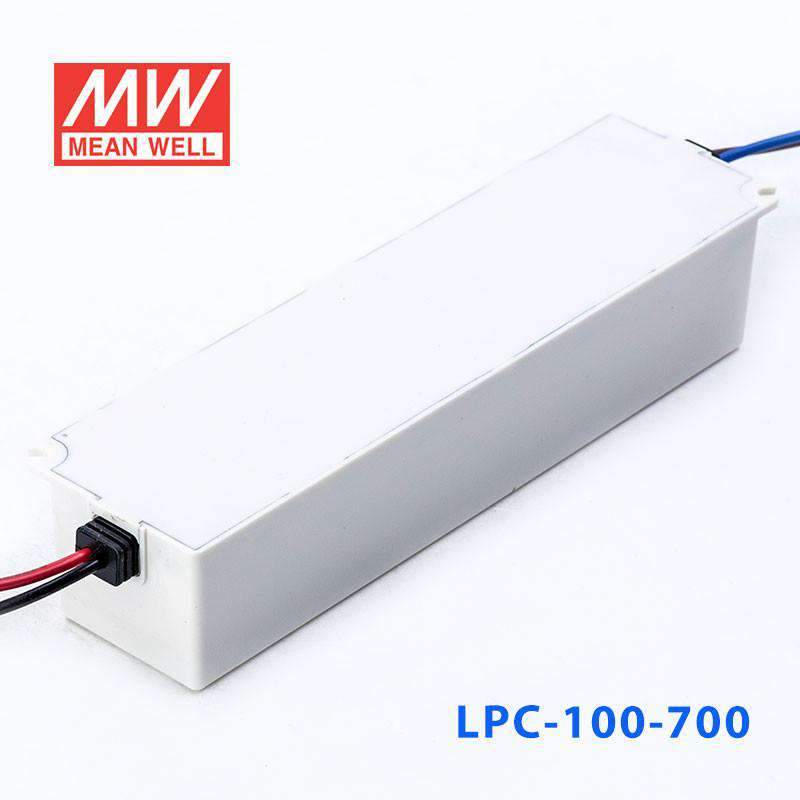

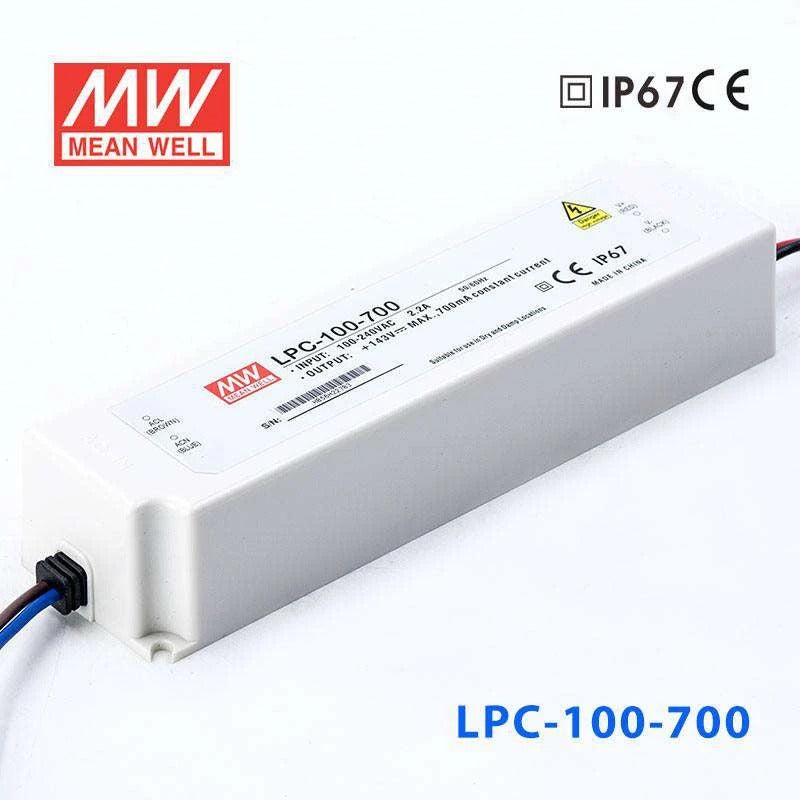

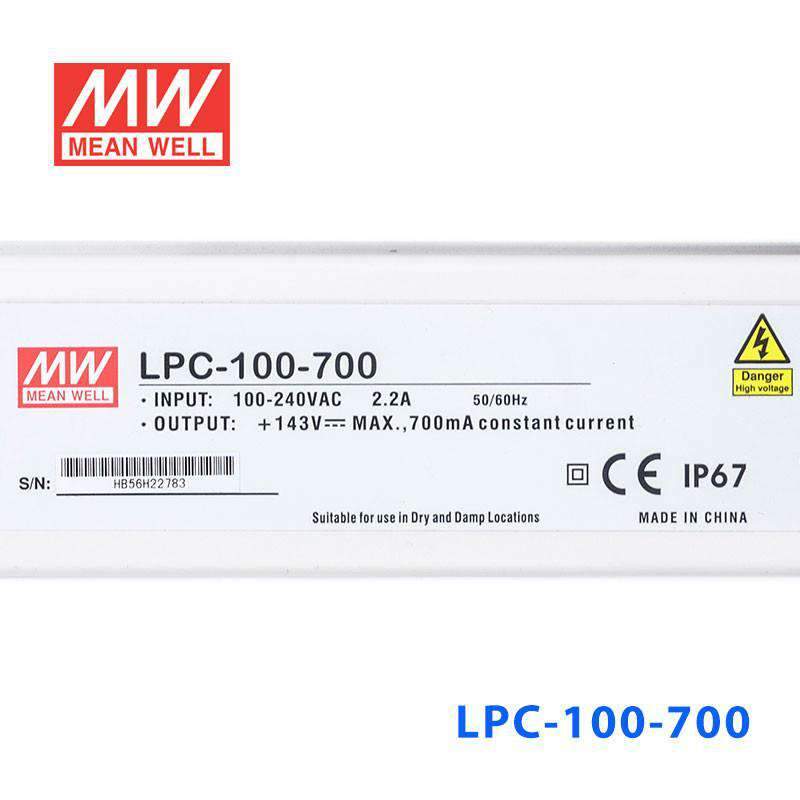

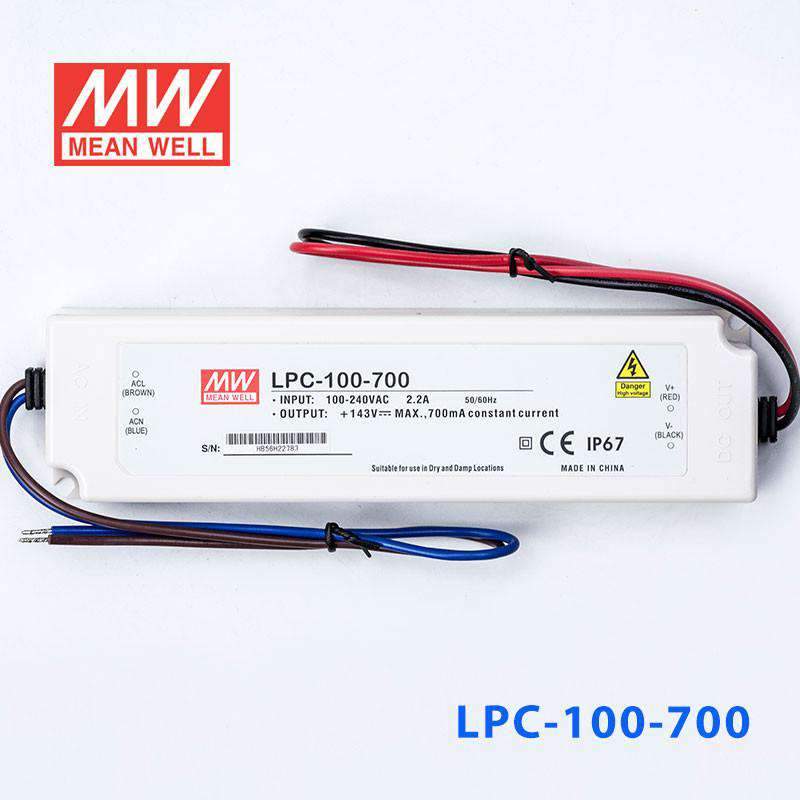

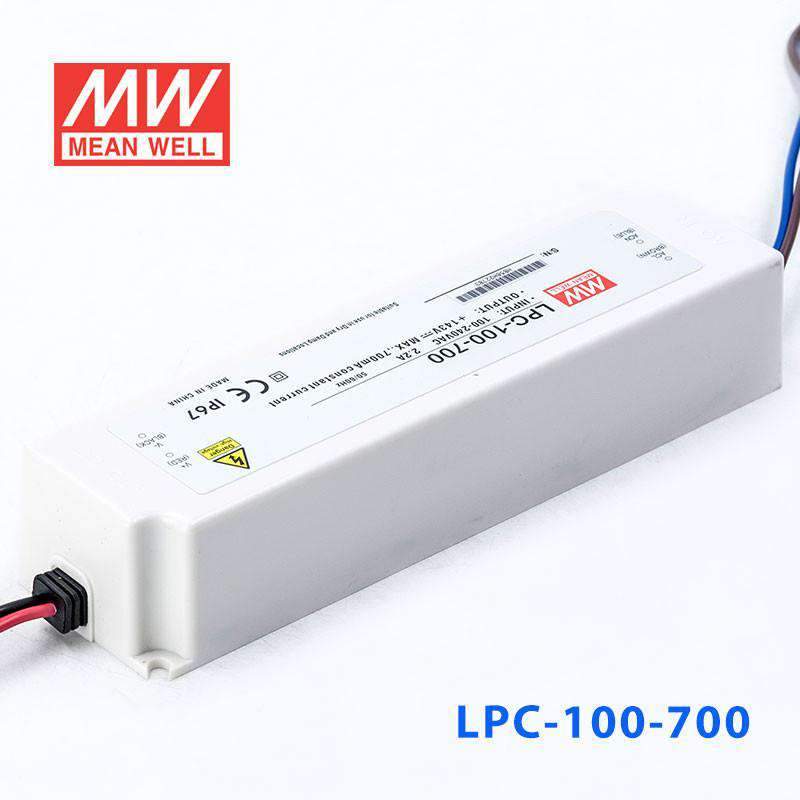

Mean Well LPC-100-700 Power Supply 100W 700mA

Name: Mean Well LPC-100-700 Power Supply 100W 700mA
Brand: Mean Well
SKU: LPC-100-700
Price: 28.5 USD
Availability: InStock

slim plastic caseeconomicalIP67

SKU LPC-100-700

$28.50 USD

Shipping calculated at checkout.

Select model — 3 in this family

LPC-100-700

LPC-20-700 20W 700mA In stock$12.47 USD

LPC-35-700 35W 700mA In stock$16.08 USD

LPC-100-700 100W 700mA Backorder$28.50 USD

Product variants

Available to order

Overview

LPC-100-700 is the model of this series: rated current 700mA, rated power 100.1W, typical efficiency 90%.

LPC-100 series is one 100W single output AC/DC LED switching power supply. It features the constant current design, providing various models with the output current ranging from 350mA through 2100mA the LED lighting applications employ the most frequently. LPC-100 operates for the range 90~264VAC so it can perfectly work for most of the countries in the world. The whole series is based on class II (without FG pin) design, housed with a 94V-0 flame retardant plastic case. With the working efficiency up to 90%, LPC-100 can work at the ambient temperature between -25℃~+50℃ under air convection.

Features

Constant current design
Universal AC input/full rauge
Withstand 300VAC surge input for 5 seconds
High efficiency up to 90%
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡpower unit, no FG
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-100-700Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 700mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 72 ~ 143V
RATED POWER: 100.1W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±1.5%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 10ms/115vac at full load

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 264VAC 127VDC ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 2.2 A / 115VAC 1.2A / 230VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=980μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 172V Protection type : Shut down and latch off o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≦80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 4121.8K hrs min. Telcordia SR-332 (Bellcore) ; 511.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 190*52*37mm (L*W*H)
PACKING: 0.61Kg;20pcs/13.2Kg/0.55CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-100-700 Mechanical Specification — Mechanical Specification

LPC-100-700 Recommend Mounting Direction — Recommend Mounting Direction

LPC-100-700 Block Diagram — Block Diagram

Typical applications

Display devices for decorative & advertising accessories (Note.9)

Downloads

Certificates1

EMC Certificate (LPC-100)(EN) PDF Download

Test reports1

Test Report (LPC-100-700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-100-700 for a high-voltage LED downlight?

Yes, this driver is intended for constant current LED loads at 700mA. It works best when the downlight's total LED forward voltage falls within the 72-143V constant current range and the load stays within the 100.1W rating. Note that the datasheet states it is not intended for LED lighting luminaire applications in the EU and China.

Is the LPC-100-700 suitable for outdoor signage modules?

It can be used for outdoor LED signage modules without direct sunlight exposure if the module string is designed for a 700mA constant current driver. The IP67 housing supports wet or dusty environments, and the LED load still needs to stay within the 72-143V CC range and 100.1W output.

Can this driver run a small LED array for architectural or display lighting?

Yes, if the LED array is a constant current design that requires 700mA. The array's combined forward voltage must fall within 72-143V, which makes this model better suited to higher-voltage arrays than low-voltage constant voltage lighting.

What kind of LED load is the LPC-100-700 compatible with?

This is a constant current driver with a 72-143V output range at 700mA, not a constant voltage power supply. The number of LEDs it can run depends on each LED's forward voltage, so compatibility is based on the total forward voltage of the LED load rather than a fixed LED count.

How well does the LPC-100-700 handle outdoor or temperature-exposed locations?

The unit is rated IP67 and has an operating temperature range of -25°C to +50°C. That makes it suitable for indoor or outdoor LED systems without direct sunlight exposure where the driver may see moisture, dust, or seasonal temperature swings within that range; avoid immersion over 30 minutes.
