Mean Well ELG-75-36 Power Supply | Best Prices & Stock Availability in the USA

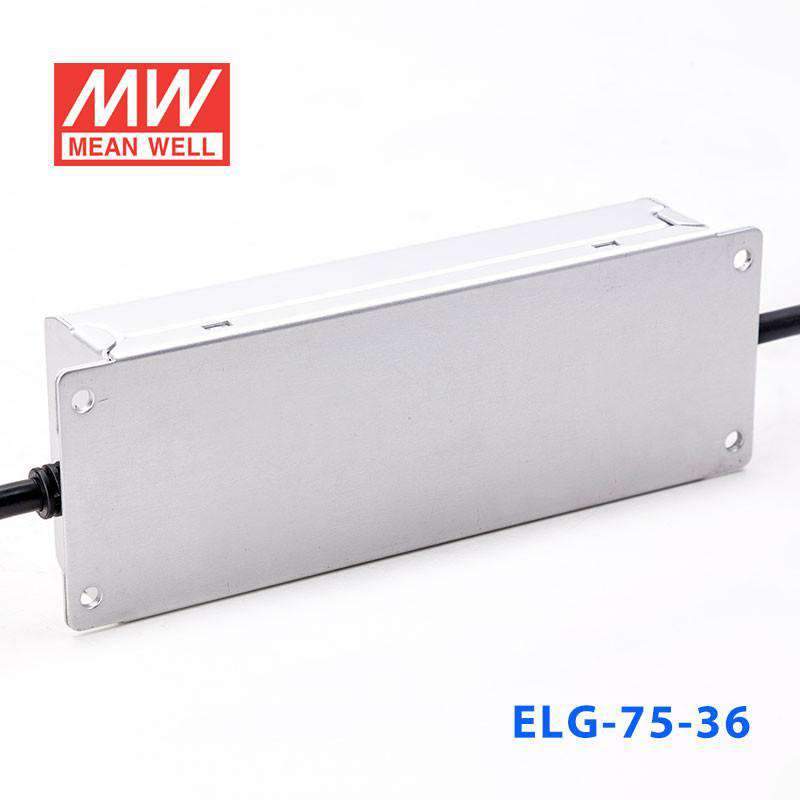

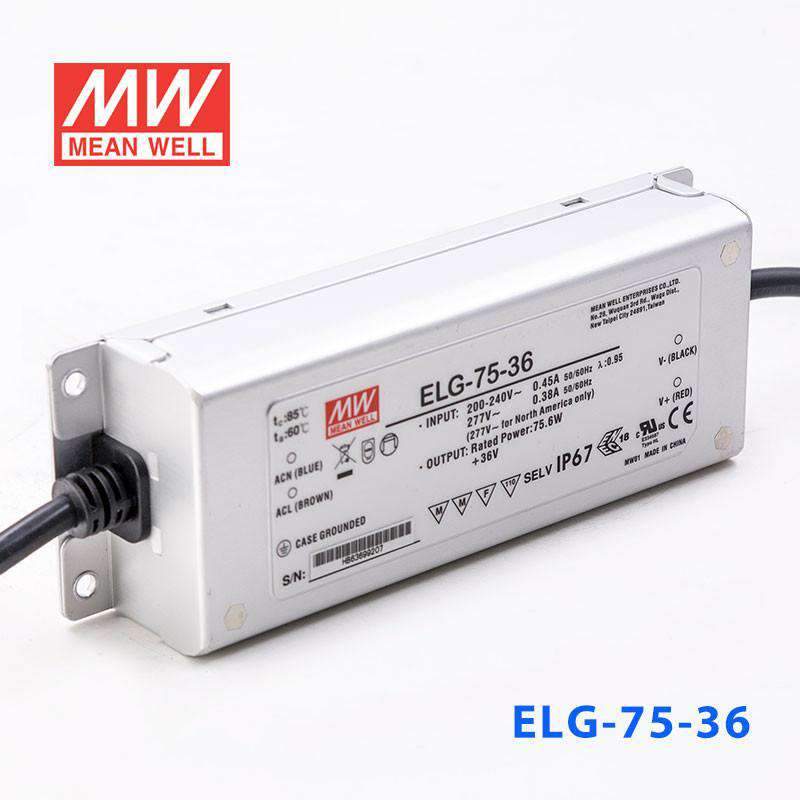

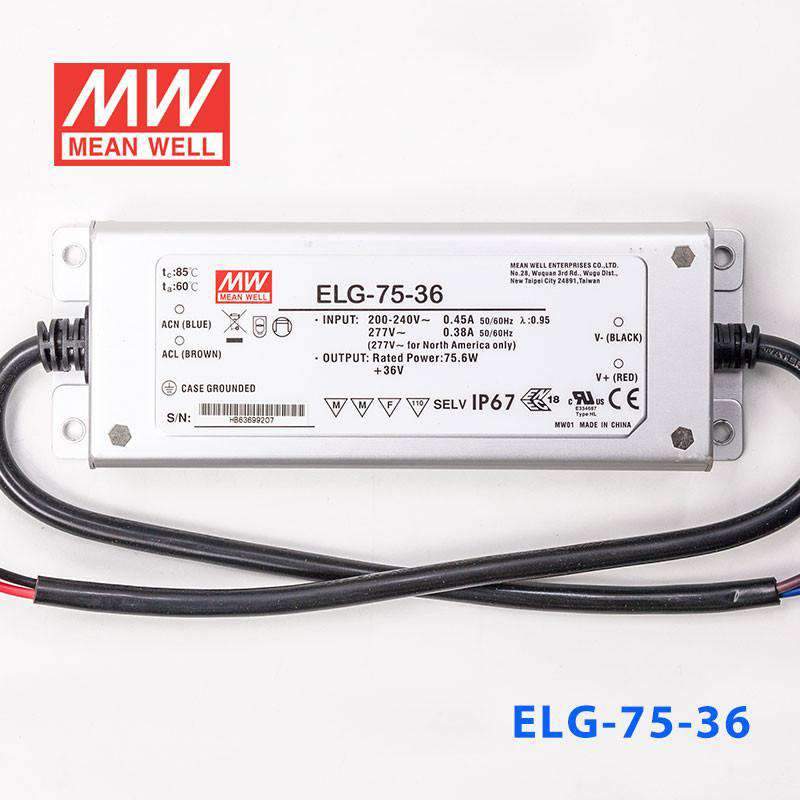

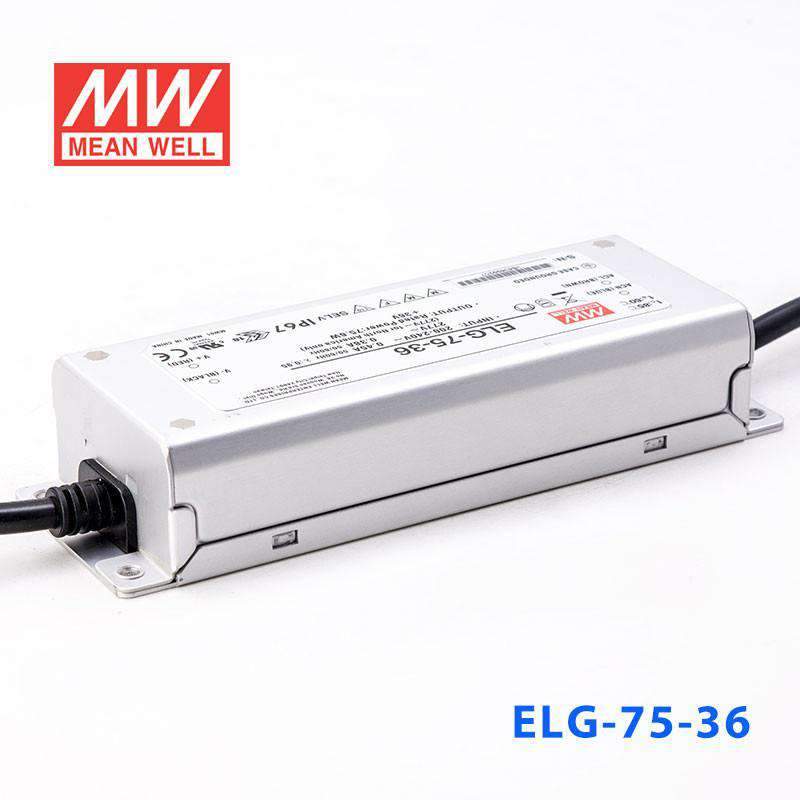

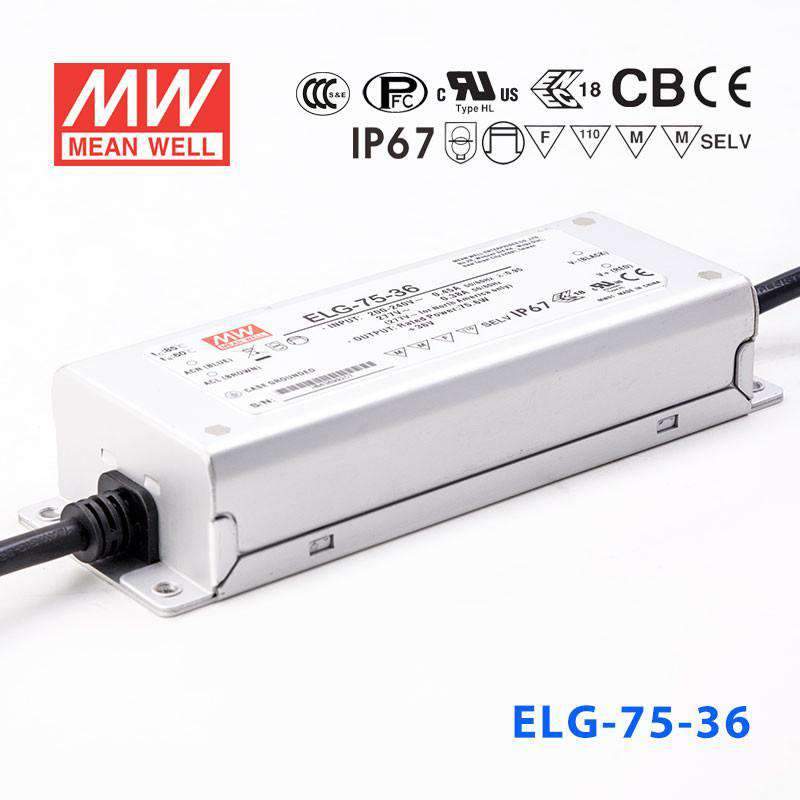

Name: Mean Well ELG-75-36 Power Supply 75W 36V 2.1A
Brand: Mean Well
SKU: ELG-75-36
Price: 37.99 USD
Availability: InStock

Overview

ELG-75-36 is the 36V output model of this series: rated current 2.1A, typical efficiency 89%.

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-36Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 18 ~ 36V
RATED CURRENT: 2.1A
RATED POWER 200VAC ~ 305VAC^Note.5: 75.6W
RATED POWER 100VAC ~ 180VAC^Note.5: 60W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE: 32.4 ~ 39.6V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.05 ~ 2.1A
VOLTAGE TOLERANCE^Note.4: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 500ms, 100ms/115VAC, 230VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC(at full load)

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 89%
AC CURRENT: 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 48V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB/T19510.1, GB/T19510.213; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3451.7K hrs min. Telcordia SR-332 (Bellcore) 331.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-36 DIMMING OPERATION — DIMMING OPERATION

ELG-75-36 OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-75-36 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-36 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-36 Mechanical Specification — Mechanical Specification

ELG-75-36 Dimensions (mm) — Dimensions (mm)

ELG-75-36 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-75-36 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-36 datasheetELG-75-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

CB Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75)(EN) PDF Download

EMC Certificate (ELG-75)(EN) PDF Download

Test reports1

Test Report (ELG-75-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-75-36 to power 36V LED strips or modules?

Yes. The ELG-75-36 is designed for 36V LED loads and delivers up to 75.6W at 2.1A on 200–305VAC input (60W on 100–180VAC). It is well suited for 36V LED strip or module systems, including longer runs that benefit from the lower current at higher voltage compared to 12V or 24V alternatives.

Is the ELG-75-36 waterproof enough for outdoor sign or facade lighting?

Yes. The ELG-75 series is rated IP65 or IP67, making it appropriate for outdoor signs, architectural lighting, and facade installations; follow MEAN WELL's IP installation cautions in the user manual. Its case-temperature rating of -40°C to +85°C supports reliable outdoor operation.

How many meters of 36V LED strip can the ELG-75-36 support?

The ELG-75-36 provides 75.6W at 36V on 200–305VAC input (60W on 100–180VAC). If your strip is rated at 10W/m, that allows approximately 7.5 meters; at 14.4W/m (dense COB or high-output strip), the limit is about 5.2 meters. Verify your strip's watt-per-meter spec and keep total load within the rated power.

Can the ELG-75-36 be used for 36V LED modules in channel letter or backlit signage?

Yes. Channel letter and backlit sign modules rated at 36V are a common application. The series' IP65/IP67 rating also makes the driver suitable for externally mounted sign enclosures where moisture could be present.

Does the ELG-75-36 work on both 120V and 240V mains?

Yes. The 100–305VAC universal input covers both 120V and 240V circuits, as well as 277V US commercial circuits, without any manual switching or rewiring. Rated power is 60W on 100–180VAC and 75.6W on 200–305VAC.

Is the ELG-75-36 a good fit for indoor horticultural LED lighting at 36V?

Yes. Some COB and LED grow-light modules use 36V, and the ELG-75-36 can supply up to 75.6W (60W on 100–180VAC) to such loads. Its IP65/IP67-rated case and 20–95% RH (non-condensing) working humidity rating suit humid indoor growing environments.

How does the ELG-75-36 differ from the ELG-75-36A and ELG-75-36AB?

All three models share 75.6W, 36V, and 2.1A output, but differ in control: the base ELG-75-36 has fixed output with no adjustment; the ELG-75-36A adds a built-in potentiometer for output voltage (32.4–39.6V) and current (1.05–2.1A); and the ELG-75-36AB adds both the potentiometer and 3-in-1 dimming (0–10V, 10V PWM, resistance). The datasheet notes that A/AB types need to be built in to comply with Type HL application. Choose the base model when no adjustment or dimming is required.
