Mean Well ELG-75-12DA Power Supply 60W 12V - DALI | Best Stock Availability in United States

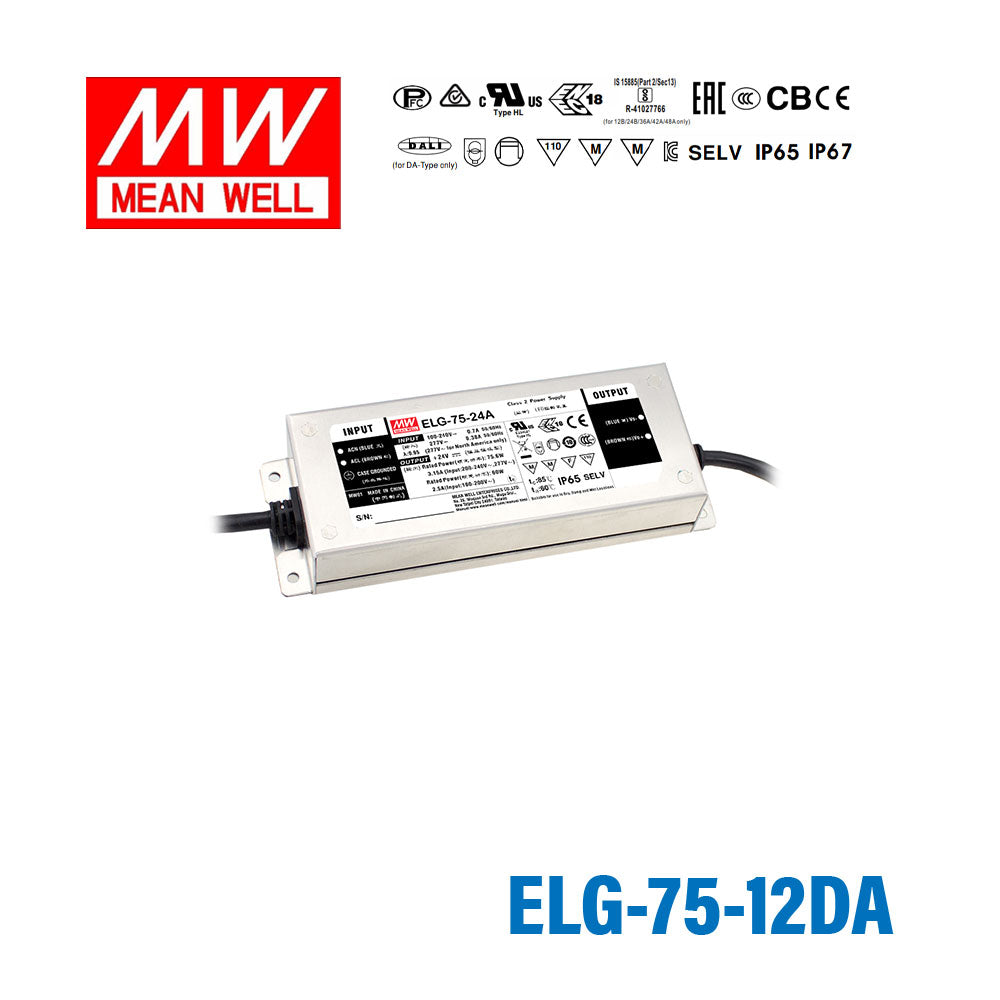

Name: Mean Well ELG-75-12DA Power Supply 60W 12V - DALI 5A
Brand: Mean Well
SKU: ELG-75-12DA
Price: 43.87 USD
Availability: InStock

Overview

ELG-75-12DA is the 12V output model of this series: rated current 5A, typical efficiency 86%.

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-12DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.2: 6 ~ 12V
RATED CURRENT: 5A
RATED POWER 200VAC ~ 305VAC^Note.5: 60W
RATED POWER 100VAC ~ 180VAC^Note.5: 48W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE: 10.8 ~ 13.2V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 2.5 ~ 5A
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 100ms/115VAC, 230VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC(at full load)

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 18V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB/T19510.1, GB/T19510.213; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3451.7K hrs min. Telcordia SR-332 (Bellcore) 331.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-12DA Block Diagram — Block Diagram

ELG-75-12DA DIMMING OPERATION — DIMMING OPERATION

ELG-75-12DA OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-75-12DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-12DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-12DA Mechanical Specification — Mechanical Specification

ELG-75-12DA Dimensions (mm) — Dimensions (mm)

ELG-75-12DA ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-75-12DA Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

CB Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75)(EN) PDF Download

EMC Certificate (ELG-75)(EN) PDF Download

Test reports1

Test Report (ELG-75-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-75-12DA be used with a DALI lighting control system in a commercial building?

Yes. The DA suffix indicates this driver includes a DALI interface (IEC 62386-101/102), which is compatible with DALI bus controllers, building management systems, and smart lighting panels used in commercial and institutional buildings for centralized dimming and scene control.

Is the ELG-75-12DA suitable for outdoor LED strip or signage applications?

Yes. The ELG-75 series carries an IP65 or IP67 rating, so the ELG-75-12DA can be installed in outdoor sign boxes, landscape enclosures, or locations exposed to rain and moisture. Its case-temperature range of -40°C to +85°C covers typical outdoor temperature swings.

Can the ELG-75-12DA drive 12V LED strip used in retail display lighting with dimming control?

Yes. This driver suits retail display and shelf-edge LED strip at 12V. With DALI dimming, lighting levels can be adjusted centrally from a retail control system to set scene brightness, highlight products, or comply with energy-management schedules—all without manual dimmer switches.

How many meters of 12V LED strip can the ELG-75-12DA support?

The ELG-75-12DA delivers 60W at 12V on 200–305VAC input (48W on 100–180VAC). For a 10 W/m strip that is up to 6 meters; for a 6 W/m strip, up to 10 meters. Divide the rated power by your strip's rated power per meter and apply a 20% derating margin for long-term reliability.

Is this driver appropriate for museum or gallery LED accent lighting that requires precise dimming?

Yes. DALI dimming provides digitally controlled light levels suitable for fine-art and artefact lighting in galleries and museums where light levels must be carefully managed. The DALI bus supports 64 addresses and 16 groups, and the first dimming step is fixed at 8% of output.

Can the ELG-75-12DA be installed in an unenclosed outdoor location or direct rain exposure?

The ELG-75 series is rated IP65 or IP67, so the driver tolerates rain and splashing. The datasheet gives no submersion rating, so mount it where it cannot be immersed and follow MEAN WELL's IP installation cautions in the user manual. Its case-temperature range is -40°C to +85°C.
