Mean Well ELG-240-C700 240W 700mA LED Driver - United States Best Availability

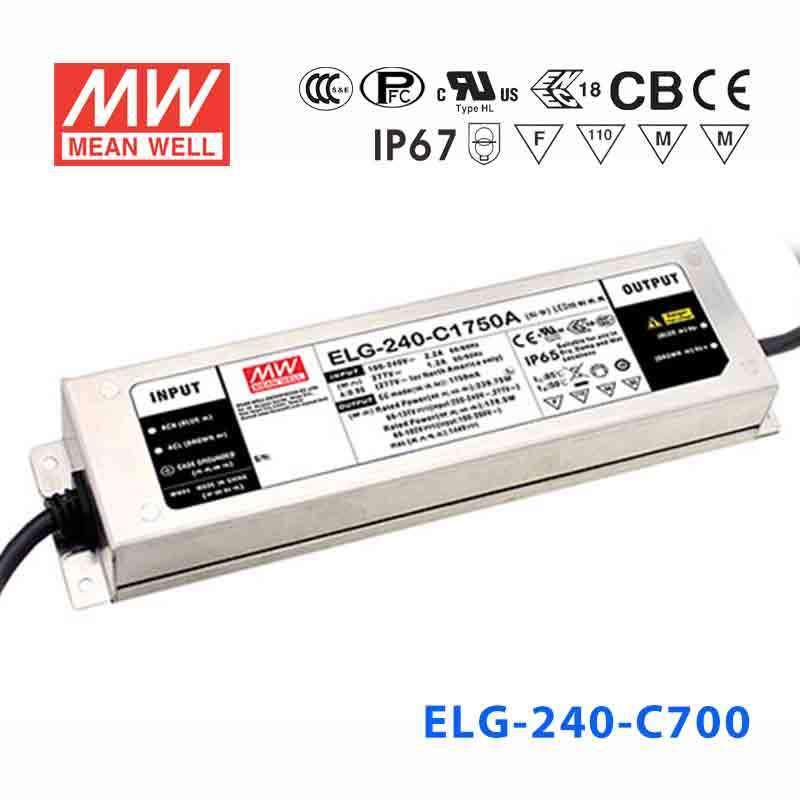

Name: Mean Well ELG-240-C700 Power Supply 240W 700mA
Brand: Mean Well
SKU: ELG-240-C700
Price: 58.74 USD
Availability: InStock

Overview

ELG-240-C700 is the model of this series: rated current 700mA, typical efficiency 93%.

ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-240-C700Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 200VAC ~ 305VAC: 240.1W
RATED POWER 100VAC ~ 180VAC: 179.9W
CONSTANT CURRENT REGION^Note.2: 172 ~ 343V
OPEN CIRCUIT VOLTAGE(max.): 360V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 380 ~ 435V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-240-C700 BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-240-C700 DIMMING OPERATION — DIMMING OPERATION

ELG-240-C700 OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-240-C700 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-240-C700 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-240-C700 LIFETIME(Kh) — LIFETIME(Kh)

ELG-240-C700 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-240-C700 Dimensions (mm) — Dimensions (mm)

ELG-240-C700 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-240-C700 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-240-C700 datasheetELG-240-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-240-C)(EN) PDF Download

CB Certificate (ELG-240-C)(EN) PDF Download

EMC Certificate (ELG-240-C)(EN) PDF Download

ENEC Certificate (ELG-240-C)(EN) PDF Download

Test reports1

Test Report (ELG-240-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What types of LED lighting systems is the ELG-240-C700 designed for?

The ELG-240-C700 delivers 700mA constant current across a 172–343V output range, making it appropriate for long series strings of LED modules with high combined forward voltage — a common configuration in large-format LED signage, street lighting, and high-bay LED fixtures. At 240.1W total power, it can supply substantial series strings of higher-voltage LEDs.

Can the ELG-240-C700 be used in outdoor street lighting or area lighting fixtures?

Yes. The ELG-240-C series is rated IP65 or IP67, protecting it against dust and water, and the driver is rated for a case temperature (Tcase) of -40°C to +85°C, which suits outdoor street and area lighting.

How many LEDs can the ELG-240-C700 drive in a series string?

The driver outputs 700mA constant current with a voltage range of 172–343V. The number of LEDs in the series string depends on each LED's forward voltage — the sum of all forward voltages must fall within the 172–343V window. No universal LED count applies since forward voltage varies by LED model.

Does the ELG-240-C700 include dimming or output adjustment capability?

No. The base ELG-240-C700 model does not include dimming or output adjustment. For those features, Mean Well offers the ELG-240-C700A (adjustable output), ELG-240-C700B (analog dimming), and ELG-240-C700AB (adjustable and analog dimming) variants within the same series at identical power and current ratings.

Is the ELG-240-C700 suitable for an LED array in a large outdoor advertising sign?

Yes. The combination of a 172–343V output range and 700mA drive current accommodates long series strings of LED modules as used in large outdoor signs. The series' IP65/IP67 rating protects the driver from rain, and the 100–305VAC input handles diverse mains supplies. For signs requiring brightness control, the ELG-240-C700A or C700B variants add adjustment or dimming capability.

What certifications does the ELG-240-C700 carry?

The ELG-240-C700 is approved to UL8750 (Type HL), CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1 and 61347-2-13, EN62384, GB/T19510, KC61347 and EAC TP TC 020, covering markets in North America, Europe, China, Australia, Korea and Russia/CIS. BIS IS15885 applies to the 700A/1050A versions only.
