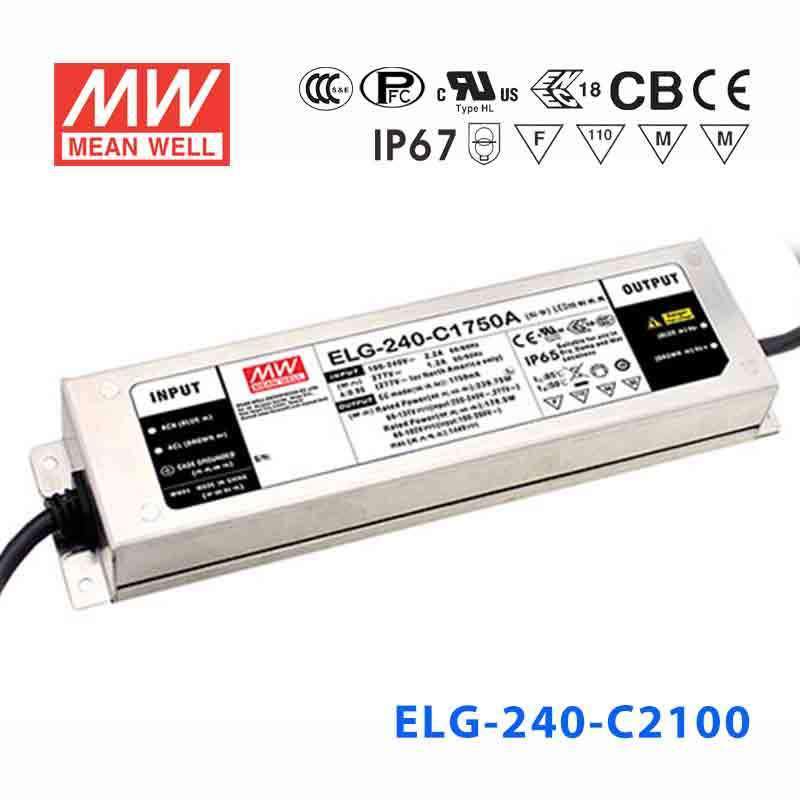

Name: Mean Well ELG-240-C2100 Power Supply 240W 2100mA
Brand: Mean Well
SKU: ELG-240-C2100
Price: 58.74 USD
Availability: InStock

Overview

ELG-240-C2100 is the model of this series: rated current 2100mA, typical efficiency 93%.

ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-240-C2100Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 2100mA
RATED POWER 200VAC ~ 305VAC: 241.5W
RATED POWER 100VAC ~ 180VAC: 180.6W
CONSTANT CURRENT REGION^Note.2: 57 ~ 115V
OPEN CIRCUIT VOLTAGE(max.): 120V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1050 ~ 2100mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 128 ~ 156V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-240-C2100 BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-240-C2100 DIMMING OPERATION — DIMMING OPERATION

ELG-240-C2100 OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-240-C2100 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-240-C2100 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-240-C2100 LIFETIME(Kh) — LIFETIME(Kh)

ELG-240-C2100 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-240-C2100 Dimensions (mm) — Dimensions (mm)

ELG-240-C2100 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-240-C2100 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-240-C2100 datasheetELG-240-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-240-C)(EN) PDF Download

CB Certificate (ELG-240-C)(EN) PDF Download

EMC Certificate (ELG-240-C)(EN) PDF Download

ENEC Certificate (ELG-240-C)(EN) PDF Download

Test reports1

Test Report (ELG-240-C2100)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-240-C2100 drive high-power LED arrays in industrial high-bay lighting?

Yes. At 2100mA constant current output and 241.5W, the ELG-240-C2100 is well suited for high-power LED modules used in industrial high-bay luminaires. Its CC voltage range of 57–115V accommodates a range of module string configurations, and the series' IP65/IP67 enclosure suits installation in factory environments with dust and occasional water exposure.

Is the ELG-240-C2100 suitable for outdoor LED floodlights or sports lighting?

Yes. The ELG-240-C series' IP65/IP67 rating allows the driver to be mounted inside outdoor floodlight enclosures or stadium luminaires exposed to rain and humidity. The case temperature (Tcase) rating of -40°C to +85°C supports both cold-weather outdoor arenas and hot-climate installations, with load derating at high temperatures.

What LED string voltage range is compatible with this driver?

The ELG-240-C2100 maintains a constant 2100mA output while its voltage adjusts automatically between 57V and 115V. The number of LEDs that can be connected in series depends on the forward voltage of each individual LED; the combined string voltage must fall within the 57–115V regulation window.

Can this driver be used in cold-storage LED lighting applications?

Yes. With a rated case temperature down to -40°C and the series' IP65/IP67 seal, the ELG-240-C2100 can be installed in freezer warehouses, cold rooms, or blast-chill facilities. Note the sheet specifies working humidity of 20–95% RH non-condensing.

Is the ELG-240-C2100 appropriate for LED modules in large outdoor signage installations?

Yes. The 2100mA output at up to 241.5W is capable of driving large sign-module arrays, and the series' IP65/IP67 rating protects the enclosure against outdoor weathering, dust accumulation, and rain. The wide universal input of 100–305VAC means no input-side voltage matching is needed for international sign projects.

Does the ELG-240-C2100 support dimming or output adjustment?

No. The base ELG-240-C2100 model does not include a dimming interface or output adjustment potentiometer. Sibling variants with suffixes A (adjustable), B (dimmable), AB (adjustable and dimmable) or DA (DALI) are available at the same power and current rating if dimming capability is required.

How does the 2100mA output of the ELG-240-C2100 compare to other current options in the 240W ELG-240 CC family?

The ELG-240 constant current family offers five current options at approximately 240W: 700mA (C700), 1050mA (C1050), 1400mA (C1400), 1750mA (C1750), and 2100mA (C2100). Higher current variants operate at lower output voltages — the C2100 runs at 57–115V, while the C700 runs at a higher voltage range. Select the variant whose current matches your LED module's rated drive current.
