Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

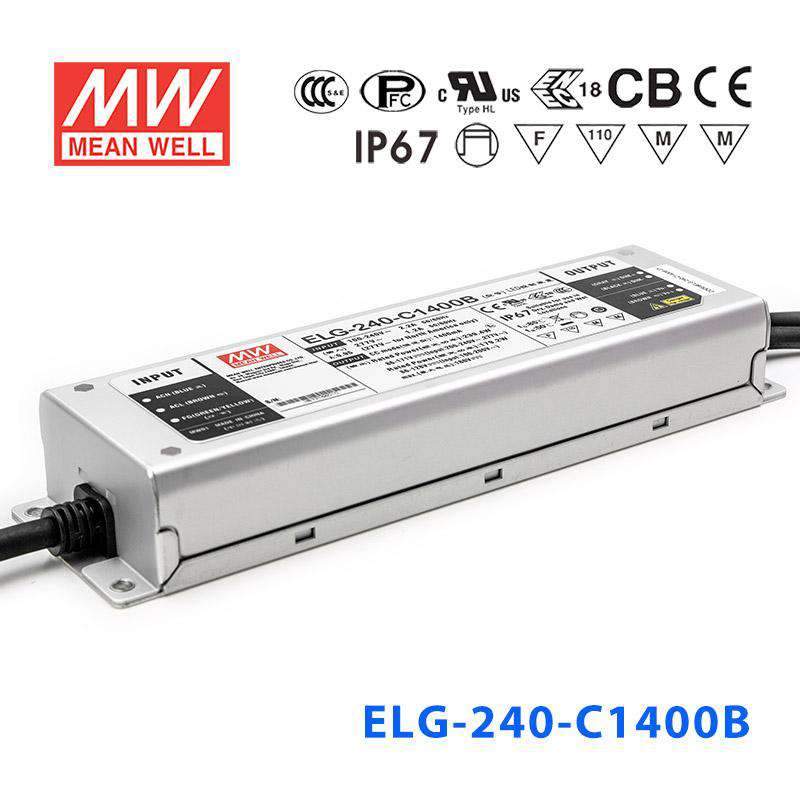

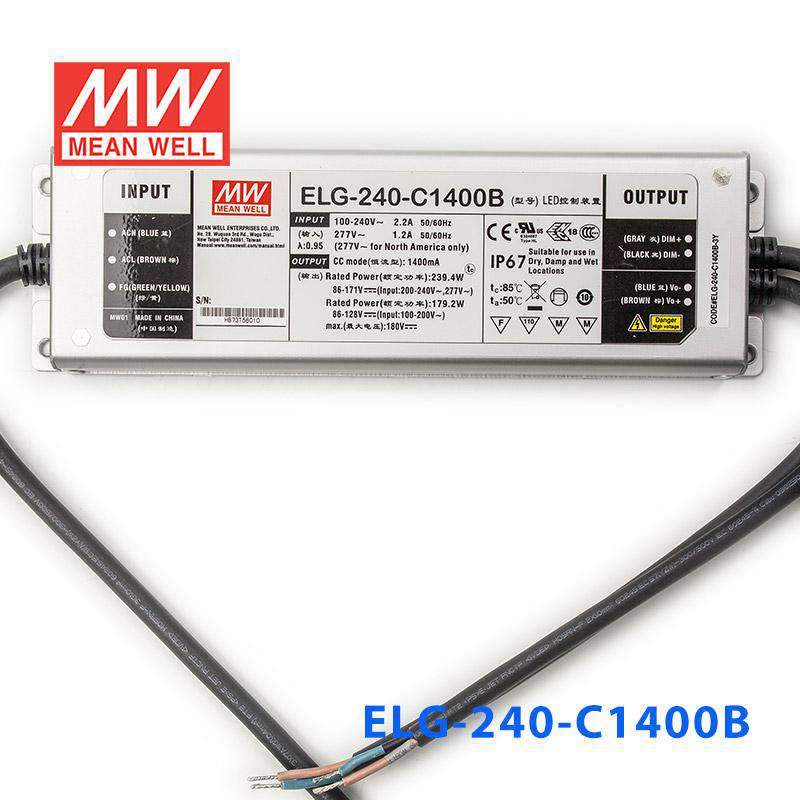

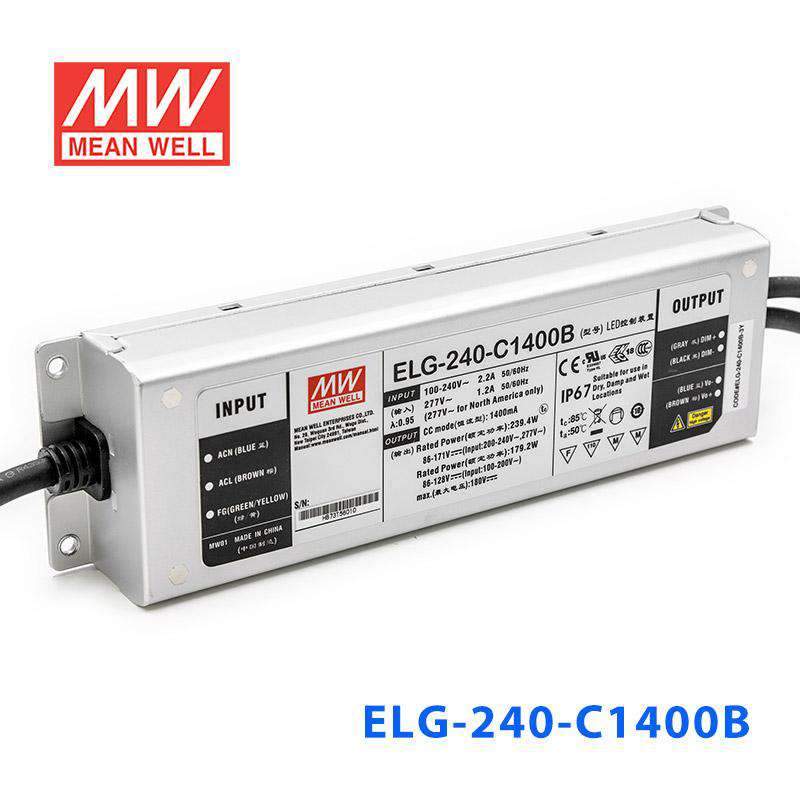

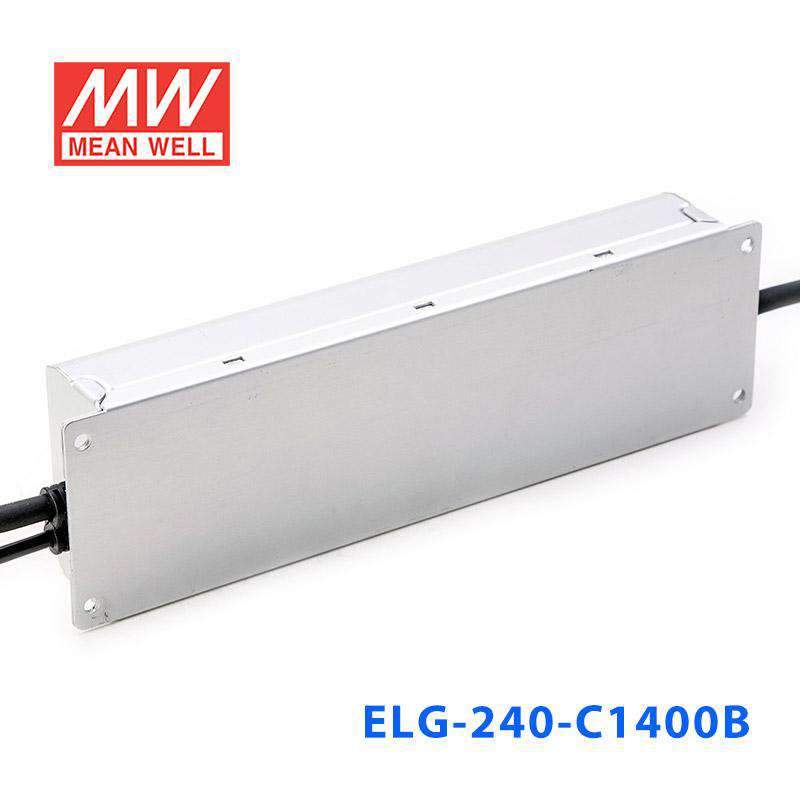

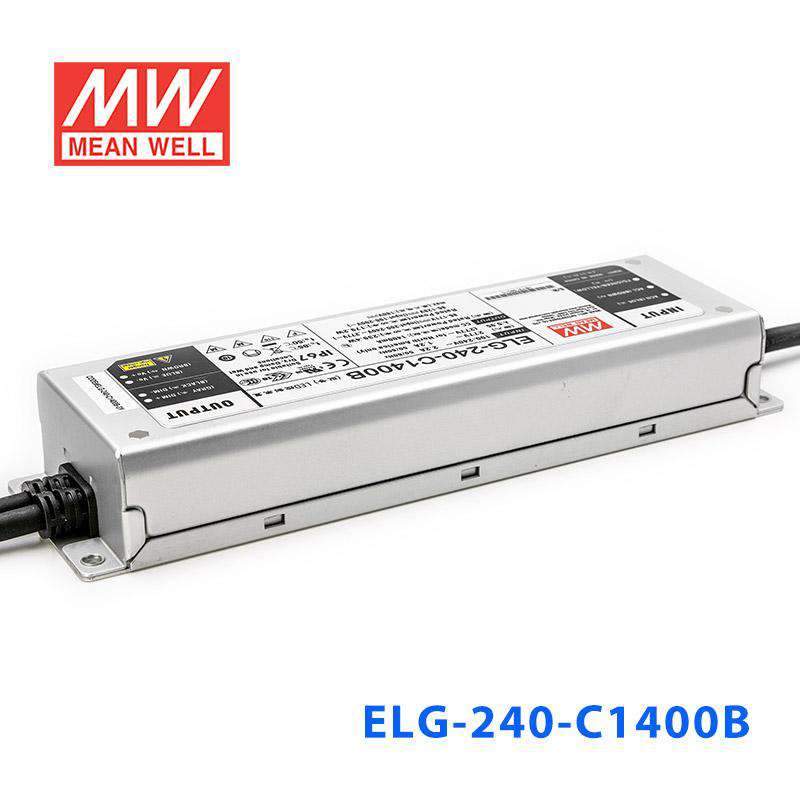

Mean Well ELG-240-C1400B Power Supply 240W 1400mA - Dimmable

contant currentmetal caseIP65/IP675 years warranty
SKU ELG-240-C1400B
$57.24 USD
Shipping calculated at checkout.

Select model — 28 in this family

ELG-240-C1400B
Available to order
|

Overview

ELG-240-C1400B is the model of this series: rated current 1400mA, typical efficiency 93%.

ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

ELG-240-C1400BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT
1400mA
RATED POWER 200VAC ~ 305VAC
239.4W
RATED POWER 100VAC ~ 180VAC
179.2W
CONSTANT CURRENT REGIONNote.2
86 ~ 171V
OPEN CIRCUIT VOLTAGE(max.)
180V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 700 ~ 1400mA
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SET UP TIMENote.4
800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGENote.3
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
192 ~ 216V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+85℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
244*71*37.5 mm (L*W*H)
PACKING
1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type
Type HL
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  7. 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-240-C1400B BLOCK DIAGRAM
BLOCK DIAGRAM
ELG-240-C1400B DIMMING OPERATION
DIMMING OPERATION
ELG-240-C1400B OUTPUT LOAD vs TEMPERATURE(Note.7)
OUTPUT LOAD vs TEMPERATURE(Note.7)
ELG-240-C1400B STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-240-C1400B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-240-C1400B LIFETIME(Kh)
LIFETIME(Kh)
ELG-240-C1400B MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
ELG-240-C1400B ※ AB-Type
※ AB-Type
ELG-240-C1400B Dimensions (mm)
Dimensions (mm)
ELG-240-C1400B ※ B/DA-Type
※ B/DA-Type
ELG-240-C1400B ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
ELG-240-C1400B Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED harbor lighting
  • LED bay lighting
  • LED greenhouse lighting
  • LED flood lighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can the ELG-240-C1400B be used to dim high-power LED downlights via a 0–10V control signal?

Yes. The 'B' suffix denotes built-in 3-in-1 dimming, so the ELG-240-C1400B accepts a 0–10VDC signal, a 10V PWM signal or a resistance to vary the 1400mA output current. This is compatible with common 0–10V commercial dimming controls.

Is the ELG-240-C1400B waterproof enough for outdoor LED signage or façade lighting?

Yes. The ELG-240-C series is rated IP65 or IP67 against dust and water, making it suitable for outdoor sign cabinets and façade installations exposed to direct rain.

Can I use this driver for stadium or sports field floodlights that require 1400mA?

The ELG-240-C1400B outputs a constant 1400mA across 86–171V (239.4W), which suits high-power LED modules used in sports lighting. Its IP65/IP67-rated enclosure and -40°C to +85°C case temperature (Tcase) rating support outdoor stadium installations.

How many LEDs can be connected in series to the ELG-240-C1400B?

The driver regulates voltage between 86V and 171V at constant 1400mA. String length is determined by each LED's forward voltage; the sum of Vf values for all LEDs in the series string must fall within that 86–171V output range.

What happens to the driver at the lower end of the CC voltage range?

The sheet specifies the constant current region as 86–171V; below it, 1400mA regulation is not specified and the driving-methods curve shows hiccup protection at low output voltage. Ensure the combined forward voltage of your LED string stays within 86–171V under all operating conditions.

Does the ELG-240-C1400B carry the same certifications as the ELG-240-C1400?

Yes. Both are approved to the same safety standards on the sheet, including UL8750 (Type HL), CSA C22.2 No. 250.13-12, EN/AS/NZS 61347-1/-2-13, EN62384, GB/T19510, KC and EAC. The primary difference between models is the built-in dimming interface on the ELG-240-C1400B.
