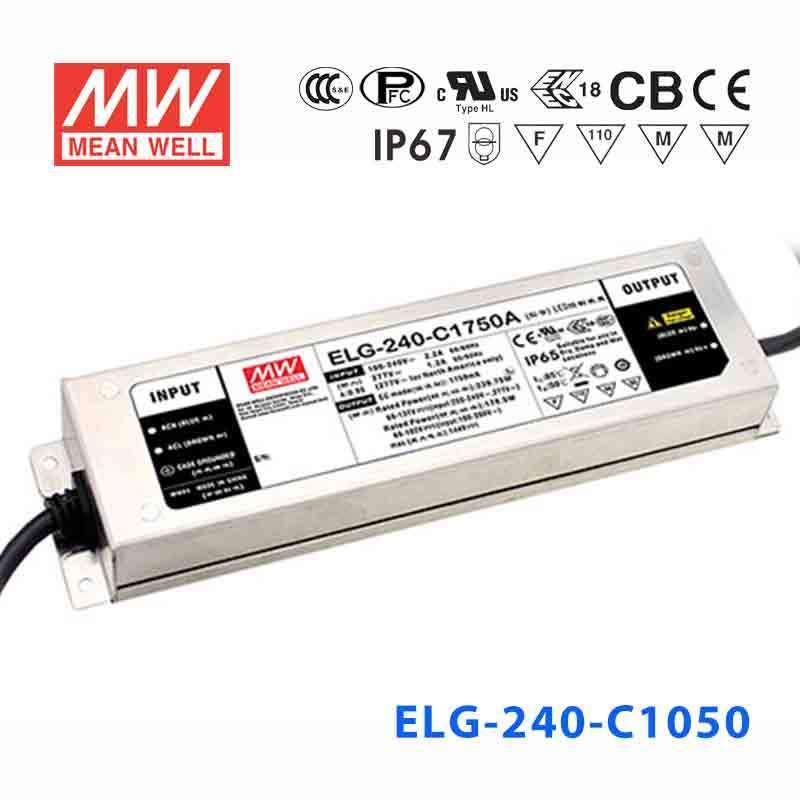

Mean Well ELG-240-C1050AB Power Supply 240W 1050mA - Adjustable and...
Overview
ELG-240-C1050AB is the model of this series: rated current 1050mA, typical efficiency 93%.
ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1050mA
- RATED POWER 200VAC ~ 305VAC
- 239.4W
- RATED POWER 100VAC ~ 180VAC
- 179.55W
- CONSTANT CURRENT REGIONNote.2
- 114 ~ 228V
- OPEN CIRCUIT VOLTAGE(max.)
- 239V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 525 ~ 1050mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 800ms/115VAC, 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 250 ~ 290V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 244*71*37.5 mm (L*W*H)
- PACKING
- 1.22Kg; 12pcs /15.2kg / 0.72CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 11. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can the ELG-240-C1050AB be used in a 240W LED downlight system with a 0–10V dimming controller?
Yes. The 'AB' designation indicates both output adjustment and analog dimming support, compatible with 0–10V and PWM dimming signals. At 1050mA constant current and 239.4W, it can handle large downlight arrays or multiple fixtures sharing a single driver when system forward voltages fall within 114–228V.
Is the ELG-240-C1050AB suitable for LED signage modules that need both brightness trimming and field dimming?
Yes. The adjustable output allows factory or field trimming of the 1050mA set point, while the built-in dimming input enables dynamic brightness control via an external signal. This combination is useful for signage installations where initial calibration and ongoing operational dimming are both required.
Can the ELG-240-C1050AB power LED modules in a theatrical or architectural mood-lighting application?
The ELG-240-C1050AB's analog dimming makes it appropriate for architectural or theatrical LED fixtures where smooth, continuous brightness control is needed. Its 239.4W, 1050mA constant current output with a 114–228V CC range suits high-power LED modules used in stage wash lights or large architectural installations.
What LED string configuration is compatible with the ELG-240-C1050AB?
This driver outputs 1050mA constant current with a CC voltage range of 114–228V. LED loads must be connected in series so that the combined string forward voltage at 1050mA falls within 114–228V. The number of LEDs in the string is determined by each LED's forward voltage at the operating current.
How does the ELG-240-C1050AB compare to the ELG-240-C1050 base model and the ELG-240-C1050A?
The ELG-240-C1050 is a fixed-output, non-dimmable unit. The ELG-240-C1050A adds output current adjustment. The ELG-240-C1050AB (this unit) further adds analog dimming capability on top of the adjustment. All three share 239.4W, 1050mA output, and the same 114–228V CC range.
Can the ELG-240-C1050AB be used in damp indoor locations such as food-processing facilities?
The ELG-240-C series is rated IP65 or IP67, protecting against dust and water. It is rated for a case temperature (Tcase) of -40°C to +85°C. This makes it suitable for damp indoor locations such as food-processing facilities, wash areas, or cold-storage anteroom lighting.
