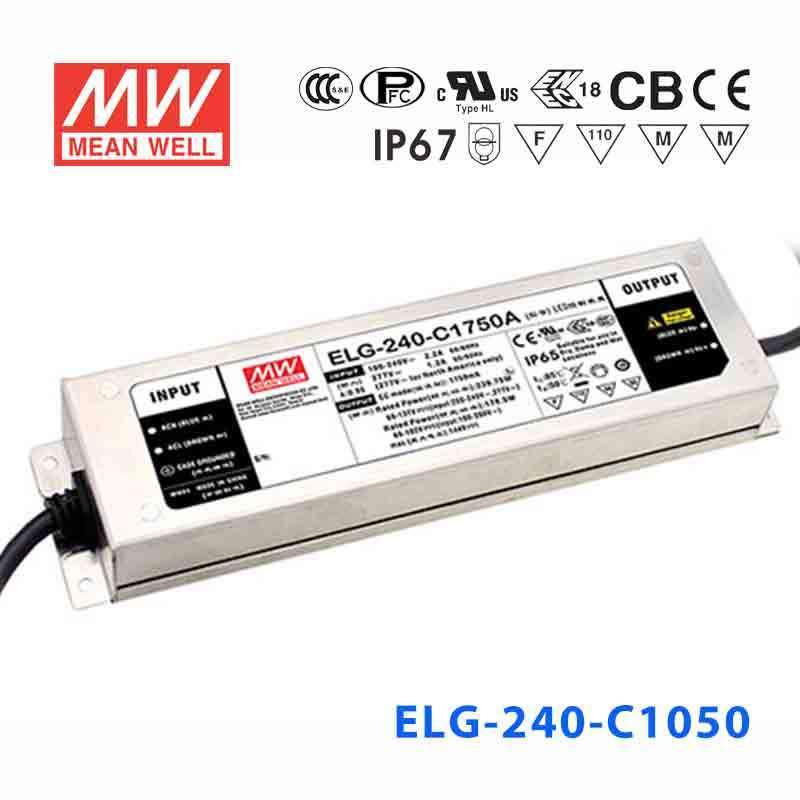

Mean Well ELG-240-C1050 240W 1050mA Constant Current LED Driver

Name: Mean Well ELG-240-C1050 Power Supply 240W 1050mA
Brand: Mean Well
SKU: ELG-240-C1050
Price: 54.96 USD
Availability: InStock

Overview

ELG-240-C1050 is the model of this series: rated current 1050mA, typical efficiency 93%.

ELG-240-C series is a 240W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-240-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-240-C1050Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER 200VAC ~ 305VAC: 239.4W
RATED POWER 100VAC ~ 180VAC: 179.55W
CONSTANT CURRENT REGION^Note.2: 114 ~ 228V
OPEN CIRCUIT VOLTAGE(max.): 239V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 525 ~ 1050mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 250 ~ 290V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-240-C1050 BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-240-C1050 DIMMING OPERATION — DIMMING OPERATION

ELG-240-C1050 OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-240-C1050 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-240-C1050 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-240-C1050 LIFETIME(Kh) — LIFETIME(Kh)

ELG-240-C1050 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-240-C1050 Dimensions (mm) — Dimensions (mm)

ELG-240-C1050 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-240-C1050 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-240-C1050 datasheetELG-240-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-240-C)(EN) PDF Download

CB Certificate (ELG-240-C)(EN) PDF Download

EMC Certificate (ELG-240-C)(EN) PDF Download

ENEC Certificate (ELG-240-C)(EN) PDF Download

Test reports1

Test Report (ELG-240-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-240-C1050 power a high-output LED array in an industrial or warehouse luminaire?

Yes. The ELG-240-C1050 delivers 239.4W at 1050mA constant current, making it suitable for high-flux LED arrays in high-bay or industrial fixtures. Its 100–305VAC input and the series' IP65/IP67 rating support deployment in demanding environments including damp or dusty warehouses.

Is the ELG-240-C1050 suitable for LED street lighting or outdoor area lighting?

Yes. The series' IP65/IP67 rating provides water and dust protection for outdoor installations, and the -40°C to +85°C case temperature (Tcase) rating covers extreme climates. The 1050mA constant current at up to 239.4W is commonly used in street and area lighting LED modules where higher forward current is preferred for fewer series LEDs.

Can this driver be used for large LED signage panels that require 240W-class power?

The ELG-240-C1050 is a constant current driver at 1050mA with a CC voltage range of 114–228V. For signage modules designed to operate at 1050mA, it provides 239.4W capacity with a fixed (non-dimmable, non-adjustable) output. Ensure the LED string forward voltage falls within 114–228V.

How many LEDs can the ELG-240-C1050 drive in a series string?

The ELG-240-C1050 outputs 1050mA constant current with a CC voltage range of 114–228V. The number of LEDs that can be connected in series is determined by the forward voltage of each LED at 1050mA. There is no fixed LED count — confirm your LED's Vf at operating current to calculate string length.

How does the ELG-240-C1050 differ from the ELG-240-C1050A and ELG-240-C1050AB?

All three are 239.4W, 1050mA constant current drivers with the same 114–228V CC range and 244×71×37.5 mm form factor. The ELG-240-C1050 is the fixed-output base model. The ELG-240-C1050A adds output current adjustment (trimming, 525–1050mA). The ELG-240-C1050AB further adds 3-in-1 dimming to the adjustable version.

Can the ELG-240-C1050 be installed in an outdoor luminaire exposed to rain and temperature extremes?

Yes. The series' IP65/IP67 rating protects against dust and water, and the case temperature (Tcase) rating of -40°C to +85°C covers both extreme cold and hot environments, with load derating at high temperatures per the sheet's curve. Follow MEAN WELL's IP waterproof installation cautions for outdoor luminaire installations.
