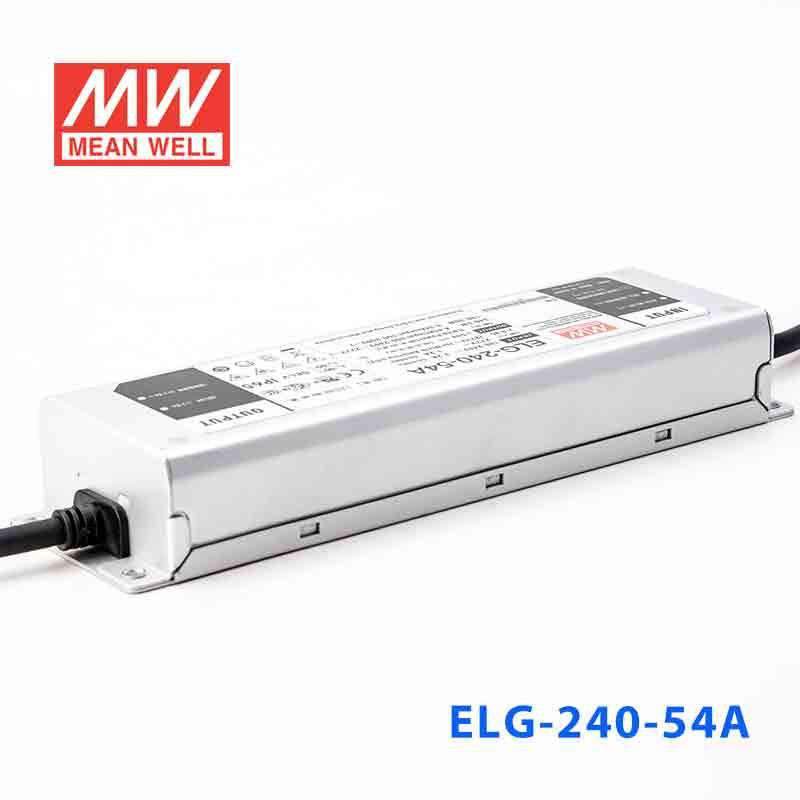

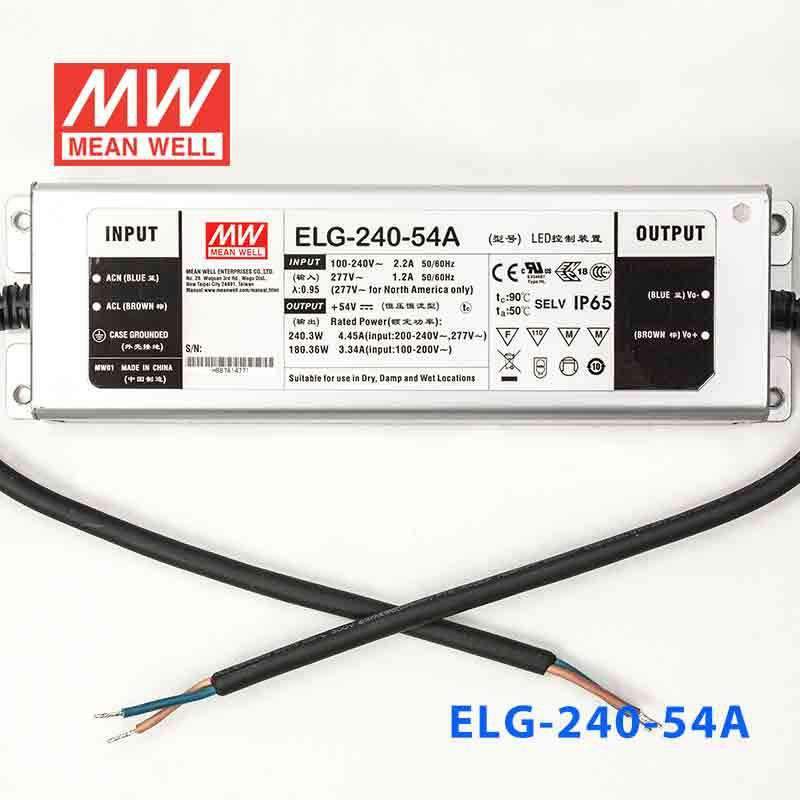

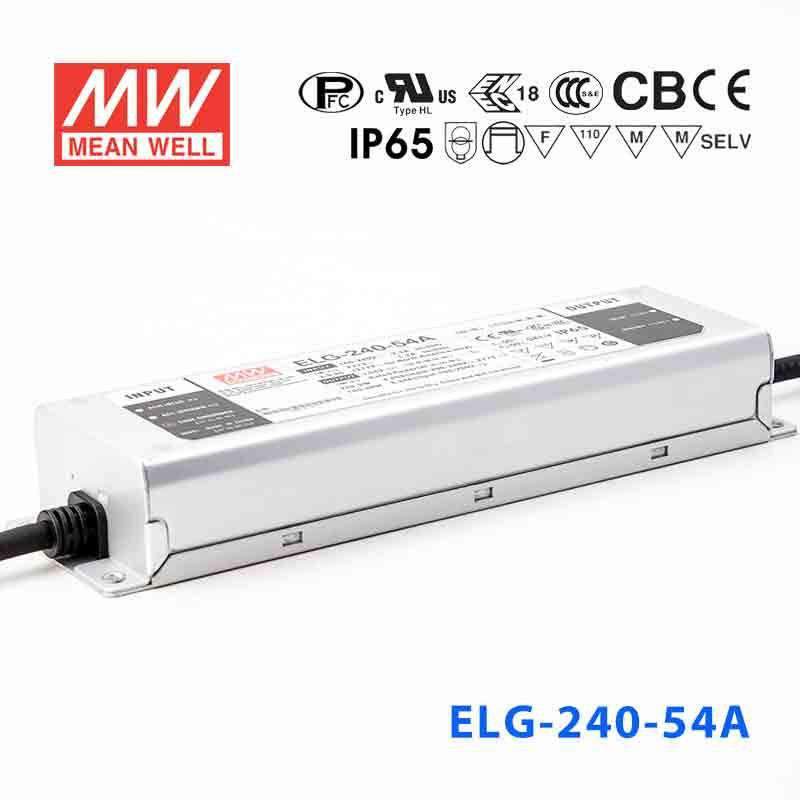

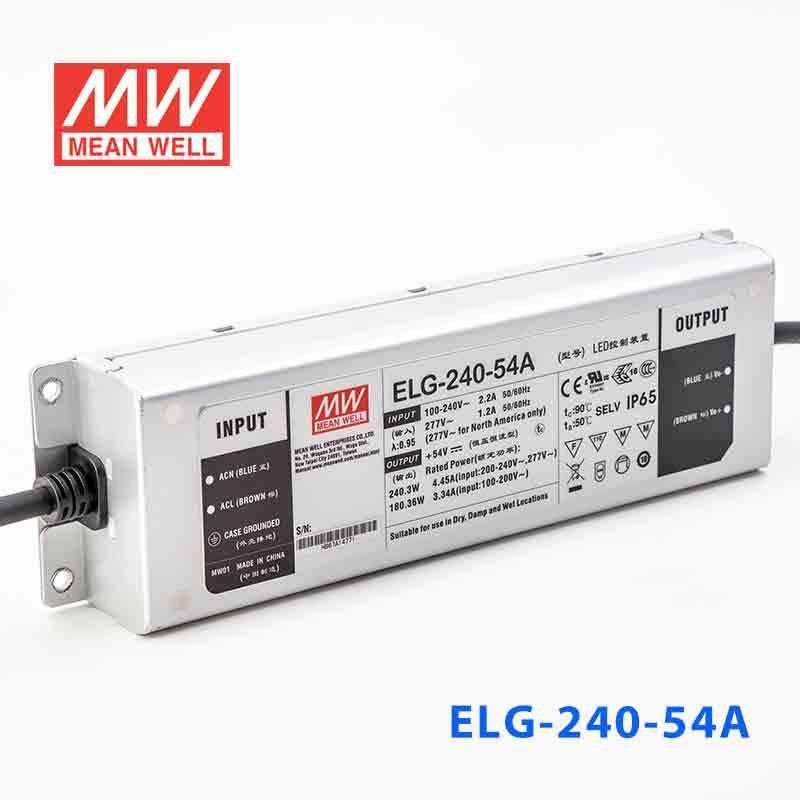

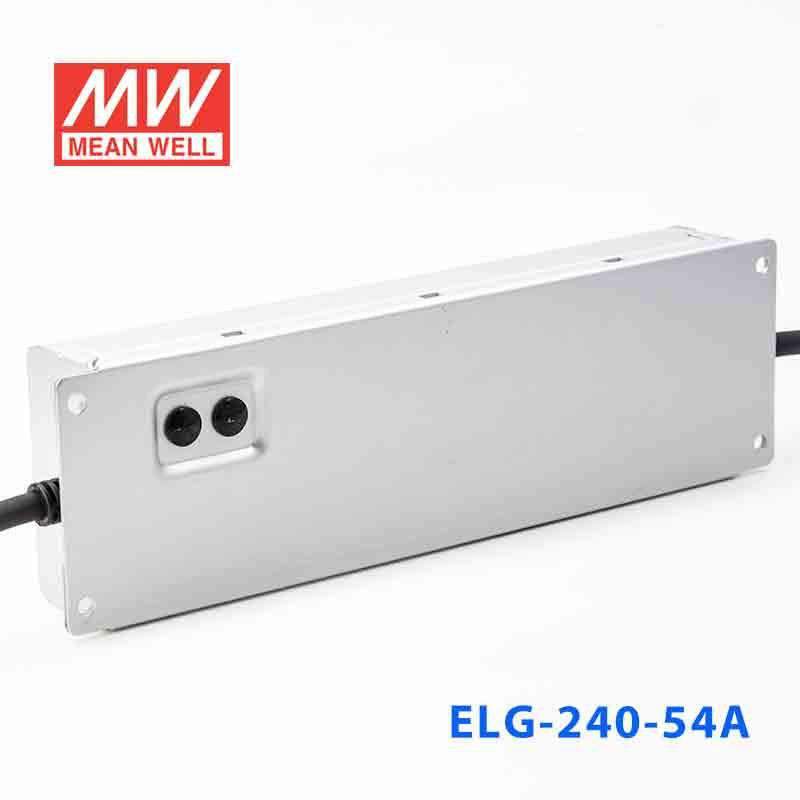

Name: Mean Well ELG-240-54A Power Supply 240W 54V - Adjustable 4.45A
Brand: Mean Well
SKU: ELG-240-54A
Price: 58.74 USD
Availability: InStock

Overview

ELG-240-54A is the 54V output model of this series: rated current 4.45A, typical efficiency 93%.

ELG-240 series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-240 operates from 100～305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-240-54ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 54V
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
RATED CURRENT: 4.45A
RATED POWER 200VAC ~ 305VAC: 240.3W
RATED POWER 100VAC ~ 180VAC: 180.36W
RIPPLE & NOISE (max.)^Note.3: 350mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 50 ~ 57V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 2.23 ~ 4.45A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT: 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION^Note.7: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 60 ~ 67V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +90℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42B/48/48A/48B/54/54A/54ADA/54B only); GB/T19510.1,GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 02; KC KN15,KN61547

OTHERS

MTBF: 2391.4K hrs min. Telcordia SR-332 (Bellcore) ; 190.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5mm (L*W*H)
PACKING: 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT

Certifications & ratings

Type: HL

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. No load/standby power consumption is specified for 230VAC input.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-240-54A Block Diagram — Block Diagram

ELG-240-54A DIMMING OPERATION — DIMMING OPERATION

ELG-240-54A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

ELG-240-54A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-240-54A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-240-54A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-240-54A Dimensions (mm) — Dimensions (mm)

ELG-240-54A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-240-54A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-240-54A datasheetELG-240-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-240)(EN) PDF Download

UL Certificate (ELG-240)(EN) PDF Download

EMC Certificate (ELG-240)(EN) PDF Download

ENEC Certificate (ELG-240)(EN) PDF Download

Test reports1

Test Report (ELG-240-54)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What does the A suffix mean on the ELG-240-54A?

The A suffix indicates the output voltage (50–57V) and current (2.23–4.45A) are adjustable via a built-in potentiometer. This allows the installer to trim the output within the specified range without external dimming control equipment.

Can the ELG-240-54A be used in outdoor signage where only moderate moisture protection is needed?

Yes. The ELG-240 series carries an IP65 or IP67 rating, which means it is dust-tight and protected against water jets from any direction. It is suitable for enclosed outdoor signage and covered exterior luminaires, but should not be installed where it may be submerged.

How many meters of 54V LED strip can the ELG-240-54A drive?

The ELG-240-54A provides 240.3W at 54V and 4.45A on 200–305VAC input (180.36W on 100–180VAC). At a strip power density of 20W per meter, that supports up to about 12 meters; at 15W per meter it is approximately 16 meters. Always check your strip's rated wattage per meter and keep total load within the rating for your input voltage.

Is the ELG-240-54A suitable for LED cove lighting in a hospitality environment?

Yes. The adjustable output allows fine-tuning of brightness during commissioning, which is useful in hospitality environments where designers specify a precise light level. At 240.3W and 54V, it can drive a substantial LED cove installation from a single unit.

Can the ELG-240-54A operate from 277V input used in North American commercial buildings?

Yes. The input range of 100–305VAC covers 277V, which is common in North American commercial and industrial branch circuits. This allows the ELG-240-54A to be used directly without a step-down transformer.

What certifications does the ELG-240-54A hold?

The datasheet lists UL8750 and CSA C22.2 No. 250.13-12, IEC/BS EN/EN/AS/NZS 61347-1 and 61347-2-13, EN62384, EAC TP TC 004, BIS IS15885, GB/T19510 and KC standards, covering North America, the UK and Europe, Australia/New Zealand, the Eurasian Economic Union, India, China and South Korea.
