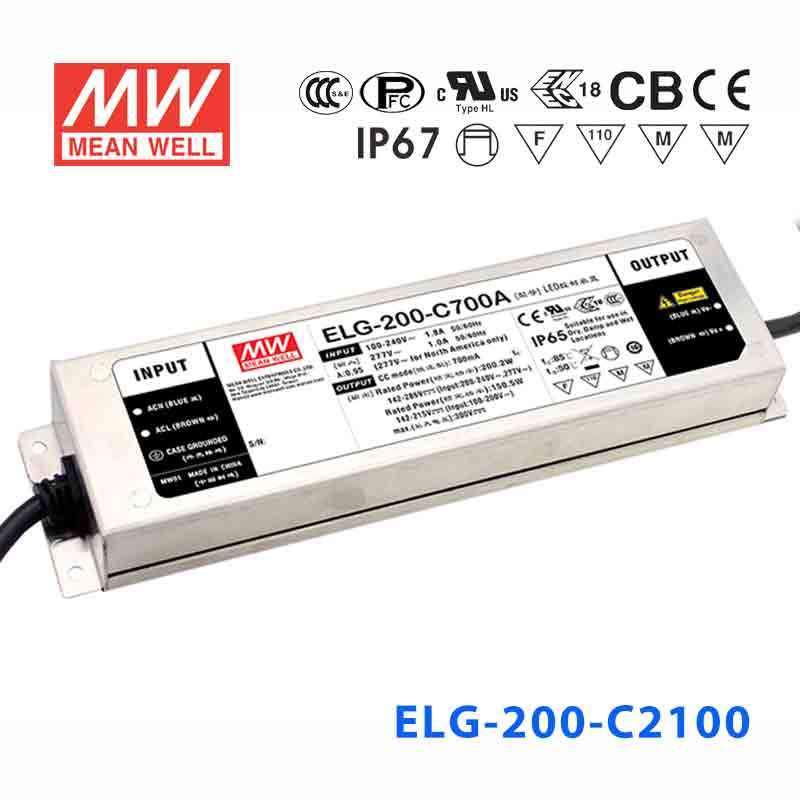

Name: Mean Well ELG-200-C2100 Power Supply 200W 2100mA
Brand: Mean Well
SKU: ELG-200-C2100
Price: 55.42 USD
Availability: InStock

Overview

ELG-200-C2100 is the model of this series: rated current 2100mA, typical efficiency 92%.

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-C2100Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 2100mA
RATED POWER 200VAC ~ 305VAC: 201.6W
RATED POWER 100VAC ~ 180VAC: 151.2W
CONSTANT CURRENT REGION^Note.2: 48 ~ 96V
OPEN CIRCUIT VOLTAGE(max.): 105V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1050 ~ 2100mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 130V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-C2100 BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C2100 DIMMING OPERATION — DIMMING OPERATION

ELG-200-C2100 OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C2100 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C2100 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C2100 LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C2100 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-C2100 Dimensions (mm) — Dimensions (mm)

ELG-200-C2100 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C2100 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-C2100 datasheetELG-200-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C2100)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-C2100 power LED downlights in a covered parking structure?

Yes. The ELG-200-C2100 is rated IP67, so it tolerates the moisture and dust typical of parking structures. At 201.6W and 2100mA constant current, it can supply multiple high-output LED downlight fixtures within a CC voltage range of 48–96V.

Is this driver appropriate for outdoor LED sports or area lighting?

Yes. With IP67 waterproof protection, a case temperature (Tcase) rating of -40°C to +85°C, and a wide 100–305VAC input, the ELG-200-C2100 suits LED area and sports lighting fixtures mounted on poles or masts exposed to outdoor weather conditions.

Can I use the ELG-200-C2100 for LED industrial high-bay fixtures in a warehouse?

Yes. The 201.6W output at 2100mA makes this driver appropriate for driving LED arrays in high-bay industrial luminaires. The IP67 rating also protects it against the dust and moisture common in warehouse and manufacturing environments.

How does the constant current output of the ELG-200-C2100 affect LED string sizing?

The ELG-200-C2100 holds the output current at 2100mA while the voltage self-adjusts within 48–96V to match the connected LED load. The number of LEDs in the series string depends on each LED's forward voltage; the combined string voltage must fall within the 48–96V CC range.

Can the ELG-200-C2100 be installed in an unenclosed outdoor location without a separate housing?

The ELG-200-C2100 carries an IP67 rating, which provides protection against temporary water immersion and full dust exclusion. It is designed for indoor or outdoor installation; before mounting, follow Mean Well's user manual for IP waterproof installation cautions.

What is the difference between the ELG-200-C2100 and the ELG-200-C1750 within the same power class?

The ELG-200-C2100 outputs 201.6W at 2100mA with a CC voltage range of 48–96V. The ELG-200-C1750 outputs 199.5W at 1750mA with a CC voltage range of 57–114V. The C2100 delivers higher current for lower-voltage LED strings, while the C1750 suits LED strings that operate at a higher combined forward voltage.
