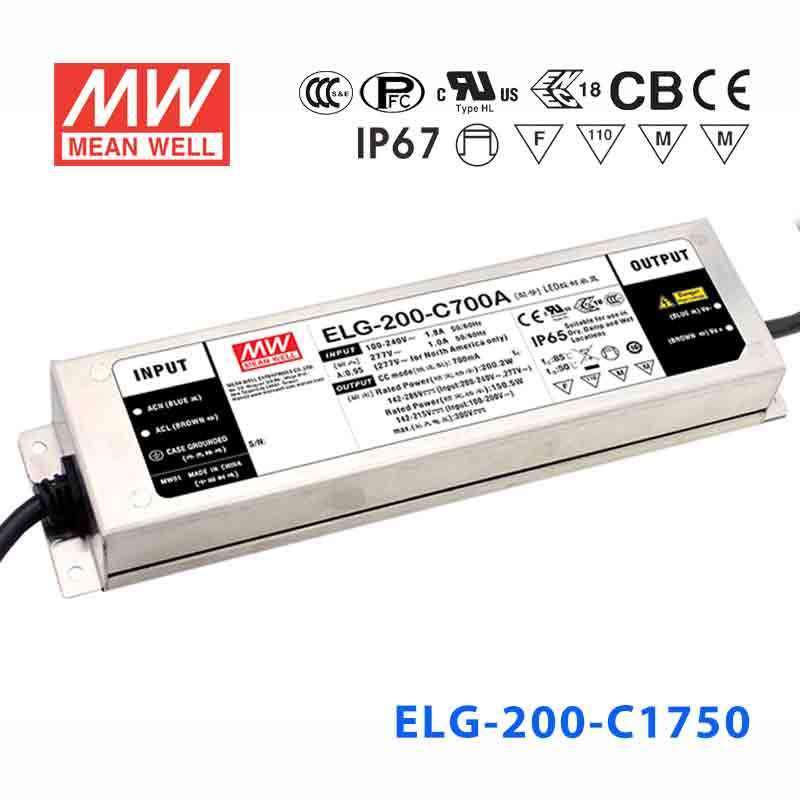

Mean Well ELG-200-C1750A Power Supply 200W 1750mA - Adjustable

Name: Mean Well ELG-200-C1750A Power Supply 200W 1750mA - Adjustable
Brand: Mean Well
SKU: ELG-200-C1750A
Price: 55.42 USD
Availability: InStock

Overview

ELG-200-C1750A is the model of this series: rated current 1750mA, typical efficiency 92%.

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-C1750ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER 200VAC ~ 305VAC: 199.5W
RATED POWER 100VAC ~ 180VAC: 150.5W
CONSTANT CURRENT REGION^Note.2: 57 ~ 114V
OPEN CIRCUIT VOLTAGE(max.): 120V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 875 ~ 1750mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 125 ~ 150V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-C1750A BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C1750A DIMMING OPERATION — DIMMING OPERATION

ELG-200-C1750A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C1750A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C1750A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C1750A LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C1750A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-C1750A Dimensions (mm) — Dimensions (mm)

ELG-200-C1750A ※ B/DA-Type — ※ B/DA-Type

ELG-200-C1750A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C1750A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-C1750A datasheetELG-200-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C1750)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-C1750A be used for LED retrofit projects where fine-tuning of output current is needed?

Yes. The "A" suffix indicates the output current can be adjusted via a built-in potentiometer, allowing installers to fine-tune current delivery between 875mA and 1750mA. This is useful when retrofitting fixtures with slightly different LED forward current requirements.

What type of LED installations benefit from the ELG-200-C1750A's adjustable output?

Applications such as customized LED downlight arrays, architectural linear lighting, and modular LED panels benefit from current adjustability, since it allows the driver to be matched precisely to the LED load without relying solely on standard fixed-current models.

Is the ELG-200-C1750A rated for damp or outdoor locations?

The ELG-200-C1750A carries an IP65 water-resistant rating, which covers protection against low-pressure water jets, suitable for covered outdoor areas, damp indoor locations, or installations where splashing is possible but direct immersion is not expected.

Can the ELG-200-C1750A power mid-voltage LED module strings without an external current-limiting device?

Yes. As a constant current driver, the ELG-200-C1750A inherently regulates current to 1750mA within its CC voltage range of 57–114V. No additional current-limiting component is required for LED modules connected in series within that voltage window.

How does the ELG-200-C1750A differ from the ELG-200-C1750 base model?

The C1750A adds output current adjustability via a potentiometer and has an IP65 water-resistant rating rather than IP67. Both deliver 199.5W at 1750mA with the same 57–114V CC voltage range and 100–305VAC input.

Can the ELG-200-C1750A be installed inside a luminaire housing for industrial or commercial LED lighting?

Yes. Its compact 244 x 71 x 37.5 mm case and IP65 rating allow installation inside luminaire housings used in commercial or light industrial LED fixtures; the sheet notes that A/AB types should be built in to comply with Type HL application. Keep the case at or below its +85°C Tcase rating.
