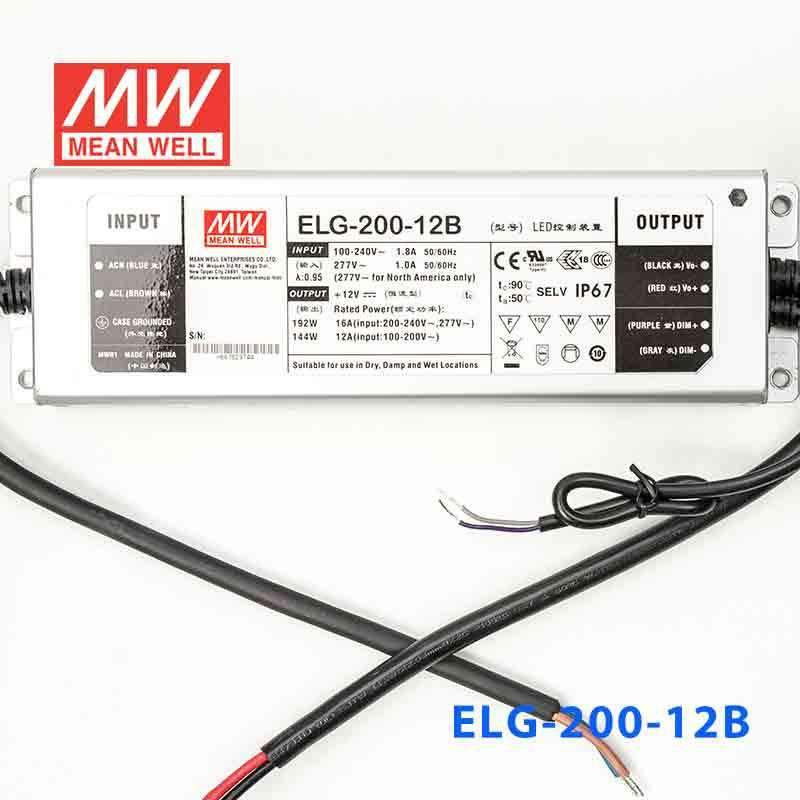

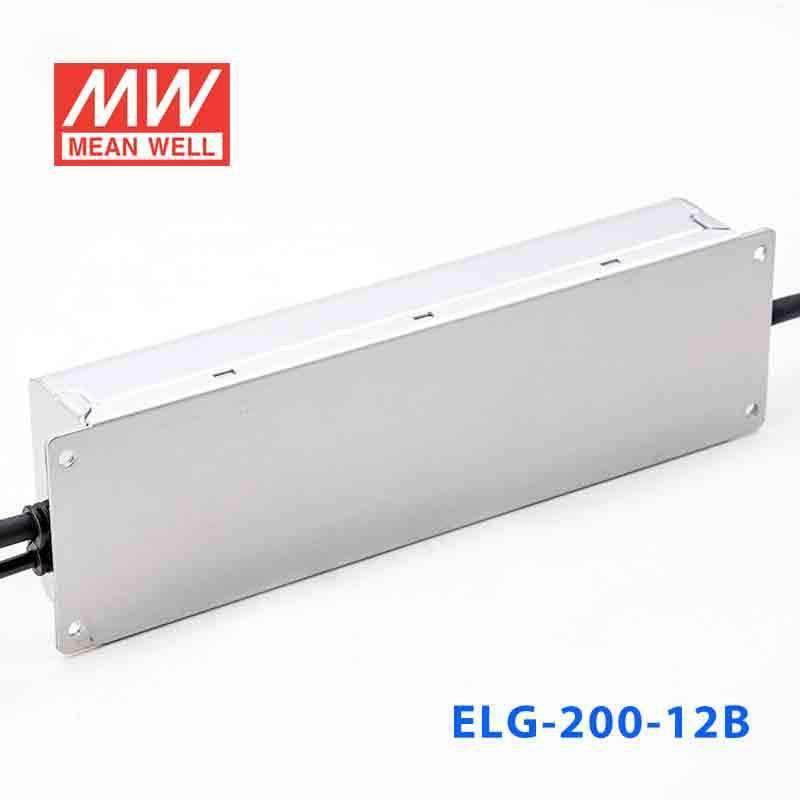

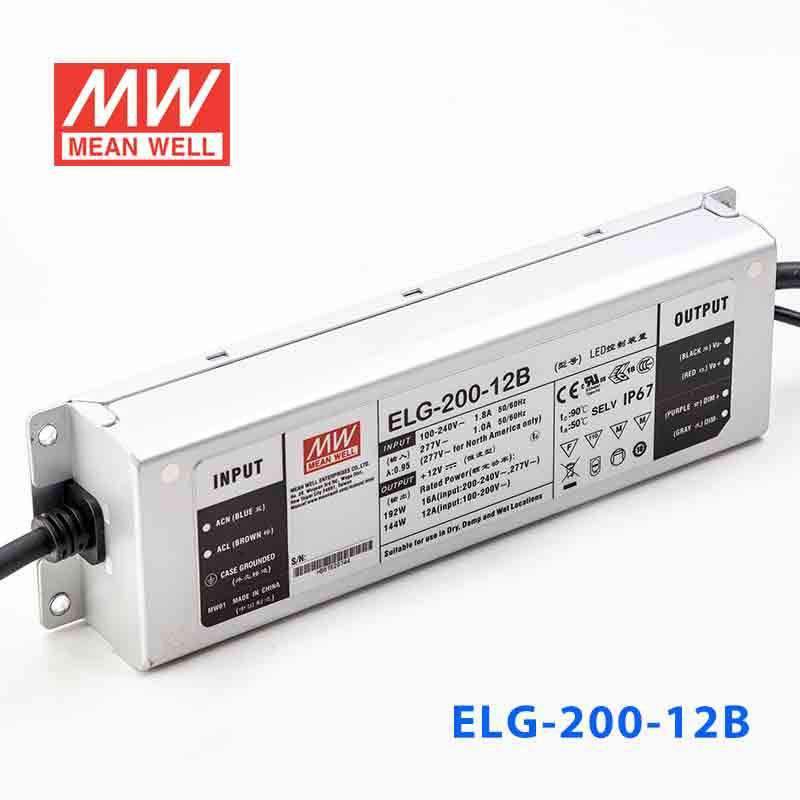

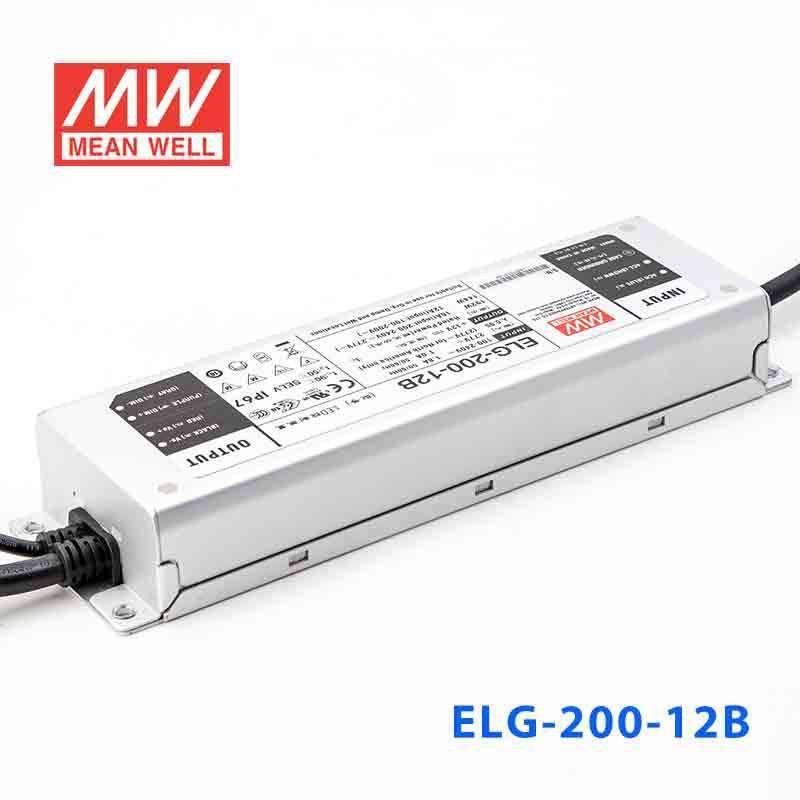

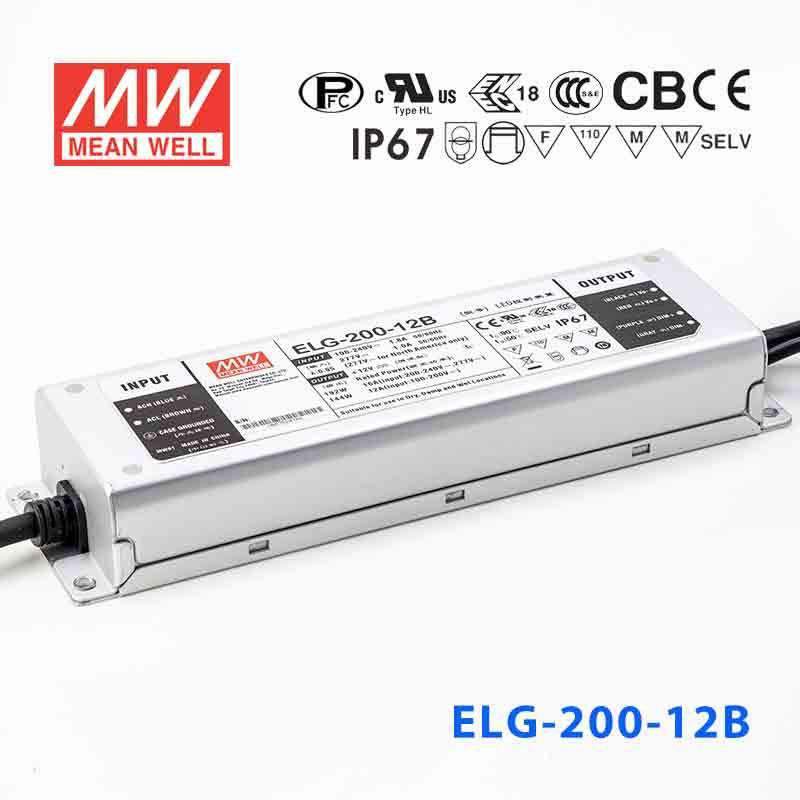

Mean Well ELG-200-12B Power Supply 192W 12V - Dimmable 16A
Overview
ELG-200-12B is the 12V output model of this series: rated current 16A, typical efficiency 90%.
ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- CONSTANT CURRENT REGIONNote.2
- 6 ~ 12V
- RATED CURRENT
- 16A
- RATED POWER 200VAC ~ 305VAC
- 192W
- RATED POWER 100VAC ~ 180VAC
- 144W
- RIPPLE & NOISE (max.)Note.3
- 150mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 11.2 ~ 12.8V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 8 ~ 16A
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
- HOLD UP TIME (Typ.)
- 10ms/ 230VAC 10ms/ 115VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT
- 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTIONNote.7
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.5 ~ 18V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +90℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB/T19510.1,GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ;BS EN/ EN61000-3-3;GB/T 17743,GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 244*71*37.5mm (L*W*H)
- PACKING
- 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes15
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. No load/standby power consumption is specified for 230VAC input.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B).
- 14. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 15. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
What dimming methods does the ELG-200-12B support?
The ELG-200-12B includes a built-in 3-in-1 dimming interface that accepts 0–10V analog, PWM, and resistance dimming signals. This allows the driver to integrate with a wide range of external dimming controllers and building-automation systems.
Can the ELG-200-12B be used in wet or outdoor environments?
Yes. The ELG-200-12B carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and temporary submersion in water. This makes it well suited for outdoor LED lighting, wet-location signage, and installations where the driver may be exposed to rain or water spray.
How much 12V LED strip lighting can the ELG-200-12B power?
The ELG-200-12B outputs 12V at up to 16A, providing 192W of capacity. Dividing 192W by your strip's rated watts per meter gives the maximum run length — for example, a 12W/m strip allows approximately 16 meters. Check your strip's rated power per meter and allow a safety margin.
Can the ELG-200-12B power 12V LED strips in an outdoor landscape lighting installation with dimming?
Yes. The ELG-200-12B combines IP67 waterproofing with 3-in-1 dimming support, making it well suited for outdoor landscape LED strip installations controlled by an external dimmer. Its 192W output can drive significant strip lengths and its -40°C to +90°C case temperature rating covers year-round outdoor operation.
Is the ELG-200-12B suitable for a stage or event lighting rig using 12V LED fixtures?
Yes. The ELG-200-12B's 0–10VDC, 10V PWM and resistance dimming inputs allow it to be dimmed from external controllers used in stage and event applications. At 192W / 12V / 16A it can drive multiple 12V LED fixtures simultaneously, and its IP67 rating is a practical advantage in variable venue environments.
How does the ELG-200-12B compare to the ELG-200-12A in terms of control features?
The ELG-200-12B (IP67) provides a 3-in-1 dimming interface (0–10V, PWM, resistance) but does not have the output-adjustment potentiometer found on the ELG-200-12A (IP65). The ELG-200-12A allows static fine-tuning of voltage and current at commissioning; the ELG-200-12B allows dynamic dimming during operation. Both output 192W at 12V / 16A.
Does the ELG-200-12B operate across all standard global mains voltages?
Yes. The ELG-200-12B accepts 100–305VAC input, covering 120V (North America), 230V (Europe), 277V (US commercial), and other standard grid voltages worldwide without any manual reconfiguration. Output is rated 144W at 100–180VAC and 192W at 200–305VAC.
