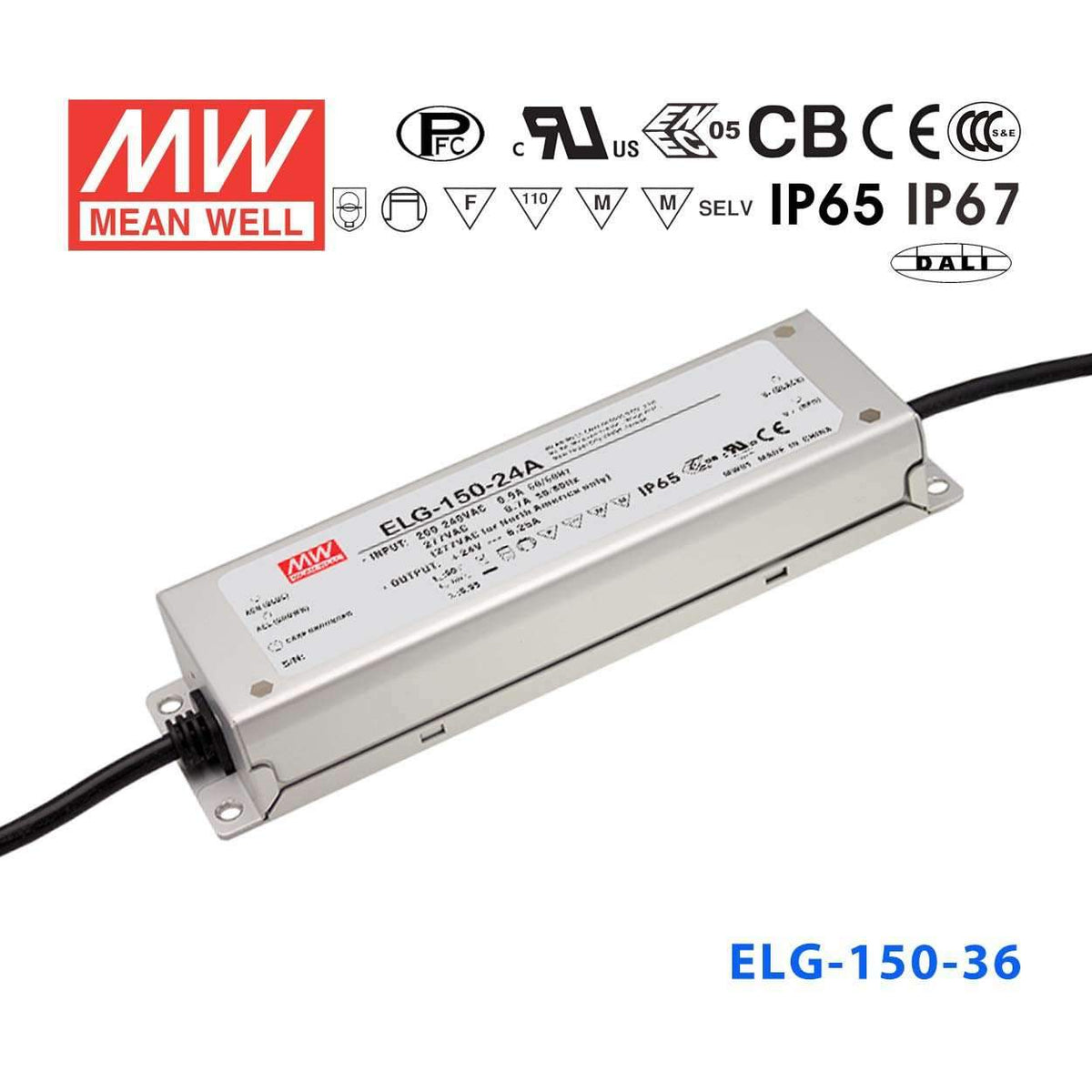

Mean Well ELG-150-36AB Power Supply | 150W 36V - Adjustable and Dimmable

Name: Mean Well ELG-150-36AB Power Supply 150W 36V - Adjustable and Dimmable 4.17A
Brand: Mean Well
SKU: ELG-150-36AB
Price: 48.42 USD
Availability: InStock

Overview

ELG-150-36AB is the 36V output model of this series: rated current 4.17A, typical efficiency 90%.

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifet ime>50000 hours
5 years warranty

Specifications

ELG-150-36ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 18 ~ 36V
RATED CURRENT: 4.17A
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 150.1W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 32.4 ~ 39.6V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 2.1 ~ 4.17A
VOLTAGE TOLERANCE^Note.4: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 48V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5mm (L*W*H)
PACKING: 0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes14

Technical drawings

ELG-150-36AB Block Diagram — Block Diagram

ELG-150-36AB DIMMING OPERATION — DIMMING OPERATION

ELG-150-36AB OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-150-36AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-150-36AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-150-36AB Mechanical Specification — Mechanical Specification

ELG-150-36AB ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-150-36AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-150-36AB datasheetELG-150-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-150)(EN) PDF Download

UL Certificate (ELG-150)(EN) PDF Download

EMC Certificate (ELG-150)(EN) PDF Download

ENEC Certificate (ELG-150)(EN) PDF Download

Test reports1

Test Report (ELG-150-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-150-36AB to power a 36V LED strip installation in a covered outdoor area?

Yes. The ELG-150-36AB is rated IP65, meaning it is protected against low-pressure water jets from any direction. This makes it suitable for covered outdoor or semi-exposed locations such as canopies, soffits, or sheltered signage cabinets where the driver will not be directly rained on.

How many meters of 36V LED strip can the ELG-150-36AB power?

The ELG-150-36AB delivers 150.1W at 36V. To estimate strip length, divide 150W by your strip's rated power per meter. For example, a 10 W/m strip yields roughly 15 meters maximum; a 14.4 W/m strip yields roughly 10.4 meters. Always check your specific strip's rated power per meter and load to about 80% for a safe continuous load, giving approximately 12 m or 8.3 m respectively in those examples.

Is the ELG-150-36AB suitable for outdoor LED channel letter signage?

Yes. The 36V output and 150.1W capacity make it a strong match for medium to large LED channel letter signs. Its IP65 rating provides dust-tight protection and resistance to water spray, covering most signage enclosure environments. The -40°C to +90°C case temperature (Tcase) range accommodates both cold-climate and heat-exposed cabinet installations, with derating at high ambient temperatures.

Can I dim the ELG-150-36AB and also manually adjust its output voltage?

Yes. The 'A' function is a built-in potentiometer for output adjustment and the 'B' function is 3-in-1 dimming (0–10V, 10V PWM or resistance). The ELG-150-36AB includes both, so you can fine-tune the output voltage (32.4–39.6V) and current (2.1–4.17A) using the onboard potentiometer and also dim the driver via a 0–10V control signal.

Can this driver power 36V LED strips for architectural cove lighting indoors?

Yes. The ELG-150-36AB works well for indoor architectural cove or linear lighting runs using 36V strip. The constant-current operation with a 18–36V compliance range accommodates varying strip lengths within one run, and the 0–10V dimming allows smooth integration with building automation or wall dimmers.

Is the ELG-150-36AB a good choice for retail display case lighting using 36V strips?

Yes. Its compact 219 × 63 × 35.5 mm case fits in most display case back-panels or under-shelf enclosures. At 150.1W, it can power multiple short runs of 36V strip simultaneously, and the 0–10V dimming allows brightness adjustment without a separate dimmer module.

How does the ELG-150-36AB compare to the ELG-150-36 and ELG-150-36B in terms of control options?

All three share the same 150.1W, 36V, 4.17A output; the ELG-150-36 and 36B are IP67 and the 36AB is IP65. The ELG-150-36 has no dimming or adjustment. The ELG-150-36B adds 3-in-1 dimming (0–10V / PWM / resistance) without a potentiometer. The ELG-150-36AB adds both the adjustment potentiometer and the 3-in-1 dimming input, making it the most flexible variant for dimming-capable installations.
