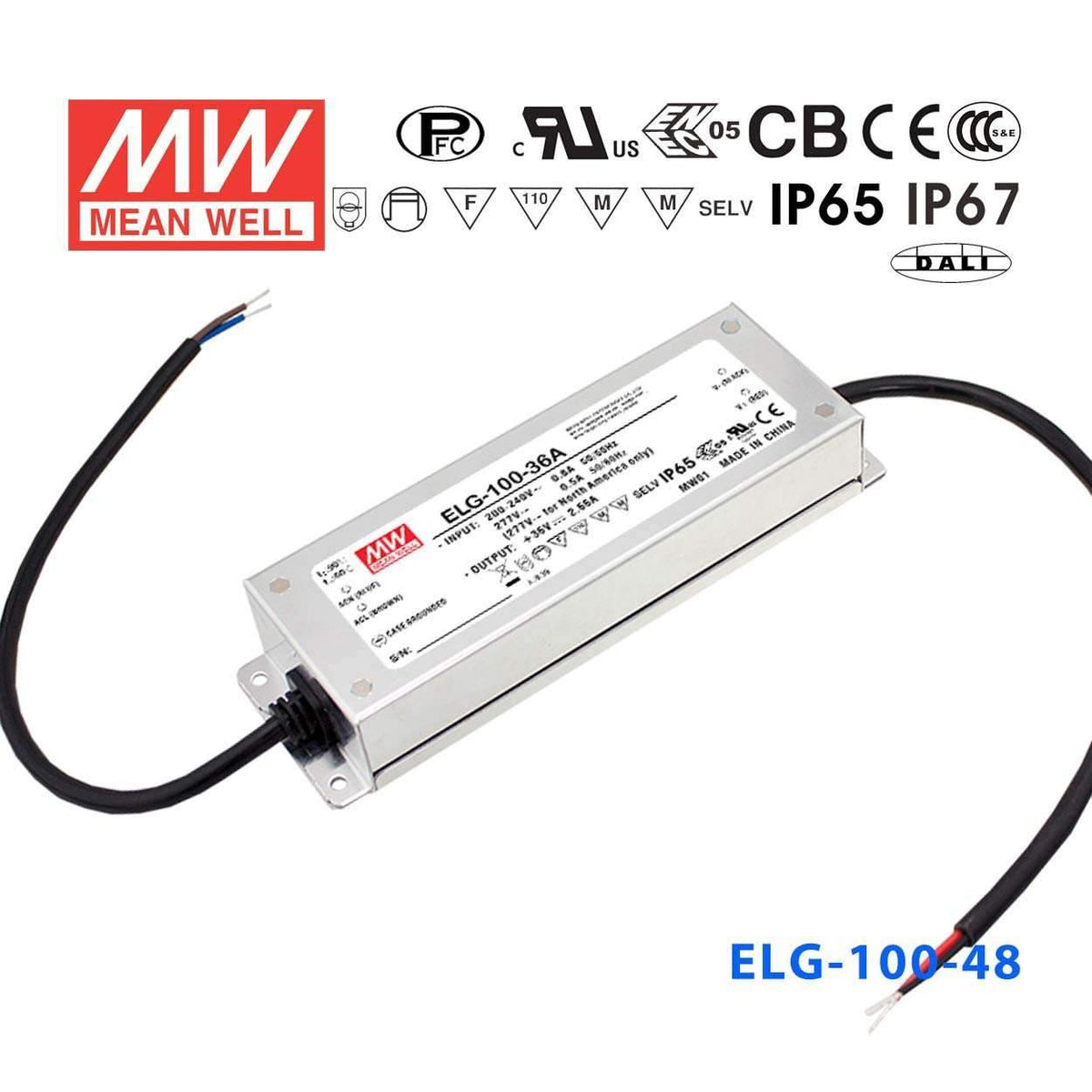

Mean Well ELG-100-48A Power Supply 96W 48V - Adjustable 2A
Overview
ELG-100-48A is the 48V output model of this series: rated current 2A, typical efficiency 90%.
ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations

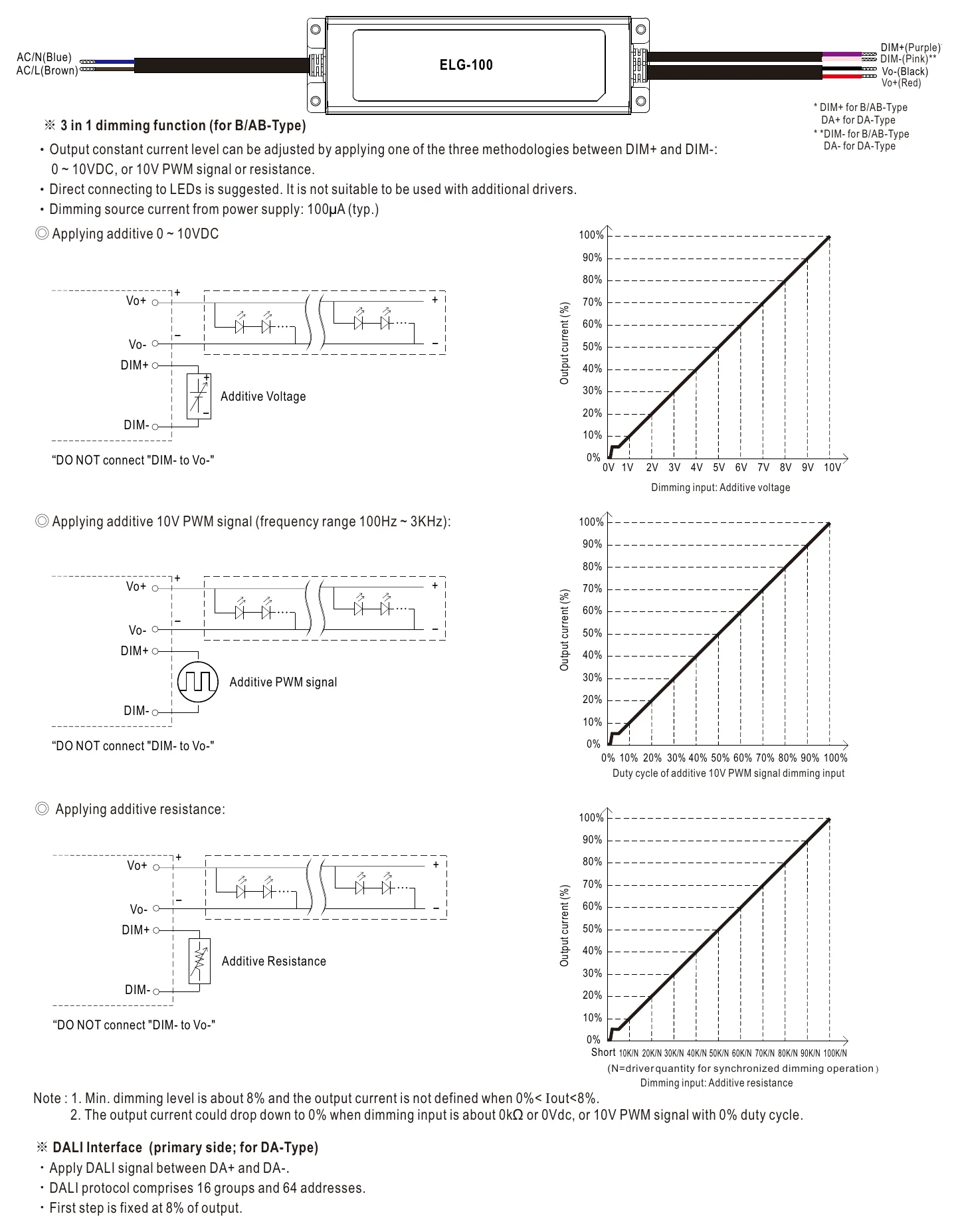

- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- CONSTANT CURRENT REGIONNote.2
- 24 ~ 48V
- RATED CURRENT
- 2A
- RATED POWER 200VAC ~ 305VAC
- 96W
- RATED POWER 100VAC ~ 180VAC
- 70W
- RIPPLE & NOISE (max.)Note.3
- 300mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 43.2 ~ 52.8V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 1 ~ 2A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
- HOLD UP TIME (Typ.)
- 15ms/115VAC 10ms/230VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION

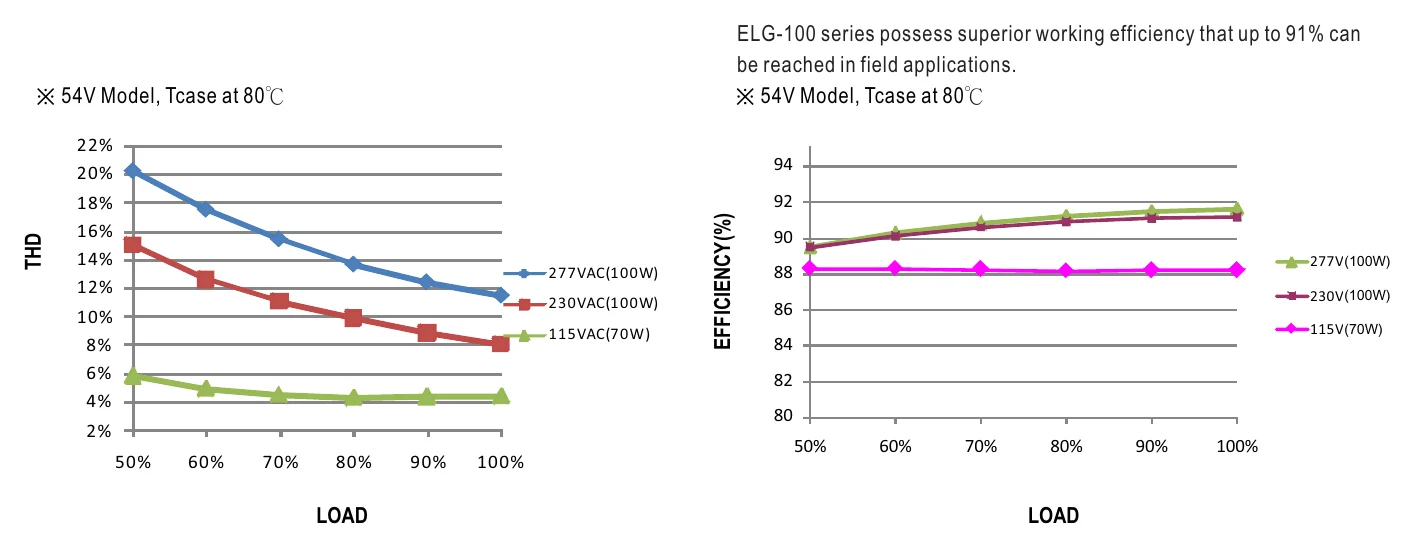

- THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT
- 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 54 ~ 62V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

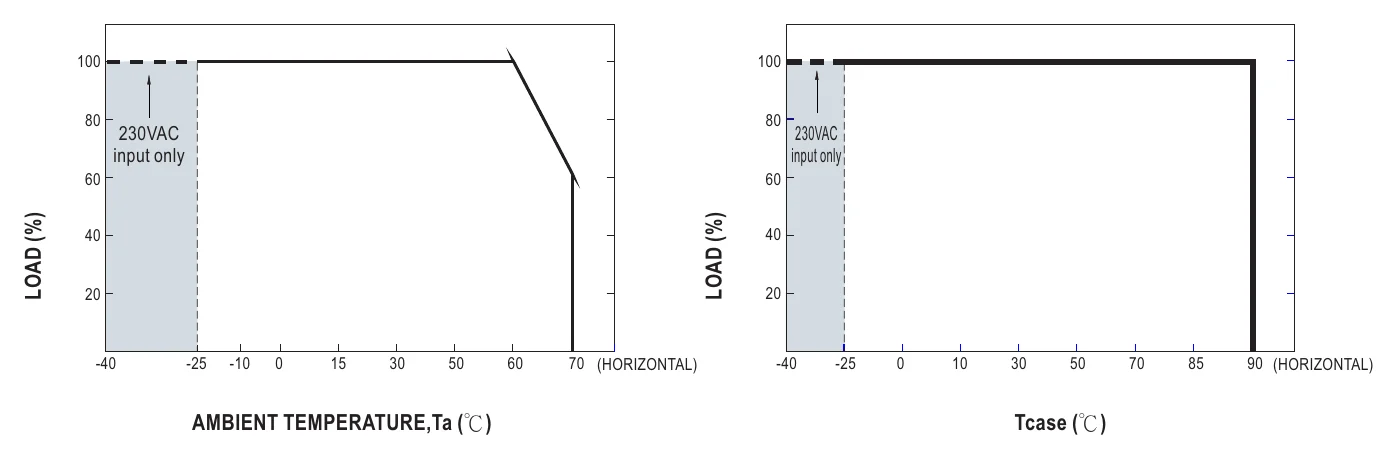

- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5mm (L*W*H)
- PACKING
- 0.85kg; 16pcs/14.2kg/0.72CUFT
Certifications & ratings
- Type
- HL
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.

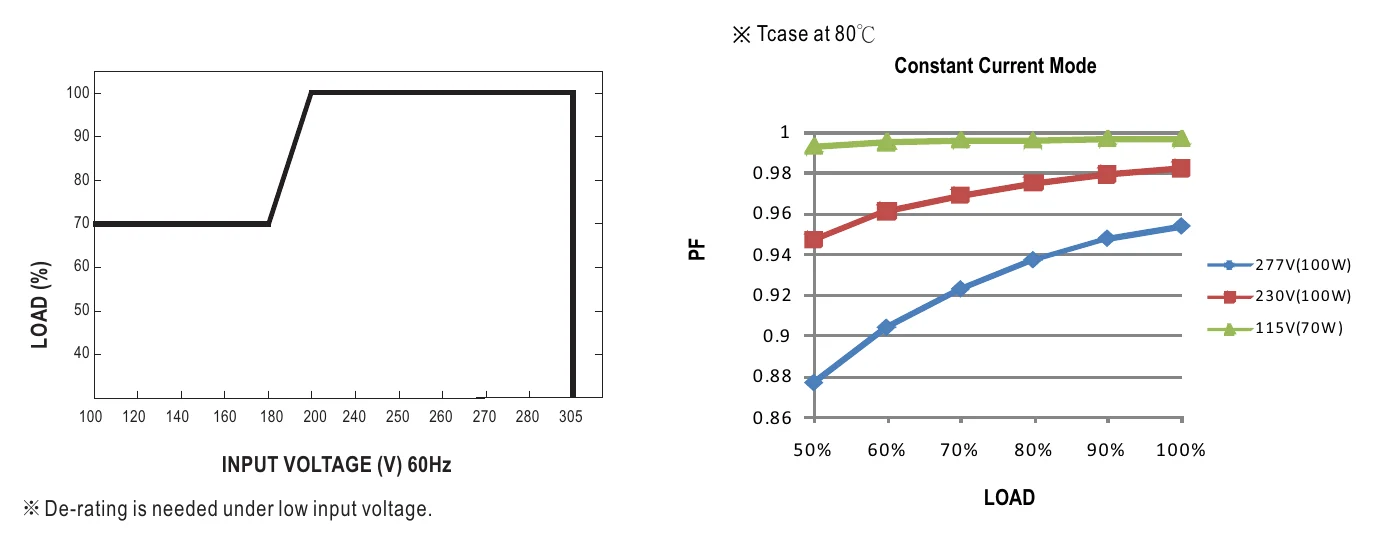

- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

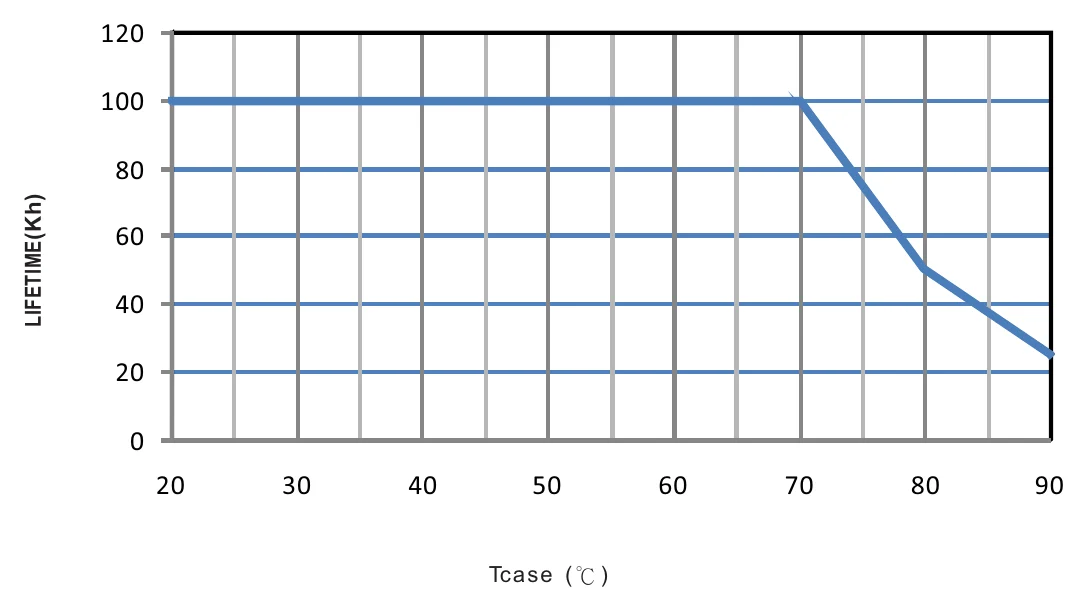

- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 13. For A/AB type need to consider build in using to comply with Type HL application.

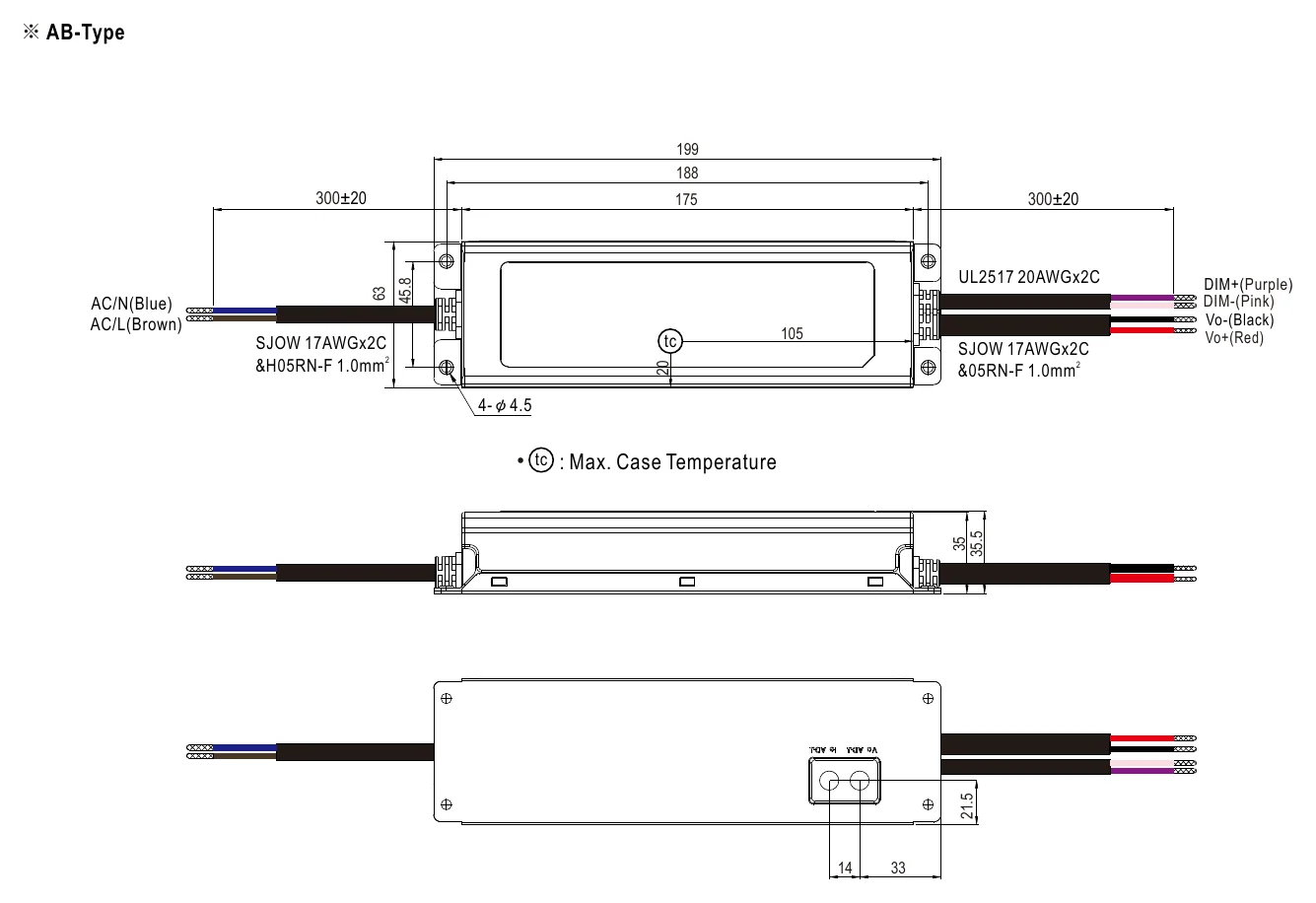

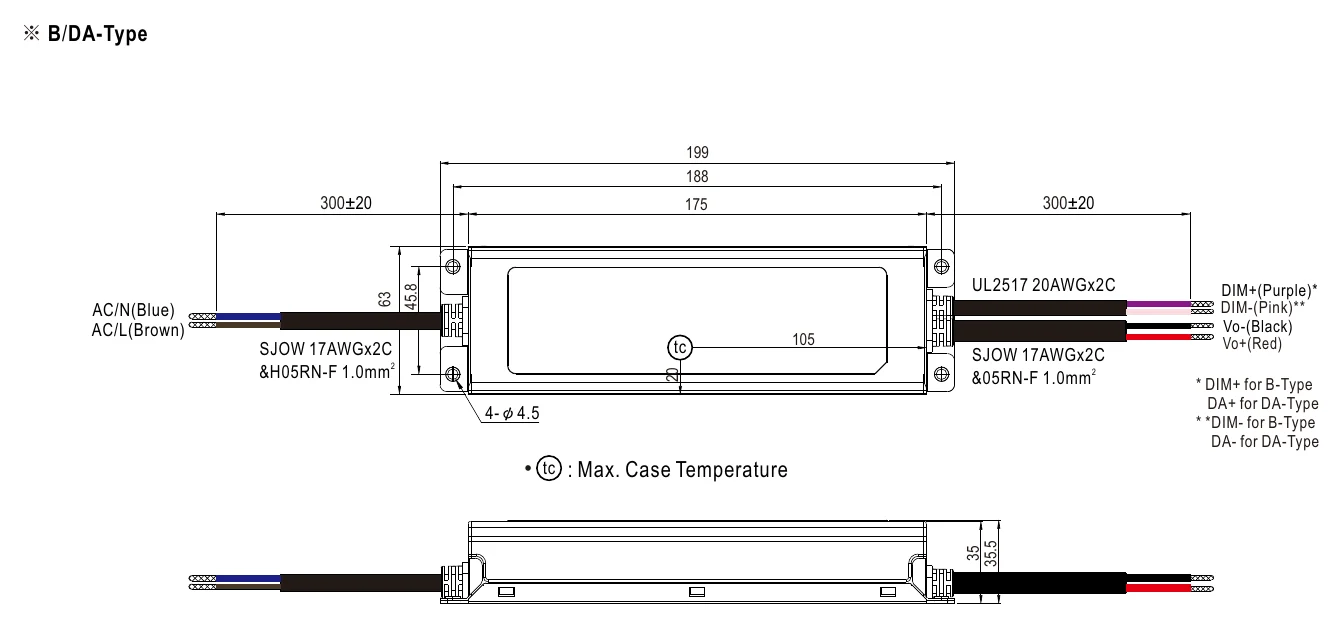

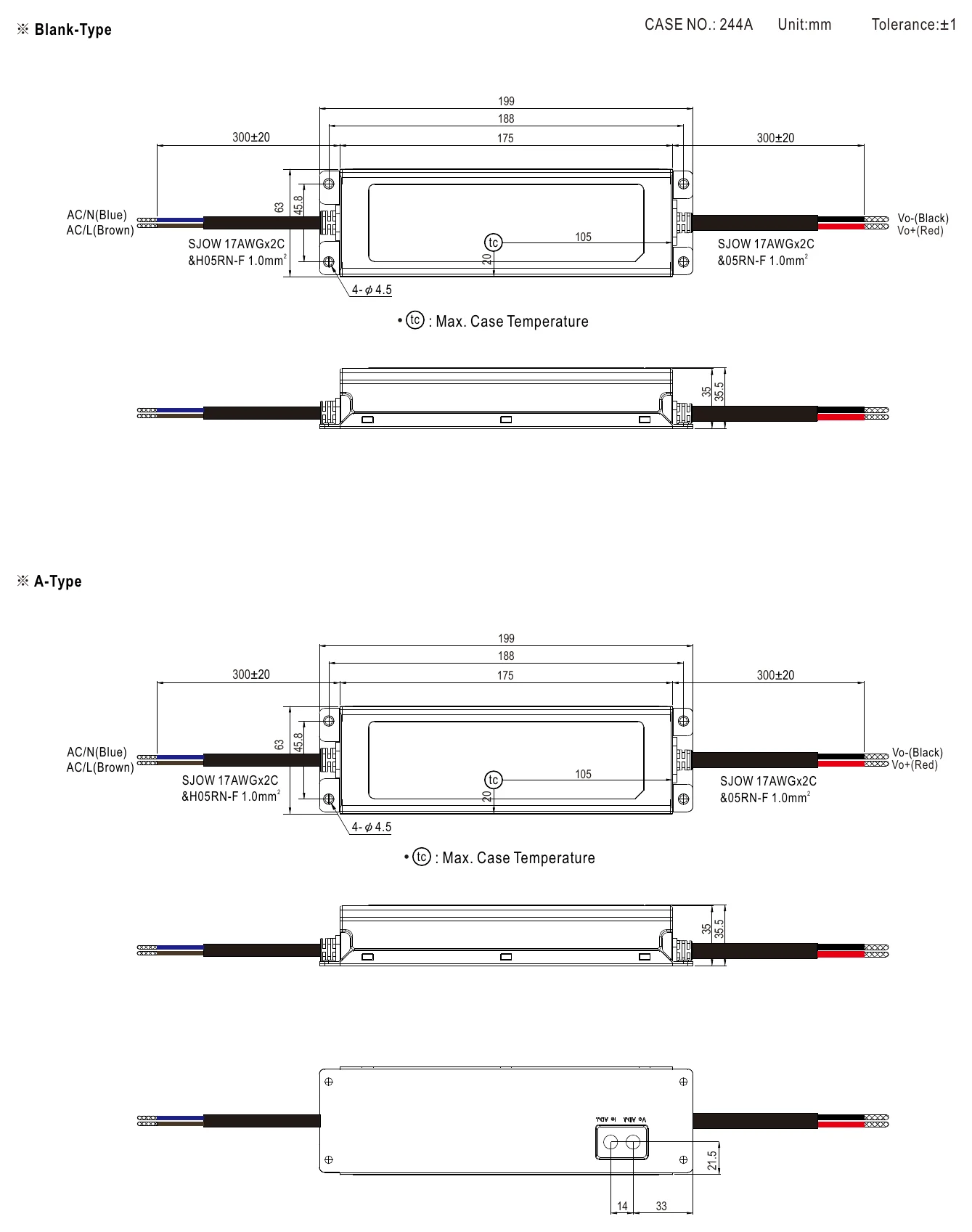

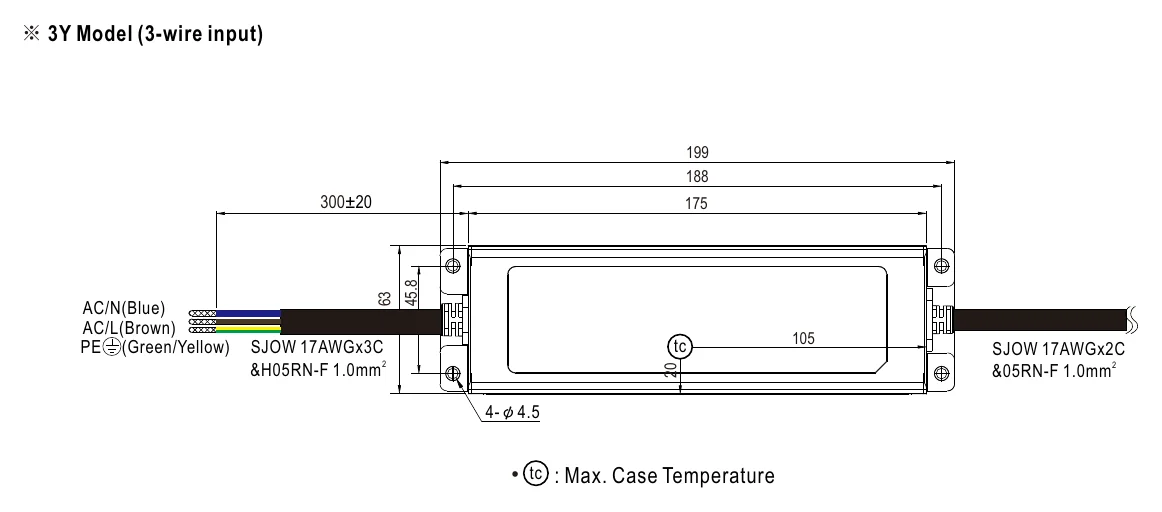

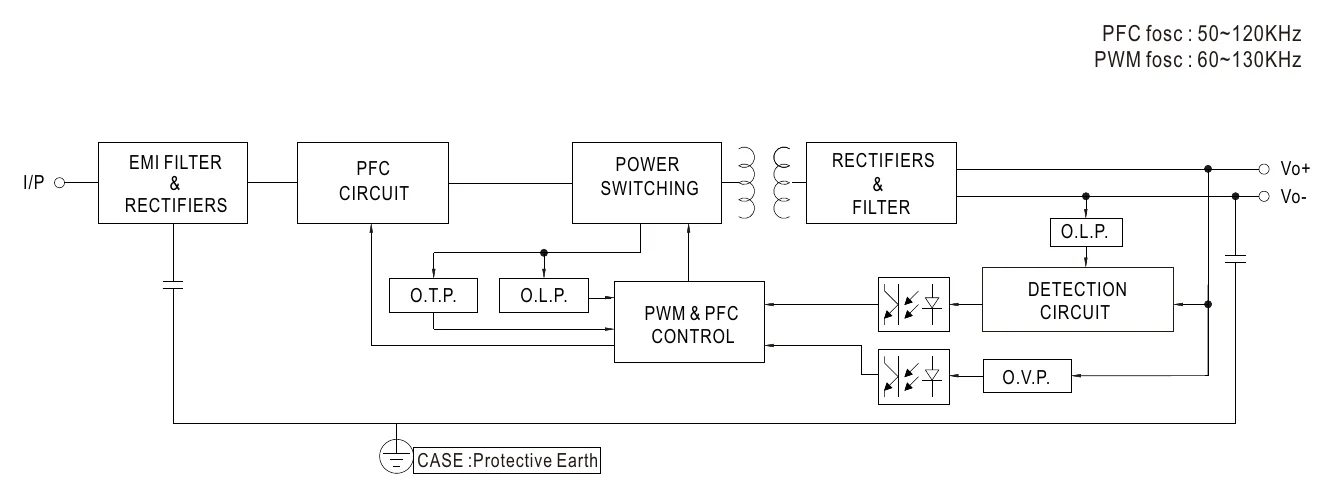

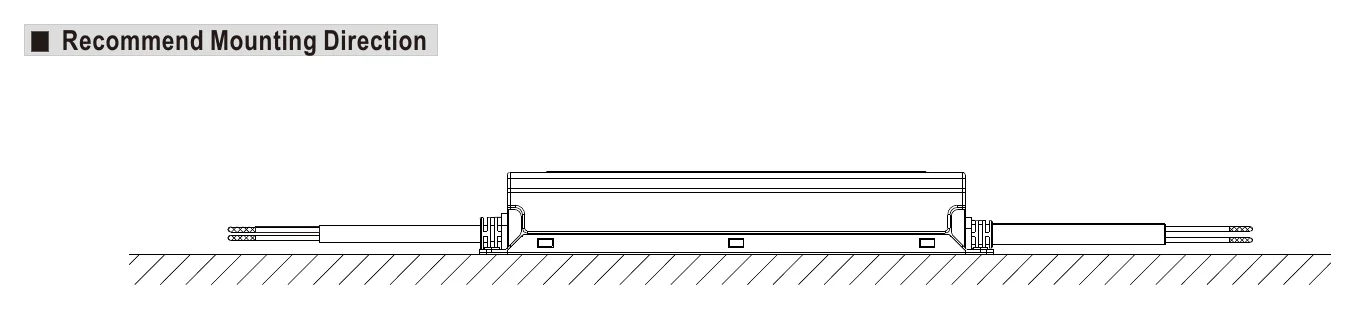

Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the ELG-100-48A to power 48V LED strip lighting in a commercial signage cabinet?
Yes. The ELG-100-48A outputs 48V at up to 2A (96W total), which suits 48V LED strip runs in enclosed signage cabinets. Its IP65 water-resistant rating also makes it suitable for cabinets exposed to occasional spray or washdown. Confirm your strip's rated wattage per meter does not exceed 96W in total.
Is the ELG-100-48A suitable for outdoor architectural LED installations?
The ELG-100-48A carries an IP65 water-resistant rating, so it withstands dust ingress and low-pressure water jets. It is appropriate for protected outdoor locations such as under eaves or inside weatherproof luminaire housings. For fully exposed outdoor use, the IP67-rated ELG-100-48B would be the better choice.
How much 48V LED strip can I run from the ELG-100-48A?
The ELG-100-48A delivers a maximum of 96W on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). Divide the wattage by your strip's rated watts per meter to get the maximum run length. For example, at 96W a 10 W/m strip could support up to 9.6 m from one driver. Always check your strip's rated power per meter and apply a 10–20% derating margin.
Can the ELG-100-48A drive 48V LED modules in retail display lighting?
Yes. The driver's 48V output and 96W capacity are well matched to 48V LED module arrays used in retail display or shelf lighting. The built-in potentiometer (voltage 43.2–52.8V, current 1–2A) allows fine-tuning of brightness levels without a separate dimmer for simple setups.
What is the operating temperature range of the ELG-100-48A, and can it run in unheated outdoor enclosures?
The ELG-100-48A is rated for a case temperature (Tcase) of -40°C to +90°C. It can operate in unheated outdoor enclosures in cold climates without issue. Ensure the enclosure allows adequate airflow, as the driver's output load must be derated at elevated temperatures.
How does the ELG-100-48A differ from other output voltages in the ELG-100 series?
The ELG-100 series covers output voltages of 24V (4A, 96W), 36V (2.66A, ~95.76W), 42V (2.28A, ~95.76W), 48V (2A, 96W), and 54V (1.78A, ~96.12W), all with adjustable-A variants at the same wattage. The ELG-100-48A is the 48V, 2A adjustable variant. Choose the voltage that matches your LED load's rated input voltage.
Can I use the ELG-100-48A for LED channel letter signage powered by 48V strips?
Yes. The ELG-100-48A suits LED channel letter signage where 48V strips are installed inside individual letter forms. Its 96W output supports moderate-sized letters or multiple smaller ones on a single driver. The IP65 rating provides additional protection for sign enclosures exposed to weather.
