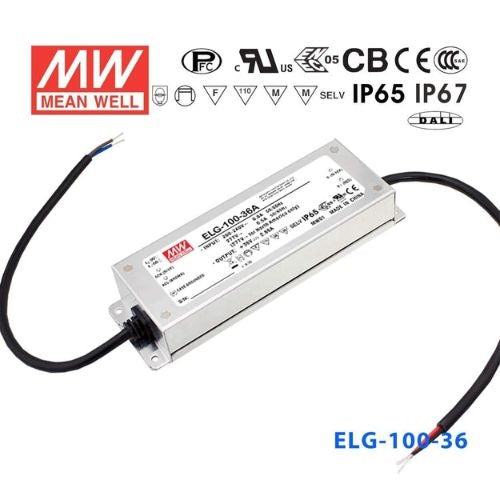

Mean Well ELG-100-36DA Power Supply 95.76W 36V - DALI 2.66A
Overview
ELG-100-36DA is the 36V output model of this series: rated current 2.66A, typical efficiency 89%.
ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.2
- 18 ~ 36V
- RATED CURRENT
- 2.66A
- RATED POWER 200VAC ~ 305VAC
- 95.76W
- RATED POWER 100VAC ~ 180VAC
- 70W
- RIPPLE & NOISE (max.)Note.3
- 250mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 32.4 ~ 39.6V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 1.33 ~ 2.66A
- VOLTAGE TOLERANCENote.4
- ±2.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
- HOLD UP TIME (Typ.)
- 15ms/115VAC 10ms/230VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT
- 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 41 ~ 48V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5mm (L*W*H)
- PACKING
- 0.85kg; 16pcs/14.2kg/0.72CUFT
Certifications & ratings
- Type
- HL
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 13. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I integrate the ELG-100-36DA into a DALI-based building lighting control system?
Yes. The DA suffix confirms this unit includes a DALI interface (IEC62386-101, 102), allowing it to be addressed and dimmed by a DALI lighting controller or BMS. It outputs 95.76W at 36V and 2.66A, and its IP67 rating supports installations in indoor or sheltered outdoor locations.
Is the ELG-100-36DA suitable for outdoor 36V LED installations with centralized DALI control?
Yes. With an IP67 waterproof rating and DALI dimming capability, the ELG-100-36DA can be deployed in outdoor 36V LED lighting systems — such as facade strips or architectural feature lighting — where DALI group or individually addressed dimming is required.
Can the ELG-100-36DA power 36V LED strip in a commercial office or hospitality space controlled by DALI?
Yes. DALI allows each driver to be individually addressed, making the ELG-100-36DA suitable for zone-controlled office, hotel, or restaurant LED lighting where individual circuit dimming is needed. It provides 95.76W at 36V, sufficient for a meaningful LED strip zone or luminaire group.
How many meters of 36V LED strip can the ELG-100-36DA power?
The ELG-100-36DA delivers up to 95.76W on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). Divide the wattage by your strip's rated power per meter to find the maximum run length. At 95.76W, a 36V strip at 11W/m allows approximately 8.7 meters. Always confirm your strip's rated power per meter and load totals before sizing.
Is the ELG-100-36DA suitable for a damp or outdoor installation environment?
Yes. The ELG-100-36DA is IP67 rated, meaning it is protected against dust and temporary water immersion. It is rated for a case temperature (Tcase) of -40°C to +90°C, making it appropriate for outdoor sheltered locations, parking structures, or damp indoor environments alongside DALI control infrastructure.
What is the difference between the ELG-100-36DA and the ELG-100-36DA-3Y?
Both are rated 95.76W at 36V / 2.66A (70W at 100–180VAC), accept 100–305VAC input, have a constant current region of 60%~100% of maximum voltage (DA-Type) and DALI dimming. The difference is the input wiring: the ELG-100-36DA-3Y has a 3-wire AC input with a green/yellow protective-earth (PE) lead, while the ELG-100-36DA has a 2-wire input. For warranty terms, refer to the warranty statement on MEAN WELL's website.
