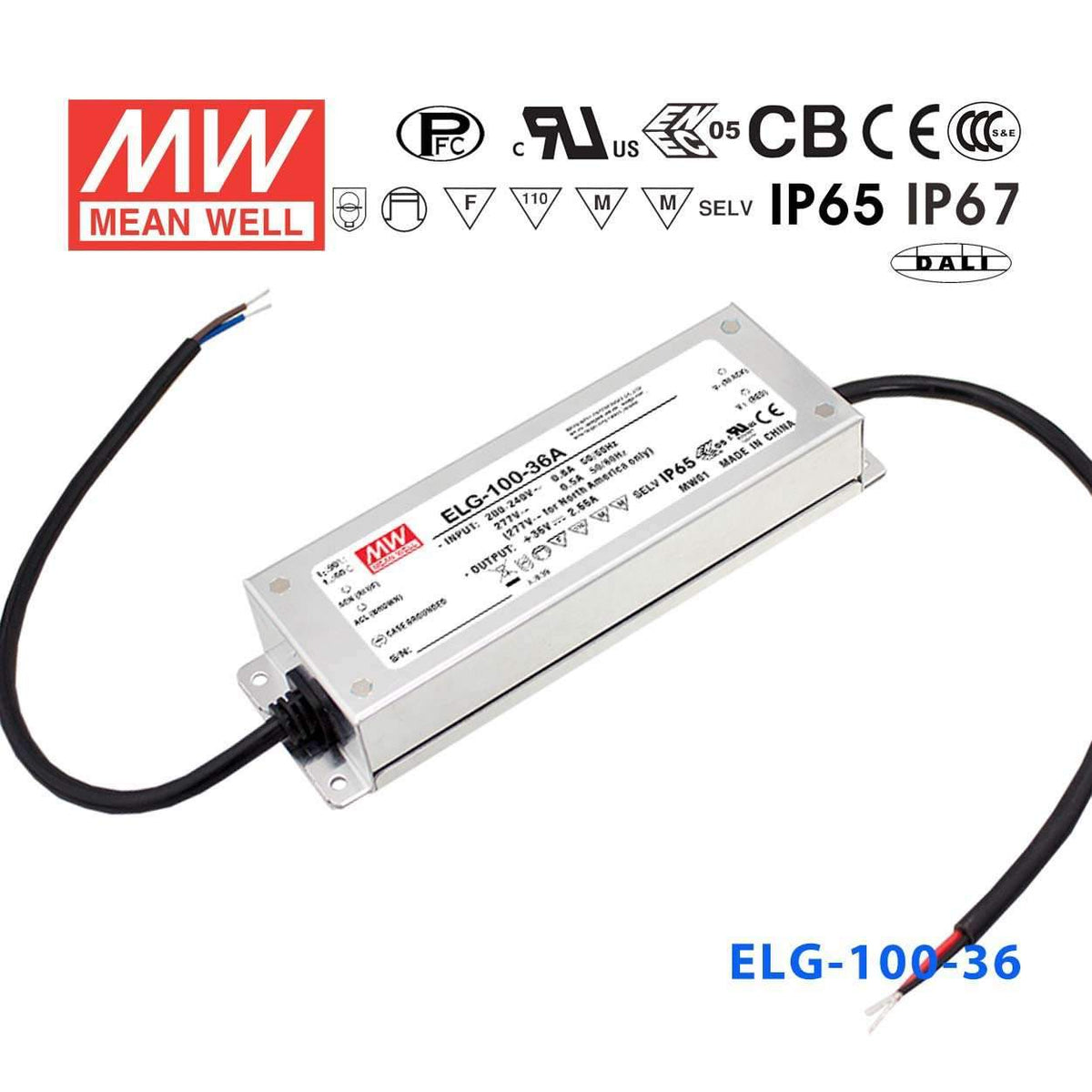

Mean Well ELG-100-36AB Power Supply 100W 36V - Adjustable and Dimmable 2.66A

$45.10 USD
Shipping calculated at checkout.
Model
|

Your order will be processed within 24 hours

Overview

ELG-100-36AB is the 36V output model of this series: rated current 2.66A, typical efficiency 89%.

ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

ELG-100-36ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE
36V
CONSTANT CURRENT REGIONNote.2
18 ~ 36V
RATED CURRENT
2.66A
RATED POWER 200VAC ~ 305VAC
95.76W
RATED POWER 100VAC ~ 180VAC
70W
RIPPLE & NOISE (max.)Note.3
250mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 32.4 ~ 39.6V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 1.33 ~ 2.66A
VOLTAGE TOLERANCENote.4
±2.5%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.6
1000ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.)
15ms/115VAC 10ms/230VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
89%
AC CURRENT
1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
41 ~ 48V Shut down output voltage, re-power on to recover
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*63*35.5mm (L*W*H)
PACKING
0.85kg; 16pcs/14.2kg/0.72CUFT

Certifications & ratings

Type
HL
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  9. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  13. 13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-36AB Block Diagram
Block Diagram
ELG-100-36AB DIMMING OPERATION
DIMMING OPERATION
ELG-100-36AB OUTPUT LOAD vs TEMPERATURE(Note.9)
OUTPUT LOAD vs TEMPERATURE(Note.9)
ELG-100-36AB STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-100-36AB TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-100-36AB LIFE TIME
LIFE TIME
ELG-100-36AB Mechanical Specification
Mechanical Specification
ELG-100-36AB ※ AB-Type
※ AB-Type
ELG-100-36AB ※ B/DA-Type
※ B/DA-Type
ELG-100-36AB ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
ELG-100-36AB Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the ELG-100-36AB with a 1-10V wall dimmer to control 36V LED strip brightness?

The ELG-100-36AB's dimming input is specified for 0-10VDC, 10V PWM and resistance signals, so a wall dimmer or lighting controller that provides a 0-10VDC signal can vary the 36V LED strip output; check that your dimmer is compatible. It also has a built-in potentiometer for setting the output voltage and current level before the dimmer range is applied.

Is the ELG-100-36AB a good choice for a BMS or building automation system controlling 36V LED fixtures?

Yes. Its 0-10V dimming input works with building automation lighting outputs that provide a 0-10V signal. Combined with 95.76W at 36V and adjustable output, it gives both automated percentage control and a fixed maximum set point, which is useful in office or commercial LED lighting systems.

Can the ELG-100-36AB power 36V LED strip for museum or gallery accent lighting with dimming?

Yes. The combination of PWM/0-10V/resistance dimming and adjustable current output makes the ELG-100-36AB suitable for display and accent lighting where precise brightness control is important. At 95.76W and 36V it can supply a substantial LED strip run in a gallery or retail showroom.

How many meters of 36V LED strip can the ELG-100-36AB drive?

The ELG-100-36AB provides up to 95.76W at 36V on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). Divide the wattage by your strip's power per meter to get the maximum run. For a strip rated at 12W/m, that is approximately 7.98 meters at 95.76W. Always check your strip's rated power per meter and stay within the rated total load.

Is the ELG-100-36AB waterproof enough for a damp equipment room or covered outdoor soffit?

The ELG-100-36AB is IP65 rated, protecting against low-pressure water jets and full dust ingress. This is adequate for damp indoor environments and covered outdoor locations. For fully exposed outdoor rain or wet-location use, the IP67-rated ELG-100-36B or ELG-100-36 would provide a higher level of protection.
