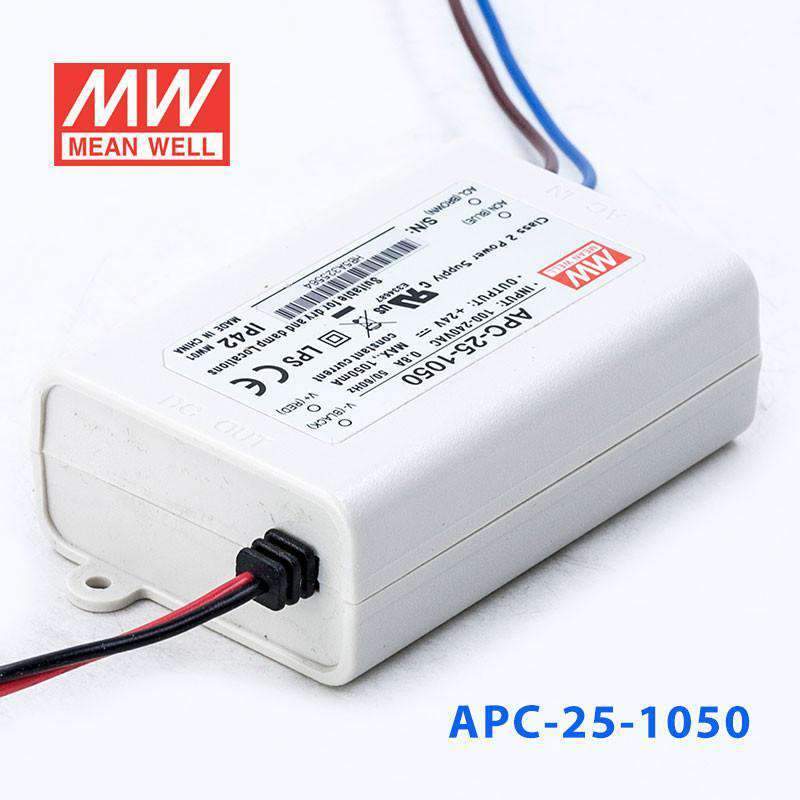

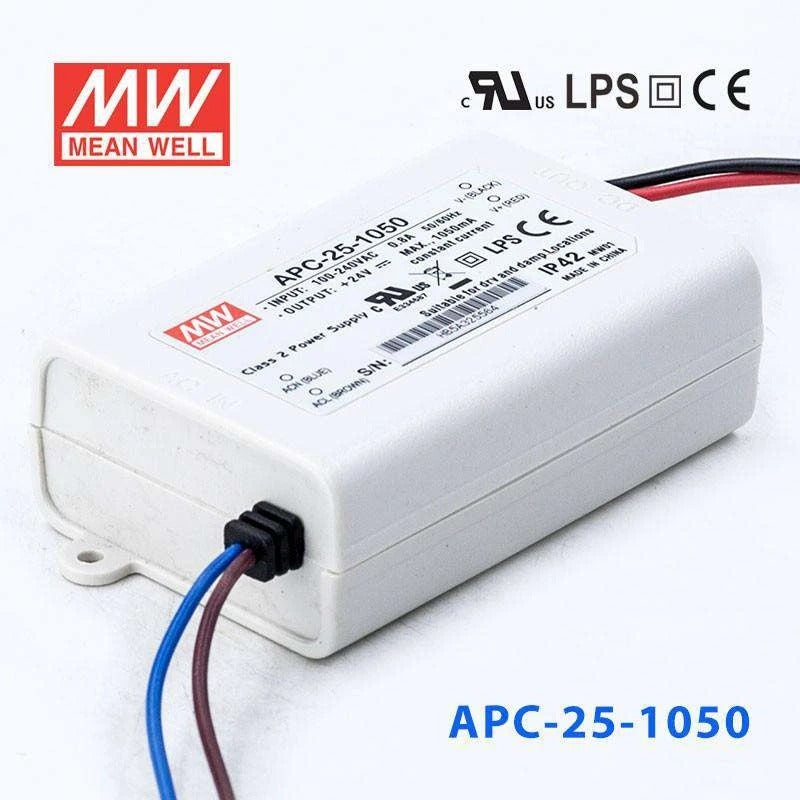

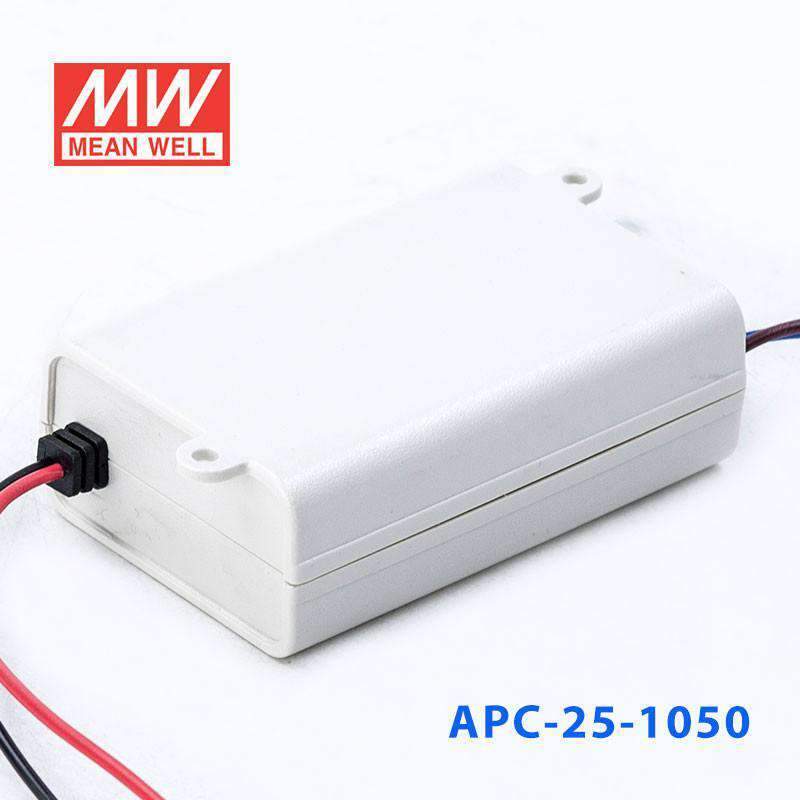

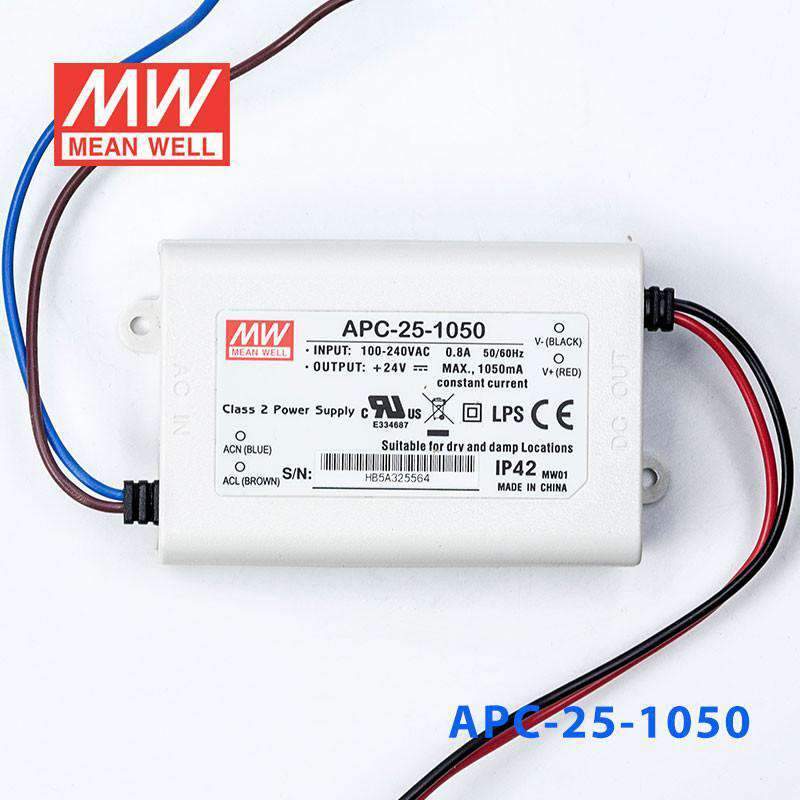

Mean Well APC-25-1050 Power Supply 25W 1050mA
Overview
APC-25-1050 is the model of this series: rated current 1050mA, rated power 25.2W, typical efficiency 83%.
Features
- Constant current mode power supply
- Universal AC input / Full range
- Withstand 300VAC Surge input for 5 seconds
- Protections:Short circuit / Over voltage
- Fully isolated plastic case
- Small and compact size
- Cooling by free air convection
- IP42 design
- 100% full load burn-in test
- Display devices for decorative & advertising accessories (Note.6)
- Low cost / High reliability
- 2 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1050mA
- DC VOLTAGE RANGE
- 9~24V
- RATED POWER
- 25.2W
- CURRENT RIPPLE
- 5.0%
- CURRENT ACCURACY
- ±8.0%
- SETUP, RISE TIME
- 1500ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 83%
- AC CURRENT
- 0.4A/230VAC;0.8A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 27 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ 70℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.2%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), BIS IS15885(except for APC-25-350), EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 504.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 84*57*29.5(L*W*H)
- PACKING
- 0.13Kg; 72pcs/10.4Kg/0.92CUFT
Certifications & ratings

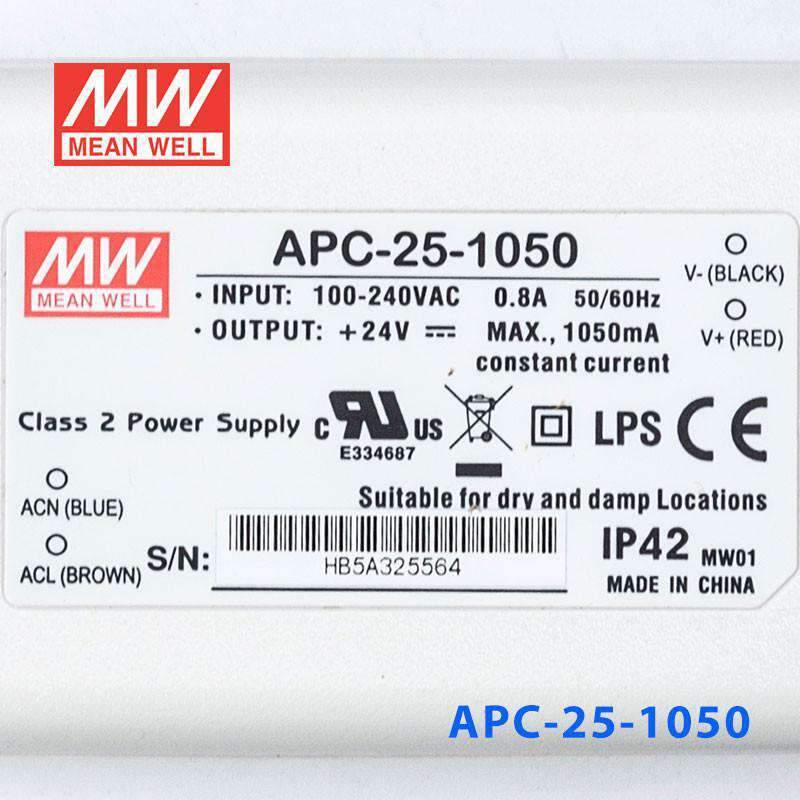

- Marked features
- IP42 LPS
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Derating may be needed under low input voltage. Please check the static characteristic for more details.
- 3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 6. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
Technical drawings
Downloads
FAQ
What kinds of LED applications is the APC-25-1050 designed for?
The Mean Well APC-25-1050 is designed for constant-current LED lighting and moving sign applications that need a 1050mA drive current. With 25.2W rated power, it has the highest output current in the APC-25 series and fits higher-current LED loads within its 9~24V range.
Is the APC-25-1050 a good fit for 1050mA LED loads?
Yes. The APC-25-1050 is built as a 1050mA constant-current driver, so it should be paired with LED loads designed for that current level. The connected LED load also needs to stay within the driver's output capability and rated power.
Can the APC-25-1050 be used for indoor LED sign and lighting assemblies?
Yes. The APC-25-1050 suits LED lighting and moving sign applications, so indoor sign lighting, linear LED assemblies, and other constant-current LED loads can be suitable when their electrical requirements match the driver's 1050mA design.
Will the APC-25-1050 operate from standard AC mains?
Yes. The listed AC input range is 90-264VAC, so the APC-25-1050 can run from common 120V and 240V AC mains systems within that range. That helps simplify deployment across different sites.
Is the APC-25-1050 intended for direct outdoor use?
No. The APC-25-1050 is rated IP42, so it is intended for indoor use or protected enclosures rather than direct exposure to weather. Its working temperature range is listed as -30°C to +70°C (refer to the derating curve), but ingress protection still needs to be addressed separately.
How does the APC-25-1050 compare with other APC series drivers?
The APC-25-1050 provides 25.2W at 1050mA, while the APC-25-700 and APC-25-500 provide the same 25.2W at lower current levels, and the APC-25-350 provides 24.5W at 350mA. The main choice is matching the driver current to the LED load and selecting enough power margin.
