Mean Well XLC-60-48-MAS LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 1.25A

Name: Mean Well XLC-60-48-MAS LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 1.25A
Brand: Mean Well
SKU: XLC-60-48-MAS
Price: 170.1 USD
Availability: InStock

$170.10 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

XLC-60-48-MAS is the 48V output model of this series: rated power 60W, typical efficiency 88%.

XLC-60-MA series is a 60W with constant power and constant voltage output LED driver . It can operate from 100~305V AC and output current ranging between 900 mA to 1700 mA selectable by DIP switch. Thanks to high efficiency up to 90%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-60-MA series is designed based on latest safety regulations with matter wireless dimming .It provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by DIP switch (H-type)
Constant voltage mode output(12/24/48V)
Plastic housing with class Ⅱ and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (12/24/48V)
Minimum dimming level 0.5% (H-type)
Matter over thread, Matter 1.3 specification
5 years warranty

Specifications

XLC-60-48-MASSpecifications from the official datasheet (2025-03-11 edition)

OUTPUT

DC VOLTAGE: 48V
DEFAULT CURRENT: 1.25A
RATED POWER^{Note.2 (12/24/48V), Note.4 (H)}: 60W
SETUP, RISE TIME^{Note.3 (12/24/48V), Note.6 (H)}: 2500ms,180ms/230VAC ,2500ms,180ms/115VAC

INPUT

VOLTAGE RANGE: 100~305VAC 155~400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.95/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC); THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY(Typ.)^{Note.7 (H)}: 88%
AC CURRENT: 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
INRUSH CURRENT: COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^{Note.4 (12/24/48V), Note.9 (H)}: Standby power consumption<0.5W (Dimming off)

PROTECTION

OVERLOAD: 105~200% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed.
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 52~63V; Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations (DC input 176-280VDC); BS EN/EN62384 , GB/T 19510.1, GB/T 19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE: I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

MATTER STANDARD: Matter 1.3 Specification
FLICKER^{Note.7 (12/24/48V), Note.10 (H)}: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 4130.5K hrs min. Telcordia SR-332 (Bellcore) 317.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 176*45*32mm , 136*45*32mm (L*W*H)
PACKING: 0.28Kg; 40pcs/12Kg/0.48CUFT(for Blank type); 0.30Kg; 40pcs/13Kg/0.63CUFT(for S-type);

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. Efficiency is measured at 1050mA/54V output set by DIP switch.
8. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
9. Standby power consumption is measured at 230VAC.
10. Flicker is measured at full load with the light source provided by MEAN WELL.
11. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. This series meets the typical life expectancy of 50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about75℃ or less.
14. For more information, please contact with MEAN WELL sales.

Technical drawings

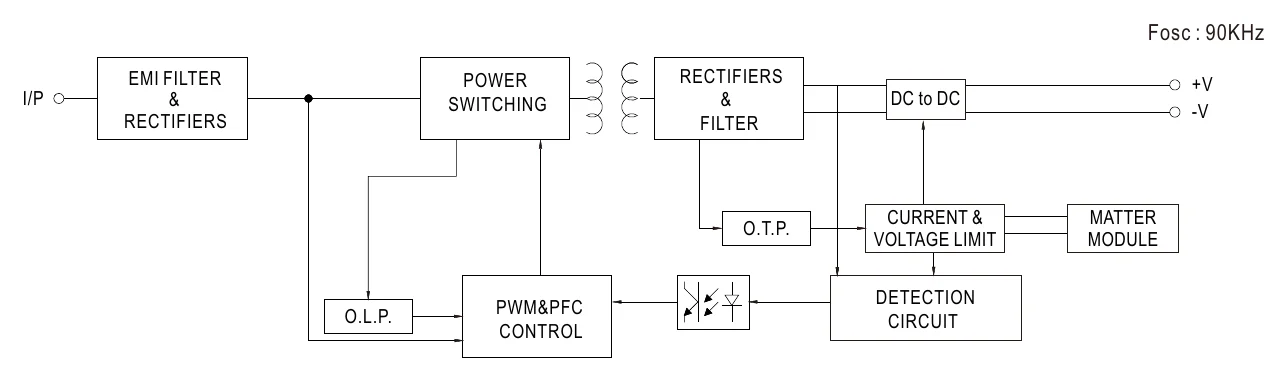

XLC-60-48-MAS BLOCK DIAGRAM — BLOCK DIAGRAM

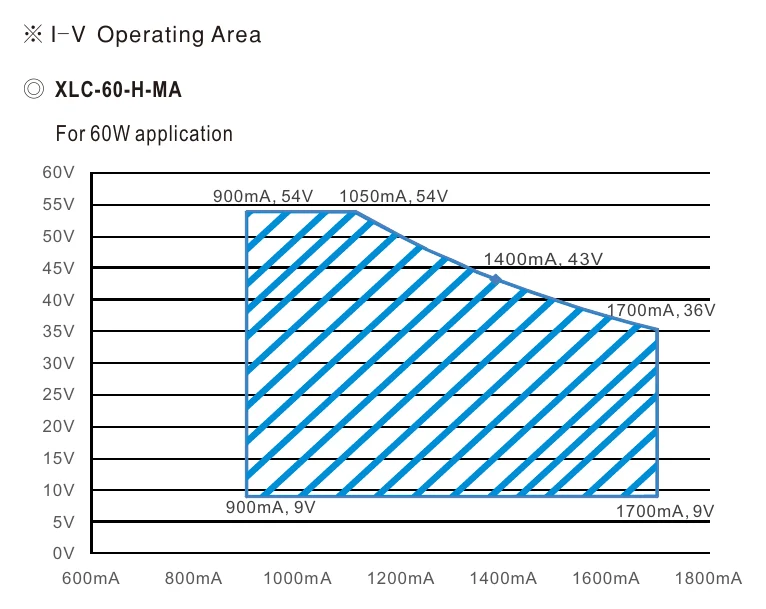

XLC-60-48-MAS DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

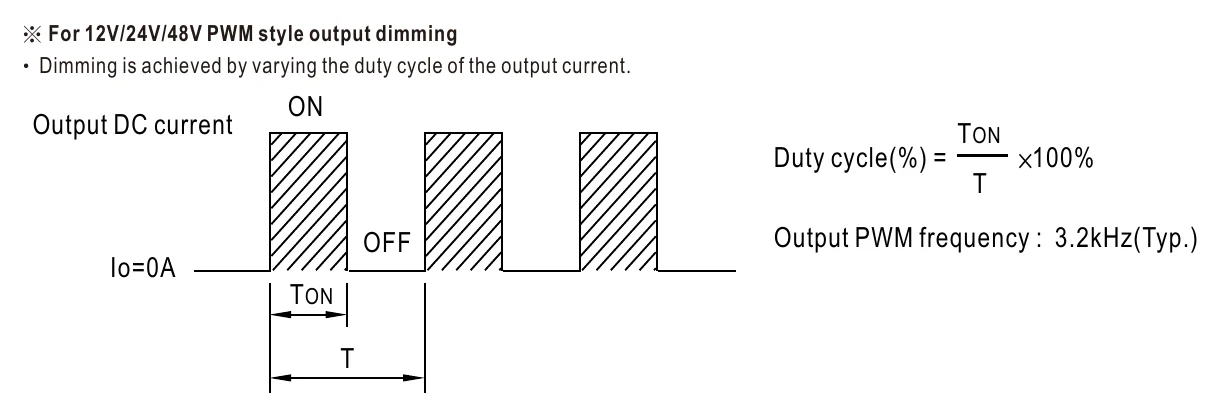

XLC-60-48-MAS PWM OUTPUT DIMMING PRINCIPLE — PWM OUTPUT DIMMING PRINCIPLE

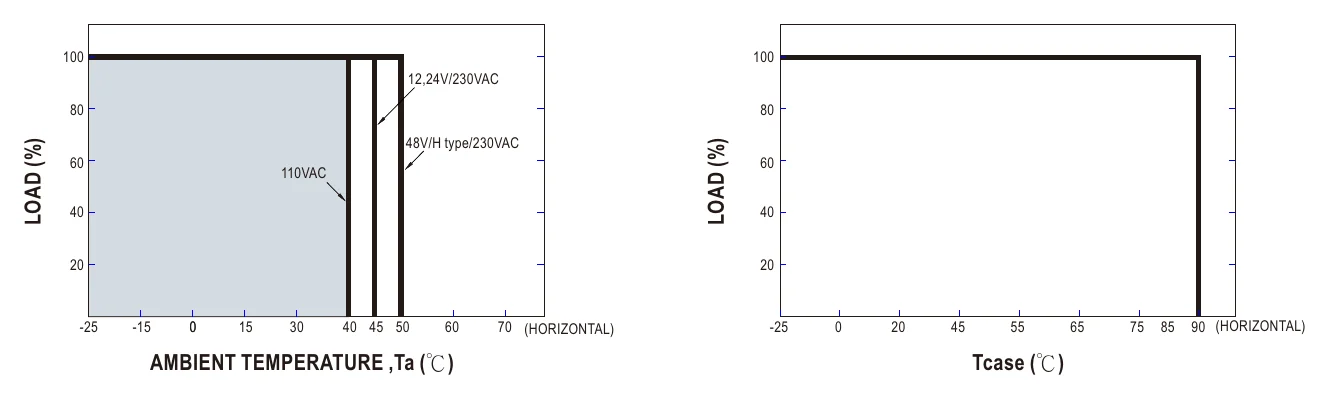

XLC-60-48-MAS OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

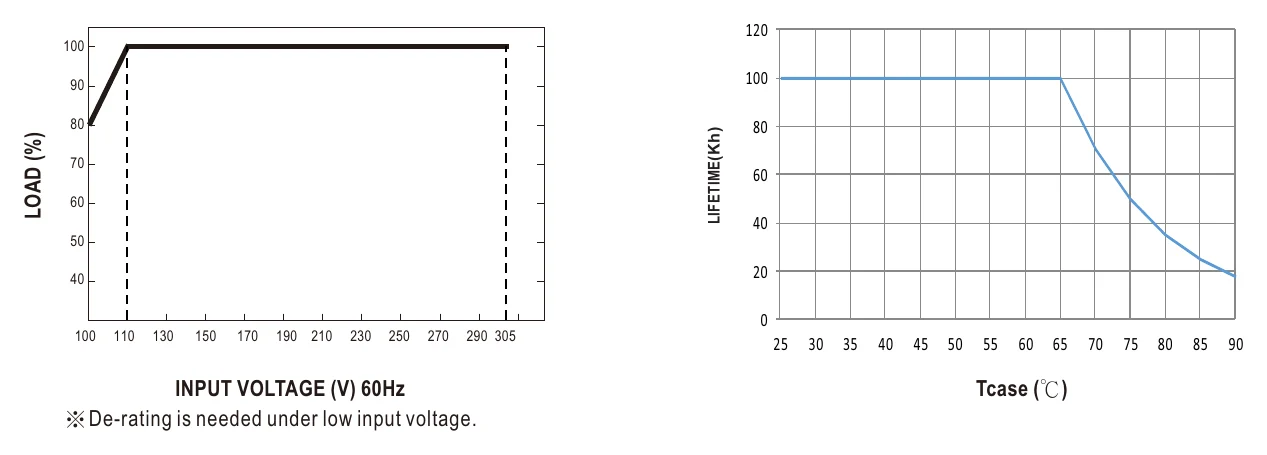

XLC-60-48-MAS STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

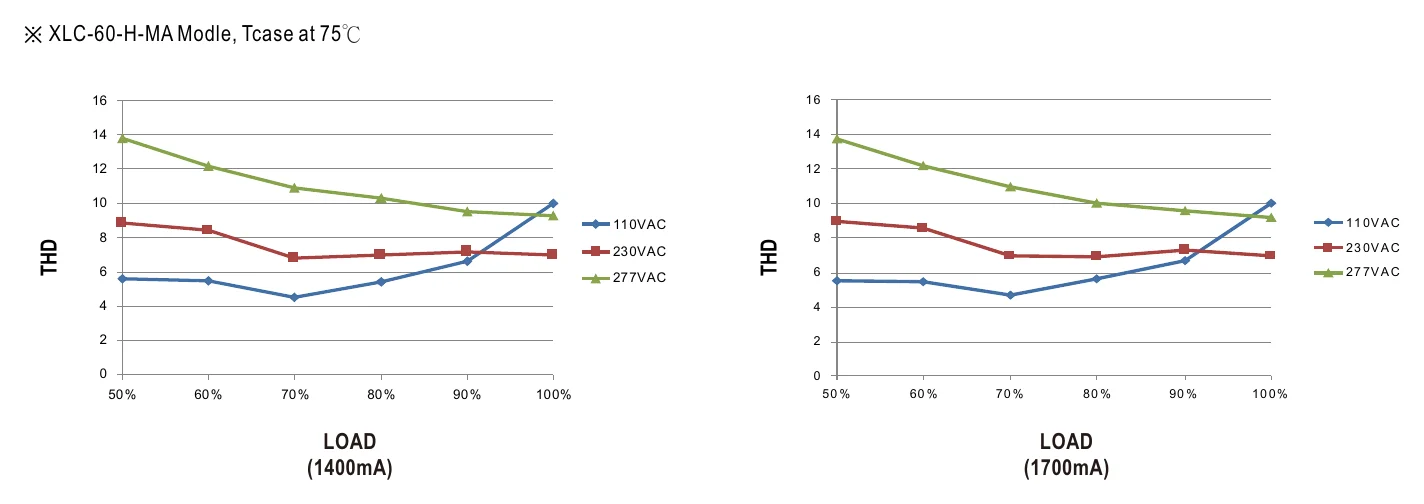

XLC-60-48-MAS TOTAL HARMONIC DISTORTION (THD) — TOTAL HARMONIC DISTORTION (THD)

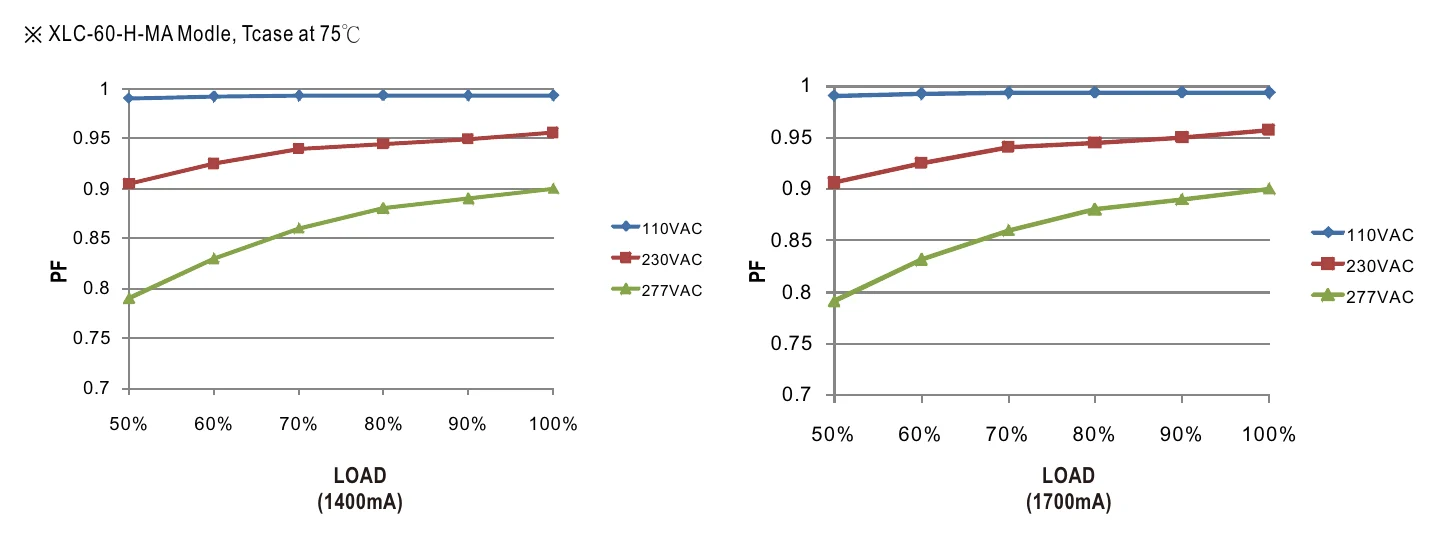

XLC-60-48-MAS POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

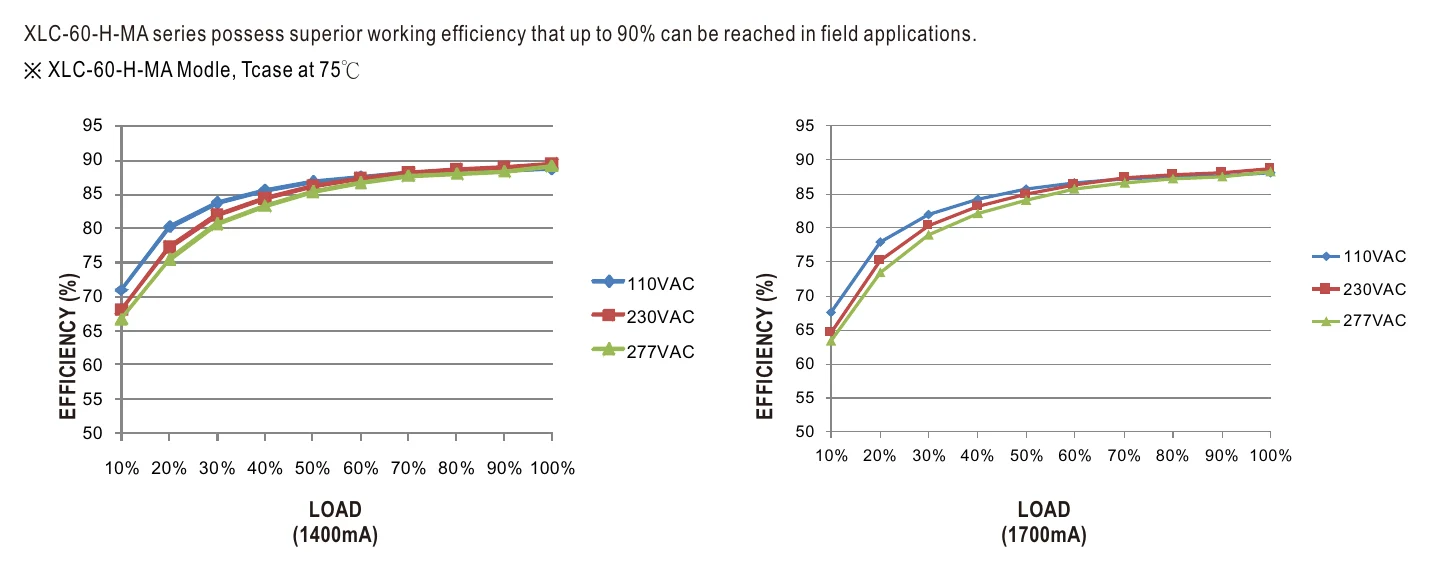

XLC-60-48-MAS EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

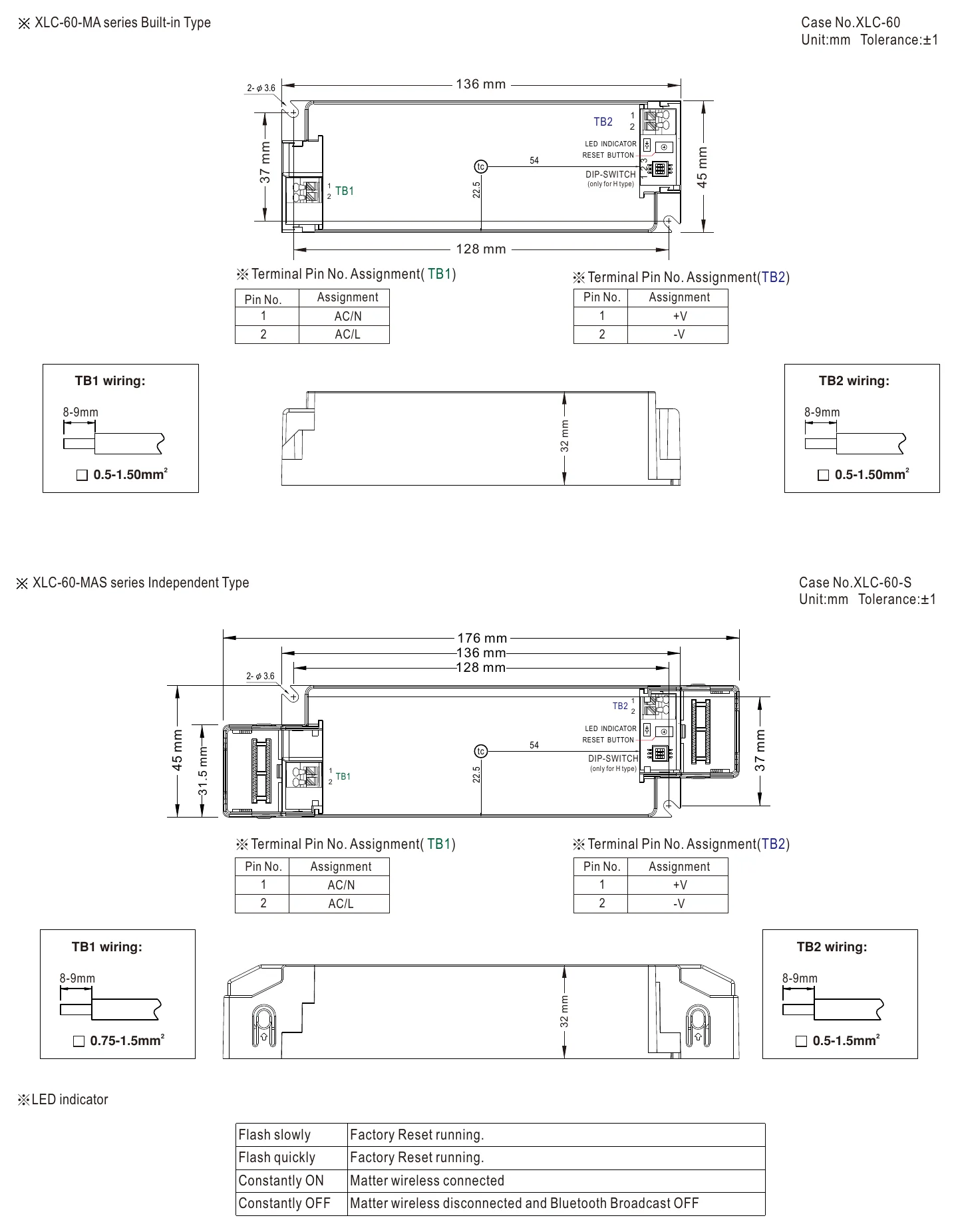

XLC-60-48-MAS MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

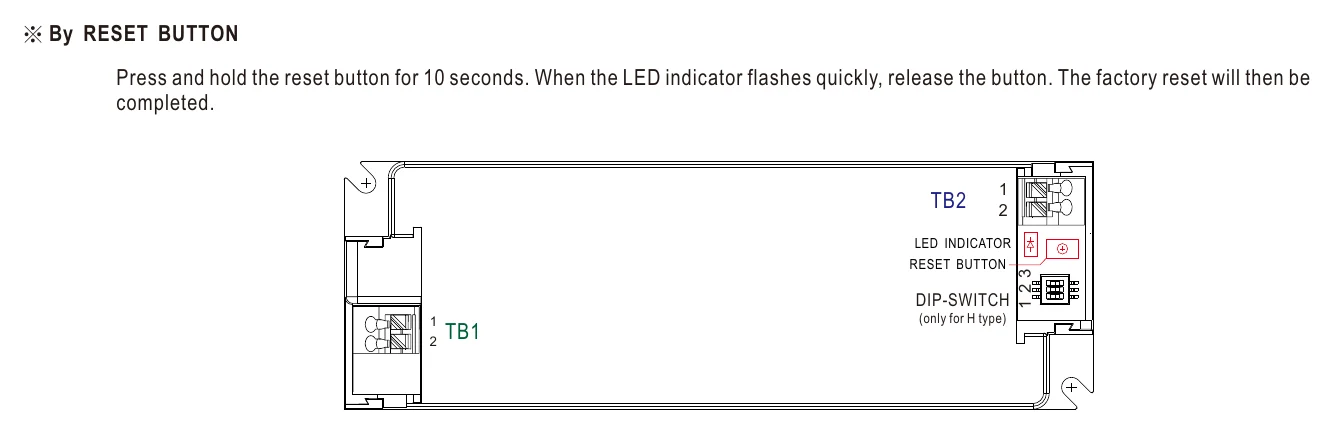

XLC-60-48-MAS ※ By RESET BUTTON — ※ By RESET BUTTON

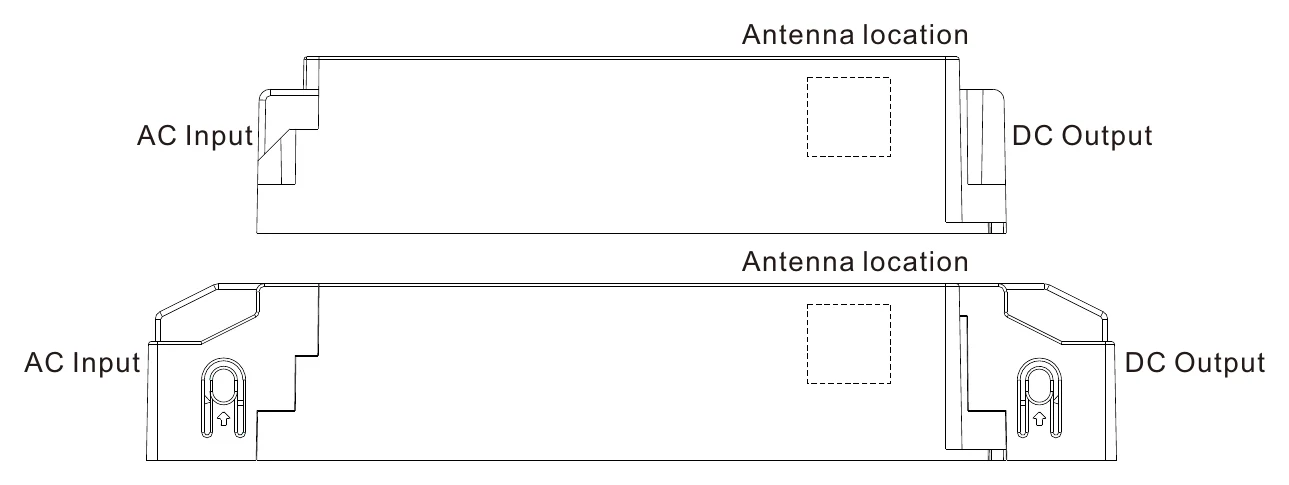

XLC-60-48-MAS Antenna location — Antenna location

Typical applications

Downloads

Datasheet1

XLC-60-48-MAS datasheetXLC_60_MA_MAS_spec_sheet.pdf · 2025-03-11 edition PDF Download

FAQ

Can the XLC-60-48-MAS dim 48V LED strips wirelessly through a Matter smart home system?

Yes, the XLC-60-48-MAS supports Matter 1.3 wireless dimming and can reduce output down to a minimum level of 0.1%. It integrates with any Matter-compatible hub or controller, enabling scene-based or automated brightness control of connected 48V LED strips without a separate in-wall dimmer.

Is the XLC-60-48-MAS a good fit for hospitality or commercial lighting using 48V LED strip?

The XLC-60-48-MAS suits commercial environments that need wireless dimming and secure cable management. Its 60W, 48V output powers typical high-density 48V LED strips, and the built-in strain-relief fitting reduces mechanical stress on output cables in applications where the driver is mounted in accessible service panels or ceiling voids. Note that as an Independent type (S-type), it is not suitable for residential installations.

What is the advantage of the strain-relief fitting on the XLC-60-48-MAS compared to the XLC-60-48-MA?

The XLC-60-48-MAS adds a factory-fitted strain-relief cable fitting to the same 60W, 48V, 1.25A Matter-dimmable driver. This fitting mechanically secures the output cable at the housing, reducing the risk of connector damage from cable movement or pulling in installations where cables are routed through conduit or under tension. The MAS model is an Independent type, whereas the MA model is a Built-in type.

How much 48V LED strip can the XLC-60-48-MAS power?

With a 60W maximum output, the XLC-60-48-MAS can drive 48V LED strip up to the length where total load reaches 60W. For a strip rated at 12W/m, that is 5 meters; for a strip rated at 20W/m, that is 3 meters. Always verify your strip's rated wattage per meter before finalising the run length.

Is the XLC-60-48-MAS suitable for installations inside enclosed luminaires or junction boxes?

The XLC-60-48-MAS is rated for built-in use as a Class II driver and operates from -25°C to +90°C case temperature. It can be installed inside luminaires, junction boxes, or ceiling voids where it will not be directly exposed to moisture. It does not carry an IP rating, so it requires an enclosure in damp or outdoor locations. Note that as an Independent type (S-type), it is not suitable for residential installations.

Does the XLC-60-48-MAS operate on 100VAC input circuits?

The XLC-60-48-MAS accepts input from 100 to 305VAC, covering 100VAC (Japan), 120VAC (North America), and 220–240VAC (Europe and international) supply. Matter wireless dimming operates within the specified input range. This broad input range makes the driver deployable across most global markets.
