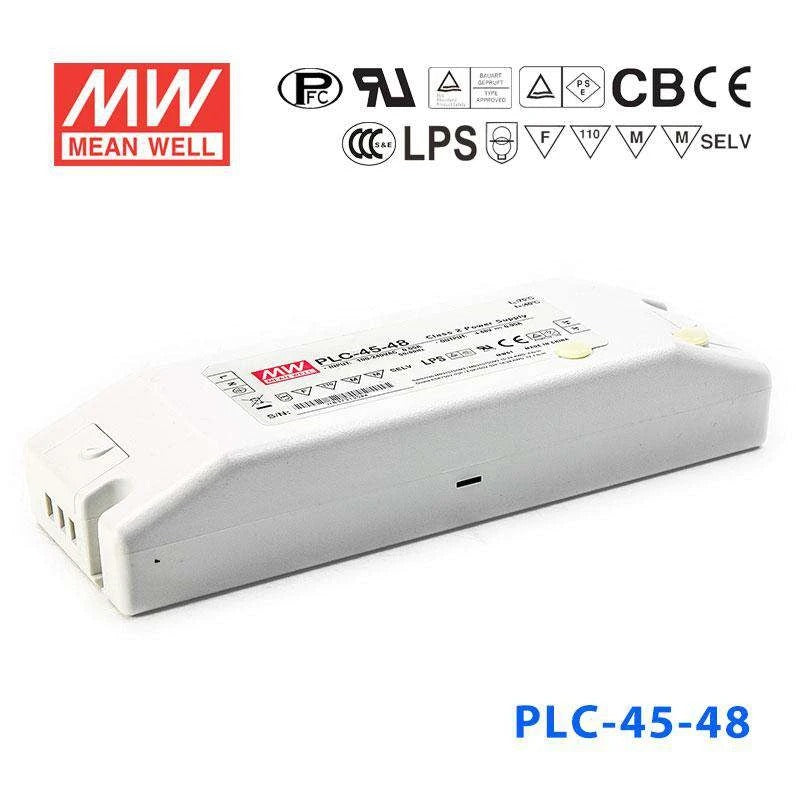

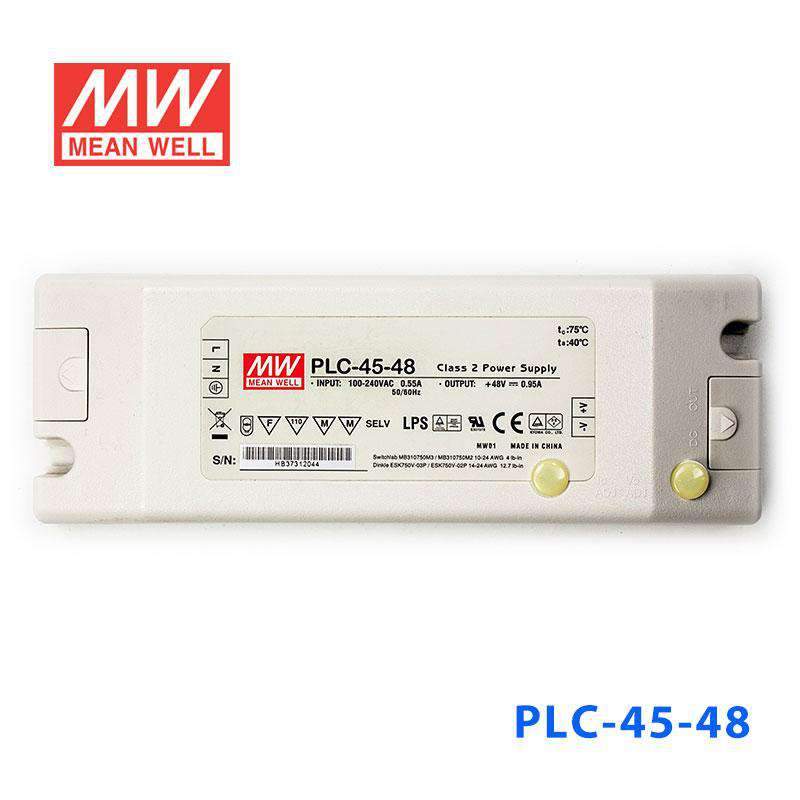

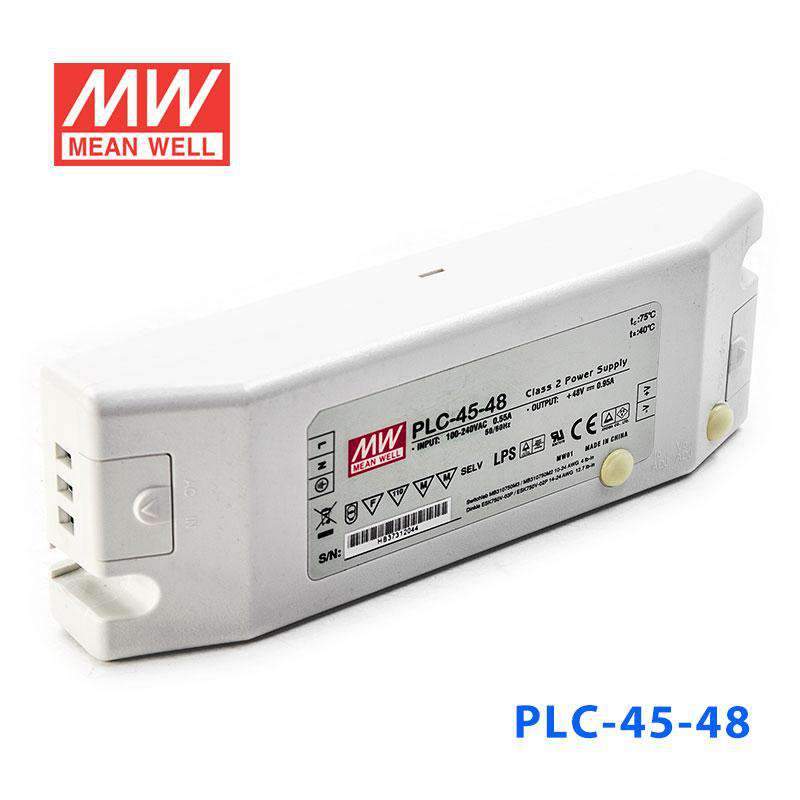

Mean Well PLC-45-48 Power Supply 45W 48V - PFC 950mA

Name: Mean Well PLC-45-48 Power Supply 45W 48V - PFC 950mA
Brand: Mean Well
SKU: PLC-45-48
Price: 41.06 USD
Availability: InStock

$41.06 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

PLC-45-48 is the 48V output model of this series: rated current 0.95A, rated power 45.6W, typical efficiency 87.5%.

Features

Universal AC input / Full range
Adjustable output voltage and current level
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Fully isolated plastic case with terminal block style of I/O
Built-in active PFC function, comply with BS EN/EN61000-3-2 class C (≧75% load)
Class 2 power unit
Pass LPS
100% full load burn-in test
High reliability

Specifications

PLC-45-48Specifications from the official datasheet (2024-09-25 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.6: 36 ~ 48V
RATED CURRENT: 0.95A
CURRENT RANGE: 0 ~ 0.95A
RATED POWER: 45.6W
RIPPLE & NOISE (max.)^Note.2: 4.6Vp-p
VOLTAGE ADJ. RANGE^Note.5: 43.6 ~ 51.8V
CURRENT ADJ. RANGE^Note.5: 0.713 ~ 0.979A
VOLTAGE TOLERANCE^Note.3: ±10%
LINE REGULATION: ±3.0%
LOAD REGULATION: ±5.0%
SETUP TIME: 500ms / 230VAC 1200ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.92/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧75% at 115VAC/230VAC input
EFFICIENCY (Typ.): 87.5%
AC CURRENT (Typ.): 0.55A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 54 ~ 60V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 3444.5K hrs min. Telcordia SR-332 (Bellcore) 417.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 181.5*62*35mm (L*W*H)
PACKING: 0.41Kg; 30pcs/13.3Kg/0.67CUFT

Certifications & ratings

Marked features: FC

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
6. Please refer to "DRIVING METHODS OF LED MODULE".
7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)

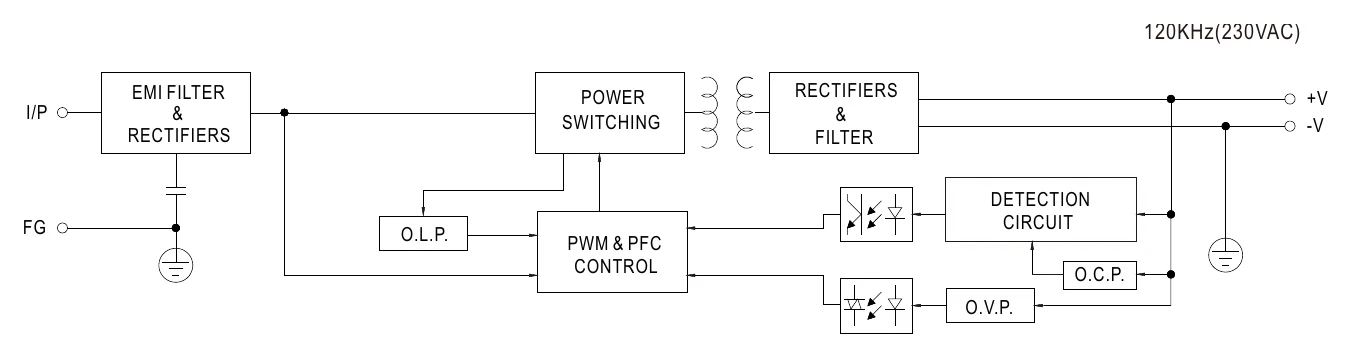

Technical drawings

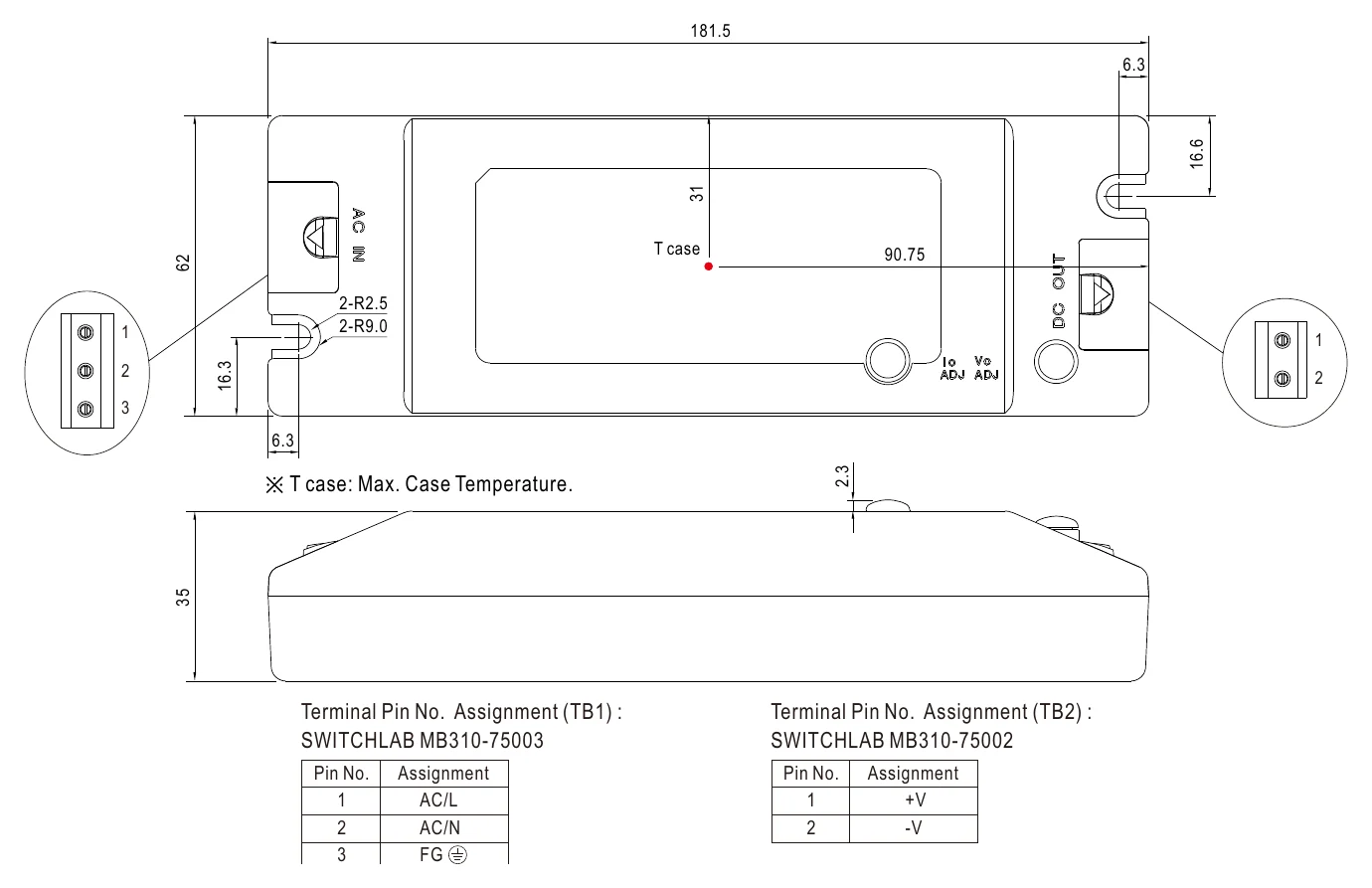

PLC-45-48 Mechanical Specification — Mechanical Specification

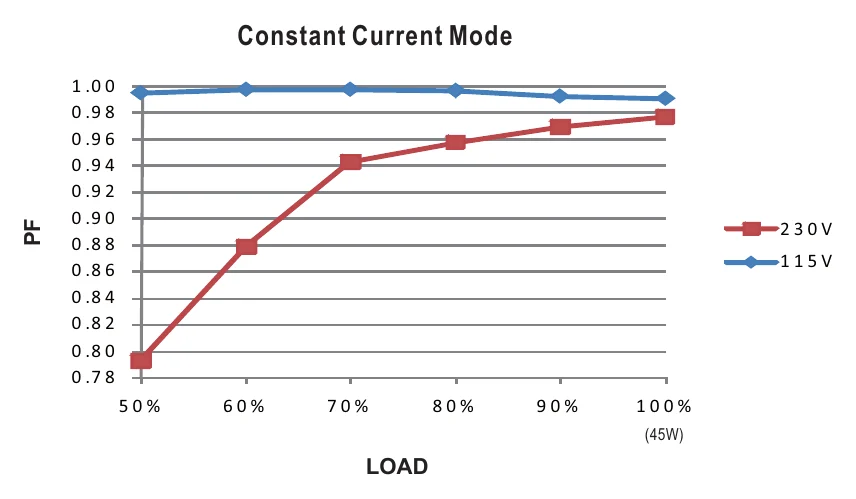

PLC-45-48 Power Factor Characteristic — Power Factor Characteristic

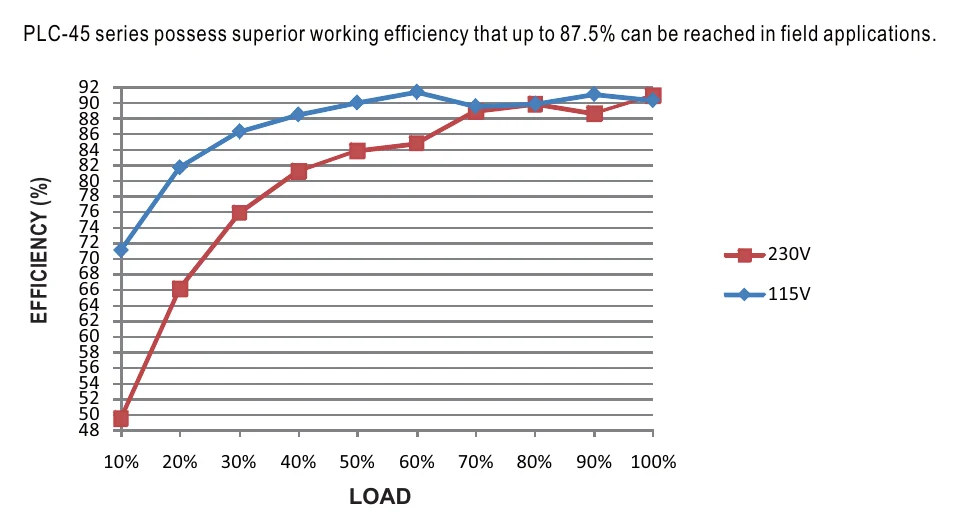

PLC-45-48 EFFICIENCY vs LOAD (48V Model) — EFFICIENCY vs LOAD (48V Model)

Typical applications

Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
2 years warranty

Downloads

Certificates6

PSE Certificate(PLC-45)(EN) PDF Download

EMC Certificate(PLC-45)(EN) PDF Download

CB Certificate(PLC-45)(EN) PDF Download

UL Certificate(PLC-45)(EN) PDF Download

TUV Certificate(PLC-45)(EN) PDF Download

CCC Certificate(PLC-45)(CN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What is the output of the Mean Well PLC-45-48?

The PLC-45-48 is rated for 45.6W output with a nominal 48V DC output. Its rated current is 0.95A, making it suitable for 48V applications that fit within that power and current range.

What types of applications is the PLC-45-48 designed for?

This model is described as suitable for LED lighting and moving sign applications. Its constant-voltage design with built-in constant-current limiting also makes it relevant for buyers looking for a protected 48V power supply in those categories.

Does the Mean Well PLC-45-48 include power factor correction?

Yes, this model includes built-in active PFC. The listed specification states PF above 0.92 at 115VAC and above 0.9 at 230VAC at full load, which can be important for commercial and OEM purchasing requirements.

Can the output voltage or current be adjusted on the PLC-45-48?

Yes, output voltage is adjustable from 43.6 to 51.8V via SVR1 and the constant current level from 0.713 to 0.979A via SVR2 on the PCB. That gives some flexibility when selecting this model for a 48V application, while still staying within the unit's rated operating range.

What operating temperature range is specified for the PLC-45-48?

The specified operating temperature range is -30°C to 50°C. Buyers evaluating this unit for indoor or enclosure-based use should confirm their environment stays within that stated range.

Does the PLC-45-48 support dimming control?

No dimming control is listed for this model. If your project requires dimming, this is a point to verify carefully against alternative LED driver options before purchase.
