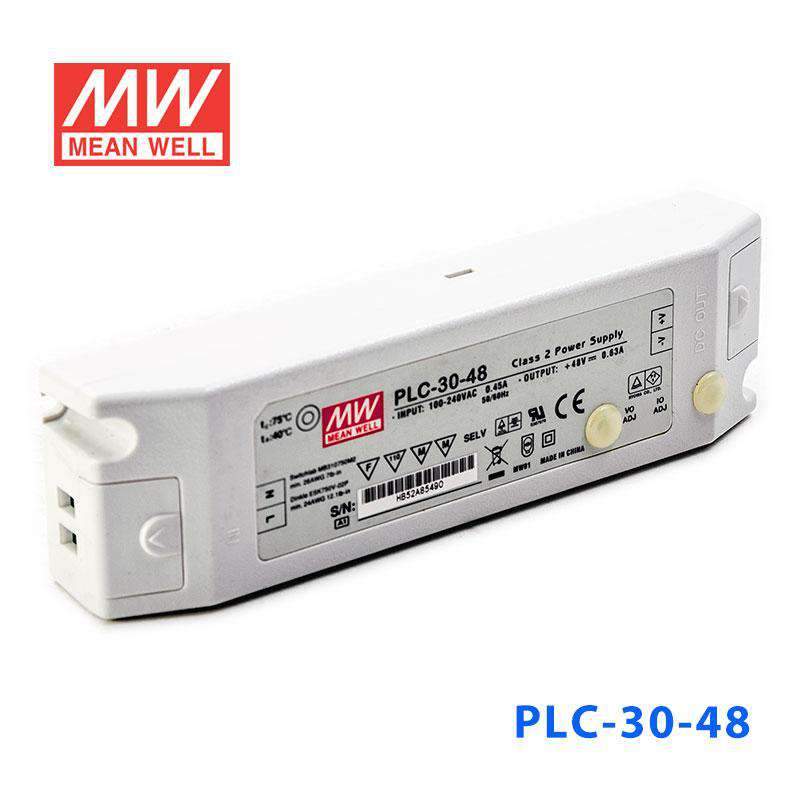

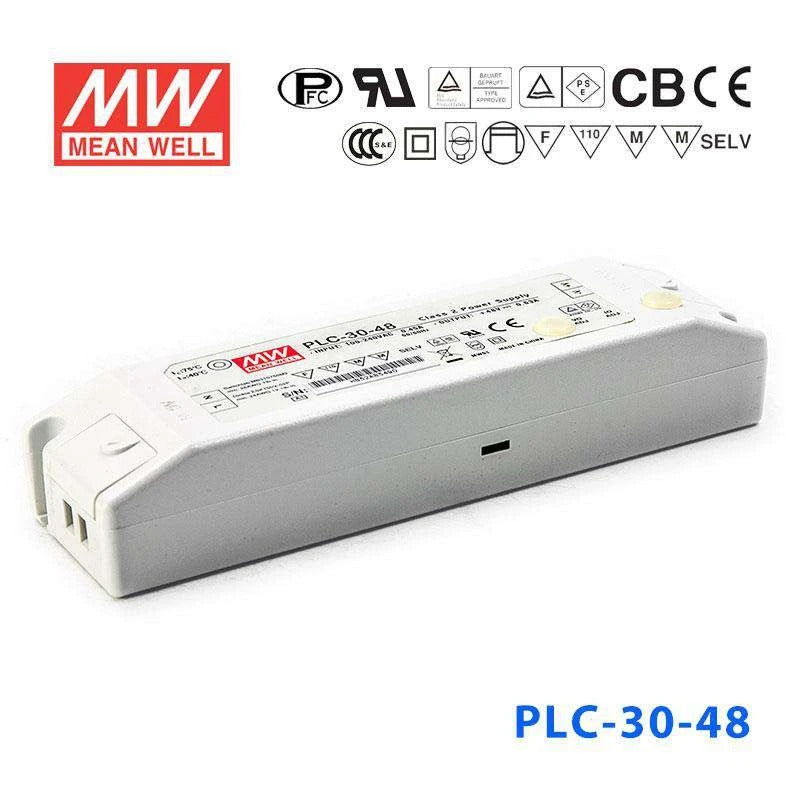

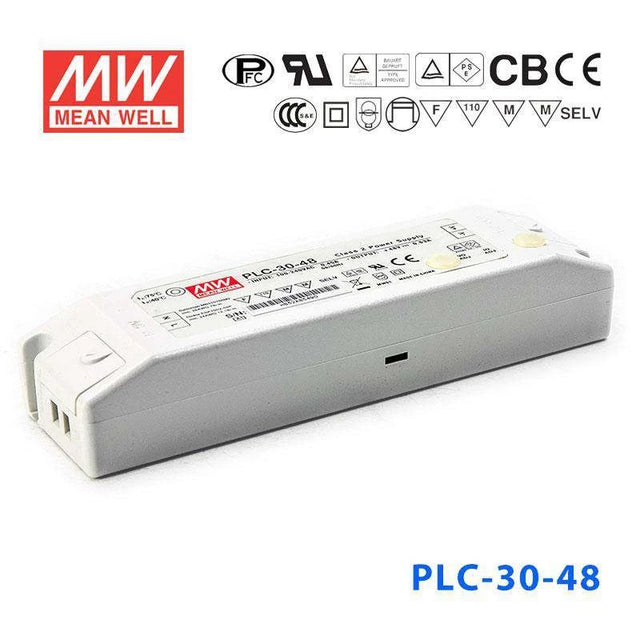

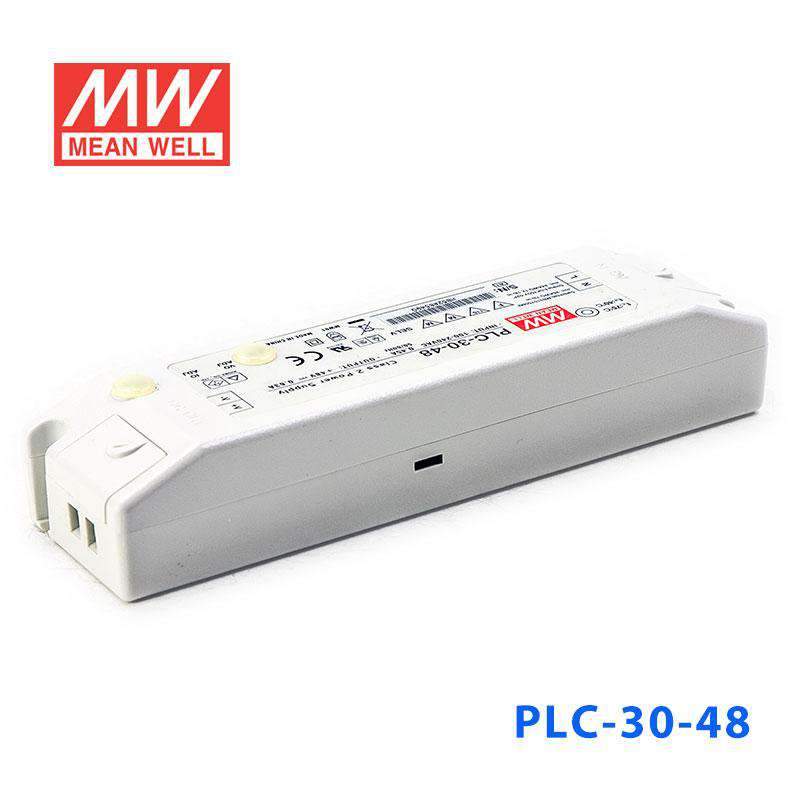

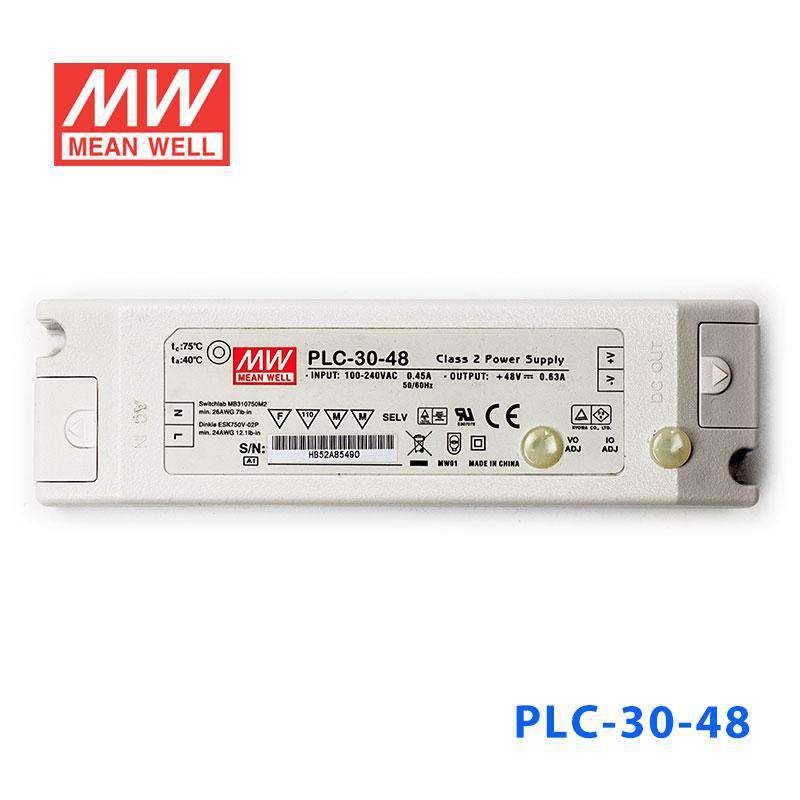

Mean Well PLC-30-48 Power Supply 30W 48V - PFC 630mA
Overview
PLC-30-48 is the 48V output model of this series: rated current 0.63A, rated power 30.24W, typical efficiency 85.5%.
Features
- Universal AC input / Full range
- Adjustable output voltage and current level
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Fully isolated plastic case with terminal block style of I/O
- Built-in active PFC function, comply with BS EN/EN61000-3-2 class C (Pin≧25W)
- Class Ⅱ power unit, no FG
- Class 2 power unit
- 100% full load burn-in test
- High reliability
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- CONSTANT CURRENT REGIONNote.6
- 33.6 ~ 48V
- RATED CURRENT
- 0.63A
- CURRENT RANGE
- 0 ~ 0.63A
- RATED POWER
- 30.24W
- RIPPLE & NOISE (max.)Note.2
- 3.7Vp-p
- VOLTAGE ADJ. RANGENote.5
- 45.6 ~ 52.8V
- CURRENT ADJ. RANGENote.5
- 0.473 ~ 0.649A
- VOLTAGE TOLERANCENote.3
- ±10%
- LINE REGULATION
- ±3.0%
- LOAD REGULATION
- ±5.0%
- SETUP TIME
- 500ms / 230VAC 3000ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)

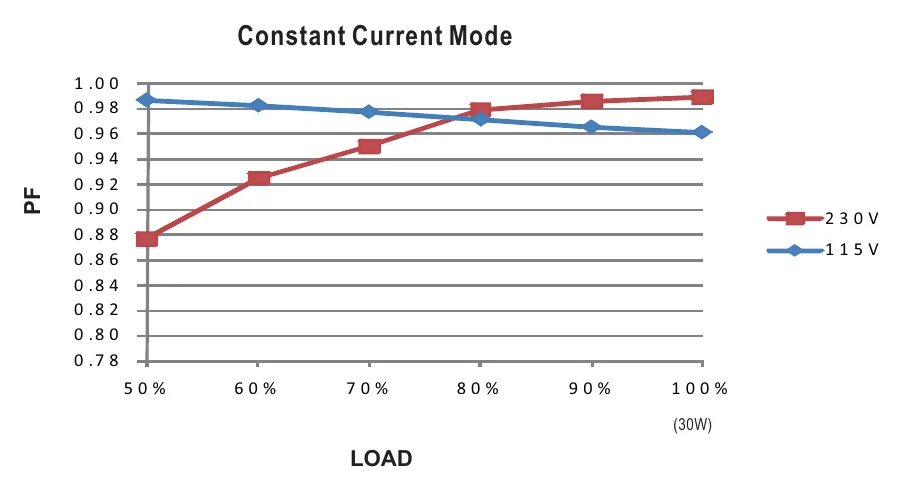

- PF>0.95/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧70% at 115VAC/230VAC input

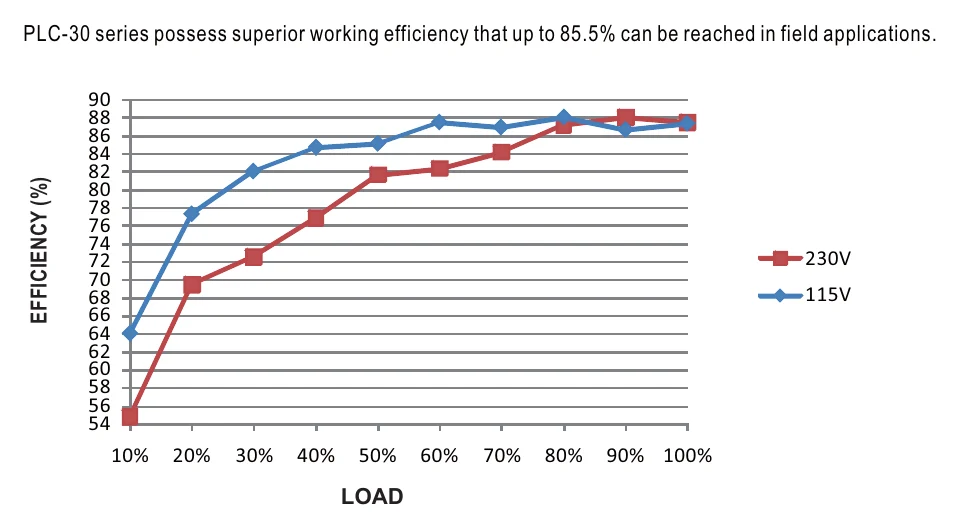

- EFFICIENCY (Typ.)
- 85.5%
- AC CURRENT (Typ.)
- 0.4A/115VAC 0.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- OVER CURRENT
- 100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- 53 ~ 63V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

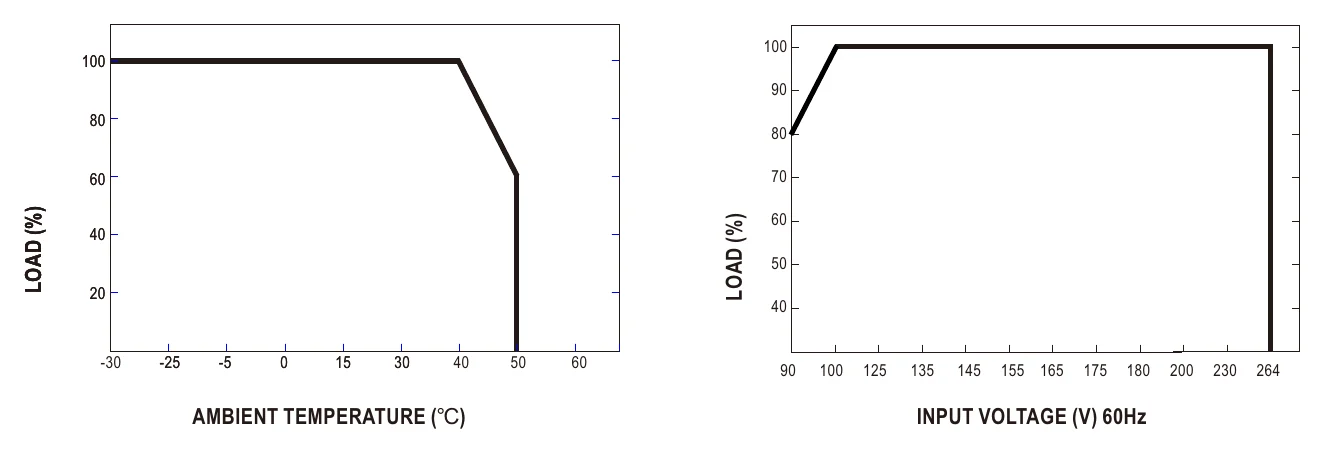

- -30 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (Pin≧25W), Class D (>70% load) ; BS EN/EN61000-3-3,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 4293.1K hrs min. Telcordia SR-332 (Bellcore) 625.5Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 160*46*30mm (L*W*H)
- PACKING
- 0.2Kg; 70pcs/15Kg/0.96CUFT
Certifications & ratings
- Marked features
- FC
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. Output voltage can be adjusted through the SVR1 on the PCB; limit of output constant current level can be adjusted through the SVR2 on the PCB.
- 6. Please refer to "DRIVING METHODS OF LED MODULE".
- 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. PLC-30-9 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
- 12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)

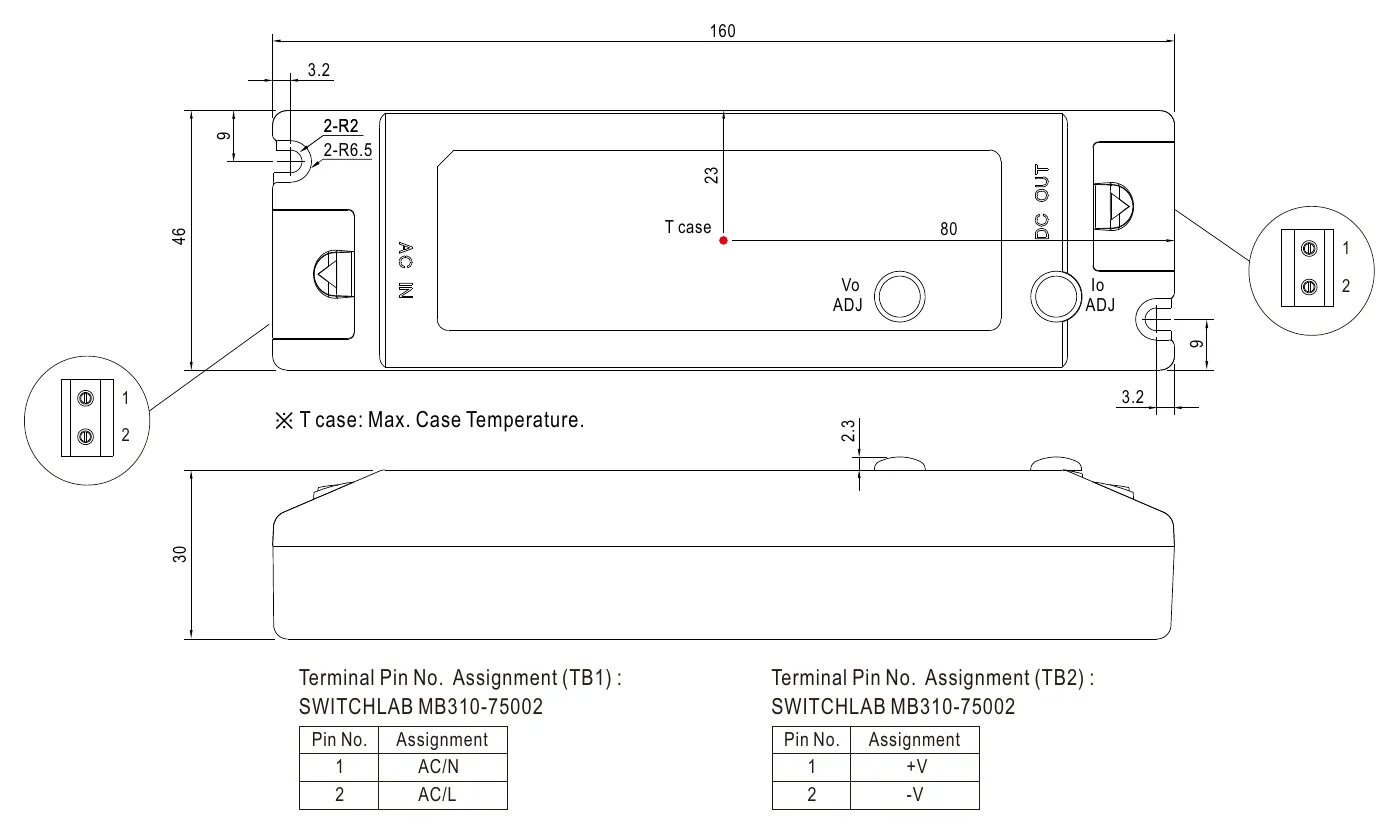

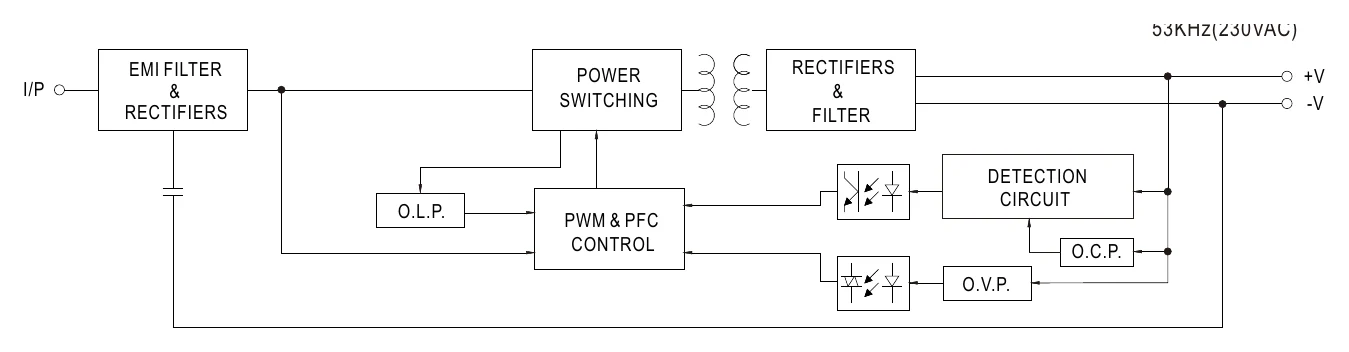

Technical drawings
Typical applications
- Suitable for LED lighting and moving sign applications (Note.2)
- Compliance to worldwide safety regulations for lighting
- 2 years warranty
Downloads
Certificates6
Catalogues1
FAQ
What output does the Mean Well PLC-30-48 provide?
The PLC-30-48 is a 30.24W power supply with a 48V DC output and a rated current of 0.63A. This model also includes constant current limiting in C.V.+C.C. mode, which can help in applications that need controlled output behavior.
Is the PLC-30-48 suitable for LED driver applications?
Yes. This model is positioned for LED driver use and combines constant voltage output with built-in constant current limiting. That makes it relevant for 48V LED power applications where buyers want a dedicated LED-focused power supply rather than a generic supply.
Does the PLC-30-48 support dimming control?
No. The spec sheet does not list a dimming function for the PLC-30-48. Its output voltage is set with SVR1 and its constant-current limit with SVR2 on the PCB, so choose a dimmable driver if your project needs dimming.
What makes the PLC-30-48 different from basic non-PFC power supplies?
The PLC-30-48 includes PFC, with a typical power factor of PF>0.95 at 115VAC and PF>0.9 at 230VAC at full load. It is also specified at 85.5% typical efficiency, which helps distinguish it from simpler low-power supplies that do not include power factor correction.
What operating environment is this model rated for?
The PLC-30-48 is rated for ambient temperatures from -30°C to 50°C (refer to the derating curve) at 20-95% RH non-condensing, so buyers should match it to applications that stay within that temperature range.
What protection and warranty coverage does the PLC-30-48 include?
This model includes short circuit, over current, over voltage, and over temperature protection. The datasheet does not state a warranty term; it specifies an MTBF of 625.5K hrs min. (MIL-HDBK-217F, 25°C), useful for comparing lifecycle risk across 48V power supplies.
